Ducasa 720 Installation Manual

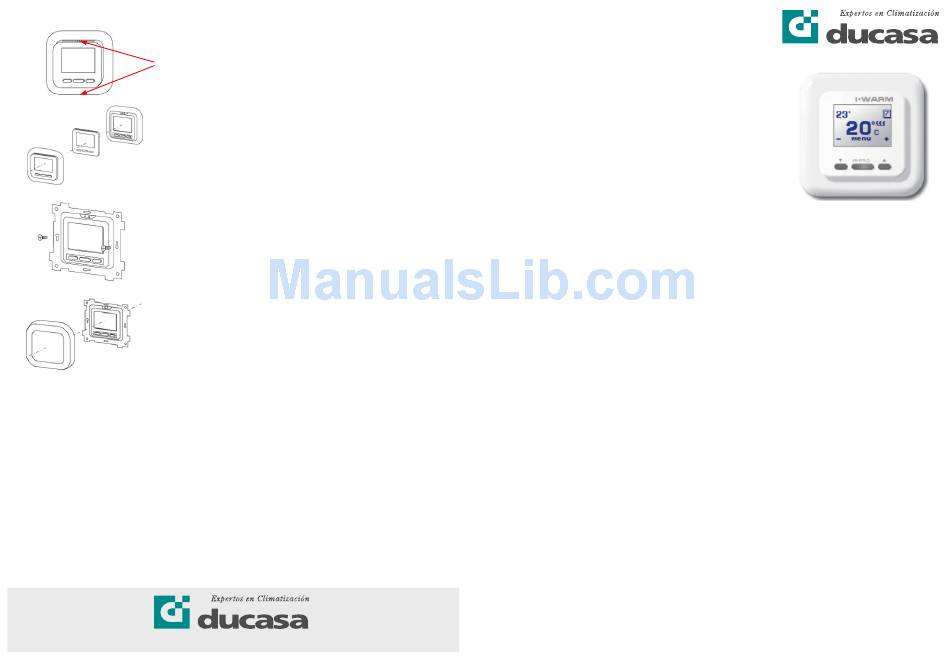

Installation of the thermostat
First of all disassemble the thermostat. Take off the front cover, using a thin screwdriver, carefully
press in the locks located on the upper and lower sides of the front cover pulling it out slightly.
Remove the cover. Remove the frame.
Place the device into the junction box and fasten it by means of at least two screws (preferably
located at the same horizontal level).
Assemble the thermostat acting in reverse order. Install the frame carefully ensuring that it
closely fits to the device's case. Then return the front cover to its place and press it ensuring
that both locks are fixed. Make sure that the front cover is properly affixed.
Technical specification
Supply voltage ................................................................................. 240/120 V AC , 50/60 Hz
Maximum load current ...................................................................... 16 А
Consuming power ............................................................................ 0,45W
Weight ............................................................................................. 150 g
Dimensions ....................................................................................... 80 × 80 × 52 mm
Time of setting storage when supply is disconnected ....................... 12 Month
Ingress Protection ............................................................................. IP20
Floor mounting temperature sensor ................................................... NTC 6,8 kΩ
Length of sensor connection cable .................................................... 2 m
Allowable ambient air temperature ................................................... +5 bis +40 °C
Allowable relative air humidity ........................................................... 80%
Maintaining temperature range ........................................................ +5 bis +45
Factory preset .................................................................................. +25
If you have questions, please contact:
Ducasa Clima
C/. Venezuela, 33
08019 Barcelona
Spain
°
С
°
С
Tel.: +34 93 247 86 30
Fax.: +34 93 245 57 81
info@ducasa.com
www.ducasa.com
8
Programmable Thermostat
720
Table of content

Important information for safe usage ...................................................... 1

Introduction .............................................................................................. 1

Function .................................................................................................. 2
Controls And Display ............................................................................... 2
Start-Up Of The Thermostat ......................................................................... 2
Menu Structure Of The Thermostat ............................................................ 2
Basic Settings ......................................................................................... 3
Set The Language .................................................................................... 3
Set The Date And The Time ........................................................................ 3
Daily Program ......................................................................................... 4
Setting The Daily Program ......................................................................... 4
Weekly Program ..................................................................................... 5
Setting The Weekly Program .................................................................... 5
Control Of The Heating System Operating Conditions ................................. 6
Setting of the common parameters of the thermostat ............................. 6
Output Of Energy Saving Statistics Data ................................................... 6
Warranty ................................................................................................. 7
720 installation manual ........................................................................... 7
Tools And Materials Required For Thermostat Installation .......................... 7
Installation Of Floor-Mounting Temperature Sensors ................................. 7
Thermostat Installation.............................................................................. 7
Preparation Of Electrical Connections ...................................................... 7
Connection Diagram ................................................................................ 7
Installation des Thermostats ..................................................................... 8
Technical specification ............................................................................. 8
Important information for safe usage
Thermostat:
Manufacturer's guarantee does not cover malfunctions caused by mechanical damage, improper installation,
or exploitation for purposes, or under conditions, not provided by the User- and Installation Manual. Please keep in mind that the Installation
Manual and the Connection Diagram are no replacement for the professional skill of the device installer.
We recommend that you apply for professional service for the thermostat and heating system installation. Only qualified electricians should
perform the connections and power networking of the device. Switch off power before connecting wiring to the thermostat or disconnecting the
device for testing .
Start-up:
Don't turn the newly built heating system on before the tile fixing mixture or cement -sand mortar layer are hardened. You can get the different
hardening times from the manufacturer of your chosen building material. Turning on the heating system prematurely can lead to damage of the
floor decorative cover and heating mats, or sections outage. In case of doubt contact your dealer or heating system manufacturer.
Introduction
Thank you for choosing the 720 thermostat, the new intelligent heating control system. With this product you will see how easy it is to maintain
your comfort at a lower cost; it will take care of keeping your home warm and cozy all the time. Designed with innovation and inspiration, the new
thermostat is highly reliable, and easy to set and use.
Separate settings can be programmed for different times of the day, whether or in or out. This unit allows programming in half hour time periods
over a seven day period providing maximum operating choice.
Before you start the installation, please read this manual carefully!
1
