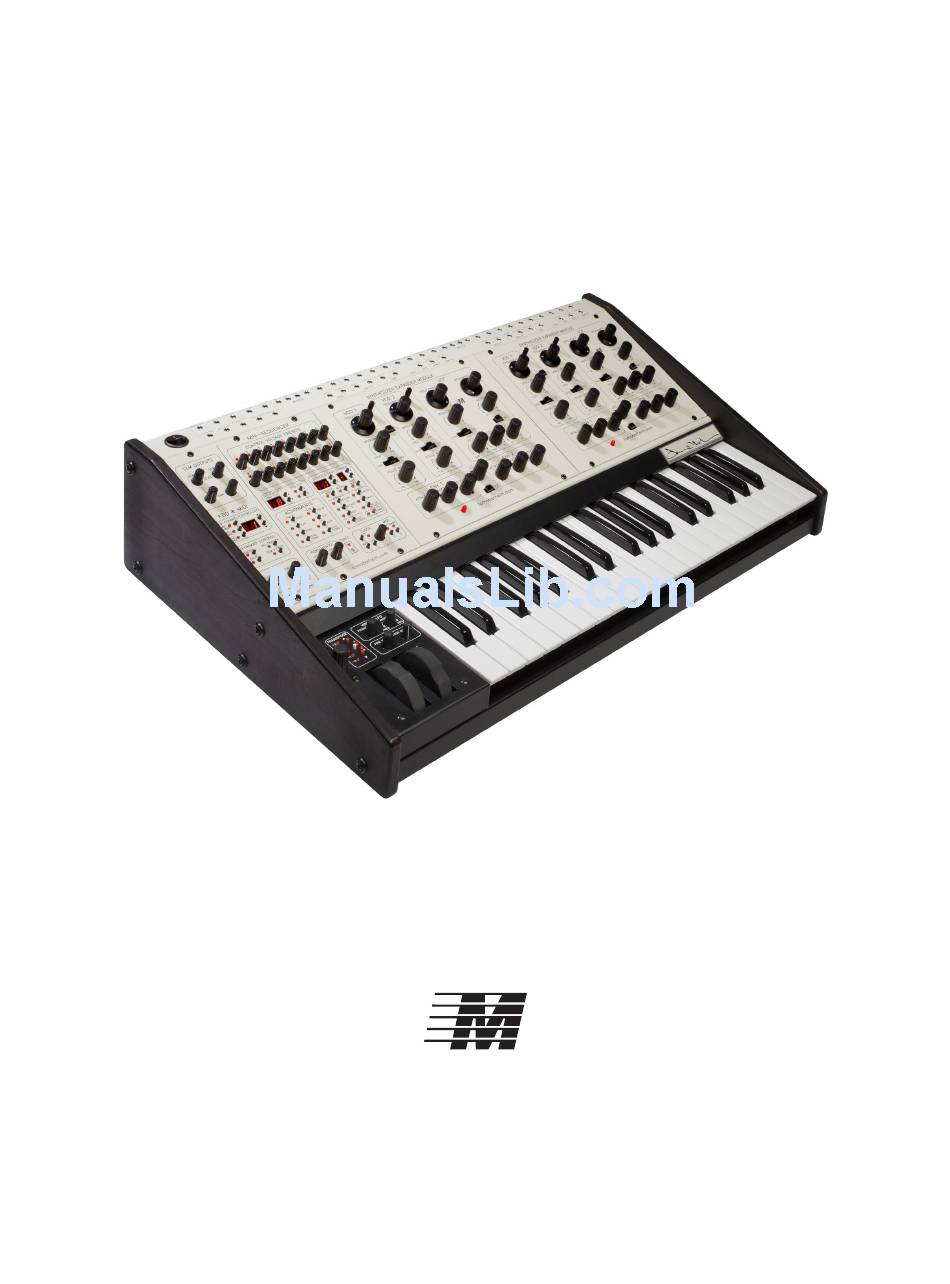

- Page 1 TWO-VOICE PRO Quickstart Guide Version 1.0 October 2015 MARION SYSTEMS CORPORATION 1480 Moraga Road Suite i-394 Moraga, CA 94556 Two-Voice Pro QuickStart Guide...
- Page 2 • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. tom@tomoberheim.com For Technical Support, email: Marion Systems...
-
Page 3: Table Of Contents
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Two-Voice Pro QuickStart Guide... -
Page 4: True Analog Lives
16 steps per sequence. Once you have created a two-voice sequence, the knob settings can then be stored in flash memory. Up to 50 two-voice polyphonic sequences can be stored. True Analog Lives! Marion Systems... -
Page 5: Audio
• VCO2 detune allows just the VCO2 in both SEMs to be detuned In addition, the pitch bend amount can be set between 0 and 12 half steps using the Bend Range control located in the keyboard control panel. Two-Voice Pro QuickStart Guide Audio... -
Page 6: Midi
The TVS-PRO recognizes the following MIDI commands: • Note ON • Note OFF • Pitchbend (range can be set on the TVS-PRO) • Transpose (from an external keyboard) • Mod Wheel (modified by Bendbox AMOUNT pot) • Aftertouch (modified by Bendbox AMOUNT pot) MIDI Marion Systems... -
Page 7: Midi Out
• The TVS-PRO’s keyboard. • The mini-sequencer. (MIDI OUT information is active whenever the mini-sequencer is playing.) In order to enable MIDI OUT from the TVS-PRO keyboard, you must turn on RE-TRIGGER in the Keyboard Control section. Two-Voice Pro QuickStart Guide MIDI... -
Page 8: Velocity Control
• Likewise, when the VCF modulation switch is set to ENV2, that envelope directly modulates the VCF. • When the switch is in the EXT position, the amount of ENV2 that modulates the VCF is controlled by velocity summed with aftertouch. Velocity Control Marion Systems... -
Page 9: Patch Panel
ENV 2 The patch panel Even if you just use the patch panel to make connections within the Two-Voice Pro itself you can create many inter- esting sounds. You won’t break anything by making “wrong” connections here, so experiment! Here are a few suggestions for patch connections: •... -
Page 10: Getting Started
3. Audio Outputs— within the stereo field. Unbalanced, ¼ inch audio inputs. The Two-Voice Pro accepts external audio signals for 4. External Audio In— processing through these connectors. Input A1 in is routed to SEM A. Input B1 in is routed to SEM B. Input level can be adjusted using the knob in the VCF section of the SEMs. -
Page 11: Basic Operation
The maximum amount of velocity is controlled by the VELOCITY control in the keyboard control section. The maximum amount of aftertouch is controlled by the Amount control on the Bendbox. The two SEMs are described as “SEM A” for the left SEM and “SEM B” for the right SEM. Two-Voice Pro QuickStart Guide Basic Operation... -
Page 12: Tuning The Vcos
SEM B. There are four sub-modes within the Unison or Split modes: • Unison/Split “Legato” • Unison/Split “Retrigger” • Unison/Split “Play on Release, Legato” • Unison/Split “Play on Release, Retrigger” Tuning the VCOs Marion Systems... -
Page 13: To Use Unison/Split "Legato
SEM B by replacing the previous note as long the first note is not released. If the note playing SEM B is kept pressed, all other notes will play the SEM A by replacing the previous note. To enable this mode: • Press “SEM A first” - the LED must be ON continuously. Two-Voice Pro QuickStart Guide Keyboard Modes... -
Page 14: Mini-Sequencer
MIDI device. MIDI Start/Stop control its speed, messages from the external MIDI device or advance backward and forward will then start or stop sequence playback. step by step when the sequence is stopped The Mini-Sequencer Mini-Sequencer Marion Systems... -
Page 15: Playing Sequences
• RATCHET 4 (by selecting both of the above simultaneously) • REST The above editable parameters can be separately selected for each step in a sequence. In addition, the GATE LENGTH can be selected but only for the complete sequence. Two-Voice Pro QuickStart Guide Mini-Sequencer... -
Page 16: Song Mode
• “SHIFT” + “STORE” – allows erasure of sequences or songs. • “SHIFT” + “MIDI CLK” – allows adjustment of the MIDI clock divider. • “SHIFT” + “RUN” – sets the mode to “keyboard triggers start of sequence.” Song Mode Marion Systems... -
Page 17: Customizing Power-On Default Settings
• Press “STORE.” “PA” will begin flashing in the LED display. • Press “STORE” again. The settings are now stored. Now, whenever you power up the TVS-PRO, it will default to the settings you have chosen. Two-Voice Pro QuickStart Guide Customizing Power-On Default Settings... -
Page 18: Warranty Information
• The date and location where you purchased the product If it is determined that the unit needs to be returned to Marion Systems Corporation, the return cost is the responsibility of the owner. The return of the unit to the owner will be covered by Marion Systems. - Page 19 Two-Voice Pro QuickStart Guide Warranty Information...
- Page 20 Warranty Information Marion Systems...
