Summary of Contents for Array Telepresence equal-i

  • Page 1: Installation Guide

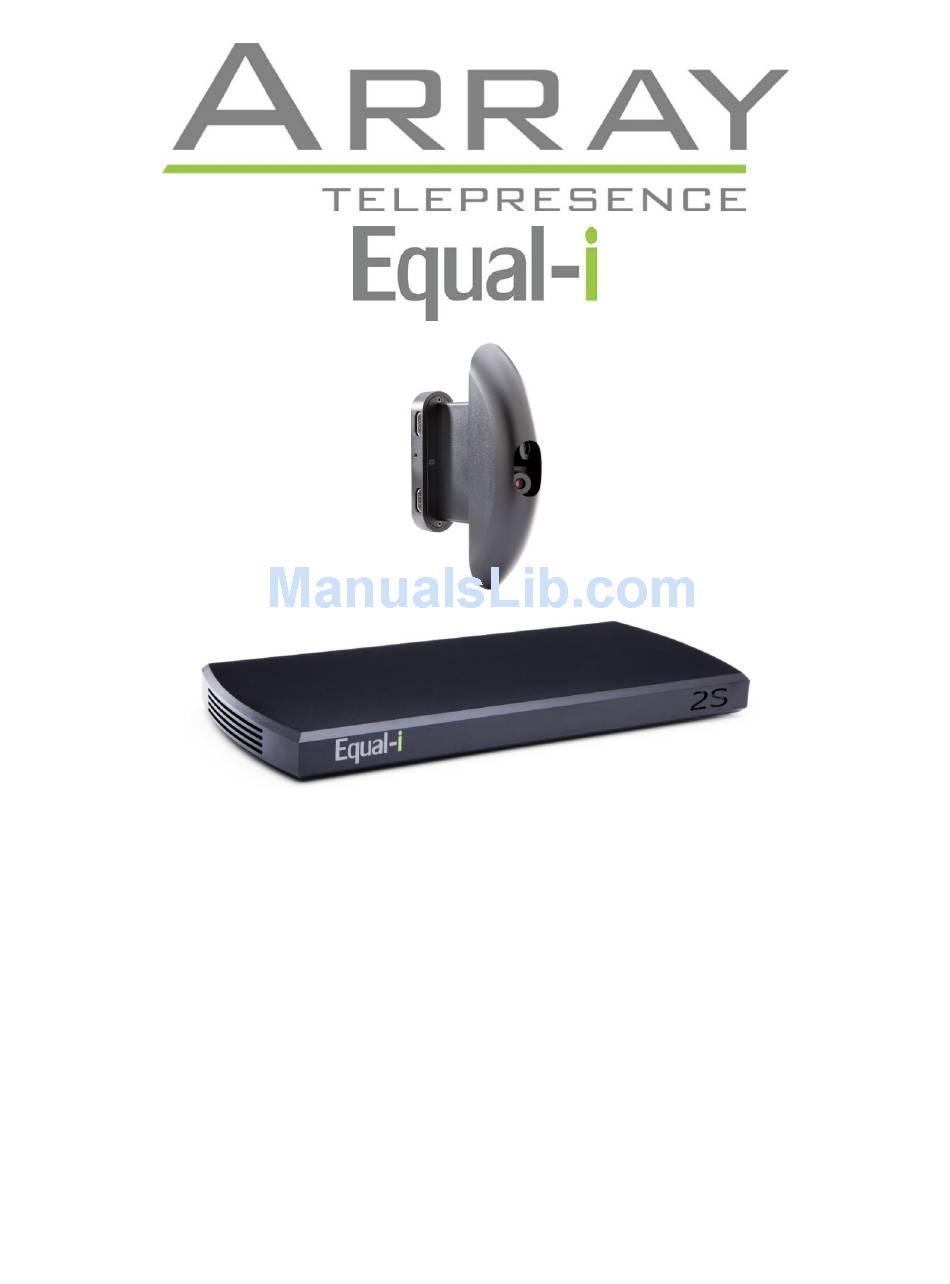

    DX Dual Camera Module and Equal-i 2S Image Processor Installation Guide Rev. 1.20 – September 2016...
  • Page 2 9480 Meridian Way West Chester, OH 45069 This document and the Array Telepresence products to which it relates, and the copyright in each, is the property of Array Telepresence. Neither the document nor the products may be reproduced by any means, in whole or in part, without the prior written permission of Array Telepresence.

  • Page 3: Table Of Contents

    General Precautions ......................4 Support ............................4 Product Overview ........................... 5 Equal-i 2S Image Processor Specifications (Model # AE2S-P01) ..........6 Equal-i 2S Image Processor Parts List ..................7 Equal-i 2S Image Processor Front View ..................7 Equal-i 2S Image Processor Rear View ..................7 DX Dual Camera Module Specifications (Model # AEDX-P10 / AEDX-P11) .......
  • Page 4 Remote Site: Single display with single camera or multipoint bridge ......... 25 13.3 Remote Site: Dual display with single camera ................25 13.4 Remote Site: Equal-i equipped dual display with dual camera ........... 25 14. Appendix B – Telnet Commands ......................27 14.1 Overview ............................. 27 14.2...
  • Page 5 Rev 1.20 – September 2016 14.5.1 FWVER – System Firmware Version .................. 32 14.5.2 FPGAVER – FPGA Firmware Version ................33 14.5.3 LANMAC – Ethernet MAC address ..................33 14.6 Action Commands ........................33 14.6.1 BALL – White Balance of left-side image ................33 14.6.2 BALMATCH –...

  • Page 6: About This Manual

    DX Dual Camera Module (Model # AEDX-P10 or AEDX-P11) This guide describes how to install the Equal-i 2S Image Processor and DX Dual Camera Module. It is intended for Pro AV and system integration technicians who have some previous training with Equal-i products.

  • Page 7: Product Overview

    The DX Camera Module is mounted between dual displays at eye level with only a 4mm separation. The Equal-i 2S Image Processor is installed between the DX Camera Module and a videoconferencing codec, running Array’s proprietary image enhancement algorithms on custom hardware to dramatically improve the scene.

  • Page 8: Equal-I 2S Image Processor Specifications (Model # Ae2S-P01)

    Rev 1.20 – September 2016 Dramatically Improves User Experience in all Videoconferencing Rooms Equal-i creates an amazing telepresence environment with the feel of an “across the table” meeting when deployed at both ends of the call. When connecting with a traditional videoconferencing system, Equal-i still affords significant benefits by enhancing the image that is sent to their room.

  • Page 9: Equal-I 2S Image Processor Parts List

    Rev 1.20 – September 2016 Equal-i 2S Image Processor Parts List The following table describes the Equal-i 2S Image Processor package Table 3: Equal-i 2S Image Processor Parts List Part Number Description AE2S-P01 Equal-i 2S Image Processor AEXX-PPA1 Equal-i Power Adapter...

  • Page 10: Dx Dual Camera Module Specifications (Model # Aedx-P10 / Aedx-P11)

     Micro positioning mechanics  Digital X-Y positioning for final camera alignment Electrical 4Vdc from Equal-i 2S Image Processor Mechanical Universal articulating arm mounted to the rear of the display. 2” space required behind display. Environmental Operating temperature: 0° – 35° C...

  • Page 11: Dx Dual Camera Module Parts List

    Rev 1.20 – September 2016 DX Dual Camera Module Parts List The following table describes the DX Dual Camera Module package Table 5: DX Dual Camera Module Parts List Part Number Description AEDX-P10 / DX Dual Camera Module w/ Mount AEDX-P11 AEXX-HSI2 Two (2) High Speed Camera Cables...

  • Page 12: Recommended Room Setup

    Rev 1.20 – September 2016 3. Recommended Room Setup The Equal-i Image Processor has been designed to fit any room with any table. With that in mind, the manufacturer has several recommended designs for conference room configuration. Though recommended, they are not required.

  • Page 13: Recommended Codecs

    25/30fps. Listed below are codecs that have been tested by Array Telepresence to meet this requirement: Cisco Note: Due to the placement of the IR receiver in the Cisco camera, the Equal-i system will necessitate the deployment of an IR repeater or Touch Panel for codec control. ...

  • Page 14: Initial Setup

    Initial setup is defined as the setup of the Image Processor, connecting the Image Processor to the network, installation of the Equal-i Control App, mounting and alignment of the camera. Follow the steps below, in order, to complete initial setup. Note that not all steps are permanent for final integration, however are necessary for alignment of the fixed cameras.

  • Page 15: Windows Equal-I Control App Download

    In order for the Image Processor to be automatically displayed in the list, it MUST exist on the same network to which the Equal-i Control App is connected. If it is not on same network/subnetwork as the Windows PC, you can manually add the IP Address of the Image Processor.

  • Page 16: Manual Network Configuration

    6.2.4 Manual Network Configuration In the event that the Equal-i Control App is unable to connect to the Image Processor through the company network, you can connect directly to it with a laptop. Follow the below steps to connect with a Windows-based computer and alter the network settings: 1.
  • Page 17 Rev 1.20 – September 2016 Write value :LANIPADDR= <new value> <cr>  :LANIPMASK=<Subnet Mask Value> This command sets the IP address mask of the wired Ethernet port on the Image Processor. The IP mask must be an IPv4 mask formatted in the xxx.xxx.xxx.xxx format.

  • Page 18: Dx Dual Camera Module

    Processor within the Conference Room selector. DX Dual Camera Module Once the Equal-i Image Processor has been configured and accessible on the network, take the following steps to install the DX Dual Camera Module WARNING: Be sure that the Image Processor is unplugged when connecting/disconnecting camera cables 1.
  • Page 19 Note: The optional Wall Mount Bracket (P/N: AEXX-PWK1) is included with the Equal-i Image Processor to allow for mounting directly to the wall behind the display or to the display mount mechanicals.

  • Page 20: Final Configuration

    Once the Image Processor has been connected to the codec and powered back on, use the Equal-i Control App to perform digital alignment (if necessary) from the Settings menu. Reference section 7.3.2 in this Guide for further instruction. Be aware that the Horizontal and Vertical pan settings within the app will only apply to the current framing mode.

  • Page 21: Equal-I Control App

    The Equal-i Control App allows installers/integrators to setup/tune the camera and network settings. It also allows end users to be able to put the Equal-i System into and out of Sleep mode, alter the framing of the images that are sent to the remote site, and alter the framing of the images that are received from the remote site.

  • Page 22: User Interface

    9. Configure the Image Processor to access the local network through the LAN tabs. Be sure to click Save when complete. Doing so writes the set values into memory. 10. Reset the Equal-i Image Processor to make network changes go into effect. To do so, click on the Menu ( ) icon at the top left of the app home screen and choose Reboot.

  • Page 23: Camera Settings

    9.3.2 Camera Settings Available within the Settings Menu of the Equal-i Control App. Changes to these values will go into effect immediately, however you must tap the Save button in order for these values to remain after the Image Processor has been rebooted.

  • Page 24: Troubleshooting

    3. Verify that the Equal-i system is ON via the Android/Crestron/Windows Control Application 4. If you are able to access the Equal-i Image Processor, listen for the fans inside the unit. If you hear the fans then the unit is powered on and should be outputting an image. If you do not hear the fans then the unit is powered off.

  • Page 25: Equal-I Control Application Does Not Detect Image Processor

    10.6 No audio through HDMI/Display The Equal-i Image Processor is unable to pass audio through the HDMI. To resolve this, you will need to pass audio out of the separate audio channel on your codec to the display audio input or a separate speaker system.

  • Page 26: Manufacturer Contact Information

    Rev 1.20 – September 2016 Manufacturer Contact Information Array Telepresence 9480 Meridian Way West Chester, Ohio 45069 800-779-7480 www.arraytelepresence.com 24 | P a g e...

  • Page 27: Appendix A - Recommended Framing Modes

    :OPMODEFE=1 Video+Content :OPMODEFE=2 Stack :OPMODEFE=3 Immersive Everywhere :OPMODEFE=4 Note: Stack Mode has been retired from the Equal-i Control Applications, though it is still an option in the Local Framing Modes: Passthrough :OPMODEBE=1 Immersive Mode Receive :OPMODEBE=2 Immersive PTZ :OPMODEBE=3 13.1 Remote Site: Multipoint, Bridge, VMR Local Framing Modes: ...
  • Page 28 Rev 1.20 – September 2016 Remote Framing Modes:  Immersive Mode - Left display shows left half equalized video + Right display shows right half equalized video  Letterbox - Left display shows letterbox equalized video + Right display shows content 26 | P a g e...

  • Page 29: Appendix B - Telnet Commands

    For more details, see the description of system communications. 14.2 Command Processing The Equal-i system processes one command at a time. Once a command message has been received, no further commands will be accepted until the command has been executed and a response has been sent.

  • Page 30: Read/Write Commands

    Rev 1.20 – September 2016 Commands that cannot be parsed correctly, have a parameter error, or fail on execution respond with ‘ERR –‘, followed by a short description of the error type. Example: ERR – Unknown Command. Responses from the Image Processor will be terminated with an ASCII carriage return and linefeed (decimal 13 and decimal 10).

  • Page 31: Balboxpos - Balance Box Position

    Write value :OPMODEFE= <new value> <cr> :OPMODEFE=1 - This is used to transmit a dual screen image to an Equal-i processor on the remote end. Used for Immersive mode. :OPMODEFE=2 - This is used to transmit a “Video+Content” single screen image to an Equal-i processor on the remote end’s left side or to a single screen PTZ system.

  • Page 32: Opmodebe - Back-End Operating Mode

    Rev 1.20 – September 2016 :OPMODEFE=3 - This is used to transmit a stacked dual screen image to an Equal-i processor on the remote end’s left side or to a single screen PTZ system. Note: This mode has been retired for use within the Windows and Android apps, but can still be called through a telnet session or custom API.

  • Page 33: Lanipaddr - Lan Ip Address

    Rev 1.20 – September 2016 14.4.12 LANIPADDR – LAN IP Address This command sets the IP address of the wired Ethernet port on the Image Processor. The IP address must be an IPv4 address formatted in the xxx.xxx.xxx.xxx format. A valid IP address must be specified. The new IP address will not have any effect on the current session’s LAN configuration.

  • Page 34: Devname - Set Unit Name

    Sets a user-defined device identifier. The identifier string is 1-18 characters long and must contain only alphanumeric characters with no spaces. The device name will appear in the Equal-i Control App in the Conference Room section. In order for the change to take effect two things must occur: 1) the user configuration must be saved with the :SAVEPARAM! command, and 2) the Image Processor must be rebooted manually or with the :RESET! command.

  • Page 35: Fpgaver - Fpga Firmware Version

    Rev 1.20 – September 2016 14.5.2 FPGAVER – FPGA Firmware Version This command returns the FPGA firmware version specified in the command line. The Image Processor has three FPGAs identified as FPGA #1, FPGA #2 and FPGA #3. Specify the number of the FPGA you would like to the read version information on the command line.

  • Page 36: Saveparam - Save System Settings

    LOADFLAN – Load Factory LAN This command causes the wired Ethernet port configuration to revert to factory default values. After this command is executed, the change will not take effect until the next time power is cycled on the Equal-i unit.

  • Page 37: Appendix C - Recommended Room Configurations

    Rev 1.20 – September 2016 Appendix C – Recommended Room Configurations 35 | P a g e...
  • Page 38 Rev 1.20 – September 2016 36 | P a g e...
  • Page 39 Rev 1.20 – September 2016 37 | P a g e...
  • Page 40 Rev 1.20 – September 2016 38 | P a g e...
  • Page 41 Rev 1.20 – September 2016 39 | P a g e...
  • Page 42 Rev 1.20 – September 2016 40 | P a g e...
  • Page 43 Rev 1.20 – September 2016 41 | P a g e...
  • Page 44 Rev 1.20 – September 2016 42 | P a g e...
  • Page 45 Rev 1.20 – September 2016 43 | P a g e...
  • Page 46 Rev 1.20 – September 2016 44 | P a g e...
  • Page 47 Rev 1.20 – September 2016 45 | P a g e...
  • Page 48 Rev 1.20 – September 2016 46 | P a g e...
  • Page 49 Rev 1.20 – September 2016 47 | P a g e...
  • Page 50 Rev 1.20 – September 2016 48 | P a g e...
  • Page 51 Rev 1.20 – September 2016 49 | P a g e...
  • Page 52 Rev 1.20 – September 2016 50 | P a g e...
  • Page 53 Rev 1.20 – September 2016 51 | P a g e...
  • Page 54 Rev 1.20 – September 2016 52 | P a g e...
  • Page 55 Rev 1.20 – September 2016 53 | P a g e...
  • Page 56 Rev 1.20 – September 2016 54 | P a g e...
  • Page 57 Rev 1.20 – September 2016 55 | P a g e...
  • Page 58 Rev 1.20 – September 2016 56 | P a g e...
  • Page 59 Rev 1.20 – September 2016 57 | P a g e...

  • Page 60: Appendix D - Installation Certification Site Survey

    Rev 1.20 – September 2016 Appendix D – Installation Certification Site Survey 58 | P a g e...

  • Page 61: Appendix E - Cabling Diagrams

    Rev 1.20 – September 2016 Appendix E – Cabling Diagrams 59 | P a g e...
  • Page 62 Rev 1.20 – September 2016 60 | P a g e...
  • Page 63 Rev 1.20 – September 2016 61 | P a g e...
  • Page 64 Rev 1.20 – September 2016 62 | P a g e...
  • Page 65 Array Telepresence and the Array Telepresence Logo are trademarks of Array Telepresence, Inc. and/ or its affiliates in the U.S. and other countries. A listing of Array Telepresence’s trademarks can be found at www.brandfolder/array. Any third party trademarks mentioned are the property of their respective owners.
