Summary of Contents for Aquavibe MD-50BB

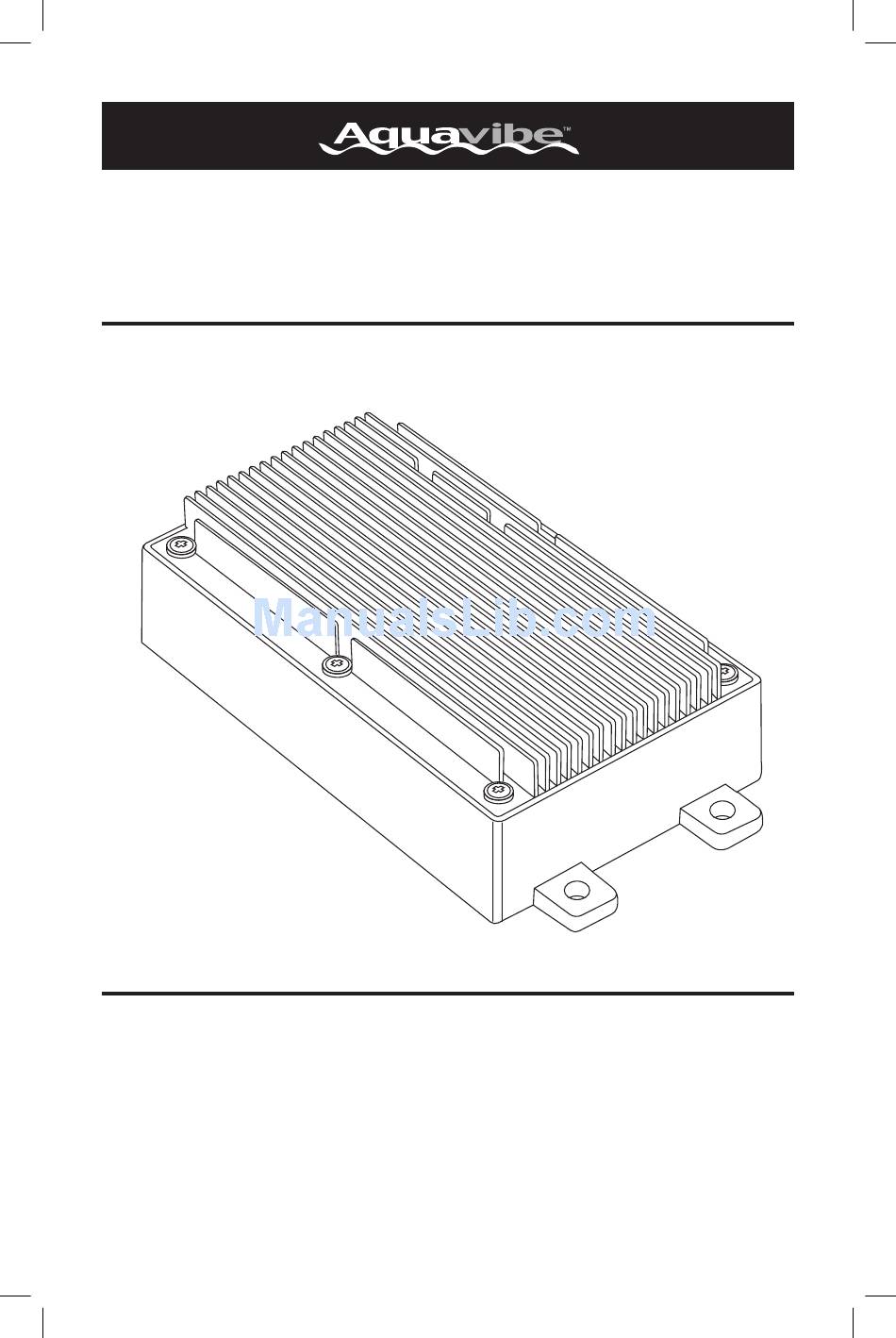

- Page 1 Operation / Installation Manual Bluetooth AM/FM Blackbox Entertainment Center MD-50BB...
-
Page 2: Table Of Contents
Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new Entertainment Center. WARNING! • FCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY VOID THE USER’S AUTHORITY TO OPERATE IT. -
Page 3: Button Locations And Functions
Bluetooth Mode: Press to select the next or Pairing the Wireless Remote Controller: previous tracks. 1. To pair the wireless remote with the MD-50BB 8. Play/Pause Button ( press the button on the remote. “NO LINK” Radio Mode: Short press to mute the audio. -
Page 4: General Operation
General Operations Power On: Press the button to turn the unit on. Power Off: WELCOME Wireless Remote: Press the button to turn the unit off. Wired Remote: Press and hold the button for 2 seconds to turn the unit off. MODE Mute: MUTE... -
Page 5: Sound Controls
Sound Controls Volume: Increase the volume by pressing the button. Decrease the volume by pressing the button. VOL 15 MODE Bass, Treble, Balance, Fader, DSP, Boost and Volume Select the desired sound mode by pressing the SEL button. The modes will be displayed in the following order: Bass, Treble, Balance, Fader, DSP, Boost and Volume. - Page 6 Sound Controls (continued) Balance: Press the SEL button until “BAL” BAL 3L (Balance) appears in the display. Immediately use the to adjust to desired speaker balance - 10L to 0 to 10R. 0 is middle balanced between the Left and Right speakers. MODE Fader: Press the SEL button until “FAD”...
-
Page 7: Radio Area / Stereo / Mono Settings
Area and Stereo/Mono Selection AREA: To select a radio area location, press and hold the SEL AREA USA1 button until an “AREA” location appears in the display. Immediately use the buttons to select between “AREA USA1”, “AREA USA2” or “AREA EUR”. MODE STEREO / MONO: To select “STEREO”... -
Page 8: Radio Operations
Radio Operations Selecting the Radio Play Source: Press the MODE button until “RADIO” appears in the display. RADIO MODE Selecting FM or AM: Press the MODE button to select from FM or AM. FM 88.10 Note: If you are in “BT AUDIO” mode, press the MODE button to switch to “RADIO”. -
Page 9: Bluetooth Operations
Bluetooth Operations Pairing Bluetooth Devices: 1. With the MD-50BB powered, activate Bluetooth from your mobile device and select “AquaVibe-MD-50BB” BT AUDIO which will if range automatically appear in your devices list of Bluetooth devices. 2. When the mobile device has been paired and an audio application is active on your mobile device, audio can be heard through the speakers. -
Page 10: Installation
Installation 1. Use the unit to determine the best mount- 2. Drill pilot holes for the screws. ing location and to mark screw holes. 3. Mount the entertainment center using the Note: The mounting location provided screws. Make sure to tighten the needs to be a flat surface. -
Page 11: Wiring
Wiring White/Black Wire Gray/Black Wire Left Right Front Front Speaker Speaker White Wire Gray Wire (Front) External Automotive Type Antenna (Optional) MENU MODE Wiring Harness 10 Amp Model: SPA-HAR Fuse (Sold Separately) (+) to 12 Volt Battery Red Wire Black Wire Ground Blue Wire Trigger for Amp (+12VDC output) Violet/Black Wire Left... - Page 12 Defective merchandise should be returned to the original point of purchase or secondly, to Magnadyne Corporation, 1111 W. Victoria Street, Compton CA 90220. Return Authorization must be obtained before sending, or merchandise may be refused. © Copyright 2015 MD-50BB-UM Magnadyne Corporation Rev. A 9-23-15...
