Page 1: Quick Start Guide
Windows CE .NET 4.2 Quick Start Guide May 27, 2004 P/N 8000022.A ISO 9001 Certified Quality Management System... - Page 2 Psion Teklogix manufactured goods and services. Furthermore, this docu- ment is not to be used as a basis for design, manufacture, or sub-contract, or in any manner detrimental to the interests of Psion Teklogix Inc. All trademarks are the property of their respective holders.
- Page 3 Return-To-Factory Warranty Psion Teklogix warrants a return-to-factory warranty for a period of one year. In some regions, the warranty exceeds this period. Please contact your local Psion Teklogix office for details. For a list of offices, see “Worldwide Offices” on page 58. The warranty on Psion Teklogix manufactured equip-...
-
Page 5: Table Of Contents
2.7 Finding And Using The Stylus ....43 2.8 The Command Icons, Control Panel, And Toolbar . . . 44 Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 6 4.4 World Wide Web......60 Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 7: Program License Agreement
’s End User License Agreement You have acquired a device (“DEVICE”) that includes software licensed by Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (‘MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws... - Page 8 SOFT- WARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. For additional information see http:// www.microsoft.com/exporting/. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 9: Approvals And Safety Summary
13591 Aix-En-Provence Cedex 3; France Type of Equipment: Information Technology Equipment Equipment Class: Commercial and Light Industrial Manufacturer: Psion Teklogix Inc. Ontario Legal Representative in Europe: Psion Teklogix S.A. France Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 10: Ce Declaration Of Conformity
13591 Aix-En-Provence Cedex 3; France Type of Equipment: Information Technology Equipment Equipment Class: Commercial and Light Industrial Manufacturer: Psion Teklogix Inc. Ontario Legal Representative in Europe: Psion Teklogix S.A. France Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 11 2002 Standard(s) to which Conformity is Declared: The netpad and Serial Docking Station, supplied by Psion Teklogix, has been tested and found to comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADI- ATORS, CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE.
- Page 12 1999/5/CE do Parlamento Europeu e do Conselho (Directiva RTT). (Declaração disponível no endereço: www.psionteklogix.com). Ο εξοπλισµός αυτός πληροί τις βασικές απαιτήσεις της κοινοτικής οδηγίας EU R&TTE 1999/5/EΚ. (Η δήλωση συµµόρφωσης διατίθεται στη διεύθυνση: www.psionteklogix.com) Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 13 Owing to French Government restrictions, the French 802.11b netpad is limited to indoor use. They may be used outdoors, on private property, only with prior authorization from the French Ministry of Defense. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 14 • Consult an experienced radio/TV technician for help. For customers in the USA, the following booklet prepared by the Federal Communications Commission may be of help: “How to Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 15 (see page 24 for details). If you do not use a body-worn accessory, ensure the antenna is at least 1.5 cm from your body when transmitting. Use of non-approved accessories may violate FCC RF exposure guidelines. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 16 Psion Teklogix dealer. If the user modifies the equipment or its peripherals in any way, and these modifications are not approved by Psion Teklogix, the FCC may withdraw the user’s right to operate the equipment. Emissions Information For Canada This Class B digital apparatus meets all requirements of the Cana- dian Interference-Causing Equipment Regulations.
- Page 17 Do not store batteries at temperatures in excess of +60°C; the optimum storage temperature for maximum battery life is +10°C to +35°C. Important: It is critical that this safety information be reviewed and that all warnings be strictly followed. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 18 BATTERIES ARE CONSIDERED HAZARDOUS WASTE. Used batteries must be disposed of in accordance with the manufacturer’s instructions, taken to an appropriate local battery recycling facility, or returned to one of the following Psion Teklogix offices for proper disposal. Psion Teklogix Inc.
- Page 19 • Do not continue charging the battery if it does not recharge within the specified charge time. • The battery may burst or ignite if the battery leaks. Always ensure that it is away from any exposed flames. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 20 SAR (Specific Absorption Rate) Figure For GSM netpad 900/1800 MHz GSM/DCS Bands Average SAR over a 10 g cube: 0.814 W/kg. 1900 MHz PCS Band Average SAR over 1 g cube: 0.0985 W/kg. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 21: Introduction
• Wordpad, a word processor for writing letters and other documents. • Inbox, for sending and receiving e-mail. • Internet Explorer, for browsing the World Wide Web. • Calculator, a calculator with general features. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 22: About Activesync
Microsoft Active Sync or the netpad User Manual. 1.1.4 Additional Programs/Third Party Applications Psion Teklogix has partnered with a number of companies to provide a suite of connectivity and database tools for the netpad. Details are available on the Psion Teklogix Partner Program web site at: http://partners.psionteklogix.com/partners/. - Page 23 Some of your data can be protected from loss using the Total Recall application (see the netpad User Manual for details). Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 24 +60°C (-4°F to 140°F); and -20°C to +55°C (-4°F to 131°F) for scanner variants. Outside of these limits, the safety circuits of the netpad battery pack will not allow the battery to charge. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 25 Such exposure may cause loss of data or result in damage to the netpad. Service Do not attempt to dismantle the netpad. There are no user-servicea- ble parts inside, and any attempt to dismantle the netpad will invali- date the warranty. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 26: Getting Started

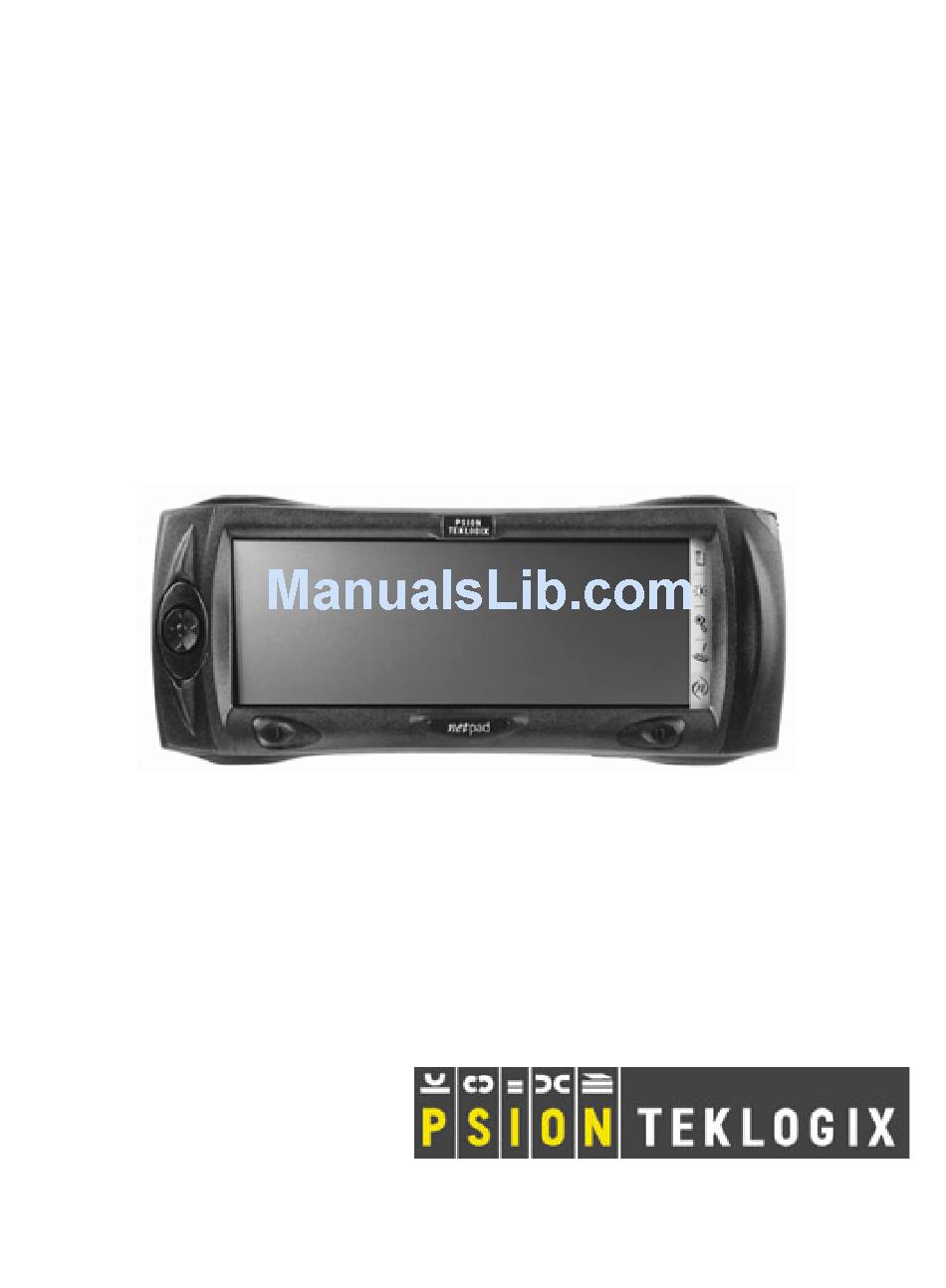

It is available in variants with internal GSM/GPRS, Bluetooth, and 802.11b radios, and scanners. Figure 2.1 netpad Front Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 27: Preparing The Netpad For Use
Note: This procedure in not necessary for the following netpad models since they house internal antennas within their enclo- sures: Models 5121, 5122, 5321, 5322, 5521, 5522, 5721, and 5722. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 28: Use Of The Soft Protective Case
For continued compliance when using the netpad and case combination, the face shown should be fitted against the body! The user must not modify the case in any way. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 29: Power Management
You can take steps to help prolong your battery’s life: • Turn the screen brightness down. • Set the Power Saving Schemes timeouts to the shortest possible length. The least amount of power is consumed Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 30: Battery Care
55), or place the battery in one of the optional battery chargers. The standard (1800 mAh) netpad battery will nor- mally be fully charged within 4 hours. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 31 Never remove the battery from the netpad while it is in the docking station. Never use a netpad without a battery in the docking station. Battery Contact Pins Battery Pack Direction of Insertion Battery Latch Figure 2.6 Battery Insertion Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 32: Power Properties
Power Properties for the battery can be accessed either through the Power icon in the Control Panel (for the Control Panel screen, see Figure 2.21 on page 45), or by double-clicking the system status Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 33 All charge-related icons disappear if battery levels No Charge Icon are not low or critical, and the netpad is not connected to an external power source. Table 2.1 Taskbar Icon Charge States Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 34 To check the internal battery power status, click on the Internal Battery tab. This screen describes the state of the internal battery, its voltage, and its type. Figure 2.8 Power Properties: Internal Battery Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 35 The sum of the Dim, Stand-By, and Suspend timeouts should be selected carefully since the netpad will go to sleep (appear off) when this time has elapsed, saving battery power. The length of Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 36 Inactivity Timer based on last, Switch to Dim, Switch to Stand-By, and Switch to Suspend. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 37 When the netpad enters the Dim state, it begins to monitor the time specified in the Switch to Stand-By menu (see Figure 2.11 on page 34). Tap the screen to bring the netpad out of Dim state. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 38 The netpad then begins to monitor the Suspend time. Press the power button to put the netpad into Stand-By state. Press the button again to wake up the unit. Figure 2.12 Power Schemes: Stand-By Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 39 Suspend by checking that option box below the Switch to Suspend menu. Note: When the netpad is in suspend state, any network connection is broken. To resume, you must re-establish the network connection. Figure 2.13 Power Schemes: Suspend Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 40 These figures will change, depending on user activity level and type. Device Status The Device Status tab lists the devices controlled by the power man- ager, and their respective power levels. The available power levels Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 41: Flight Mode Settings
On a PCMCIA-equipped netpad, using Flight Mode conserves power when you do not need the features of the card. To turn Flight Mode ON, open the Flight Mode icon in the Control Panel. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 42: Multimedia Cards
• Open the card slot door located on the side of the unit by slid- ing the retaining latch. Push the MMC into place until it clicks. Close the door. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 43: Installing And Removing The Sim Card
The SIM card slot is located behind the Card Slot door on the right- hand side of the netpad; and is located below the Multimedia card (MMC) slot (see Figure 2.18 on page 40). Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 44 • Push the SIM card into place until it is fully inserted. Note the orientation of the card, shown in Figure 2.19 on page 41, with the notch of the card on the left, trailing side. Close the door. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
- Page 45 • Open the card slot door and grasp the card on the cross-hatch area (see Figure 2.20 on page 42), using a pair of tweezers, or long-nosed pliers. • Pull the card out carefully. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 46: Turning On And Off
On/Off button once more, or tap the screen. You can switch off at any time. You do not have to save your information first, as it is automatically saved for you. However, if you are working Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 47: Finding And Using The Stylus
Note: If the screen doesn’t respond to your taps, you may need to re-calibrate it. You can do this by holding down the On/Off button for 4 seconds. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 48: The Command Icons, Control Panel, And Toolbar
Explorer: This icon is user-definable. Left-clicking displays the Windows Explorer. Right-clicking displays Internet Explorer. Keyboard: Left-clicking displays the Software Input Panel (SIP), the on- screen keyboard. Right-clicking is inactive. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 49: Keypad Assignments
I/II Programmable buttons can be mapped as function keys by selecting the function from the dropdown list for each button. The default settings are: Button I: Enter; Button II: Esc; Navigation But- tons: Up, Down, Left, and Right arrows. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 50: How To Reset The Netpad
Reset Button Figure 2.22 Reset Button Location Press the On/Off button to restart the netpad—you will hear two beeps during boot-up to indicate the reset. After a soft reset, any Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 51 You may delete and re-create the partnership on the PC, or create another partnership with a new name. Refer to ActiveSync’s online help for more details on this operation. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 52: The Scanner
1. Do not look into the scanner window. 2. This product contains a laser scanner that emits less than 1.2 mW average radiant power at a wavelength of 650 nm. This product complies with 21 CFR Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 53: First Steps
X icon at the far right of the menu bar. Click on the Up Folder icon to move back up one level. • Click on a file to select it. Double-click to open it. X icon Up Folder Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 54: Starting Programs
2.11.4 Entering Information You can enter information and com- plete tasks using the stylus or the on-screen keyboard. The on-screen keyboard is displayed by clicking the Keyboard soft key. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 55 The dropdown menu will show all available keyboards. Clicking on the Options button will let you set such preferences as button size and special gestures for use with the keyboard. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 56: Using Menus
Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... - Page 57 You can also move a dialogue around the screen by holding the stylus on the dialogue title bar and dragging it across the screen. Tabs in dialogue page Checkbox Dropdown box Figure 2.24 Dialogue Pages Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 58: Copying Information Between Programs
Windows Explorer into a Wordpad document will not work because Wordpad will keep the Paste option greyed out until it detects that text is ready to be pasted. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 59: The Netpad Docking Station
Release Button IR Ports netpad Connectors Communication Ports Yellow LED indicates communications Red LED indicates charging/ Green LED indicates charged Red LED indicates power Power Jack Figure 3.1 Docking Station Features Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 60: Communications Settings
• Infrared Port specifies using the IR port on the back of the netpad. To change the connection type, click on the Change... button and select the connection from the dropdown list. Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide... -
Page 61: Support Services And Worldwide Offices
4. Support Services And Worldwide Offices Psion Teklogix provides a complete range of product support serv- ices to its customers worldwide. These services include technical support and product repairs. 4.1 Technical Support Technical Support for Mobile Computing Products is provided via e-mail through the Psion Teklogix customer and partner extranets. -
Page 62: Worldwide Offices
Stora Badhusgatan 18-20 Tel: +45 76 24 0133 411 21 Göthenburg, Sweden Fax: +45 75 94 4679 Tel: +46 31 13 15 50 E-mail: tedk@psion.com Fax: +46 31 13 57 80 E-mail: info@teklogix.se Psion Teklogix netpad Windows CE .NET 4.2 Quick... - Page 63 Psion Teklogix B.V. #03-01 Singapore 058759 Venrayseweg 57, Tel: +65 673 58108 5928 NZ Venlo Fax: +65 673 35990 Nederlands E-mail: teksing@teklogix.com Tel: +31 77 32400 44 Fax: +31 77 32400 53 Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
-
Page 64: World Wide Web
+886 7 558 2028 No.3131 Kai Xuan Rd Fax: +886 7 558 3328 Shanghai 200030 E-mail: jerry.chen@teklogix.com China Tel: +86 21 5407 1991 Fax: +86 21 5407 1992 4.4 World Wide Web www.psionteklogix.com Psion Teklogix netpad Windows CE .NET 4.2 Quick Start Guide...
