Instructions Manual / Manual de Instrucciones
Salad Dryer / Secadora de Hojas
Model / Modelos
Office
Warehouse
Phone: 1-800-503-7534 / 305-868-1603
Phone: 1-800-445-6601 / 973-482-5070
SDF-20
Fax: 305-866-2704
Fax: 973-482-0725
sales@skyfood.us -
www.skyfood.us
TOLL FREE 1-800-503-7534
UG0020 - AUGUST /2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDF-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fleetwood SDF-20

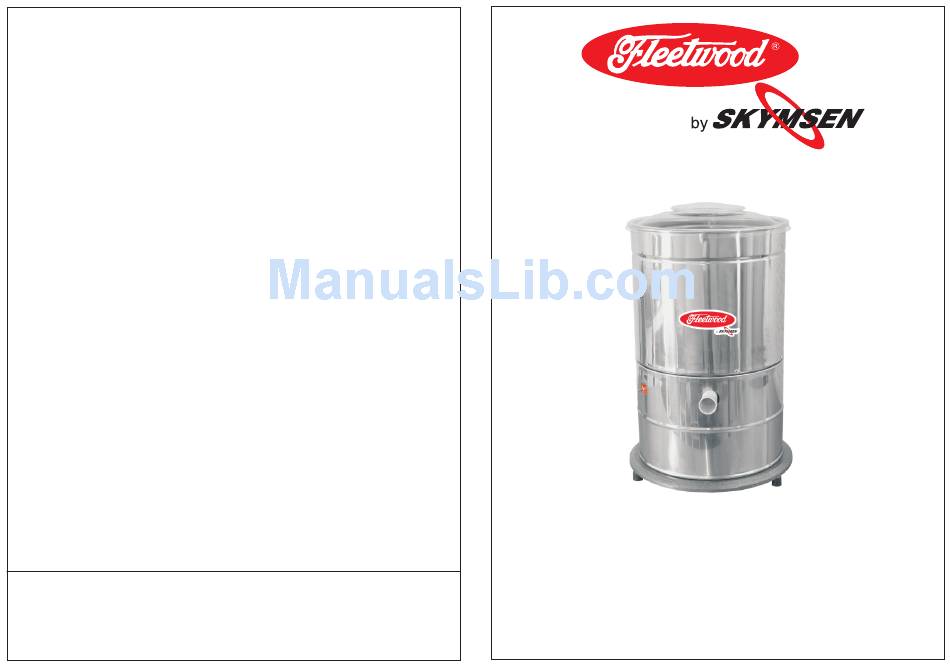

  • Page 1 Instructions Manual / Manual de Instrucciones Salad Dryer / Secadora de Hojas Model / Modelos Office Warehouse Phone: 1-800-503-7534 / 305-868-1603 Phone: 1-800-445-6601 / 973-482-5070 SDF-20 Fax: 305-866-2704 Fax: 973-482-0725 sales@skyfood.us - www.skyfood.us TOLL FREE 1-800-503-7534 UG0020 - AUGUST /2011...
