Summary of Contents for Five9NS X2000

  • Page 1: Installation Manual

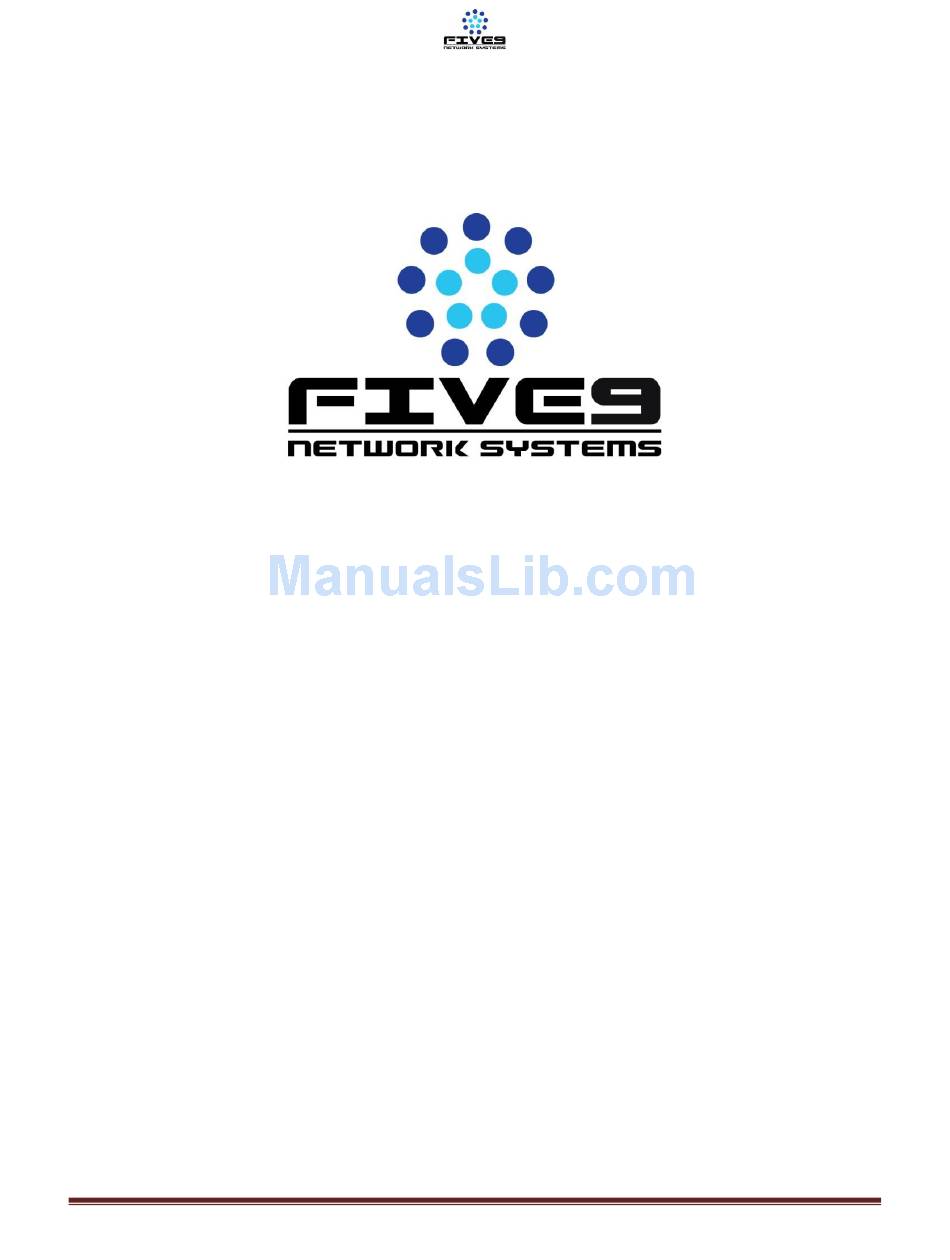

    Five9 Network Systems LLC. X2000 Installation Manual Five9NS X2000 Rack Mount Server / Workstation Installation Manual Document # 000001, Rev III, 03/2012 Page 1...
  • Page 2 This product or document is protected by copyright and distributed under licenses restricting its use, copying, distribution, and decompilation. No part of this product or document may be reproduced in any form by any means without prior written authorization of Five9NS and its licensors, if any.
  • Page 3: Table Of Contents

    Five9 Network Systems LLC. X2000 Installation Manual Table of Contents Section Description Page General Information ............... 4 Introduction ..................4 Purpose of the Equipment ..............4 Optional Equipment ................4 Application ..................5 Introduction ..................5 Typical Application ................5 Installation ..................
  • Page 4: General Information

    General Information Introduction This manual contains information for the proper installation of the Five9 Network Systems, LLC. 3U Rack Mount Server / Workstation, Model No: X2000. Also included are physical and electrical characteristics of the unit. Purpose of the Equipment 1.2.1 Five9NS’s X2000 is a 3U server designed specifically for Entry-level server...
  • Page 5: Application

    Application Introduction The X2000 is a 100-240 VAC product that can serve as either a workstation or a rack mount unit. It contains an Intel motherboard and CPU. Included also in the unit is a 64 GB Solid State Drive (SSD) storage device Typical Application 2.2.1 In cases where a workstation environment is required, the X2000 can be...
  • Page 6  Access for service repair (if applicable) Note: Please see detailed instructions for rack mounting in section 3.1.3 3.1.2 The X2000 shall be installed to conform to the standards designated by the customer and manufacturer specifications as to the unit location and type of installation 3.1.3 The following rack mount instructions should be followed...
  • Page 7: Unpacking And Inspection

    (e.g. use of power strips)." Unpacking and Inspection 3.2.1 Carefully open the packaging and remove the X2000. Verify that all components have been included in the package per the packing list. Inspect the unit for shipping damage.
  • Page 8: Physical Characteristics

    60-50 Hz 3.6.2 Power Switches The X2000 has 3 power switches: a System Power Switch and a System Reset Switch in the front as well as a general On/Off switch on the power supply from the back. The following diagram shows the front power switches (bottom right)
  • Page 9: Post-Installation Test

    The power switch on the back is a general On/Off switch providing the ability to hard turn off the system Post-Installation Test Once the X2000 is properly installed, turn the system on and verify using a monitor that the motherboard is booting up. To test with Solaris 10, use the following guidelines: Login as root ->...
  • Page 10: Optional Equipment Installation

    Make sure you have anti-static protection 4.1.2 Remove the 120 mm fan first as shown in the picture below 4.1.3 Place the speaker on the bottom left on the X2000 unit and fix it using the bolts and nuts provided in the additional kit...
  • Page 11 Five9 Network Systems LLC. X2000 Installation Manual 4.1.4 Make sure the speaker cable is to the left side of the unit as shown below to be able to run the cable easily between the chassis and the left side of...
  • Page 12: Io Card Installation

    Five9 Network Systems LLC. X2000 Installation Manual IO Card Installation 4.2.1 Insert the IO Card in the PCIe slot as shown below 4.2.2 Plug the USB cable inside the unit to the IO card as shown below 4.2.3 Plug the audio cable from the speaker to the IO card as shown below...
  • Page 13 Five9 Network Systems LLC. X2000 Installation Manual 4.2.4 Note how the routing of the speaker cable is performed 4.2.5 After connecting both cables, the connections should be similar to the pictures below Document # 000001, Rev III, 03/2012 Page 13...
  • Page 14 Five9 Network Systems LLC. X2000 Installation Manual 4.2.6 Do not forget to screw the IO Card to the chassis and reinstall the top cover Document # 000001, Rev III, 03/2012 Page 14...
