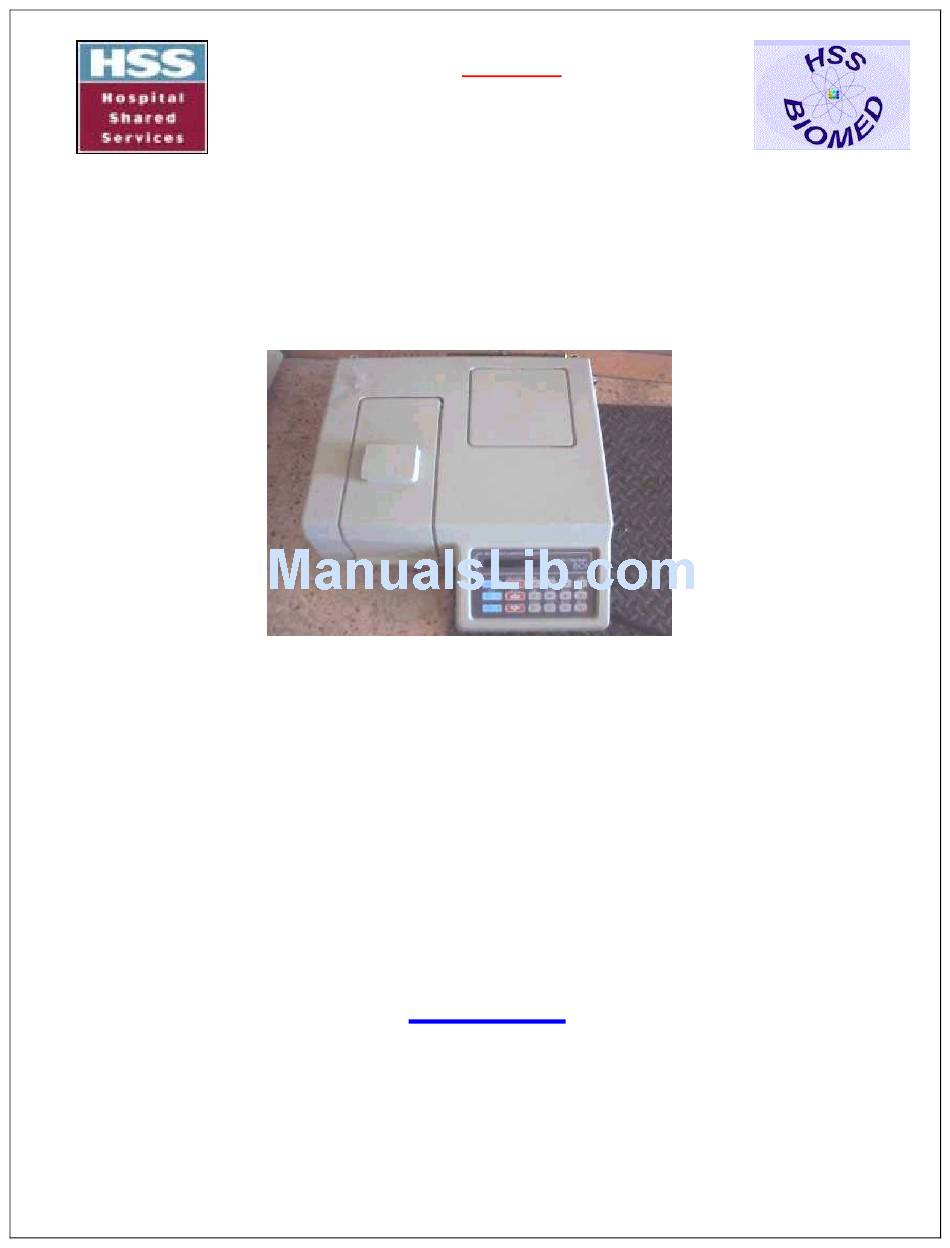

Milton Roy
Spectronic 501/601
Spectrophotometer
Hospital Shared Services
PMQA Procedures Number
L-2910
NOTE:
Much of the material found in this report is taken from the manufacturer's
.
Instruction Manual and Service Manual. In many cases the material is quoted
7/21/2004
Page 1 of 22
Spectronic 501 & 601.EDP.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectronic 501 and is the answer not in the manual?

Questions and answers

Related Manuals for Milton Roy Spectronic 501

Summary of Contents for Milton Roy Spectronic 501

  • Page 1 Hospital Shared Services PMQA Procedures Number L-2910 NOTE: Much of the material found in this report is taken from the manufacturer's Instruction Manual and Service Manual. In many cases the material is quoted 7/21/2004 Page 1 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 2: Table Of Contents

    Initial Preparation QA - Operational Verification PMQA Procedures Check List / Log Forms Specifications 10. Technician's Notes 11. Factory Modifications: 12. Troubleshooting 13. Block Diagram 14. Manufacturer & Vendor Information Appendix 7/21/2004 Page 2 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 3 TECHNICIAN'S NOTES CONTENTS Generic Test Equipment Equipment Specific Test Equipment Leakage Current Meter / Safety Analyzer Spectrophotometric Function Test Set Milton Roy Standards #333150 or (Harleco #64666 or equivalent) Holmium test cuvette Digital Volt Meter Hand Tools 335101-10001 SPECTRONIC 501/601...
  • Page 4 335423 Tungsten-halogen lamp: 6V - 10 Watt Paper Towel (Phillips type 6605) General purpose cleaner 343424: Deuterium lamp Canned Air (Dry) 332879: 2.0 ampere Slo-Blo fuse Lint-less wipes (Kim-Wipes) Disinfectant (Clean Conscience) 7/21/2004 Page 4 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 5 TECHNICIAN'S NOTES CONTENTS The Milton Roy 501/601 Spectrophotometer is a simple instrument designed for quick and easy absorbency or transmittance measurements at single wavelengths. The 501 has a range of 325 to 999nm, while the 601 includes the UV range, (195-999nm), with the addition of a Deuterium lamp.
  • Page 6 1,4 <SECOND> <DIAG>. Any changes you make will then be replaced by these saved default values when the unit is powered on next unless you re-enter different values via the keystrokes listed. 7/21/2004 Page 6 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 7 CONTENTS Test Parameter Storage: The SPECTRONIC 501/601 can store the existing set of test parameters as the "default" values in non- volatile memory. Once stored, these values will be present the next time you turn your spectrophotometer on. Any changes made to these parameters during subsequent use of the spectrophotometer will be temporary and replaced with the stored “default”...
  • Page 8 QA – Operational Information HOME TECHNICIAN'S NOTES CONTENTS BASIC SPECTROPHOTOMETRIC MEASUREMENTS To use the SPECTRONIC 501/601 for basic spectrophotometric measurements (absorbency, transmittance, or concentration): 1. Turn Power on. 2. Await completion of SELF-TEST. 3. Enter analytical wavelength. 4. Press <SECOND FUNCTION> < GO TO λ >.

  • Page 9: Spectronic

    5. Store changed settings Enter the following keystrokes: 1,4 <SECOND FUNCTION> <DIAG>. The new settings will now be the default settings. 6. Clean exterior and interior accessories 6.1. Do Not Sterilize. May be cleaned by wiping with a dry cloth. 7/21/2004 Page 9 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 10: Spectronic

    Examine the illuminated filter on the filter wheel to determine the position of the light. Light should be centered on the filter and on the slit, as shown in Figure 6-3a. 7/21/2004 Page 10 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 11 Spectronic 601 only--Use a flathead screwdriver with an insulated handle to turn the deuterium lamp adjustment screw (21) until the instrument displays a minimum absorbency reading. If the instrument displays a negative absorbency reading, stop and repeat step 14.9 and 14.10 7/21/2004 Page 11 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 12 NOTE: If SRE filters are not available - use a blocking beam assy. (the holmium filter turned sidewise works well). Set wavelength at 340nm, run and record reading. Reset wavelength to 220nm and run and record again. Remove the SRE or Blocking-Beam Filter. 7/21/2004 Page 12 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 13 Simply verifies that each key is working. Press the key and observe the display; if keystroke does not produce the character listed in the chart below, contact you authorized Milton Roy service representative. (To exit from this test turn the spectrophotometer off and then on again.)
  • Page 14 Empty the sample compartment 27.2. Enter: 5,0, 0, <SECOND FUNCTION>, <GO TO ^> 27.3. Make sure it is in ABS mode: <SECOND FUNCTION>, %T/A.C> 27.4. Record readings: Initial reading and reading after 1 hour. 7/21/2004 Page 14 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 15: Pmqa Procedures

    Milton Roy - SPECTRONICS 601 - Spectrophotometer PMQA Check-List Dept: Procedure: L-2910 ASSET #: Location: Mfg: Milton Roy m/n: Dates performed: Service See the Corresponding PMQA Procedure for details Manual Section Technician's Initials: Self Test: (on power-up): 1. Revision Level: <2>, <SECOND FUNCT>, <DIAG>...
  • Page 16 Milton Roy - SPECTRONICS 601 - Spectrophotometer PMQA Check-List Dept: Procedure: L-2910 ASSET #: Location: Mfg: Milton Roy m/n: Dates performed: Service See the Corresponding PMQA Procedure for details Manual Section Technician's Initials: 15. Self Test: (on power up) pass / fail 16.
  • Page 17 Milton Roy - SPECTRONICS 601 - Spectrophotometer PMQA Check-List Dept: Procedure: L-2910 ASSET #: Location: Mfg: Milton Roy m/n: Dates performed: Service See the Corresponding PMQA Procedure for details Manual Section Technician's Initials: 24. PHOTOMETRIC ACCURACY: 5,4,6, .,1, <SECOND FUNCTION>, <YES - GO TO λ>...

  • Page 18: Specifications

    Storage -40 to 105 F; -40 to 40.5 C; relative humidity not to exceed 60% (Allow unit to adjust to room temperature for 24 hours when taking it out of storage.) 7/21/2004 Page 16 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 19: Technician's Notes

    Milton Roy Spectronic 501/601 Spectrophotometer Technician’s Notes HOME TECHNICIAN'S NOTES CONTENTS Thermo Spectronics has bought out Milton Roy. Most parts and manuals are no longer available (1/1/02). 7/21/2004 Page 17 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 20: Factory Modifications

    If the power line is okay, then a problem may exist on the CPU board in the unit. Replacement of the board or the EEPROM may be required. An internal power supply problem could also be a cause. See FAX from Milton Roy at the end of bioengineering’s operator manual. 7/21/2004 Page 18 of 22 Spectronic 501 &...

  • Page 21: Troubleshooting

    See Section 6.4 MAINTENANCE & TROUBLESHOOTING page 11 in bioengineering’s copy of Spectronic 601 Operation Manual. See Section 6.4.2 ERROR MESSAGES page 12 in bioengineering’s copy of Spectronic 501/601 operation manual. See the August 13, 1997 FAX from Spectronic Instruments, Inc: EEPROM ERROR/ MONO ERROR CORRECTIONS PROCEDURES at the back of bioengineering’s Spectronic 601 operation manual.

  • Page 22: Block Diagram

    Milton Roy Spectronic 501/601 Spectrophotometer Block Diagram HOME TECHNICIAN'S NOTES CONTENTS 7/21/2004 Page 20 of 22 Spectronic 501 & 601.EDP.doc...
  • Page 23 Milton Roy Spectronic 501/601 Spectrophotometer Manufacturer & Vender Information HOME TECHNICIAN'S NOTES CONTENTS 7/21/2004 Page 21 of 22 Spectronic 501 & 601.EDP.doc...

  • Page 24: Appendix

    Milton Roy Spectronic 501/601 Spectrophotometer Appendix HOME TECHNICIAN'S NOTES CONTENTS 7/21/2004 Page 22 of 22 Spectronic 501 & 601.EDP.doc...
