Summary of Contents for Absara Audio 1695T Black Magick

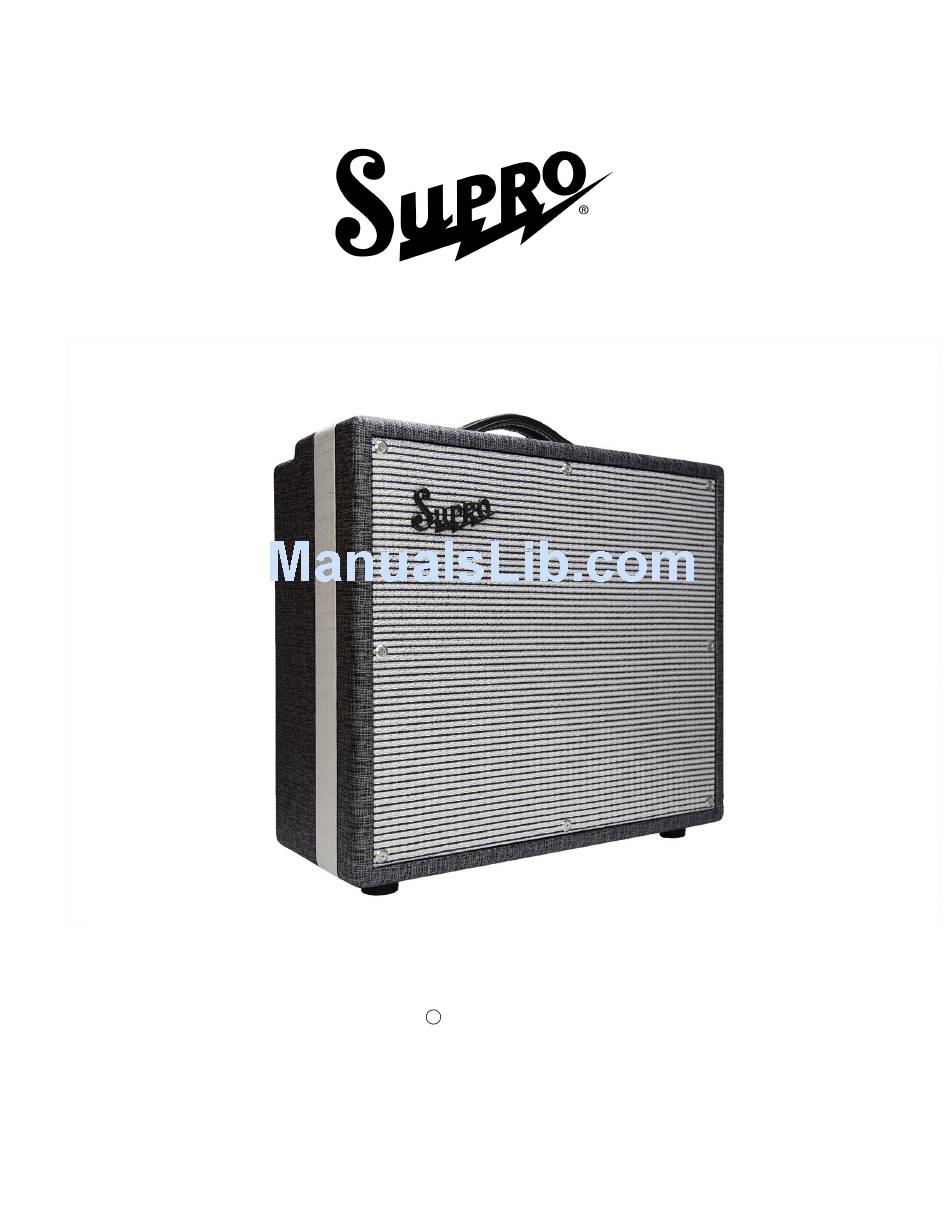

- Page 1 1695T Black Magick User Manual All contents c Absara Audio LLC 2014...
-
Page 2: Important Safety Information
Important Safety Information The triangle surrounding an exclama- tion mark alerts users to the presence of important warnings or information. The triangle surrounding a lightning bolt alerts users to the presence of dangerous high-voltage within the en- closure of the product that can pose a significant risk of electrical shock. -
Page 3: Table Of Contents
Contents 1 Important Safety Information Contents 2 Anatomy and Usage Front Panel ........Rear Panel . -
Page 4: Anatomy And Usage
Anatomy and Usage Front Panel IN 1+2 Instrument input for using channel 1 and channel 2 in parallel. Plugging an instrument into this input, sends the signal to both preamps in parallel. When a second instrument is connected to IN 2, IN 1+2 only connects to channel 1. -
Page 5: Rear Panel
Rear Panel 8 ohm MAIN Speaker output for the amplifier. Connect the internal speaker here. Maximum output is 24 Watts into 8 Ohms. 8 ohm EXT Extension Speaker output. Connect an 8 ohm extension cabinet to this jack. This jack is designed to switch to the 4 ohm tap on the output transformer, to accommodate two 8 ohm speakers in parallel. -
Page 6: Tubes
Tubes Each Supro tube amplifier is a 100% analog, 100% tube amplifier. There are NO solid state (transistor) devices in ANY audio signal path. Viewed from the rear of the amp 6973 12AX7 12AX7 12AX7 12AX7 6973 Tremolo Preamp Phase Inverter Preamp Power Tubes Troubleshooting... -
Page 7: Supro Warranty Policy
Supro Warranty Policy USA/Canada Warranty To Validate the Warranty on your Supro tube amplifier, please register the product online at http://suprousa.com/warranty/. This warranty applies only to the original retail purchaser when this amplifier is purchased from an Authorized Supro Dealer and is subject to the limitations set forth herein. Important: Please retain your original sales receipt, as it is your proof of purchase validating this limited warranty. -
Page 8: International Warranty
How to Obtain Warranty/Non-Warranty Service: Complete the service email form available at http://suprousa.com/support/. You will receive a Supro USA Return Authorization form from a Supro support technician. You must download, print and complete the Supro USA Return Authorization form. Provide the info requested on this form, and include a copy of the original purchase receipt.
