Summary of Contents for Sven T51-44

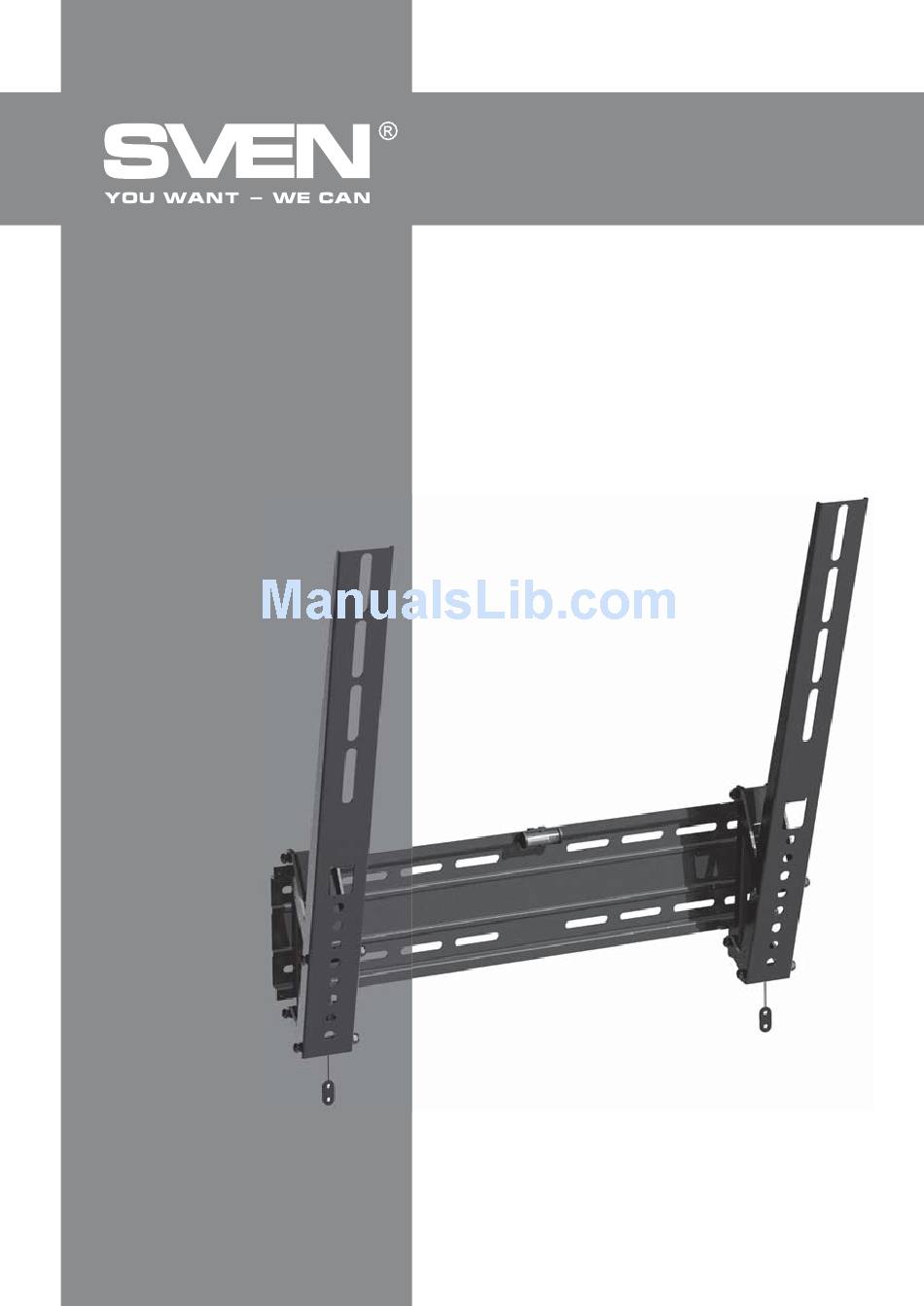

- Page 1 Wall Mount for LED/LCD/Plasma TVs and Monitors USER’S MANUAL T51-44 www.sven.fi...
-
Page 2: Package Contents
User’s Manual Congratulations on your purchase of the Sven wall mount! COPYRIGHT © 2015. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. - Page 3 Wall Mount for LED/LCD/Plasma TVs and Monitors 2. APPLICATION T51-44 is designed for wall-mounting LED/LCD/Plasma TV sets and monitors. 3. SAFETY PRECAUTIONS • Do not exceed the maximum load specified in the Manual to avoid accidents or damage. • Before installing the wall mount, read this Manual carefully and follow all the instructions when installing.
- Page 4 User’s Manual 6. MOUNTING AND INSTALLATION • Choose a wall to hang your mount on. It’s recommended that the height H and the distance L from the viewer be cal- culated according to the formulas in the figures on the left.
- Page 5 Wall Mount for LED/LCD/Plasma TVs and Monitors Max 1.5N·M OPEN 10 mm • Fix the wall plate on the wall, as shown in Fig. c, using suitable accessories from the mounting kit. • Fix the mounting system on the rear panel of your TV (see Fig.
- Page 6 User’s Manual OPEN • To unmount your TV, release the security locks by pulling the tabs down (see Fig. g). Lift your TV slightly and take the mounting system out of the holes. 7. TECHNICAL SPECIFICATIONS Value Parameter, measurement unit Diagonal compatibility, inch/cm 26 –...
- Page 7 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
