FM 0120 E 1
Ind.

Installation guide

26/07/10
B
ARIZONA
1 - Device description
2 - Operation
3 - Mounting information
4 - Trouble shooting
5 - Security advice
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: +33 (0)4 78 90 96 96
Fax: +33 (0)4 78 90 15 98
www.siroco.fr
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARIZONA and is the answer not in the manual?

Questions and answers

Related Manuals for SIROCO ARIZONA

Summary of Contents for SIROCO ARIZONA

  • Page 1: Installation Guide

    FM 0120 E 1 Ind. Installation guide 26/07/10 ARIZONA 1 - Device description 2 - Operation 3 - Mounting information 4 - Trouble shooting 5 - Security advice SIROCO S.A.S. 10 rue Jean Rostand - Z.I. BP 315 69745 GENAS Cedex...

  • Page 2: Device Description

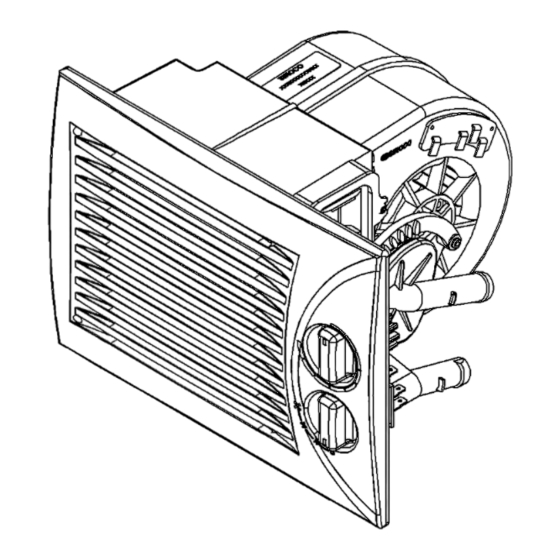

    26/07/10 1 - Device description ARIZONA heater consist of a blower, a coil, a plastic part and a removable front plate. Plastic part is made from polypropylene. Front plate is made from heat and impact resistant ABS. Heater can operate under three different speeds: a control knob enables to select speed from front plate. There are two input air supply (on heater side), an output air supply (on front plate) and an input-output cooling water supply.
