Ebode IPV4NVR User Manual

4-channel 720p/960p hd ip cam nvr
Hide thumbs Also See for IPV4NVR:
Table of Contents

Advertisement

Quick Links

Download this manual

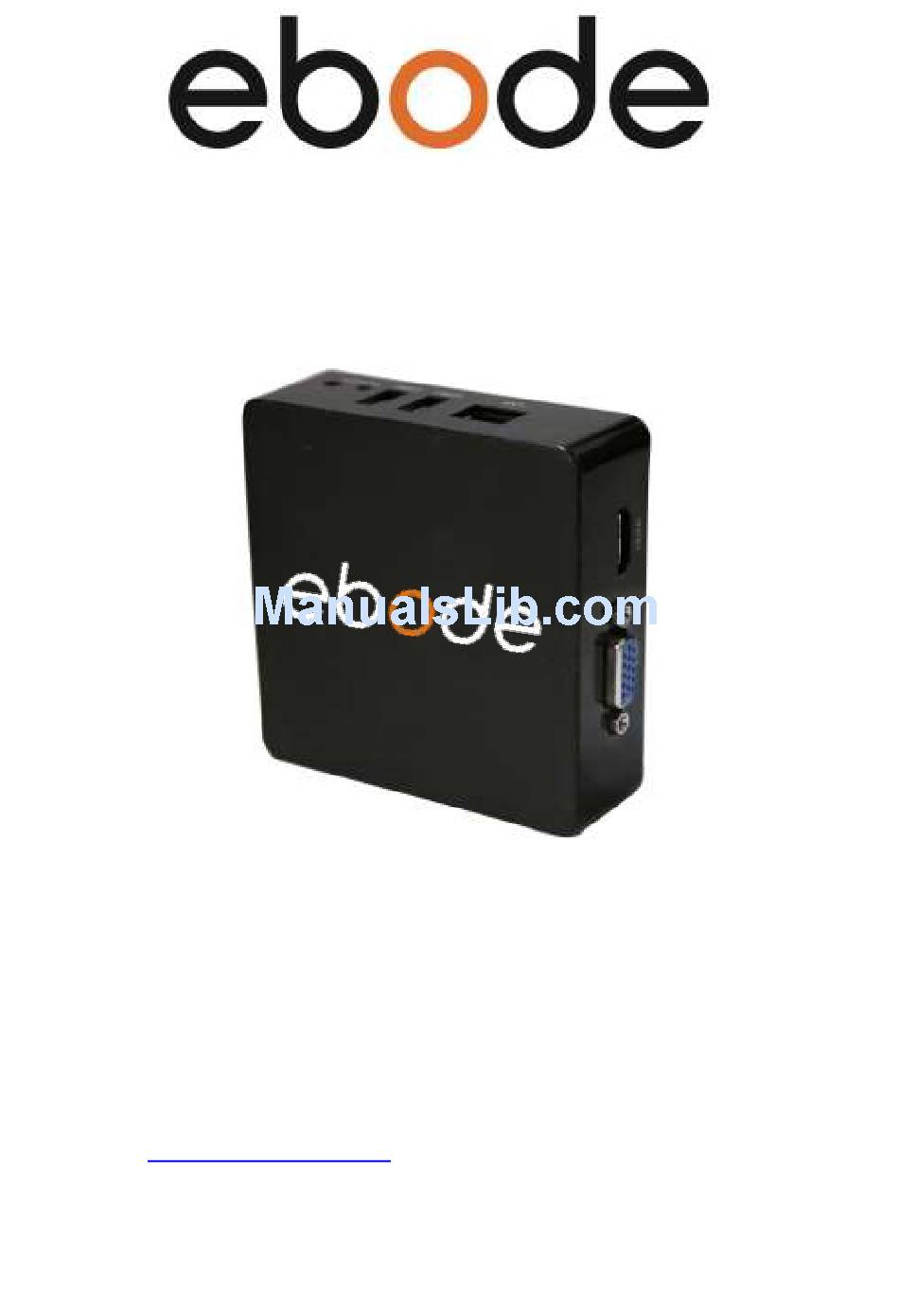

www.ebodeelectronics.eu

User Manual

IPV4NVR
4-Channel 720P/960P HD IP CAM NVR
Before using this product, please read this document carefully and visit
www.ebodeelectronics.eu
for latest manual, Software and FAQ.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPV4NVR and is the answer not in the manual?

Questions and answers

Related Manuals for Ebode IPV4NVR

Summary of Contents for Ebode IPV4NVR

  • Page 1: User Manual

    User Manual IPV4NVR 4-Channel 720P/960P HD IP CAM NVR Before using this product, please read this document carefully and visit www.ebodeelectronics.eu for latest manual, Software and FAQ.

  • Page 2: Technical Specification

    H.264 Main Profile Video Compression  Supports HDMI and VGA Local Display  4-Channel 960P Synchronous Playback  Compatible with ebode HD IP Cameras  Supports ONVIF protocol, compatible with ONVIF-embedded IP Cameras  Supports USB External Storage (Flash disk, HDD) 27-11-2014...

  • Page 3: Table Of Contents

    Important Safety Instructions………………………………………………………………… 4 Overview………………………………………………………………………………………………… 5 Product Introduction……………………………………………………………… 5 Key Features…………………………………………………………………………… 5 Relevant Version……………………………………………………………………… 6 Icons Description……………………………………………………………………… 6 Common Operations………………………………………………………………… 7 Device……………………………………………………………………………………………………… 7 IPV4NVR…………………………………………………………………………………… 7 USB Mouse Operation……………………………………………………………… 10 GUI………………………………………………………………………………………………………… 10 Log in………………………………………………………………………………………… 10 Setup Wizard…………………………………………………………………………… 11 Shortcut Menu………………………………………………………………………… 15 Menu…………………………………………………………………………………………18 Web………………………………………………………………………………………………………… 40 Instructions Before Login…………………………………………………………...

  • Page 4: Conformity Of Use

    With easy setup and smart search function, you can connect up to 4-channel 720P/960P HD IP cameras in just a few minutes. The IPV4NVR has both VGA and HDMI Output. Add, configure and control up to 4 IP cameras at the same time on a single device.

  • Page 5: Overview

    Note: When NVR system time and IPC time are different, the NVR recording will based on the NVR system time. 27-11-2014 ebode IPV4NVR...

  • Page 6: Relevant Version

    In the live view mode, there are icons at the right bottom of the screen for each channel, showing the status of the record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms occur as soon as possible. 27-11-2014 ebode IPV4NVR...

  • Page 7: Common Operations

    (Parameter Configuration) > System Management > Factory Reset. The Factory Reset page is displayed. 5. Device 5.1 IPV4NVR 5.1.1 Package Contents When you receive the NVR, please open the box and check whether there is any visible damage to the NVR appearance. Then, please verify that all contents received are complete according to the package contents listed below.
  • Page 8 The package contents list does not contain a mobile hard disk, IPC and mouse for ebode IPV4NVR.  It is highly recommended that the Mobile Hard Disk should be used with Seagate and Westeam Digital and over 5400 RPM for ebode IPV4NVR.
  • Page 9 NVR. Connect to the Mouse Plug USB mouse into one of the USB interfaces of the NVR. Connect to the Storage device Plug USB Storage device into one of the USB interfaces of the NVR. 27-11-2014 ebode IPV4NVR...

  • Page 10: Usb Mouse Operation

    Make sure the video output device is connected successfully. 6.1 Login Step1: For IPV4NVR, When you connect the power adapter to power input interface of NVR, the NVR begins starting up. Step2: After start up, the login window will pop up.

  • Page 11: Setup Wizard

    Step1: Select Language, If you don’t want to use the Setup Wizard at next time, uncheck the Setup Wizard checkbox. Note: You can also close the setup wizard by setting the Setup Wizard on “Menu > Settings > General”. 27-11-2014 ebode IPV4NVR...
  • Page 12 If you select the Automatically synchronize with and Internet time server, you need configure the NTP Server information.  If you don’t select the Automatically synchronize with and Internet time server, you need configure the Date, Time, Date Format, Time Format. 27-11-2014 ebode IPV4NVR...
  • Page 13 Step4: Click next button, you can add the IPC device for your NVR. 1. You can find and select the IPC to be added. 1.Select the IPC 2.Click Add Note: If you don’t find out your IP camera, you should click Refresh to find online IP Camera. 27-11-2014 ebode IPV4NVR...
  • Page 14 4. You can find the IP Camera in the IP Camera List. 5. Click Finish button to complete the start-up Setup Wizard. Live view interface shows you the video image getting from each IP camera in real time. 27-11-2014 ebode IPV4NVR...

  • Page 15: Shortcut Menu

    After login, right-click the mouse, you will enter the shortcut menu. 1-Channel/4-Channel Switch between different channels video. Menu Click Menu to enter the Menu interface, it includes IPC Manager, playback, Backup, About, Settings and System. For details, see “3.4 Menu”. 27-11-2014 ebode IPV4NVR...
  • Page 16 IPC Manager You can add and connect the IP Camera, configure the connection of IP cameras, delete the connection of IP camera. For details, see "3.4.1 IPC Manage". 27-11-2014 ebode IPV4NVR...
  • Page 17 The Sequential interval is 3s by default. You can also choose “Menu > Settings > Display” and set the “Interval” parameter for sequential interval. Shutdown Click Shutdown to enter the Shutdown page. You can log out, reboot or shut down the NVR system. 27-11-2014 ebode IPV4NVR...

  • Page 18: Menu

    NVR will automatically detect all the online IP Cameras which they can connect to. You will need to know your IP Camera name and password to connect. If you did not find the online IP Camera which you want to connect, please click Refresh button to find the online IP Camera. 27-11-2014 ebode IPV4NVR...
  • Page 19 2. Input User- name and Pass- word of the IPC. 3.Select the Prot- ocol fo the IPC 3．Click OK button to finish adding. And the camera and its information will be added in the IP Camera list. 27-11-2014 ebode IPV4NVR...
  • Page 20 Protocol. Input the IP Address, Username, Password, HTTP Port and Media Port. Then click OK button to finish adding. And the camera and its information will be added in the list of cameras. Click OK button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 21 The multiple of normal playing speed is displayed in the upper right corner of the playback page. For example, “<< X4” indicates the current fast backward speed is 4 times of normal speed. Frame forward. View the image of each frame. 27-11-2014 ebode IPV4NVR...
  • Page 22 2. After the USB-flash disk connect to the NVR by the USB interface. Select the Object from drop-down list. 3. Select the backup select from drop-down list. 4. Click Backup button and start backup. 1.Double-click NO by left mouse, status will change from No to Yes. 2.Select the object address 3.Click Backup 27-11-2014 ebode IPV4NVR...
  • Page 23 HDD Info and system log. Firmware Version Choose ”Menu > About > Firmware Version” in the Menu interface. The Firmware Version interface is displayed. You can view the Device Type, Device Name and Firmware Version. 27-11-2014 ebode IPV4NVR...
  • Page 24 Choose ”Menu > About > System Log” in the Menu interface. The System Log interface is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time. 27-11-2014 ebode IPV4NVR...
  • Page 25 Alarm Settings and OSD. General Choose ”Menu > Settings > General” in the Menu interface. The General interface is displayed. You can configure the basic information of the NVR. 27-11-2014 ebode IPV4NVR...
  • Page 26 Time set by the NVR system. Whether to synchronize the time to to camera the connected IPC device. Pre-recording time. When recording is performed, the system Pre-recorded time starts recording n seconds before recording is enabled. Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 27 Click Save button to take effect. Schedule Choose ”Menu > Settings > Schedule” in the Menu interface. The Schedule interface is displayed. You can enable or disable schedule record for the every channel. 27-11-2014 ebode IPV4NVR...
  • Page 28 Choose ”Menu > Settings > Network” in the Menu interface. The Network interface is displayed.You can configure the information of Network, DDNS, E-Mail, FTP. Network Check the Network checkbox, you can configure the network information of the NVR. 27-11-2014 ebode IPV4NVR...
  • Page 29 Note: If you want to enable the UPnP function of the NVR, you must enable the UPnP function of the router to which your NVR is connected. UPNP You can enable or disable the UPNP function. Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 30 The system can be configured to send an email to the designated users if an alarm or motion event is detected etc. Before configuring the Email settings, the NVR must be connected to a local area network (LAN) that maintains an SMTP mail server. 27-11-2014 ebode IPV4NVR...
  • Page 31 The password of sender ’s Email for SMTP server SMTP Password authentication. Sender The Email address of sender. The Email address of user to be notified. you can set 4 Receiver receivers Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 32 The user account of FTP server. FTP Password The user password of FTP server. Click Save button to take effect. Click FTP Test to see if FTP has been successfully configured. If the test success, you can see the success information. 27-11-2014 ebode IPV4NVR...
  • Page 33 Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the NVR can analyze it and perform many actions to handle it. Enable motion detection function can trigger certain channels to start 27-11-2014 ebode IPV4NVR...
  • Page 34 When the Motion detection is triggered, you can choose whether to Mail send e-mail. Note: Make sure you have set Email. When Motion detection is triggered, you can choose whether to upload detection picture to FTP server. Note: Make sure you have set FTP. 27-11-2014 ebode IPV4NVR...
  • Page 35 2．Check Select checkbox to select the area. 3．Drag and draw the area for motion detection by left mouse. Note:Check Clear checkbox and If you clear the area, then drag and draw the area for motion detection by mouse. 27-11-2014 ebode IPV4NVR...
  • Page 36 Select Type form drop-down box list. It contains HDD Loss, Type HDD Saturation, HDD Error, Video Loss and Network Error. Check the Buzzer checkbox if you want to enable buzzing Buzzer sound of the NVR device. Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 37 Check the Enable OSD checkbox to enable OSD function . Set Shelter Area: If the IPC device type is MJ or IPC protocol type is ONVIF, the feature is invalid. 1．Click Select Shelter Area button and it pop up a window. 27-11-2014 ebode IPV4NVR...
  • Page 38 The administrator has the permission to add and delete all users and configure user parameters. You can add, modify, delete username/password or distribute authority for users. The valid value range of Username and Password is 1 ~ 64 characters, it contains the English letter, numeric and symbol. 27-11-2014 ebode IPV4NVR...
  • Page 39 NVR system will log out. Note: After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system. Reboot 27-11-2014 ebode IPV4NVR...

  • Page 40: Web

    It should display the NVR’s IP address in your LAN. Note: If there are multiple devices, you need to obtain the IP address and port of the NVR using the local GUI. For details, see “3.4.5 Settings > Network”. 27-11-2014 ebode IPV4NVR...
  • Page 41 2) Click Run button, it will pop up the message below the page, as shown in the following figure. 3) Click Run button to install the add-on. Please follow the installation instructions. (Please close the browser during installation.） Step5: After installing the add-on, refresh the browser and enter the login interface. 27-11-2014 ebode IPV4NVR...

  • Page 42: Live Video

    Step9: Click Modify button, you will see the Live View interface of the NVR client. 7.3 Live Video After login, the live view interface will display. You can configure the play/stop the live view, manual recording, manual capturing, preset, cruise, led, color and so on. 27-11-2014 ebode IPV4NVR...
  • Page 43 You can configure the LED of the IP Camera. There are two modes: Manual and Auto. Color You can configure the color of the IP Camera. Play all Play monitoring videos in all channels. All off Close monitoring videos in all channels. 27-11-2014 ebode IPV4NVR...
  • Page 44 Add: Click this icon to save the position you need the IP camera to remember. Delete: Select one preset position and click this button to delete it. GO: Select one preset position in the preset drop-down list and click Go to make the IP camera move the preset position. 27-11-2014 ebode IPV4NVR...

  • Page 45: Parameter Configuration

    The device name is a unique name that you can give to your device to help you identify it. You can change your NVR name. Firmware version Display the system version of your NVR. Plug-in version Display the plug-in version of your NVR. Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 46 Date Format Select the date format from the drop-down list. Time Format Select the time format from the drop-down list. Step6: Click Save button to take effect. Network You can configure the network information of the NVR. 27-11-2014 ebode IPV4NVR...
  • Page 47 NVR is connected. How to configure the IP Address, Subnet Mask, Gateway, Primary DNS Server, Secondary DNS Server, please refer to “ Appendix II Common operations > 2. Configure the IP Parameters”. Step3: Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 48 The user account of sender’s Email for SMTP server authenticat ion. SMTP Password The password of sender ’s Email for SMTP server authentication. Sender The Email address of sender. Receiver The Email address of user to be notified. you can set 4 receivers 27-11-2014 ebode IPV4NVR...
  • Page 49 The user account of FTP server. FTP Password The user password of FTP server. Step3: Click Save button to take effect. Step4: Click Test to see if FTP has been successfully configured. If the test success, you can see the success information. 27-11-2014 ebode IPV4NVR...
  • Page 50 Choose ” (Parameter Configuration) > Local settings > Video Encode”. The Video Encode page is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. 27-11-2014 ebode IPV4NVR...
  • Page 51 Log page is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be searched and viewed at any time. The Log Type contains Alarm log, System log and Operation log. 27-11-2014 ebode IPV4NVR...
  • Page 52 Step2: Select one channel from Channel01, Channel02, Channel03, and Channel04. Step3: Choose the IP Camera added in the list of cameras. Step4: Input the Username and Password of the IPC. Step5: Click Add button to finish adding. 27-11-2014 ebode IPV4NVR...
  • Page 53 Step2: You can configure the following settings.  Format USB Disk: Click Format USB Disk button to initialize the disk for backup or log.  Format Local Disk:Click the Format Local Disk button to initialize the disk for recording. 27-11-2014 ebode IPV4NVR...
  • Page 54 You can follow the steps to schedule a record which triggered by the detected motion. Choose ” (Parameter Configuration) > Service Configuration > Motion Detection”. The Motion Detection page is displayed. 27-11-2014 ebode IPV4NVR...
  • Page 55 When the Motion detection is trig gered, you can choose whether Buzzer to enable buzzing sound of the NVR device. If you select this checkbox, when the Motion detection is IPC Sound triggered, the people around the camera will hear beep alarm Alarm sound of the IPC. 27-11-2014 ebode IPV4NVR...
  • Page 56  Choose all Time Period Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at any time, the NVR will alarm. Click here 27-11-2014 ebode IPV4NVR...
  • Page 57 The recording files will be save to the HDD or mobile store device. The Icon indicate starts schedule recording at the right bottom of the screen for certain channel. Step1: Choose ” (Parameter Configuration) > Service Configuration > Record Plans”. The Record Plans page is displayed. 27-11-2014 ebode IPV4NVR...
  • Page 58 (Parameter Configuration) > Service Configuration > Other Alarm”,The Other Alarm page is displayed. Step2: Select Type form drop-down box list. Step3: (Option)Check the Buzzer checkbox if you want to enable buzzing sound of the NVR device. Step4: Click Save button to take effect. 27-11-2014 ebode IPV4NVR...
  • Page 59 There are two options: Yes or No. Select Yes and you can see the IP Channel Name camera’s name on the video There are two options: Yes or NO . Select Yes and you can see the Display Time system date on the channel video. 27-11-2014 ebode IPV4NVR...
  • Page 60 (Parameter Configuration) > Service Configuration > Cruise Settings”. The Cruise Settings page is displayed. There are two default cruise tracks: Vertical and Horizontal.  Vertical: The IP Camera will rotate from up to down  Horizontal: The IP Camera will rotate form left to right. 27-11-2014 ebode IPV4NVR...
  • Page 61 Add button, you can see the preset point has been added to the cruise track on the cruise track page. You need to add two or more preset points to the cruise track. How to customize the preset, please refer to “4.3 Live Video > Preset settings”. 27-11-2014 ebode IPV4NVR...
  • Page 62 1．Select channel from drop-down box list. 2．Select the track from the Cruise Tracks. 3．Click Delete button to delete the cruise track. You can see the cruise track which you want to query. Note:The default cruise track cann’t be deleted. 27-11-2014 ebode IPV4NVR...
  • Page 63 1．In the Password text field, delete the old password, input the new password. 2．Click Save button to take effect. 7.4.5 System Management Import/Export You can import or export a configuration file for NVR system. Choose ” (Parameter Configuration) > System Management > Import/Export”. The Import/Export Configurations page is displayed. 27-11-2014 ebode IPV4NVR...
  • Page 64 NVR may not work. Upgrade Choose ” (Parameter Configuration) > System Management > Upgrade”. The Upgrade page is displayed. Click Browse to select the upgrade file in the local directory. Click Upgrade to start upgrade. 27-11-2014 ebode IPV4NVR...
  • Page 65 Auto Restore Choose ” (Parameter Configuration) > System Management > Auto Restore”. The Auto Restore page is displayed. You can configure the Date and Time. The NVR system will be maintained at the setting time. 27-11-2014 ebode IPV4NVR...

  • Page 66: Playback

    You can set the storage path, refer to the "Web > Parameter configuration > Settings > Storage Location". Full screen. Make the playing video maximized. Press ESC to exit full screen. 27-11-2014 ebode IPV4NVR...

  • Page 67: Appendix

    Recording time（hour）=7days*24 hours=168 hour Mbit Spent of HDD Capacity per hour(M/hour)= =1800M/hour  3600 Whole Capacity(M)=4*168(hour)*1800（M/hour）,=1209600M, 1209600M= 1209600M =1181.25G 1024 According to the preceding calculation result, you are advised to buy a HDD of 1.5 TB or above. 27-11-2014 ebode IPV4NVR...

  • Page 68: Common Operations

    User can also use third part DDNS, such as www.no-ip.com, www. 3322.com Here take www.no-ip.com for example: ① Step 1, Go to the website www.no-ip.com to create a free hostname Firstly: Login on www.no-ip.com and click No-IP Free to register. 27-11-2014 ebode IPV4NVR...
  • Page 69 Please create the domain name step by step according to instructions on www.no-ip.com Step 2, DO DDNS Service Settings within the NVR. Please set DDNS Settings within the NVR by hostname, a user name and password you’ve got from www.no-ip.com 27-11-2014 ebode IPV4NVR...
  • Page 70 ③ Use domain name to access the camera via internet . After the port forwarding is finished, you can use the domain name+ http no.to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000 for example, the accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000 27-11-2014 ebode IPV4NVR...
  • Page 71 The subnet mask of the NVR must be the same as the subnet mask in LAN port status. The default gateway of the NVR is the same as the IP address in LAN port status. The primary DNS and secondary DNS can be the same as the DNS in WAN port status. 27-11-2014 ebode IPV4NVR...

  • Page 72: Specifications

    Environment Operating Temperature -20° ~ 55°C (-4°F ~ 131°F) Operating Humidity 20% ~ 85% non-condensing Storage Temperature -20°C ~ 60° (-4°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification CE, FCC, RoHS Warranty Limited 2-year warranty 27-11-2014 ebode IPV4NVR...
