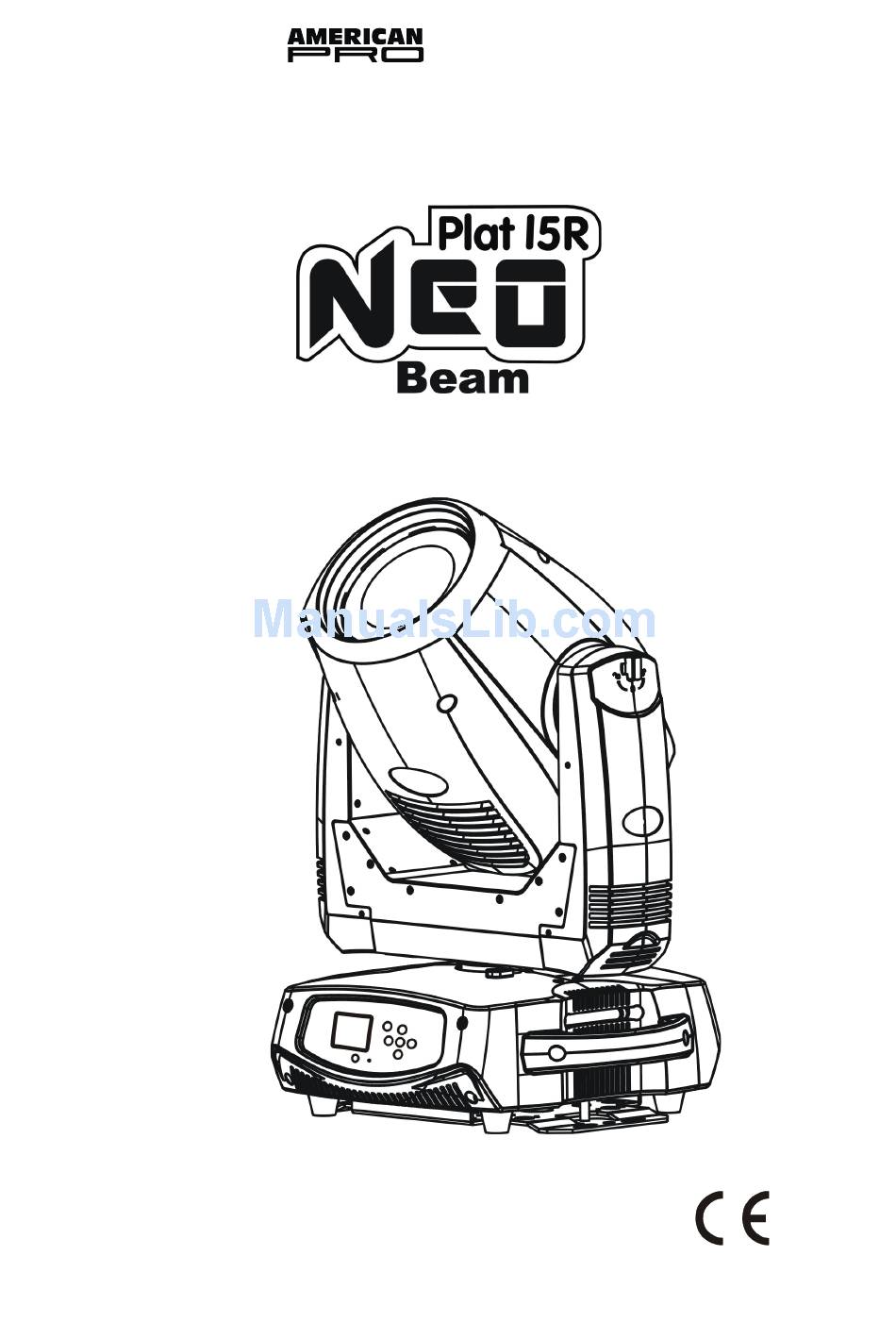

Page 1: User Manual
Products http://www.americanpro-audio.com User Manual KEEP THIS MANUAL FOR FUTURE NEEDS Contents... -
Page 2: Table Of Contents
1. FEATURES ............................... 2 2. Fixture Overview .............................. 3 3. SAFETY INSTRUCTIONS ..........................3 3.1) Important safety warns ......................... 3 3.2) GENERAL GUIDELINES ........................4 4. INSTALLATION INSTRUCTIONS ......................5 4.1) Installing or replacing the lamp ......................5 4.2) Mounting the device ..........................6 5. -
Page 3: Features
Every person involved with the installation, operation and maintenance of this device has to: -be qualified -follow carefully the instructions of this manual INTRODUCTION: Thank you for having chosen this professional moving head. You will see you have acquired a powerful and versatile device. Unpack the device. -
Page 4: Fixture Overview
2. Fixture Overview Lens Display DC Switch Microphone Left-button Down-button Right-button Mode/Esc-button Up-button 10) ENTER-button 11) Handle 12) Lamp bracketrear metal panel 13) 3-Pin DMX in 14) 3-Pin DMX out 15) 5-Pin DMX in 16) 5-Pin DMX out 17) Power supply 18) Fuse 3. -
Page 5: General Guidelines
to exceed their own effective degree, such as cracked and gashed, it must be replaced. The electric connection must carry out by qualified person. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. -
Page 6: Installation Instructions
may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc. 4. INSTALLATION INSTRUCTIONS 4.1) Installing or replacing the lamp O nl y i nstal l the l am p w i th the dev i c e unpl ug g ed f rom the m ai ns. T he l am p has to be repl ac ed w hen i t i s dam ag ed or deform ed. ... -
Page 7: Mounting The Device
1) Please put the fixture on a smooth desk, release the screw A, B, C, D. Then open the plate for lamp-socket. 2) Before taking off the lamp, please release the two red wires which connect to the lamp ( Picture No.1 marked a) . 3) Please press the point which two red arrows point at like what picture No.2 shows. - Page 8 These installations have to be approved by a skilled person once a year. Overhead mounting requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself.
-
Page 9: Dimensional Drawings
a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device. - Page 10 Layout Drawings: XM907-V2.2.0-A...
-
Page 11: Dmx-512 Control Connection
Mounting points Be sure this fixture is kept at least 9m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. -
Page 12: Dmx-512 Connection With Dmx Terminator
ddress 1 Address 17 Address 33 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. - Page 13 The main menu is accessed by pressing the -button until the display starts flashing. Browse through the menu by pressing the -button , -button , -button or -button. Press the Enter-button in order to select the desired menu. You can change the selection by pressing the the -button , -button ,...
- Page 14 Address Via DMX ON/OFF Add. via DMX No DMX Status Close/Hold/Auto/Music Auto run if no DMX Pan Reverse ON/OFF Pan Reverse movement Tilt Reverse ON/OFF Tilt Reverse movement Status Settings Pan Degree 630/540/540-90 offset Pan Degree Select Feedback ON/OFF Movement Feedback Movement Speed Speed 1~ 4 Movement Mode Select...
-
Page 15: Function
Auto Pro Part 1 = Program 1 ~ 10 Program 1 Select Programs Auto Pro Part 2 = Program 1 ~ 10 Program 2 Select programs to be run Auto Pro Part 3 = Program 1 ~ 10 Program 3 Program 1 Program Test Testing program... -
Page 16: Sound Control
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu. 8.1.5 Sound Control With this function, you can run the internal program sound-controlled. 1．Access the main menu. 2．Tap the <Up/Down>button until“Sound Control”is displayed. 3．Press <ENTER>, the display will show “Sound Control”. 4．Tap the <Up/Down>button，the display will show “Master”, ”... - Page 17 With this function, you can display the running time of the lamp. The display shows “XXXX”, “XXXX” stands for the number of hours. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until the display will show “Time Information”...
-
Page 18: Temperature Info
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until the display will show “Time Information” . Press ENTER, the display will show “Time Information”. 2．Press <Up/Down>, the display will show “Lamp Time Password”. 3．Press<... -
Page 19: Lamp On/Off
ON, as the lamp switch is compelled to turned off. ·When the temperature unit after the temperature value come to lowercase letter “c” or “f”, it means menu Lamp is turned to ON, but the lamp is not full dimming up. ·When the temperature unit after the temperature value come to capital letter “C”... -
Page 20: Lamp Off Temp
lamp after automatic lamp shut off. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Lamp Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the <Up/Down>button until the display will show “Max On at Temp”. Press ENTER, the display will show “Max On at Temp”. 2．Press <Up/Down>, the display will show “45℃”... - Page 21 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pan Reverse With this function you can reverse the Pan-movement. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down>button until the display will show “Status setting”.
-
Page 22: Service Setting
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down>button until the display will show “Status setting”. Press ENTER, the display will show “Status setting”. 2．Press <Up/Down>, the display will show “Movement Speed”. 3．Press<... -
Page 23: Fans Control
RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed and does not influence conventional devices. If DMX splitters are used and RDM control is to be used, these splitters must support RDM. The number and type of RDM parameters depend on the RDM controller being used. -
Page 24: Initial Status
8.4.6 Initial Status With this function, Display initial effect position. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. 2．Press <Up/Down>, the display will show “Initial status”. 3．Press< ENTER>, the display will show “Initial status”. 4．The display show “XXX”. -
Page 25: Users Mode Set
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”. 2．Press <Up/Down>, the display will show “Calibration”. 3．Press< ENTER>, the display will show “Calibration”. 4．The display show “Password=XXXX”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 8.7 Users mode set In this menu, user can select different channels list by different sequence: For example, after the user enter this manual, if select Auto Program = CH 22, means in this... -
Page 26: Automatic Program Run
• Press the Enter button to confirm. • Select “Set to slave” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select “Slave 1”, “Slave 2” or “Slave 3”. • Press the Enter button to confirm. •... -
Page 27: Instructions On Use
The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: 9. INSTRUCTIONS ON USE: DMX channel´s functions and their values (22 DMX channels): Mode/Channel Value Function Color Wheel : 0-14 Open / white 15-29 Color 1 30-44... - Page 28 90-104 Rot. gobo 1 shake 105-119 Rot. gobo 2 shake 120-134 Rot. gobo 3 shake 135-149 Rot. gobo 4 shake 150-164 Rot. gobo 5 shake 165-179 Rot. gobo 6 shake 180-194 Rot. gobo 7 shake 195-209 Rot. gobo 8 shake 210-255 Rot.
- Page 29 208-215 Gobo 13 shake slow to fast 216-255 Gobo wheel rotation from slow to fast Fixed gobo indexing Fine 0-255 Fixed gobo Fine indexing PAN Movement 8bit : 0-255 Pan Movement By 630/540 TILT Movement 8bit : 0-255 Tilt Movement By 270 Speed Pan/Tilt movement: 0-225 max to min speed...
- Page 30 Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Dimmer intensity: 0-255 Intensity 0 to 100%...
-
Page 31: Error Message
10. ERROR MESSAGE When you turn on the fixture, it will make a reset at first. The display may show“Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning. -
Page 32: Cleaning And Maintenance
(Focus error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The Focus is not located in the default position after the reset. 11. - Page 33 Remark: errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice. XM907-V2.2.0-A...
