Rockford Fosgate RFRZ-PMX0DK Installation And Operation Manual
Rockford Fosgate RFRZ-PMX0DK Installation And Operation Manual

Rockford Fosgate RFRZ-PMX0DK Installation And Operation Manual

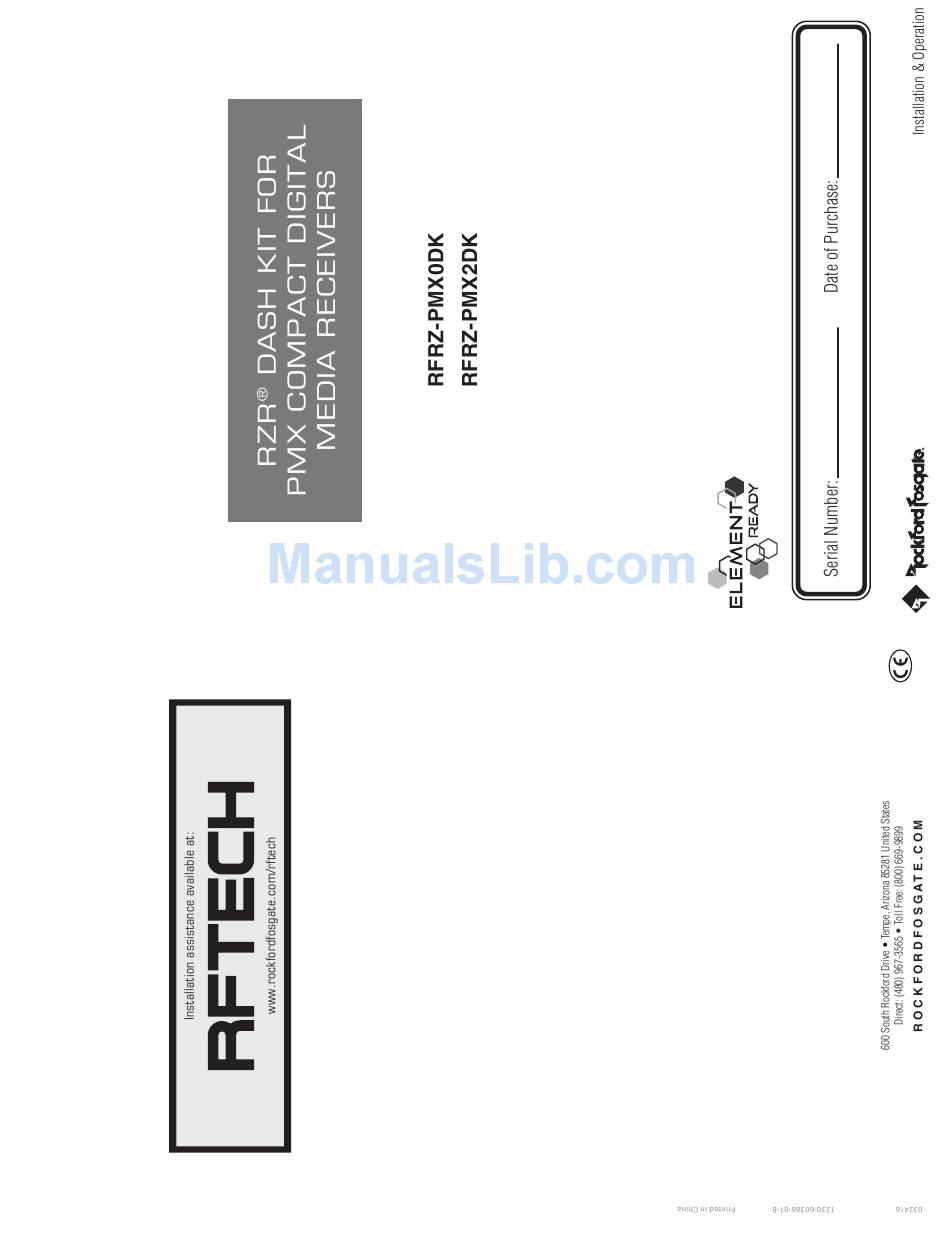

Rzr dash kit for pmx compact digital media receivers

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFRZ-PMX0DK and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockford Fosgate RFRZ-PMX0DK

  • Page 2 12 Warranty ©2015 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
  • Page 3 Specifications / Mounting RFRZ-PMX0DK 7.7” 2.1” (196mm) (54mm) 5.7” (146mm) FRONT VIEW SIDE VIEW Fig. 1 Mounting Screw Mounting Plate Existing storage pocket (Not Included) Spring Clip Source Unit (Not Included) Panel Knockout Dash Kit Shoulder Head Bolt Fig. 2...
  • Page 4 Specifications / Mounting RFRZ-PMX2DK 7.7” 2.1” (196mm) (54mm) 5.7” (146mm) FRONT VIEW SIDE VIEW Fig. 3 Mounting Screw Source Unit (Not Included) Existing storage pocket (Not Included) Spring Clip Panel Knockout Dash Kit Shoulder Head Bolt Fig. 4...
  • Page 5 2014 Polaris RZR XP4 1000 with a RFRZ-PMX2DK. NOTE: The process for removing the center pocket to mount the dash kits are the same for both the RFRZ-PMX0DK and RFRZ- PMX2DK. Refer to the drawings on pages 3 & 4 for attaching Step 1 - Remove Hood the source units to the dash kits.
  • Page 6 Installation Lift off the panel once the bolts are removed. This will give you Step 5 - Remove the Center Pocket Protective Cover access to the center pocket support bracket. Turn the center pocket upside down to provide access to the protective cover pins.
  • Page 7 Installation Step 6a - Optional Knockout Panels for Accessory Step 7 - Mount the Source Unit to the Dash Kit Switches Before mounting the source unit to the dash kit, make sure that trim bezel that is included with the source unit is NOT attached. If it is attached, you will need to remove it.
  • Page 8 Installation Step 8 - Attach the Dash Kit to the Center Pocket NOTE: Make sure the speed clips are lined up correctly or the screw will not be able to be tightened. On the rear of the pocket, you will need to remove one of the circular knockout panels providing an access hole to route wiring Step 10 - Reinstalling the Dash Kit from your source to your vehicle.
  • Page 9 Installation Step 11 - Reinstalling Instrument Panel Place the instrument panel back on top of the dash. Secure the panel with factory screws. Step 12 - Attach Hood Place the hood back on the vehicle and rotate the mounting clip to the lock the hood back into place.
  • Page 12 What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distribu- tor and not by Rockford Corporation.

This manual is also suitable for:

Rfrz-pmx2dk
