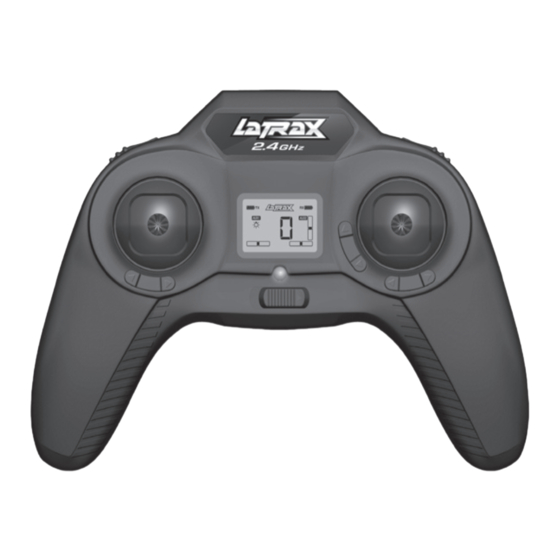

LaTrax Alias Transmitter Operating Instructions

This transmitter operates the LaTrax Alias helicopter only. This transmitter is not meant for, and will not operate, other LaTrax models or non-LaTrax
models. Carefully read and follow all instructions in this and any accompanying materials.
This instruction sheet does not cover transmitter adjustments, flight controls, or the operation of your model. Refer to your Owner's Manual for full
instructions. You can download your Owner's Manual, as well as the manuals for all LaTrax vehicles, at LaTrax.com.
Battery Installation
Four AAA alkaline batteries are required (A). The battery compartment is marked with + and – symbols to indicate
correct battery placement. For maximum performance and life, use genuine Traxxas Power Cell alkaline batteries.
Binding the Transmitter and Helicopter
The transmitter has a model memory feature, which allows it to bind to and store up to 10 models at a time.
When you bind an eleventh helicopter to the transmitter, it will automatically delete the least recently used
model from its memory. Follow these steps to bind the helicopter to the transmitter:
1. Push in and hold the AUX2 button.
2. While holding the AUX2 button (B), turn the transmitter on. The LED on the transmitter will blink green,
and the LCD will display rotating segments.
3. Release the AUX2 button.
4. Connect a charged battery to the helicopter.
5. Wait 10 seconds for the helicopter to enter Bind Mode. The LED on the helicopter will begin to blink
rapidly for 1 minute.
6. When binding is complete, the LEDs on the helicopter and on the transmitter will turn solid, and the LCD
on the transmitter will display the Disarmed Flight Screen (C).
Linking the Transmitter and Helicopter
When you are ready to fly the helicopter, you must first establish a link between the transmitter and the
helicopter. Please note that the helicopter and transmitter should have been previously bound. Follow these
steps to link the helicopter to the transmitter:
1. Turn the transmitter on. The LED will turn solid and the LCD will display the Disarmed Flight Screen (C).
2. Connect a charged battery to the helicopter. The transmitter will detect the previously bound helicopter
and complete the link. The LED on the helicopter will turn solid, and the LCD on the transmitter will display
the helicopter (receiver) battery charge level icon.
LaTrax Service and Support
Phone: 1-888-872-9927 (U.S. residents only)*
Online: LaTrax.com/support
E-mail: support@LaTrax.com
*Monday through Friday from 8:30am to 9:00pm central time
LaTrax Warranty Coverage
This transmitter and its components are only covered against
manufacturer's defects in materials, workmanship, or assembly when new
(before being used). If you have a warranty claim, please contact LaTrax
Technical Support. Warranty coverage does not cover replacement of parts
and components damaged by abuse, neglect, improper or unreasonable
use, crash damage, water or excessive moisture, chemical damage,
improper or infrequent maintenance, accident, unauthorized alteration
or modification. The end user is responsible for the cost of shipping or
returning a defective transmitter from you to us.
Limitations of Liability
This product is warranted against defects in original material and
workmanship only. No term warranty is offered with this product. LaTrax
makes no other warranties expressed or implied. LaTrax shall not be liable
for any special, indirect, incidental, or consequential damages arising out
of the assembly, installation, or use of their products or any accessory or
chemical required to use their products. By the act of operating/using the
product, the user accepts all resulting liability. In no case shall LaTrax's
liability exceed the actual purchase price paid for the product. LaTrax
reserves the right to modify warranty provisions without notice. All warranty
claims will be handled directly by LaTrax. The LaTrax warranty gives the
customer specific legal rights and possibly other rights that vary from state
to state. All dollar amounts stated are in United States dollars. The term
"lifetime" shall refer to the product's production life at LaTrax. LaTrax is not
obligated to provide upgraded products at a reduced rate when a previous
product's production cycle has ended.
Transmitter
Operating Instructions
6200 Traxxas Way, McKinney, Texas 75070, Phone: 972-265-8000, Fax: 972-265-8011, Email: support@LaTrax.com
LaTrax encourages you to register your model online at
LaTrax.com.
Note: Before returning any product to LaTrax for service or repair, contact
LaTrax Technical Support. Our knowledgeable staff will assess the problem
and provide the necessary information for warranty or return repair service
and shipping and handling.
This device contains a module that complies with the limits for a Class B
digital device as described in part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable
protection against harmful interference in residential settings. This
product generates, uses, and can radiate radio frequency energy, and,
if not operated in accordance with the instructions, may cause harmful
interference to radio communications.
The user is cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.
LaTrax.com
A AAA x 4
B
AUX2 button
C
KC1952-R00 Rev 130913
