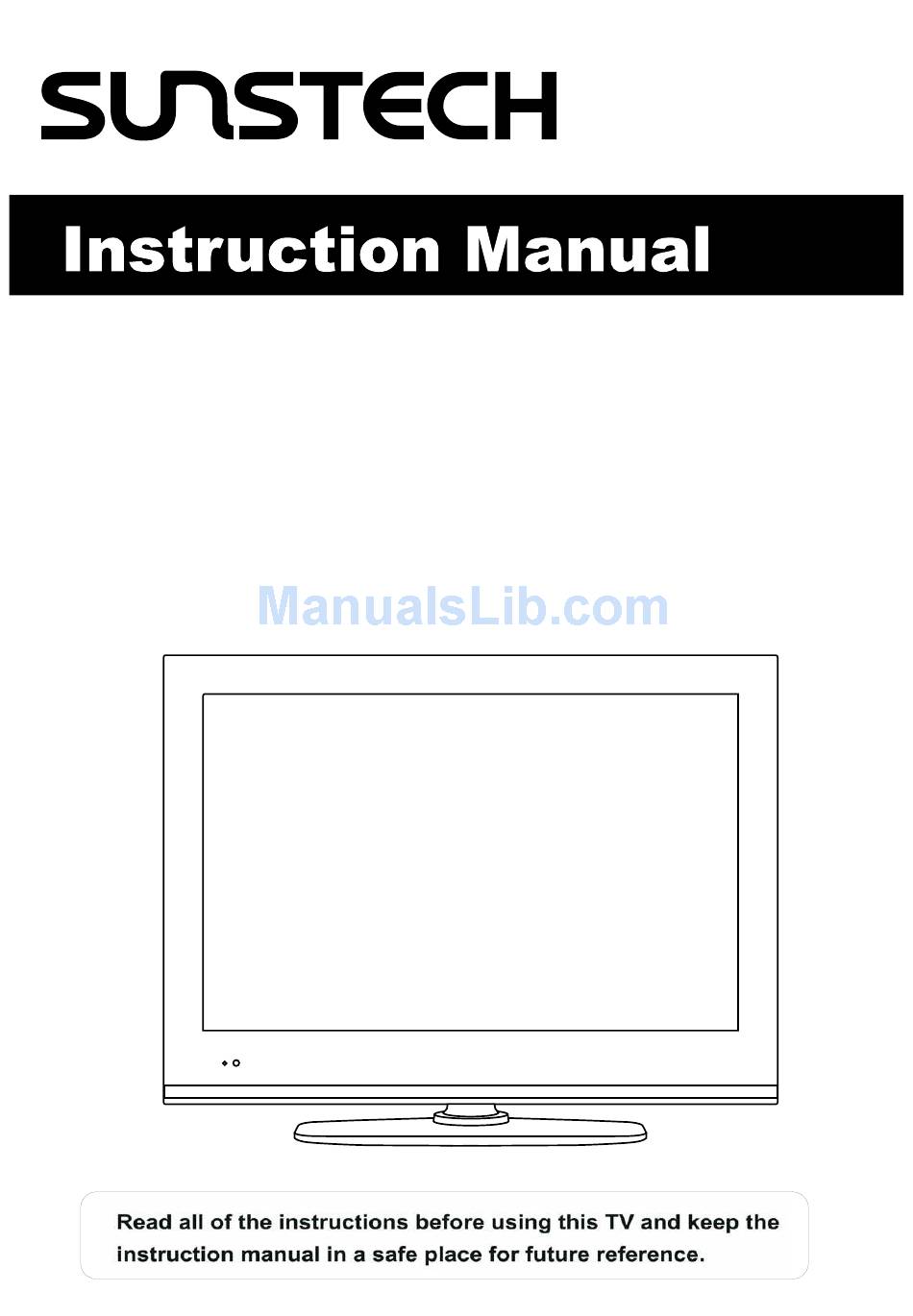

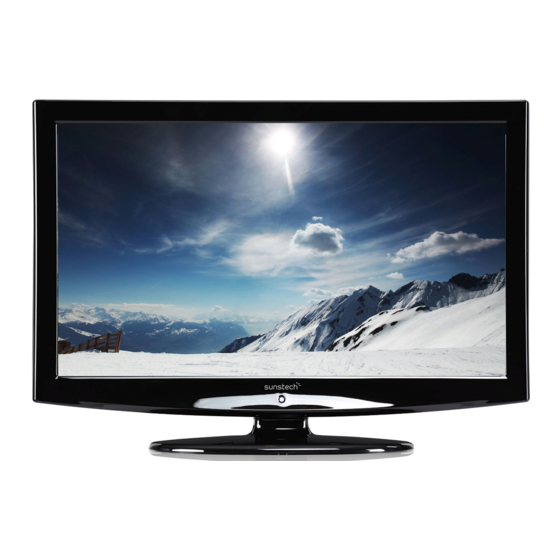

- Page 1 19" LED Television with Built in DVB-T & PVR and CI MODEL: TLEI19...
-
Page 2: Table Of Contents
Contents Contents Caution Safety Information Unit and Accessories Product Feature Introduction Front View Rear View Remote Control Basic Operation OSD Menu 10-18 1. PICTURE menu 2. SOUND menu 3. FUNCTION menu 12-13 4. TV menu 14-15 5. DTV menu 16-17 6. -
Page 3: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Information
Safety Information Safety Information Electrical safety apparatus. Physical safety... -
Page 5: Unit And Accessories
SOURCE MENU EXIT TV/RADIO FAV+ FAV- DISPLAY LANGUAGE TLEI19 User's manual Remote control Mains Cable Mains adapter Batteries: 2xAA Product Feature - Inputs: RF, VIDEO, VGA, SCART, HDMI, YPbPr, AV/YPbPr AUDIO, PC AUDIO - Support TV mode: PAL B/G D/K I, SECAM B/G D/K,L/L’... -
Page 6: Introduction
Introduction Introduction Front View 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Blue) Standby mode Indicator on(Null) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20 above or below the remote control... -
Page 7: Rear View
Introduction Rear View SCART POWER: Connect to the power supply. USB USB for upgrade,media and PVR. HDMI: Connect it to the HDMI of DVD or other equipment. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. PC-IN: Connect it to the audio output terminal of PC. -
Page 8: Remote Control
Introduction Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. Buttons for TELETEXT operating You could use the buttons only in TELETEXT . - Page 9 Introduction Buttons for Media functions TV/TXT CANCEL REVEAL : Play/pause. : Stop . HOLD SIZE SUBPAGE INDEX : Fast reverse. : Fast forward. : Previous chapter. : Next chapter. SOURCE MENU EXIT Buttons for DTV operating TV/RADIO: Disc menu change between DTV and Radio. FAV: Display the favorite program list.
-
Page 10: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with a power code and an adapter . 2.-To turn on the TV Press POWER button on the TV or remote control. SOURCE -To turn off the TV Press POWER button on the TV or remote control. -
Page 11: Osd Menu
OSD Menu OSD Menu 1. PICTURE menu(TV mode for example) PICTURE PICTURE MODE PERSONAL BRIGHTNESS CONTRAST COLOUR SHARPNESS TINT COLOUR TEMPERATURE NORMAL MOVE ADJUST EXIT MENU Description PICTURE MODE: Select between STANDARD, MOVIE, MILD, GAME, PERSONAL. You may select the picture mode directly by pressing the PICTURE button on the remote control. -
Page 12: Sound Menu
OSD Menu 2. SOUND menu(TV mode for example) SOUND SOUND MODE PERSONAL BASS TREBLE BALANCE MOVE ADJUST EXIT MENU Description SOUND MODE: Select between: STANDARD, MUSIC, VOICE, THEATRE, PERSONAL. You may select the sound mode directly by pressing the SOUND button on the remote control. -
Page 13: Function Menu
3. FUNCTION menu(TV mode for example) FUNCTION LANGUAGE ENGLISH VIDEO SIZE FULL TT LANGUAGE WEST EURO SLEEP TIME to display Press button the items hidden. OSD TIME 30 SECONDS BLUE SCREEN RESET MOVE ADJUST EXIT MENU CHILD LOCK INSTALLATION HOTEL MODE Description LANGUAGE: Select the OSD language. - Page 14 OSD Menu INSTALLATION: Enter the FIRST TIME INSTALLATION menu by pressing > button on the item. Change the settings according to your actual conditions, and select "YES" item to start auto tuning, or select "NO" to cancel. FIRST TIME INSTALLATION COUNTRY OTHER LANGUAGE...
-
Page 15: Tv Menu
OSD Menu 4. TV menu(TV mode) COUNTRY OTHER AUTO TUNING MANUAL TUNING CHANNEL EDIT MOVE ADJUST EXIT MENU Description COUNTRY: Select Country for tuning. AUTO TUNING: Pressing > button on the item, then select "YES" and press OK button to start auto tuning, or select "NO"... - Page 16 OSD Menu FAV,SKIP,LOCK: Select the desired channel with button, and operate with GREEN, YELLOW, BLUE buttons, press the color button again to cancel the operation. FAV: Press GREEN SKIP: Press YELLOW CH+/- LOCK: Press BLUE MOVE: NAME: Name the channel. Channel name Select character 's area by number...
-
Page 17: Dtv Menu
OSD Menu 5. DTV menu(DTV mode) CH. MANAGE AREA OTHER AUTO TUNING MANUAL TUNING ADVANCED SETTING TIMER NATIVE GAME MOVE ADJUST EXIT MENU Description CH. MANAGE: Enter the CH.MANAGE menu by pressing > button on the item. DTV\CHANNEL MANAGE CH. ORGN. CH. - Page 18 OSD Menu CH.GROUP: Enter the Channel Grouping menu by pressing > button on the item. You could grouping the channels by selecting the group number (1-8) you can see on the right. DEL TV CH.: Press OK button and select YES to delete all TV channels, or select NO to cancel.
-
Page 19: Hdmi/Ypbpr Menu
OSD Menu 6. HDMI/YPbPr menu(HDMI/YPBPR mode) HDMI/YPBPR H POCITION V POSITION POSITION RESET MOVE ADJUST EXIT MENU Description H POSITION: Adust the horizon position of the picture. V POSITION: Adust the vertical position of the picture. POSITION RESET: Press > button to reset the setings above. 7. -
Page 20: Media Operation
Media operation Media operation SOURCE 1. Connect the USB device to the USB jact on the back of the TV(page 6), 2. Press SOURCE button on the TV set or remote control to display the input source menu, and use CH+/- button on the TV set or button on remote control to select "MEDIA", press OK button on the remote control to enter, and the screen SCART... -
Page 21: Media Operation
Media operation FILE MANAGER GREEN YELLOW Press BLUE DEVICE LIST SUBSCRIBE Timer. TIMESHIFT START Press OK program. -
Page 22: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. - Page 23 19" 1000:1 1366x768 Common interface DC 12V 5A...
