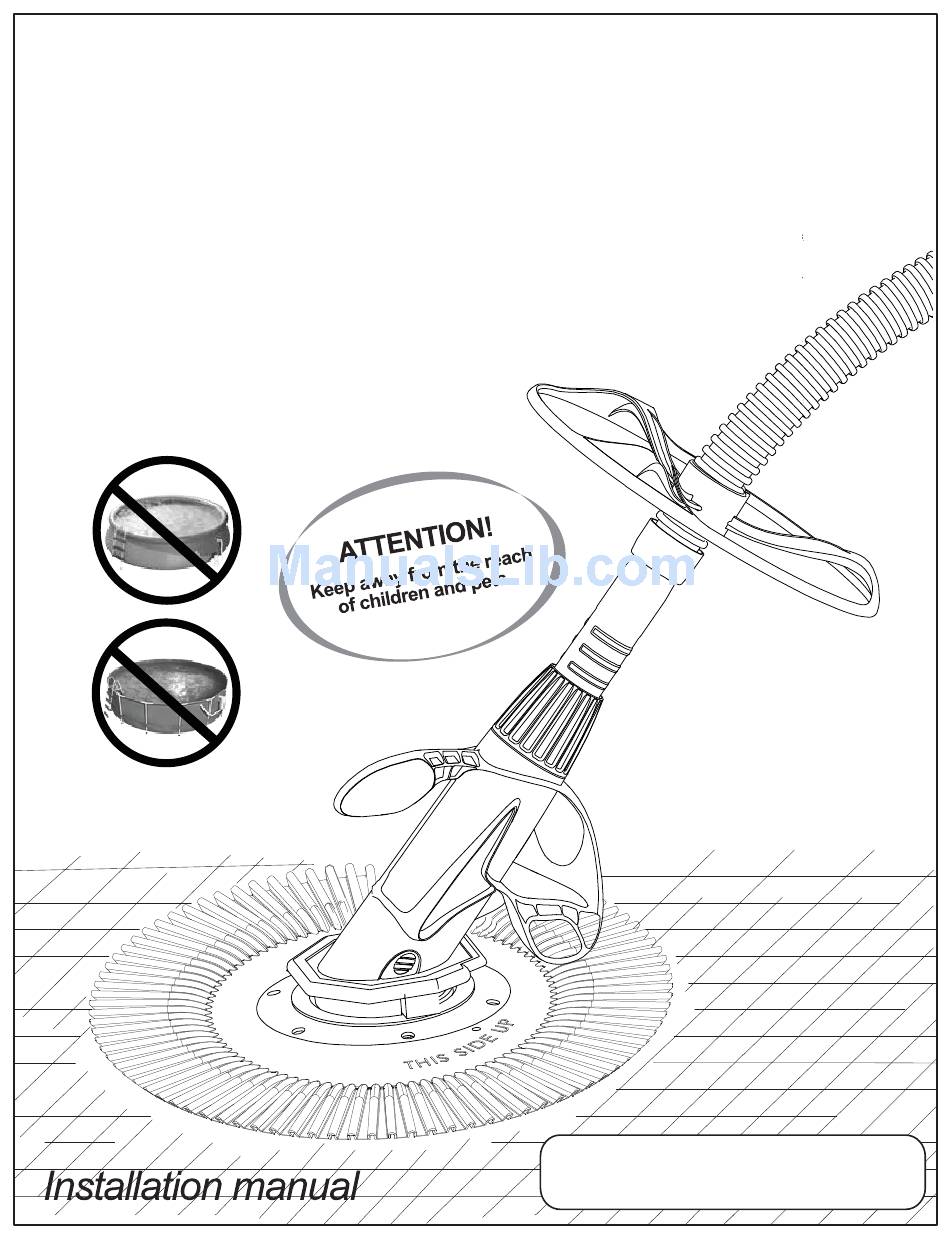

AQUA EZ-VAC
Automatic Pool Cleaner
Not for use with
Splasher Pools.
Diaphragm
Item# 215153 Model# APC493
DO NOT RETURN THIS PRODUCT TO THE STORE
Should you have any problems or questions concerning your product
or replacement parts, please contact Aqua EZ's Customer Service
Division toll free at 1-877-852-4264 or visit us at www.aquaez.com
Advertisement
Related Manuals for Aqua EZ APC493
Summary of Contents for Aqua EZ APC493
- Page 1 Item# 215153 Model# APC493 DO NOT RETURN THIS PRODUCT TO THE STORE Should you have any problems or questions concerning your product or replacement parts, please contact Aqua EZ’s Customer Service Division toll free at 1-877-852-4264 or visit us at www.aquaez.com...
- Page 2 Congratulations on the purchase of your new Aqua EZ EZ-Vac Automatic pool cleaner. The EZ-Vac is designed and manufactured for easy installation, and years of carefree operation. Before installing the cleaner, please take a few moments to become familiar with its components and to read over the installation instructions.
-
Page 3: Hose Assembly
Step 1 Step 1: Stretch the Skirt #2, over the Foot #1, by starting at the corner of the Foot #1. Rotate the skirt in a circular direction while stretching the Skirt #2 over the Foot #1. Once you have completed a full circle the Skirt #2 should now be resting freely in the skirt channel of the Foot #1. - Page 4 Skimmer System Installation Before connecting vacuum to hose, check the current suction from the pool’s filtration system. Connect the Suction test gauge #6 to the end of a Flexible hose section #5 with the gauge below water surface, Turn on pump and examine gauge setting.
- Page 5 Angle Adjustment Move Forward Move Backward Incorrect Incorrect Correct The EZ-Vac needs to be at a 45 Degree angle to the bottom of the deepest part of the pool to operate correctly. To achieve the correct angle, slide the Hose Weight #9, up or down Flexible Hose #5, as illustrated in the above diagram.
- Page 6 Trouble Shooting Guide PROBLEM POSSIBLE SOLUTIONS Note: In water 60° F (16° C) or less, it may be necessary to increase flow to compensate Cleaner does not move for the reduced flexibility of the hose and diaphragm. or moves slowly •...
