Summary of Contents for G-Speaker GPS-8

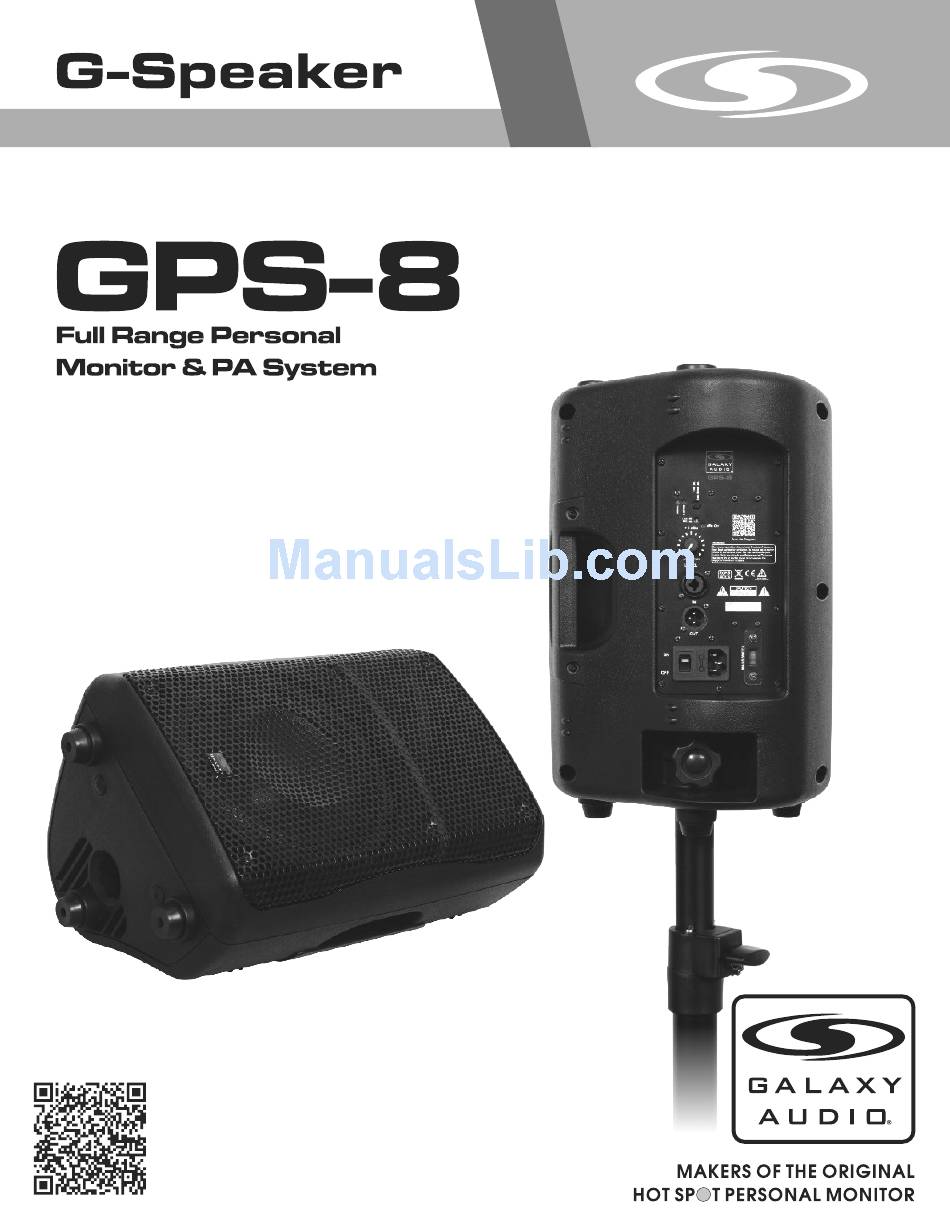

  • Page 1 USER’S MANUAL...
  • Page 2 This page intentionally left blank...

  • Page 3: Table Of Contents

    6. Specifications..................7 Introduction 1. Introduction Thank you for choosing a Galaxy GPS-8 Full Range Powered Monitor/PA System. You have joined hundreds of thousands of other satisfied Galaxy customers. Since 1977 Galaxy Audio’s professional experience in design and manufacturing ensure our products’ quality, performance and reliability.

  • Page 4: Safety

    Safety 2. Safety This symbol indicates that dangerous voltage This symbol indicates that there are important Constituting a risk of electric shock is present Operating and maintenance instructions in the Literature Accompanying This Unit within this unit. ! IMPORTANT SAFETY INSTRUCTIONS ! USE only with a cart, stand, tripod, bracket, or table READ these instructions.

  • Page 5: Amplifier

    110 V will cause heavy damage to the device and serious risk for users. 4.3 Current Requirements The GPS-8 presents a dynamic load to the AC mains, drawing additional current as operating levels increase. Different cables and circuit breakers heat up at varying rates, so it is essential to understand current ratings and how they correspond to circuit breaker and cable specifications.

  • Page 6: Amplifier Panel

    Contents 4.4 Amplifier Control Panel WARNING: S/N: 1. Bass Boost 7. Parallel Output 2. Limiter Indicator 8. Power Switch 3. Signal Indicator 9. Fuse Holder 4. Mic/Line Selector 10. AC Input 5. Level Control 11. Mic On Indicator 6. Mic/Line Input 12.

  • Page 7: Amplifier Panel Functions

    GPS-8’s Level Control. 3. Signal Indicator: The LED indicator will light whenever there is a signal at the Mic/Line Input. It senses the signal just after the Level Control, therefore if the Level Control is turned down, the Signal Indicator will not light.

  • Page 8: Audio Input Connector Wiring

    2. Start by making sure the Bass Boost and Mic/Line buttons are off (extended outward). If using a microphone as the input to the GPS-8, push the Mic/Line button in to turn on. If using a mixer, a CD player, or other line-level source as the input to the GPS-8, leave the Mic/Line button off.

  • Page 9: Specifications

    Specifications 6. Specifications Frequency Response: (±3 dB) 75 Hz - 17.5 kHz Output/Peak: 200 Watts Sensitivity: 100 dB, 1 W @ 1 m Max SPL: 123 dB Speaker Compliment: 8" Diameter Woofer, 1" Compression Driver Nominal Impedance: 4 Ohms Nominal Coverage Pattern: 90 H x 60 V Input Connections: One - XLR/1/4"...
  • Page 10 This page intentionally left blank...
  • Page 11 This page intentionally left blank...
  • Page 12 THREE YEAR LIMITED WARRANTY WARRANTY Information can be viewed online at http://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty USER’S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2016 V20160824...
