Summary of Contents for RVMedia RV300DVD

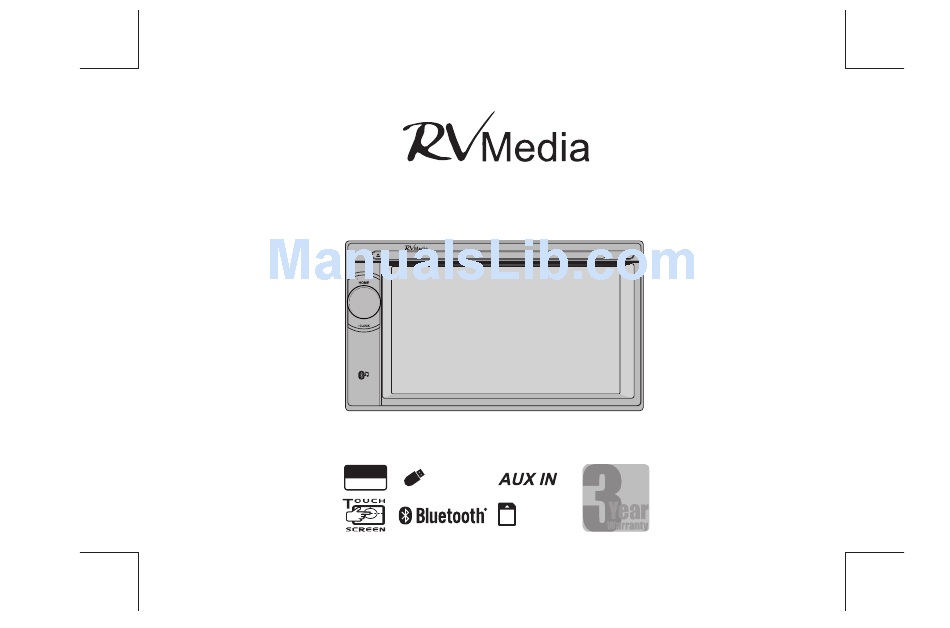

- Page 1 RV300DVD OWNER’S MANUAL RV300DVD DIMMER AUX IN 6.2” RV DVD MULTI-MEDIA PLAYER & TUNER 4X50W USB Host OUTPUT SD/SDHC...
- Page 2 Warnings Washing/Cleaning the RV CAUTION Do not expose the product to water or excessive moisture. This could THIS MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. THIS UNIT USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION IF EXPOSED DIRECTLY. BE Hot Environments SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.
-
Page 3: Installation
Installation INSTALLATION CAUTION Resetting the unit. make sure it is all connected up properly and the unit and system work properly. 2. Use only the parts included with the unit to ensure proper installation. The use of un-authorized parts can cause mal functions. 3. -
Page 4: Connecting The System
Connecting the System AV-IN Remote connection RF 109RV (optional) CAMERA-IN (Black) JACK VIDEO IN REAR OUT VIDEO OUT ANTENNA SOCKET ISO Male Connector (not included) RF 009RV RF Remote Port (optional) PIN WIRE COLOR FUNCTION/LABEL A4 YELLOW BATTERY(+) * Video out can be connected to the RV’s TV using BLUE CONNECT TO SYSTEM CONTROL TERMINAL... -
Page 5: Main Unit Overview
Main Unit Overview Clock (Quick Tune) In Tuner mode, press this button to access into the Auto Store function DIMMER The six strongest stations of the selected band will be saved in preset channels automatically: FM1,FM2,FM3(1-6),AM1,AM2. Press and hold this button to view the clock. Press the button again to return to the previous mode. -
Page 6: Remote Control Functions
Remote Control Functions / BAND In Tuner mode, press this button to change the radio band. In DVD/Media playback mode, press to Pause or Resume play. DIMMER FUNCTION DVD AUDIO LIST FUNC In DVD playback mode, press this button to select the DVD VOLUME audio language or audio channel. -
Page 8: System Setup
System Setup Tuner Operation Adjust Tuner Settings View information Touch the icon to view the Touch the icon on the TFT display in Tuner mode to enter the system version information. Tuner Settings menu. [Area]: Selects the area of Adjust Bluetooth Settings operation for the Tuner. - Page 9 Media Player Operations (Disc/USB/Micro SD Card) USB Device Operation Disc Playback Insert the USB Device USB or Micro SD Card using the Media Player. Open the cover marked USB on the front You can play commercially available audio CDs and these Discs: panel, insert the USB device into the Digital Versatile Discs (DVDs) USB socket.
-
Page 10: Dvd Playback
Micro SD Card Media Player Operations (Disc/USB/ Media Playback DVD Playback Repeat DVD Menu List During media playback, touch the button on the TFT display During DVD playback, touch anywhere on the access the Media Function menu to adjust the different Repeat modes. screen to bring up the DVD playback menu and For MP3/WMA/CD mode a number of icons will be displayed. -
Page 11: Dvd Functions
Media Player Operations cont’d AUX-IN/AV-IN/Camera Modes DVD Functions Select the Aux Mode During DVD playback, touch the icon to access the DVD You can connect up to 2 optional devices. Touch the icon Function menu to adjust the options below: on the TFT screen to select the Source menu to select the AUX-IN mode. -
Page 12: Bluetooth Audio Operation
Bluetooth Audio Operation Pairing Bluetooth A2DP Audio Streaming If the connected Bluetooth device supports Advanced Audio Distribution Bluetooth Pairing Between Mobile Phones/ Tablets and The Head Unit Open your device and switch Bluetooth on and search for control to play music stored on the device. Bluetooth devices. -
Page 13: Usb Devices
General Radio Power Supply 12 V DC (11-14 V), Negative Ground Fuse Frequency Range 87.5 - 108MHz (100KHz step in auto Suitable Speaker 4 - 8 search & 50KHz per step manual search) Impedance Usable Sensitivity Better than 15dB at S/N 30dB Power output 50W x 4 channels Pre-AMP output... - Page 14 File Playback Information Supported MP3 disc format Supported Formats • • MP3/WMA bit rate (data rate): 32-320 Kbps & VBR ISO9660, Joliet • Maximum title number: 512 (depending • WMA Version V9 or earlier • Maximum album number: 255 • Directory nesting up to a maximum of 8 levels •...
-
Page 15: Troubleshooting
Troubleshooting Before going through the check list, check the unit’s wiring. If any Disc cannot be ejected. problems persist after reviewing the check list, please consult your Press and hold the button. nearest Camec dealer. Preset stations lost No power or no sound Battery or power supply has been disconnected from the unit.
