Summary of Contents for Eurostar SPC-901-A

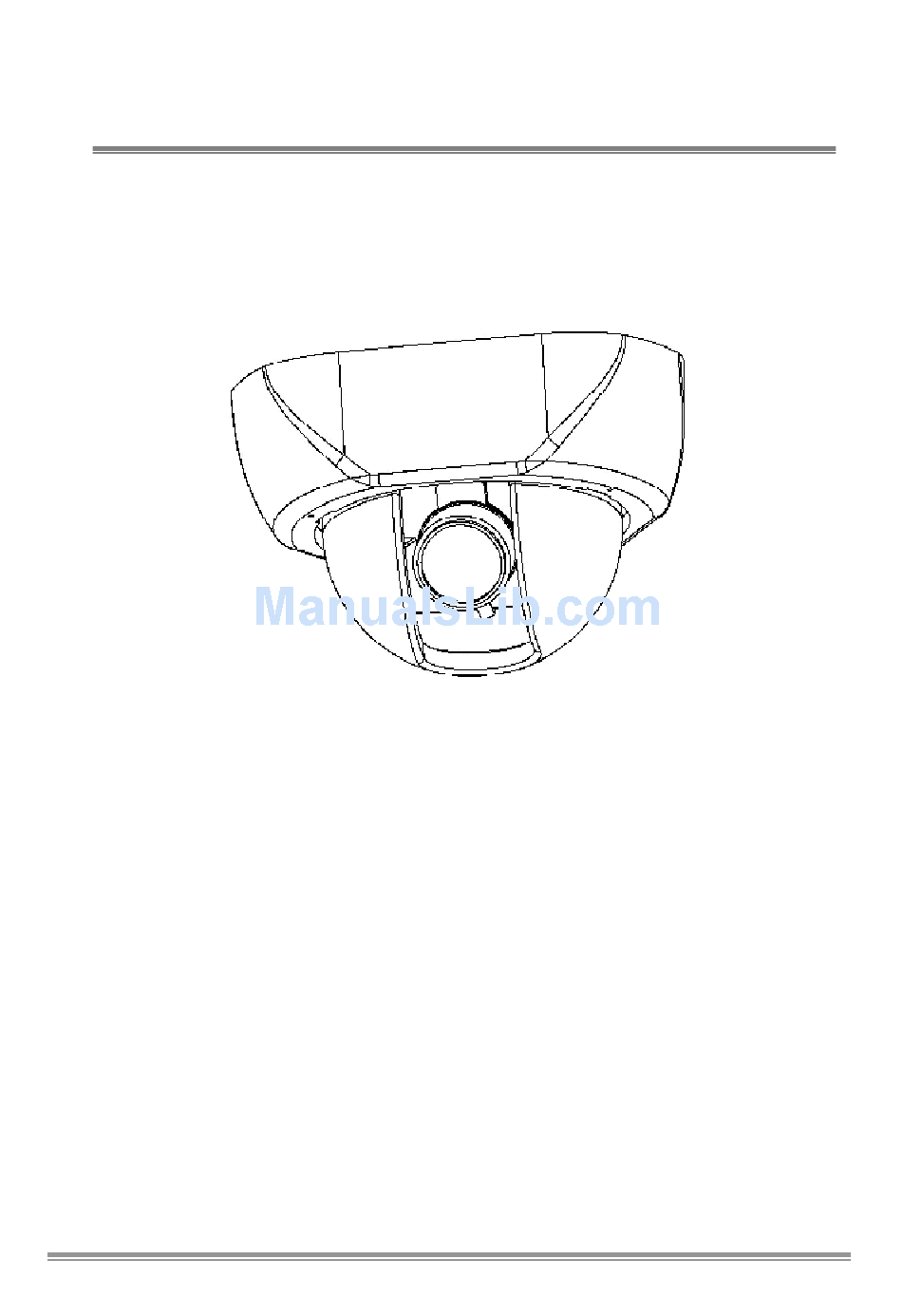

- Page 1 VARI-FOCAL DOME User Manual Please read this instruction thoroughly before operation and retain it for future reference. V1.0...
- Page 2 Thank you for choosing this high quality camera. Before attempting to connect or operate this product, please read and follow these instructions completely and carefully. Specification High Resolution Normal Item AVC901 Pick up Element 1/3" Color CCD image sensor 512(H) x 492(V) <NTSC> / 768 (H) x 494(V) <NTSC>...
- Page 3 Major operating controls and functions Audio Video DC12V 1. DC12V Input Terminal This terminal is for connecting the 12V DC regulated power supply cord. 2. Video Output Connector (VIDEO OUT) This is connector is for connecting with the VIDEO IN connector of the video monitor. 3.
- Page 4 Connections 1. Auto Iris lens connector Supplies power and control signals to an auto iris lens. 2. Video Output Connector (VIDEO OUT) This connector is for connecting with the VIDEO IN connector of the video monitor. 3. Function Select a. BLC: Back light compensation function selection. The factory default setting is OFF. Select “ON”: When the brightness level of the background is higher than the object.
