Summary of Contents for Ssl BTB8

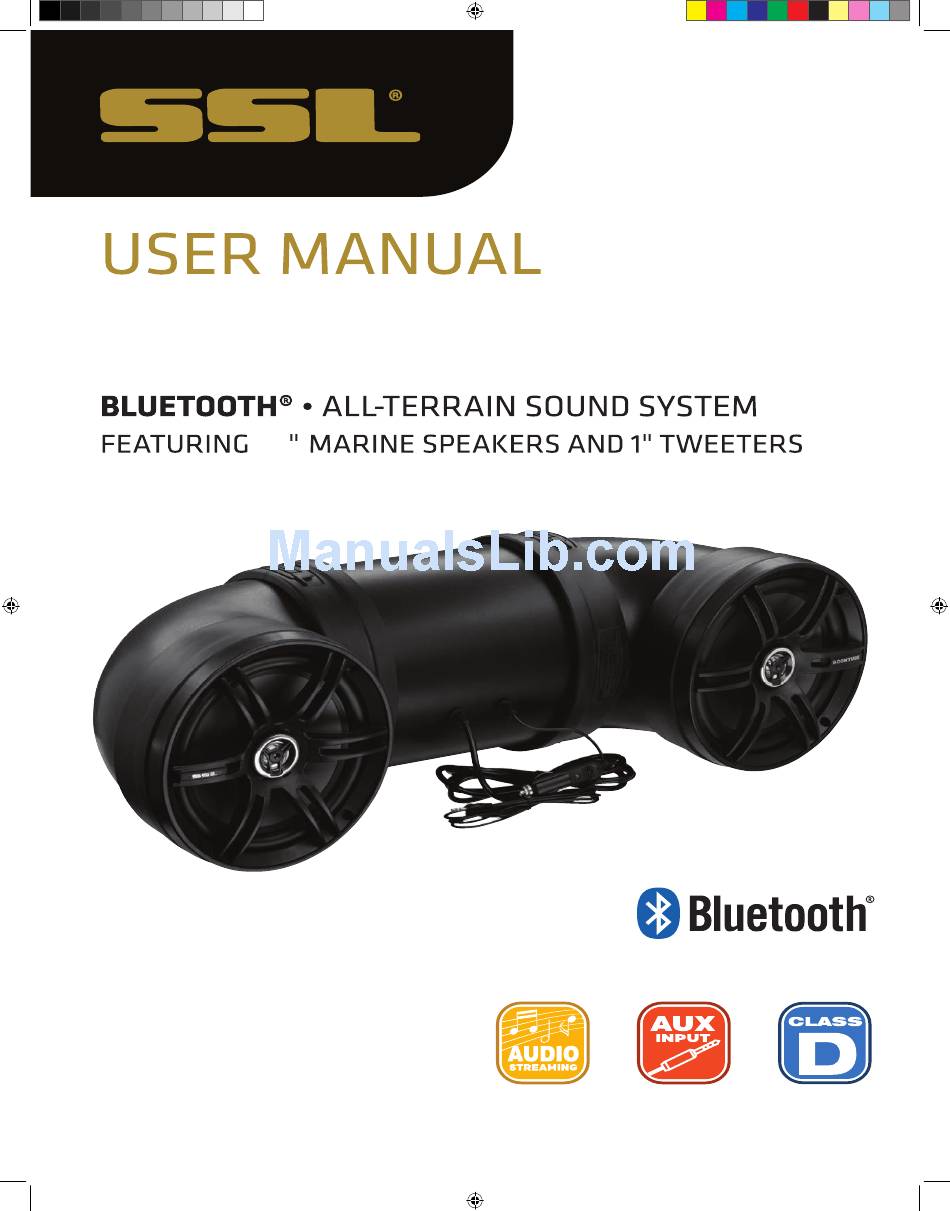

  • Page 1 BTB8 BTB8-UM.indd 1 2/1/2016 12:11:56 PM...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INFORMATION TO THE USER ���������������������������������������������������������������������� 2 BEFORE YOU START ��������������������������������������������������������������������������������� 4 GETTING TO KNOW YOUR BTB8 ����������������������������������������������������������������� 5 BEFORE YOU START ��������������������������������������������������������������������������������� 6 BLUETOOTH OPERATION �������������������������������������������������������������������������� 7 STREAMING MUSIC ����������������������������������������������������������������������������������� 8 AUX INPUT ����������������������������������������������������������������������������������������������� 9 INSTALLATION �����������������������������������������������������������������������������������������10 TROUBLE SHOOTING �������������������������������������������������������������������������������11...
  • Page 3: Information To The User

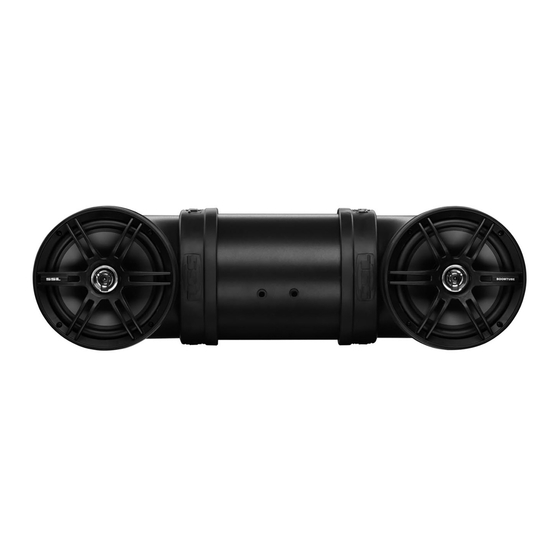

    20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Alteration or modifica- 1- BTB8 8” All-Terrain Speaker System tions carried out without appropriate authorization may invalidate the user’s right to operate the equipment.
  • Page 4: Before You Start

    BEFORE YOU START GETTING TO KNOW YOUR BTB8 IMPORTANT SAFETY PRECAUTIONS ­ ● ­Do­not­operate­mobile­equipment­while­driving­a­motorized­vehicle­–­safe­driving­and­safety­consideration­of­ others­should­always­be­your­highest­priority. ●­In­the­event­you­should­notice­smoke,­strange­noises­or­odor­from­this­product,­or­any­other­abnormal­signs,­ immediately­turn­off­the­power­and­consult­your­dealer­or­the­nearest­authorized­SOUND STORM LABS Service­Center.­Using­this­product­in­this­condition­may­result­in­permanent­damage­to­the­system. ●­Set­your­volume­control­at­a­low­setting,­then­slowly­increase­the­sound­until­you­can­hear­it­comfortably­ without­distortion,­or­ear­discomfort. ●­BE SURE TO OBSERVE THE FOLLOWING GUIDELINES: -­Do­not­turn­up­the­volume­so­high­that­you­can’t­hear­what’s­around­you. -­Use­caution­or­temporarily­discontinue­use­in­potentially­hazardous­situations. INSTALLATION PRECAUTIONS WARNING � Always consult a professional installer ●­Do­not­attempt­to­install­or­service­this­product­by­yourself.­Installation­or­servicing­of­this­product­by­persons­...
  • Page 5: Bluetooth Operation

    ­ a.­Go­into­the­Settings Menu­of­your­device ­ c.­“SSL BTB8”­will­display­under­AVAILABLE DEVICES ­ b.­Enter­the­Bluetooth Menu ­ d.­Choose­the­“SSL BTB8”­to­reconnect c. TURN ON Bluetooth­and­press­SCAN ­ d.­“SSL BTB8” will­now­be­displayed­under­AVAILABLE DEVICES 4)­If­the­device­is­out­of­range­from­the­BTB8,­it­will­disconnect­automatically: ­ e.­If­prompted,­enter­passcode:­“0000” ­ a.­The­BTB8­will­automatically­reconnect­to­the­device­once­back­in­range iOS users: NOTE: You have ­ a.­Go­into­the­Settings Menu­of­your­iOS device NOTE: Some media devices will need to be manually reconnected from the device 2 minutes before ­...
  • Page 6: Streaming Music

    STREAMING MUSIC AUX INPUT 5V 1A USB CHARGE Nyne Cruiser BTB8­can­play­audio­from­any­device­that­ 5V 1A USB CHARGE has­a­3.5mm­headphone­audio­jack. AUX�IN OPERATION Nyne Cruiser 1)­Power­on­the­BTB8 by­plugging­in­the­male­cigarette­lighter­adaptor­into­­ ­a­ female­cigarette­lighter­receptacle.­ 2)­Disconnect­any­paired­Bluetooth­device­by­turning­off Bluetooth in­your­devices­ Settings Menu BLUETOOTH OPERATION 3)­Connect­the­­integrated­3.5mm­AUX�IN cable­ ­to­your­devices­headphone­jack 1)­Press­the­PLAY/PAUSE­from­your­devices­touch­screen 4)­Route­the­wire­back­to­BTB8,­and­secure­your­device VOLUME CONTROL VOLUME CONTROL 5)­To­raise or lower the­volume­use­your­device­volume­controls...
  • Page 7: Installation

    For the latest information about this product please visit www.soundstormlab.com TECH SUPPORT: 805�322�8794 www.soundstormlab.com/technical-support/ DIMENSIONS FOR ILLUSTRATION PURPOSES FOR ILLUSTRATION PURPOSES YOUR VEHICLE MAY VARY YOUR VEHICLE MAY VARY 8.66” (22.0cm) 12.01” 30.91” NO SPECIAL TOOLS REQUIRED (30.5cm) (78.5cm) BTB8-UM.indd 10-11 2/1/2016 12:12:10 PM...
  • Page 8: Specifications

    •­Maximum­Output­Power:­700­Watts ­ •­Range:­33ft­(10m) ­ •­Input­impedance:­10kΩ ­ •­Frequency­Response:­45Hz-22kHz SPEAKERS GENERAL ­ •­Dimensions:­8”­/­203.3mm ­ •­Operational­Power:­12VDC­(10-16V­allowable) ­ •­Cone­Type:­PP­CARBON­+­RUBBER­SURROUND­ ­ •­MAX­Current­Draw:­10A­ ­ •­Tweeter­Size:­1”­­PEI­SOFT­DOME­ ­ •­Replacement­Fuse:­10A­AGC­TYPE ­ •­Color:­Black­ ­ •­Net­Weight:­12.7lbs­/­5.75kg ­ •­Dimensions­cm­WxHxD:­78.5­x­27.0­x­30.5 ­ •­Dimensions­Inches­WxHxD:­30.91­x­8.66x­12.01 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE BTB8-UM.indd 12-13 2/1/2016 12:12:12 PM...
  • Page 9 TECHNICAL ASSISTANCE www.soundstormlab.com/technical-support/ 805-322-8794 BTB8 EN 216 BTB8-UM.indd 14 2/1/2016 12:12:13 PM...
