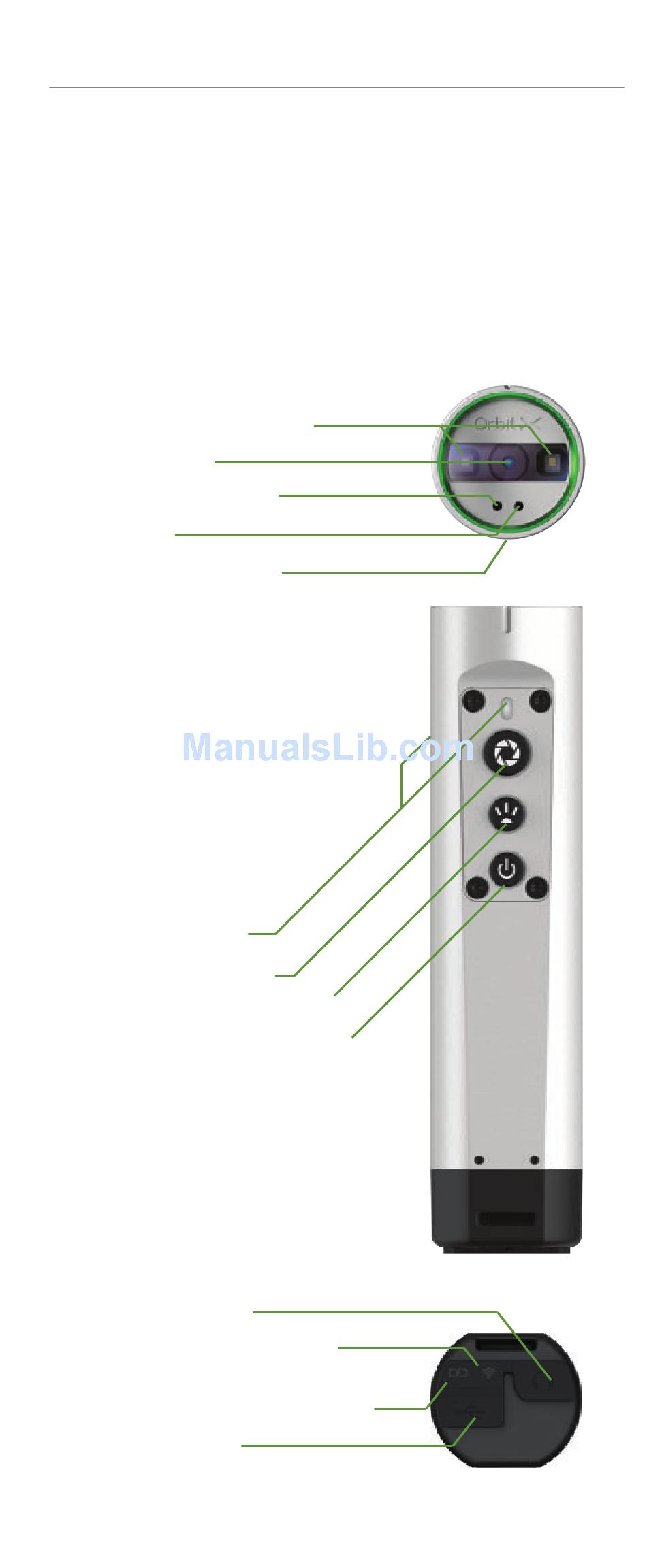

- Page 1 Introduction Congratulations on your new Orbit X camera. All you need to get started can be found in this quick guide LED Video Light Camera Microphone 1 Laser Microphone 2 Status LED Action Button Light/Laser Button Power/Standby Button Audio Jack...
- Page 2 The Basics Let’s get started! Starting Pulsating Power On - Long Press Press and hold for 3 sec to start the device Ready For Use Constant Shutting Down Power Off - Long Press Press and hold for 3 sec Constant Standby - Short Press Standby...
- Page 3 Photo, Video and Video Conferencing Capture and share your images Take Photo - Short Press Snapshot Press once. Keep camera steady One Blink Ready to Record Record Video - Long Press Pulsating Press and hold for 1 sec. to start and stop recording Recording Constant Calling...
- Page 4 Lights and Laser Night or day? Dosen’t matter Light On Video Light - Short Press Light MAX Cycle light intensity Light Off Laser On Laser On/Off - Long Press Press and hold for 1 sec Laser Off...
- Page 5 Con gure your Orbit X Connect it to the internet and get the job done! Orbit X app Collaboration X Download the Orbit X Our Cloud Management app on your android web page. phone or tablet. The app is already...
-
Page 6: Mounting Your Camera
Mounting Your Camera Attach it to everything! Mount your Orbit X to helmets, walls and other equipment with the included Curved and Flat Adhesive mounts and hardware Mounting plate for Mounting plate for curved surfaces flat surfaces (e.g. helmet) (e.g. walls) - Page 7 Overview Standby/Wake up Short Press Power On/Off Long Press Take a Photo Short Press Start/Stop Video Rec. Long Press Call/Hang Up Video Call 5 sec. Press Video Light On/Max/Off Short Press Laser On/Off Long Press Starting Pulsate Ready For Use Constant Standby 4 Sec Interval...
-
Page 8: Factory Reset
Charging The Orbit X has a high quality, high capacity battery and shall only be charged using the charger supplied with the unit. Charging the Orbit X from 0% to 80% battery capacity takes approximately hours. Charging the remaining 80% to 100% takes 1 ½... -
Page 9: Special Conditions For Safe Use
Recycling (WEEE) If you wish to discard the Orbit X, please contact your dealer or supplier. Do not throw the device in your domestic rubbish/trash. Integrated Laser The Orbit X has built-in Laser functionality for realtime collaboration and highlighting. - Page 10 Conditions For Use (CSA) The ambient temperature range of the Orbit X is -20°C to + 45°C The Orbit X shall be protected from contamin- ation by liquid and dust; this is normally achieved by the operator carrying the device on their person.
- Page 11 Conditions For Use (ATEX & IECEx) The ambient temperature range of the Orbit X is -20°C to + 45°C The Orbit X shall be protected from contamin- ation by liquid and dust; this is normally achieved by the operator carrying the device on their person.
- Page 12 FCC/IC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 13 Speci c Absorption Rate Data The Orbit X Camera is a radio transmitter and receiver. It is designed and manufac- tured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government,...
- Page 14 Orbit X Quick Guide...
