Summary of Contents for SIGLOS R699860

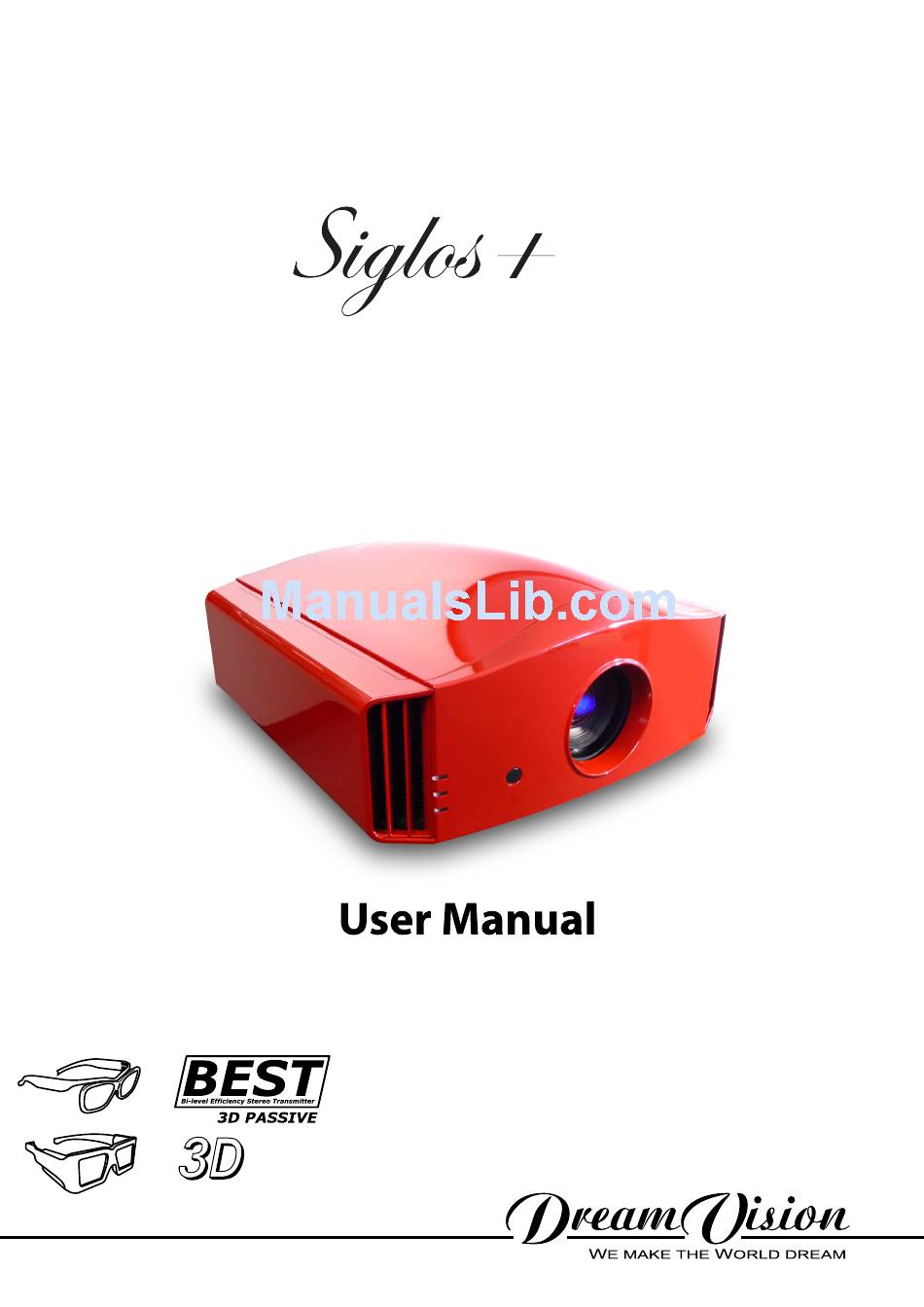

- Page 1 THE MOST POWERFULL 3D SOLUTION ACTIVE GLASSES...
- Page 2 Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brands and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products of their manufactures. R699860 - Siglos Plus User Manual...
-
Page 3: Table Of Contents
HDMI2 EDID ..........................23 9.0 3D CONTENT AND 3D PROjECTION ................General Information about 3D playback ..................23 Projector 3D Settings........................24 10.0 INSTALLATION ........................10.1 Lens Control ..........................24 10.2 Pixel Adjust ..........................25 10.3 Installation Style ...........................25 10.4 Keystone (Vertical) ........................25 R699860 - Siglos Plus User Manual... - Page 4 Dirt on the Lens ..........................29 15.3 Replacing the Lamp........................30 15.4 Troubleshooting ..........................31 16.0 MISCELLANEOUS ....................... 16.1 RS-232C protocol .........................32 16.2 LAN protocol ..........................35 16.3 Infra Red, long hex-pronto compatible RCU ................36 16.4 Specifications..........................37 R699860 - Siglos Plus User Manual...
-
Page 5: Safety Instructions
1.3 Important Safeguards Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE R699860 - Siglos Plus User Manual... - Page 6 • Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. • The product should be placed more than one foot away from heat sources such as radiators, heat registers, R699860 - Siglos Plus User Manual...
-
Page 7: Installation Guidelines
2D and 3D images, and they are the proof of high definition and high quality, indicating that Siglos+ 2&3 have cleared more than 400 rigorous image quality tests including accuracy of color reproduction, cross-talk, viewing angle and video processing performance. -
Page 8: Environment Of Use
Be sure to ask your dealer or specialist to perform mounting. • Do not mount at places that may be subjected to vibration and shock. • Depth of the screw holes (A) is 23 mm. Use at least 13mm long R699860 - Siglos Plus User Manual... -
Page 9: Projection Distance
Take note of the projection angle when placing them. You can also use up to +/- 15° up and down position and configure trapezoidal correction. Horizontal Shift +/- 34% Vertical Shift +/- 80% Screen Height Screen Base R699860 - Siglos Plus User Manual... -
Page 10: Adjust The Picture Zoom
Using Lens Memories You can save the current picture position, zoom and focus in up to 5 different Lens Memories (10 for Siglos+ 2&3). Each memory stores the current position, zoom, focus of the lens and you can also set a custom name of 10 characters or less. -
Page 11: Remote Control Unit (Rcu)
If the remote control has to be brought closer to the projector to operate, it means that the batteries are wearing out. When this happens, replace the batteries. Always insert the batteries according to the + and - marks. R699860 - Siglos Plus User Manual... -
Page 12: Getting Started
4.1 General View Front side Optical Lens* Air Inlets Operating LEDs Front IR receiver (*) Optical Lens: On the Siglos+ 2&3 models, the optical lens is protected by a motorized lens cover. Rear side Lamp trap Input Panel Navigation buttons Main Power Air Outlets • Input Panel: connect your video source to the correct input. -
Page 13: Operating And Navigation Buttons
Prior to connecting any device to this unit, switch the projector in standby mode. Never connect a HDMI source to this unit when the projector is in operate mode. The HDMI termination is a self-powered connection and can cause electric discharges. R699860 - Siglos Plus User Manual... -
Page 14: Connecting A Video Source To The Projector
ECO Mode turn to On prevents this unit to receive and to respond to automation commands when it is in standby. Turn Off ECO mode if you plan to take full control of this unit with an automation system. R699860 - Siglos Plus User Manual... -
Page 15: Menu Structure
Off / On Color selection Axis Position -30 +30 -30 +30 Saturation -30 +30 Brightness -30 +30 Reset Confirm Color Temp Xenon Modes (Siglos+ 2&3) (Film projector) Xenon1 (DCI projector) Xenon2 (Cooler than DCI) Xenon3 R699860 - Siglos Plus User Manual... - Page 16 (16 - 255) Super White Color Space Auto (fixed to YCbCr(4:2:0) with YCbCr(4:4:4) 4Kp50/60 input) YCbCr(4:2:2) Aspect (Video only) if 3D, only 16:9 is available 16:9 Zoom Aspect (PC only) Auto Full Progressive (480i, 576i, 1080i) Auto, Off R699860 - Siglos Plus User Manual...
- Page 17 1H, 2H, 3H, 4H, Off ECO Mode On, Off Network DHCP Client On, Off IP Address 192.168.0.2 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 Mac Address Display MAC Remote Code Press [Menu] + [Back] A, B Lamp Reset Confirm R699860 - Siglos Plus User Manual...
-
Page 18: Picture Adjust
To obtain the correct colors, set the Picture mode to a User “Picture Mode” and select x.v.Color in the “Color Profile” selection. The User picture modes can be renamed to any more convenient name. R699860 - Siglos Plus User Manual... -
Page 19: Advanced Picture Mode
Adjust the Red, Green, Blue, Yellow, Cyan, Magenta.Tints, their saturations and luminances and store them into Custom profiles. R699860 - Siglos Plus User Manual... -
Page 20: Color Temperature
• Custom1 to Custom3: fine tune the gamma setting according to the user’s preference. • NB: when Color Profile is set to x.v.Color, gamma setting is fixed to Normal. Additional Gamma settings when Film Color Profile is selected (Siglos+ 2&3): • Film1: standard gamma • Film2: slightly more contrasted gamma... -
Page 21: Multiple Pixel Control Level (Mpc Level)
HD movies at 60Hz. Set the correct level between: • Off: Frame interpolation is disable. • Low: light frame interpolation with reduced artifacts. • High: strong interpolation • Inverse Telecine: dedicated interpolation for 60i and 60p sources originally shot in 24p. R699860 - Siglos Plus User Manual... -
Page 22: Contrast
16:9. The picture size is 16:9, generally most recent DVDs, Blu-Ray discs or HDTV broadcasts. c) Zoom. The zoom function is useful to zoom in the picture and eliminate black bars. When watching 3D content, only 16:9 aspect ratio is available . R699860 - Siglos Plus User Manual... -
Page 23: Progressive (Only 480I, 576I, 1080I)
3D video images can be an obstacle for the development of a comprehensive three-dimensional feel. Additionally, younger children may suddenly become sick, because they continue watching without realizing symptoms like 3D sickness or deterioration of health. Please accompany your child while it watches 3D programs. R699860 - Siglos Plus User Manual... -
Page 24: Projector 3D Settings
Call up saved lens adjustment data to configure the lens. Store the data into an available “Save” memory. There are 5 memories for Siglos+ 1 model and 10 memories for the Siglos+ 2&3. You can edit the Lens Memory Name within the limit of 10 characters. Same procedure as section “User Name Edit”, page 19. -
Page 25: Pixel Adjust
• Mode A: The picture is vertically stretched to fit an installation with anamorphic lens. A cinemascope picture is stretched to completely fill the panels without black bands, using the optimum resolution and brightness. R699860 - Siglos Plus User Manual... -
Page 26: High Altitude Mode
On: Display the source of the input signals after input selection. Off: Don’t display. Logo On: Display D-ILA logo during startup for 5 seconds. Off: Don’t display. Language Choose the OSD language between: English, Japanese, German, Spanish, Italian, French, Portuguese, Dutch, Swedish, Norwegian, Russian and Chinese. R699860 - Siglos Plus User Manual... -
Page 27: Function
If the active input is PC input., its resolution is displayed. H. and V. Frequency In the case of PC signal, the horizontal and vertical frequencies are displayed. Deep Color Depth Displays the color bit depth of the input video signal. R699860 - Siglos Plus User Manual... -
Page 28: Cinemascope Setups
14.0 CINEMASCOPE SETUPS 14.1 Lens Zoom or Static Cinemascope kit The Siglos Plus centralizes the controls and automation commands for a unique, versatile and unexpectedly simple to operate 2.35:1 theatre experience using Lens Zoom or the Static Cinemascope kit. -
Page 29: Maintenance
The lens shall be cleaned using commercial blowers or lens cleaning papers (for cleaning glasses and cameras). Do not use fluid-type cleaning agents. This may lead to peeling of the surface coating film. The lens surface is fragile. Avoid rubbing it hard or knocking. R699860 - Siglos Plus User Manual... -
Page 30: Replacing The Lamp
• Tighten the screws of the lamp unit. • Attach the lamp cover and fasten the lamp trap screw. Resetting Lamp Time After installing a new lamp, reset the lamp time using the OSD menu Turn On the unit. R699860 - Siglos Plus User Manual... -
Page 31: Troubleshooting
CAUTION: When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets/exhaust vents by standing the projector on its end or laying it on its side. R699860 - Siglos Plus User Manual... -
Page 32: Miscellaneous
37h 33h 37h 31h Switch input to HDMI2 Keypad 52h 43h 37h 33h 30h 31h 37h 33h 30h 32h DOWN 37h 33h 30h 33h BACK 37h 33h 32h 45h MENU 37h 33h 32h 46h R699860 - Siglos Plus User Manual... - Page 33 Set User5 name 50h 4Dh 55h 35h 10 ASCII char. Set custom name to User5 Picture Mode Set User6 name 50h 4Dh 55h 36h 10 ASCII char. Set custom name to User6 Picture Mode R699860 - Siglos Plus User Manual...
- Page 34 Zoom tele Keystone 49h 4Eh 4Bh 56h 4 bytes integer Vertical Keystone (same as Contrast) Intelligent Aperture 50h 4Dh 44h 49h Auto1 Auto2 Lens Memory 52h 43h 37h 33h 44h 34h Switch between lens memories R699860 - Siglos Plus User Manual...
-
Page 35: Lan Protocol
10000 is 2710h in hexa, converted in receive: 06h 89h 01h 4Ch 53h 0Ah ASCII characters: 32h 37h 31h 30h Then, reboot Network module send: 21h 89h 01h 4Ch 53h 52h 53h 0Ah receive: 06h 89h 01h 4Ch 53h 0Ah R699860 - Siglos Plus User Manual... -
Page 36: Infra Red, Long Hex-Pronto Compatible Rcu
003C 0014 0014 0014 003C 0014 0014 0014 003C 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0336 A complete device/function chart with their corresponding long hex commands is available, ask your dealer if required. R699860 - Siglos Plus User Manual... -
Page 37: Specifications
16.4 Specifications Overview Overview The Siglos Plus uses the latest technology developed to provide the ultimate video-projection experience. LCoS (Liquid Crystal on Silicon) technology based on a reflective principle features an extremely high-definition picture and seamless color gradations. Emission method... - Page 38 MISCELLANEOUS Dimensions 22 cm 8.7” 46 cm 51 cm 18.1” 20.1” 51 cm 20.1” 46 cm 18.1” R699860 - Siglos Plus User Manual...
- Page 39 R699860 - Siglos Plus User Manual...
