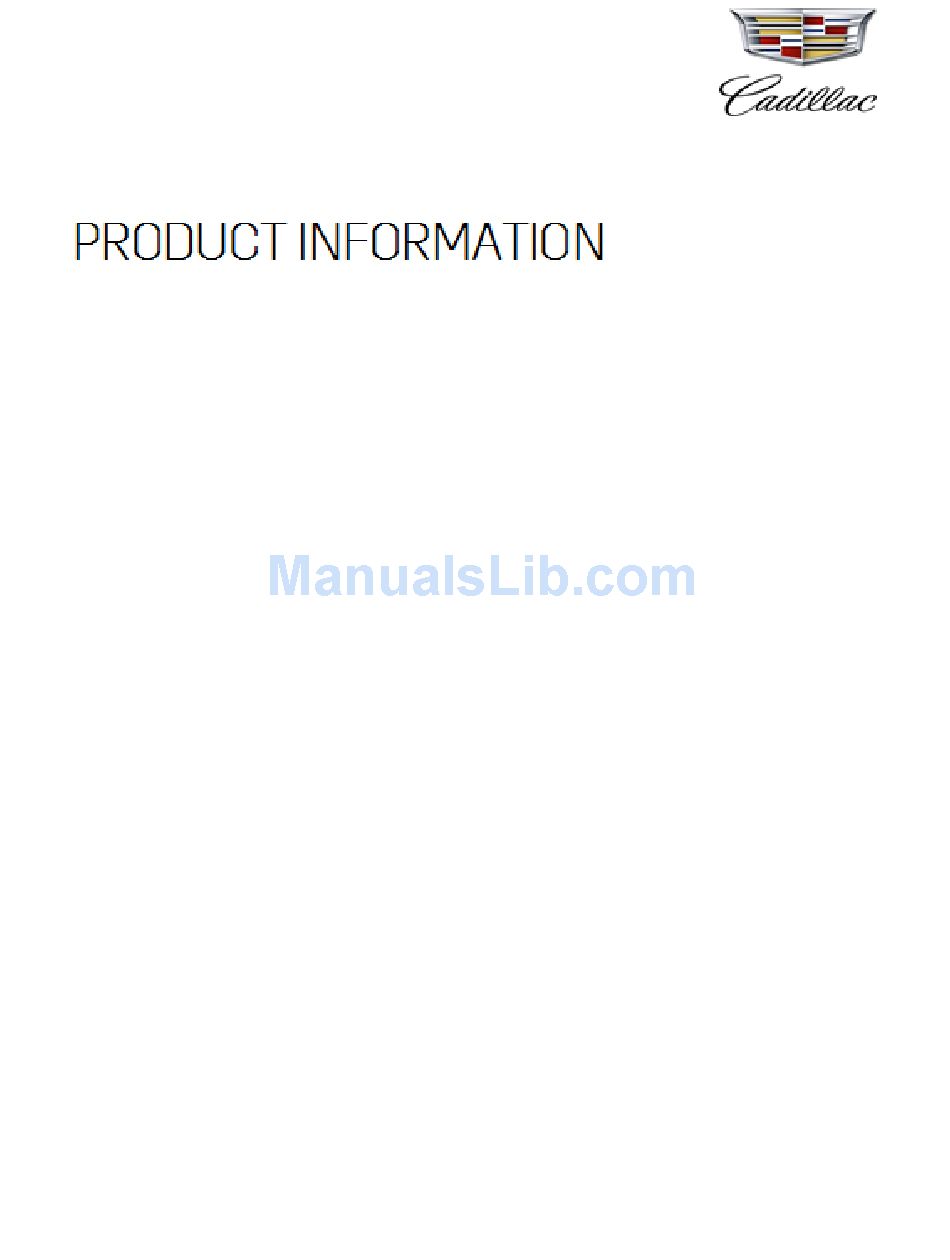

Cadillac 2016 ATS-V Product Information

Cadillac 2016 ATS-V Product Information

Hide thumbs Also See for 2016 ATS-V:

Advertisement

Quick Links

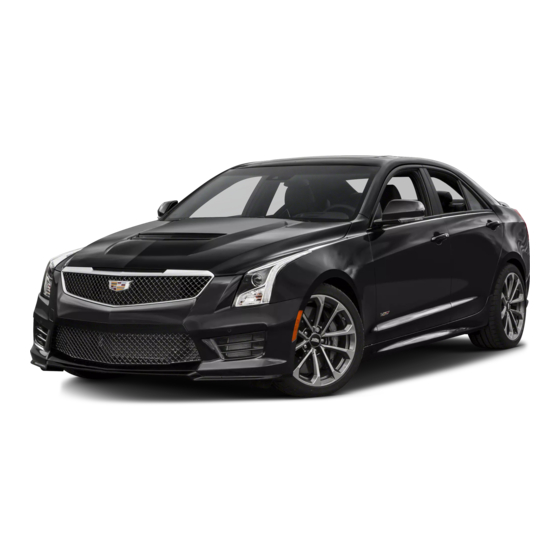

2016 CADILLAC ATS-V
Vehicle highlights:
Offered as a coupe and sedan
First-ever V-Series with a Cadillac Twin Turbo engine – SAE-certified at 464 hp (346
kW) and 445 lb-ft of torque (601 Nm)
Offered with a six-speed manual with Active Rev Match or the all-new Hydra-Matic
8L90 paddle-shift eight-speed automatic transmission
Brembo high-performance brake system
Gen 3 Magnetic Ride Control with 40-percent faster damping response
Integrated chassis controls include class-exclusive Performance Traction Management
Driver-selectable driving modes for touring, sport and track
Available downforce-generating track aerodynamics package
An interior with high-performance seats and ergonomics focused on the driver's
interfaces with key features for performance driving
Cadillac CUE connectivity, including Apple CarPlay capability
2016 CADILLAC ATS-V EXPANDS ACCLAIMED PRODUCT LINE, ELEVATES
BRAND'S HIGH-PERFORMANCE V-SERIES WITH FIRST TWIN-TURBO ENTRY
The first-ever ATS-V – offered as a coupe and sedan – introduces class-leading twin-
turbocharged power and a comprehensive suite of design and performance systems, expanding
the ATS product line and advancing the V-Series legacy with its first turbocharged entry.
Since its inception in 2004, Cadillac's V-Series has driven remarkable power and performance
capability into the brand's growing luxury car range. Building on the strengths of the award-
winning ATS product line, the V-Series adds impressive track capability to what was already the
lightest and most agile-driving car in the luxury compact class. The result is a dual-purpose
luxury performer – a car with true track capability right from the factory that is also a
sophisticated luxury car on the road.
"Cadillac's V-Series is the best example of Cadillac's emerging product substance – and the
purest expression of the passion at the core of the brand," said Johan de Nysschen, Cadillac
President.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2016 ATS-V and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadillac 2016 ATS-V

  • Page 1 – a car with true track capability right from the factory that is also a sophisticated luxury car on the road. “Cadillac’s V-Series is the best example of Cadillac’s emerging product substance – and the purest expression of the passion at the core of the brand,” said Johan de Nysschen, Cadillac President.
  • Page 2 First twin-turbocharged V-Series With a more powerful iteration of Cadillac’s Twin Turbo 3.6L V-6, the ATS-V represents the first twin-turbo powertrain in the history of the V-Series lineup. Exclusive features for the ATS-V version of the Twin Turbo are designed to make power faster and sustain it longer. Highlights...
  • Page 3 They are independently controlled on each engine bank to balance the compressors’ output to achieve more precise boost pressure response. The Cadillac Twin Turbo’s patented, manifold-integrated water-to-air charge cooling system also contributes to more immediate torque response, because the compressors blow through very short pipes up to the intercooler.
  • Page 4 Large, 38.3-mm intake valves and 30.6-mm sodium-filled exhaust valves enable the engine to process tremendous airflow. In some conditions, the continuously variable valve timing system enables overlap conditions – when the intake and exhaust valves in a combustion chamber are briefly open at the same time –...
  • Page 5 The transmission controller analyzes and executes commands 160 times per second. Wide-open throttle upshifts are executed up to eight-hundredths of a second quicker than those of the dual- clutch transmission offered in the Porsche 911. Additional performance-enhancing features include Performance Algorithm Shift and launch control via the Performance Traction Management system.
  • Page 6 • Cadillac’s five-link rear suspension features reduced roll center migration, stronger lateral control and effective anti-squat geometry, complementing the front suspension with greater body motion control. Contributing components include stiffer bushings, new cradle mounts, higher-rate springs and a stiffer stabilizer bar •...
  • Page 7: Functional Design

    Performance Data Recorder and a low-mass battery. It also deletes the standard floor mats and tire inflator kit to save weight. “V-Series is the emotive core of the Cadillac brand and the apex of the Art and Science design philosophy,” said Smith. “A car offering a bold sense of arrival, serious performance, seamless integration of technology, and precision craftsmanship.
  • Page 8 The Performance Data Recorder is controlled via CUE’s color touch screen and recordings can be reviewed on the screen when the vehicle is parked. The 2016 Cadillac ATS-V also features the latest in phone integration technology through Apple Car Play, which allows smartphone users to connect with applications such as navigation, hands-free text messaging, entertainment and news directly through the CUE display screen.
  • Page 9 Android Auto compatibility will be available later in the 2016 model year. Cadillac has been a leading luxury auto brand since 1902. In recent years, Cadillac has engineered a historic renaissance led by artful engineering and advanced technology. More information on Cadillac can be found at media.cadillac.com.
  • Page 10 2016 CADILLAC ATS-V SPECIFICATIONS Overview Model: Cadillac ATS-V coupe and sedan Body style / driveline: 2-door luxury sport luxury coupe (RWD) or 4-door sport luxury sedan (RWD) Construction: unitized welded steel body with direct-mounted front cradle and rubber- isolated, multi-link independent rear suspension...
  • Page 11 Chassis / Suspension Configuration: rear-wheel drive Differential: electronic limited-slip Front suspension: MacPherson-type with dual lower ball joints and direct-acting stabilizer bar; magnetic ride control with monotube inverted struts Rear suspension: independent five-link with magnetic ride control Steering type: ZF rack-mounted electric, power-assisted and variable assist Steering ratio: 15.54 (on center) to 11.1 (full lock) Steering turns, lock to lock:...
  • Page 12 Interior Legroom (in / mm): front: 42.3 / 1074 rear: 33.5 / 850 Headroom (in / mm): front: 37.6 / 954 rear: 35.1 / 891 Shoulder room (in / mm): front: 54.1 / 1375 rear: 51.1 / 1298 Hip room (in / mm): front: 54.1 / 1374 rear: 44.5 / 1131 Capacities...
