HoverPro
Model No. 02615—Serial No. 314000001 and Up

Introduction

WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
It is a violation of California Public Resource Code
Section 4442 or 4443 to use or operate the engine on any
forest-covered, brush-covered, or grass-covered land unless
the engine is equipped with a spark arrester, as defined in
Section 4442, maintained in effective working order or the
engine is constructed, equipped, and maintained for the
prevention of fire.
This spark ignition system complies with Canadian ICES-002.
The enclosed Engine Owner's Manual is supplied for
information regarding the US Environmental Protection
Agency (EPA) and the California Emission Control
Regulation of emission systems, maintenance, and
warranty. Replacements may be ordered through the
engine manufacturer.
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely. Keep for future reference.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, or to register
your product.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your product ready.

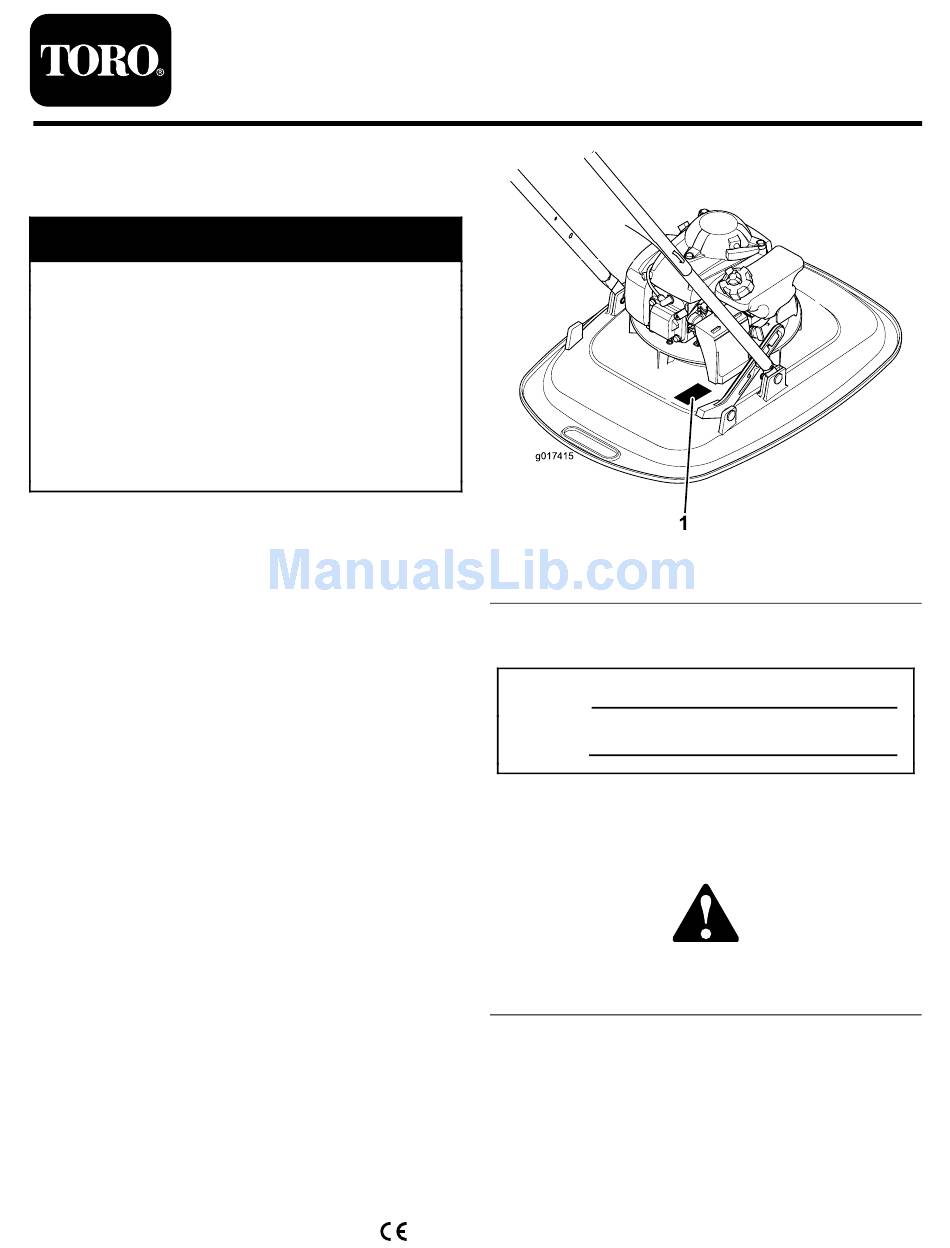

Figure 1
model and serial numbers on the product.
© 2016—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
400 Machine
identifies the location of the
Register at www.Toro.com.
g017415
1. Model and serial number plate
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
For models with stated engine horsepower, the gross
horsepower of the engine was laboratory rated by the engine
manufacturer in accordance with SAE J1349. As configured
Original Instructions (EN)
All Rights Reserved *3404-945* A
Printed in the UK
Form No. 3404-945 Rev A
Operator's Manual
1
Figure 1
(Figure
Figure 2
2),

Advertisement

Table of Contents
loading

Summary of Contents for Toro hoverpro 400

  • Page 1: Introduction

    You are responsible for operating the product properly and safely. Keep for future reference. You may contact Toro directly at www.Toro.com for product Figure 2 and accessory information, help finding a dealer, or to register your product.
  • Page 2: Table Of Contents

    • to meet safety, emission, and operating requirements, the Become familiar with the safe operation of the equipment, actual engine horsepower on this class machine will be operator controls, and the safety signs. significantly lower. • All operators and mechanics should be trained. The owner is responsible for training the users.
  • Page 3: Slope Operation

    • • If the machine should start to vibrate abnormally, stop Never store the machine or fuel container where there is the engine and check for the cause immediately. Vibration an open flame, spark, or pilot light such as on a water is generally a warning of trouble.
  • Page 4: Sound Pressure

    Sound Power and when transporting the machine to and from the area to be mowed. This machine has a guaranteed sound power level of 98 dBA, • Never pick up or carry a machine while the engine is which includes an Uncertainty Value (K) of 2 dBA. The sound running.
  • Page 5: Safety And Instructional Decals

    Safety and Instructional Decals Important: Safety and instruction decals are located near areas of potential danger. Replace damaged decals. 111-5392 1. Warning—Receive training on the product; read the 4. Thrown object hazard; keep bystanders at least 15m (49ft) Operator’s Manual. from the machine.
  • Page 6: Setup

    Setup Note: Determine right and left side of the machine from normal operating position. Assembling the Handle g017373 No Parts Required Procedure Figure 4 1. Slide the lower handle into the frame (Figure 1. Upper handle 4. U bolt 2. Hand wheel 5.
  • Page 7: Product Overview

    Product Overview g017530 Figure 5 1. The oil level is at its 3. The oil level is too maximum. low—add oil to the crankcase. 2. The oil level is too high—remove oil from the crankcase. 3. Slowly pour oil into the oil fill hole, wait 3 minutes, Figure 7 and check the oil level on the dipstick by wiping the dipstick clean and then inserting, but not screwing in,...
  • Page 8: Specifications

    Specifications Operation Model Cutting width Product width Filling the Fuel Tank 02615 400 mm (15-3/4 500 mm (19-11/16 inches) inches) DANGER Gasoline is extremely flammable and explosive. A fire or explosion from gasoline can burn you and others. • To prevent a static charge from igniting the gasoline, place the container and/or machine directly on the ground before filling, not in a vehicle or on an object.
  • Page 9: Checking The Engine Oil Level

    Checking the Engine Oil Level Adjusting the Cutting Height Service Interval: Before each use or daily WARNING 1. Move the machine to a level surface. Adjusting the cutting height may bring you into 2. Remove the dipstick and wipe it with a clean cloth. contact with the moving cutting unit, causing serious injury.
  • Page 10: Starting The Engine

    Starting the Engine Adjusting the Handle Position 1. Open the fuel tank vent by turning the vent knob at Refer to Figure 14 for the different handle positions. least 2 or 3 turns counterclockwise. 2. Turn the fuel valve to the O position (Figure 12).
  • Page 11: Shutting Off The Engine

    Figure 14 1. Hanging storage/transport position 4. Storage/transport position 2. Lower working position 5. Service position 3. Upper working position Note: For proper storage procedure, refer to Storage (page 16). Shutting Off the Engine Service Interval: Before each use or daily To shut off the engine, release the engine-shutoff handle (Figure 15).
  • Page 12: Operating Tips

    • For best performance, install a new cutting line before the cutting season begins. • Replace the cutting line when necessary with a Toro replacement cutting line. Cutting Grass • Cut only about a third of the grass blade at a time. Do not...
  • Page 13: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil. After the first 5 hours • Check the engine oil level. •...
  • Page 14: Replacing The Air Cleaner

    Replacing the Air Cleaner Changing the Engine Oil Service Interval: After the first 5 hours Service Interval: Yearly Yearly 1. Press down on the latch tabs on top of the air cleaner cover (Figure 17). 1. Ensure that the fuel tank contains little or no fuel so that fuel does not leak out when you tip the machine onto its side.
  • Page 15: Servicing The Spark Plug

    Servicing the Spark Plug Cleaning the Machine Service Interval: Every 100 hours Service Interval: Before each use or daily After each use Use a Champion RN9YC spark plug or equivalent. 1. Stop the engine and wait for all moving parts to stop. WARNING 2.
  • Page 16: Storage

    Storage Store the machine in a cool, clean, dry place. Preparing the Machine for Storage WARNING Gasoline vapors can explode. • Do not store gasoline more than 30 days. • Do not store the machine in an enclosure near an open flame. •...
  • Page 17: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The engine does not start. 1. The wire is not connected to the spark 1. Connect the wire to the spark plug. plug. 2. The fuel cap vent hole is plugged. 2. Clean the fuel cap vent hole or replace the fuel cap.
  • Page 18 Notes:...
  • Page 19 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
  • Page 20: The Toro Total Coverage Guarantee

    Countries Other than the United States or Canada Customers should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
