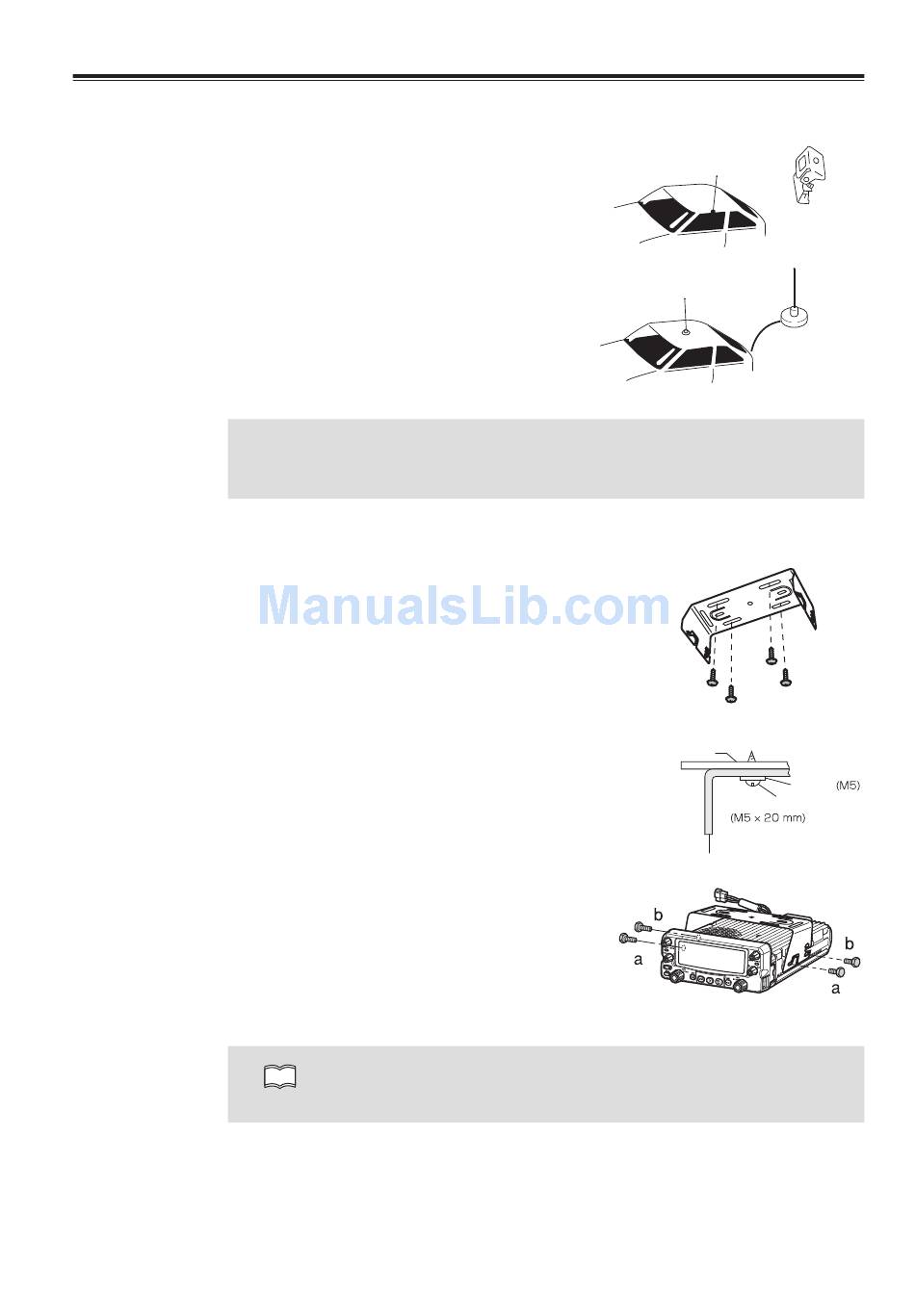

Installing„a„Mobile„Antenna
Use a 50Ω coaxial cable to connect the antenna.
Mobile antennas require an appropriate mounting
base for proper installation and operation. For more
information, see the instruction of your antenna.
IMPORTANT
Using„the„mounting„bracket
1. Drill 4 holes where the mounting bracket
is to be installed.
Approx. 5.5-6mm (1/4") when using nuts; approx.
2-3 mm (1/8") when using self-tapping screws.
2. Insert the supplied screws, nuts and
washers through the mounting bracket
and tighten.
3. Adjust the angle to suit your favorite
position.
NOTE
After installing your antenna, ensure that you have the best possible SWR
reading. High RF environments can cause severe damage to your unit.
Ensure that you are not in a high RF environment when operating the radio.
Alinco's warranty does not include installation fee.
Initial Installation
Screw-fixed base
Magnet base
<For making 4+/-0.2mm hole in
globe box bottom>
Car body
Washer
Tapping screw
Mounting bracket
13
