Summary of Contents for RIAREX EVC-DG-DC354A

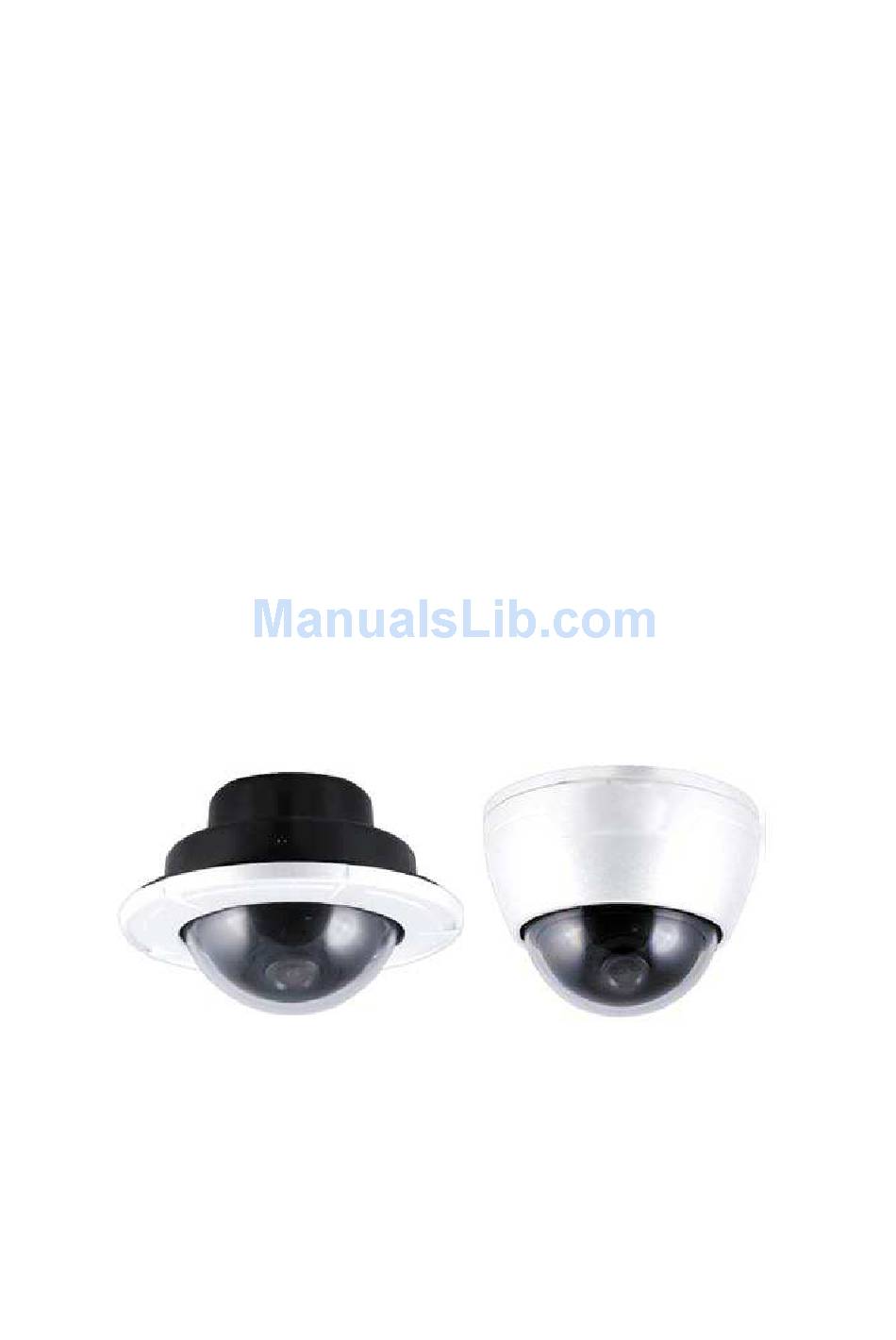

- Page 1 Installation and Operating Instructions Mini Vandalproof dome camera EVC-DG-DC354A / EVC-TG-DV354A...
- Page 2 1. Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage.
- Page 3 2. General Description • For Wall and In-ceiling Mount (FW versions) or Ceiling Surface Mount(SW versions) • Vandal Resistant • 1/3” Color/B&W Board Camera with Super HAD CCD • Resolution of 540 Horizontal Lines • True DAY-NIGHT by ICR (D versions only) •...
- Page 4 Camera image direction. 3.1 Power and Video Connection White: Video output Video out Power (+) Black: Power input 3.2 Surface Mount 1. Fix the base housing to the desired place with screws supplied. 2. Adjust desired scene by turning and moving the camera bracket and fix it with stopper ring by turning it by hand.
- Page 5 3.3 Flush Mount 1) Use template processing sticker on the desired place to install camera and make a hole on that place. 2) Place the base housing on the hole and fix it with screws supplied. 3) Adjust desired scene by turning and moving the camera bracket and fix it with stopper ring by turning it by hand.
- Page 6 4. Specifications Flush Mount type Surface Mount type Type EVC-DG-DC354A EVC-TG-DV354A Image Sensor 1/3” CCD, Sony Super HAD II Interline Transfer CCD Video standard PAL, Colour, black/white Active picture elements approx. 440,000, 752(H) x 582(V) Synchronization Internal Signal-to-noise ratio 50dB (AGC OFF)
- Page 7 Sensitivity (at 50% signal) 0,02 Lux at F1.2 Horizontal resolution 540 TVL Rotation range 360° Automatic gain control 28dB max. Gamma correction approx. 0.45 High-speed shutter (ESC) 1/50 ~1/100,000sec. White balance (ATW) 2000 ~8000K, Automatic Backlight compensation Automatic Aperture Correction (APC) Horizontal and vertical Day-Night Electric...
- Page 8 Dimensions: mm...
