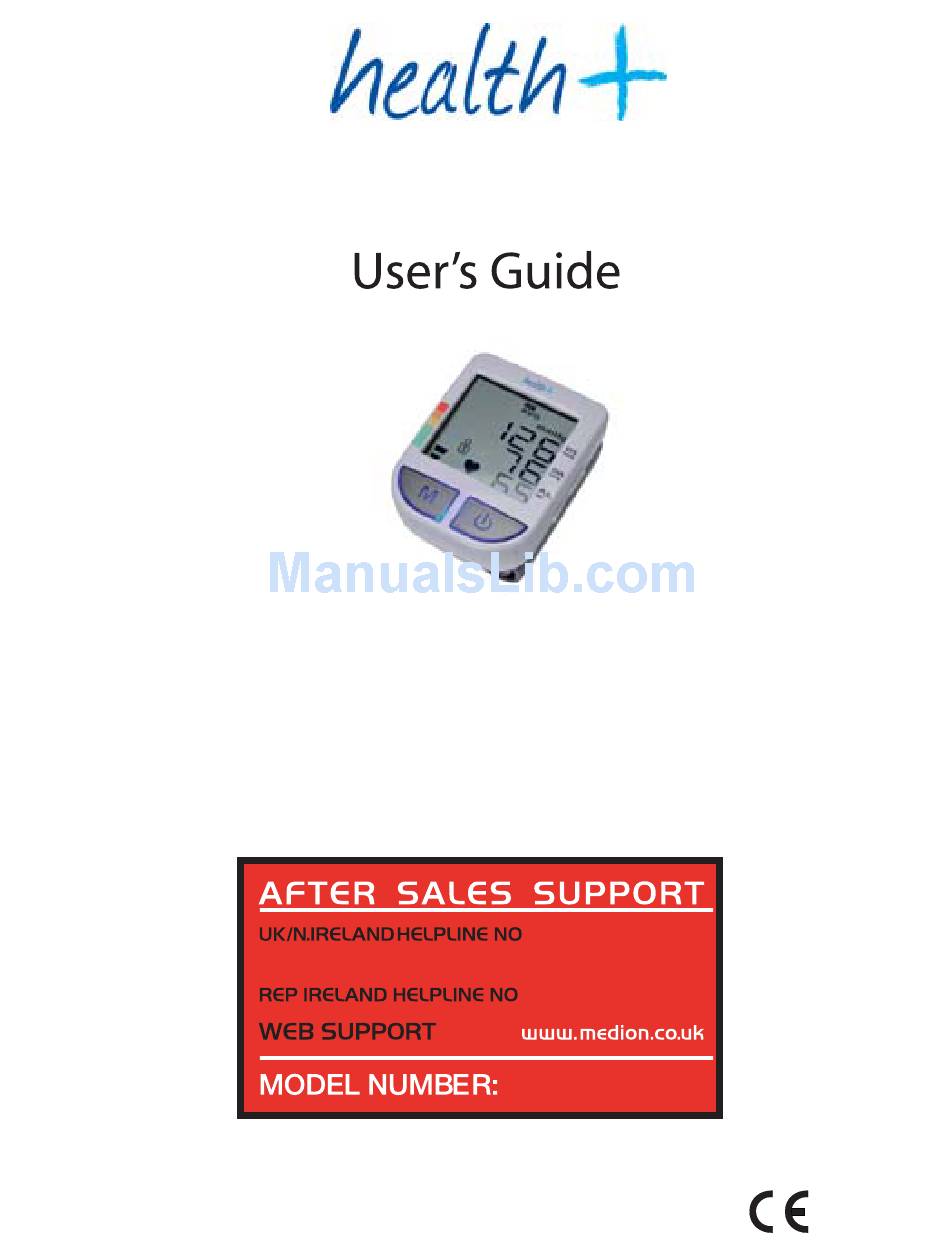

Blood pressure monitor
After Sales Support
Now you have purchased a Health+ ® product you can
rest assured in the knowledge that as well as your 3
years parts and labour warranty you have the added
peace of mind of dedicated helplines and web support:
0871 37 61 020
costs 7p/min from a BT landline,
mobile costs may be higher
1-800-992 508
free phone
MD 13400
0197

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the md13400 and is the answer not in the manual?

Questions and answers

Related Manuals for Health+ md13400

Summary of Contents for Health+ md13400

  • Page 1 Blood pressure monitor After Sales Support Now you have purchased a Health+ ® product you can rest assured in the knowledge that as well as your 3 years parts and labour warranty you have the added peace of mind of dedicated helplines and web support: 0871 37 61 020 costs 7p/min from a BT landline, mobile costs may be higher...

  • Page 3: Table Of Contents

    Contents Introduction ..............2 Safety instructions ...........3 About this device ............6 What is blood pressure? ...........7 Notes on measurement ......... 12 Initial operation ............. 15 Setting the device ..........18 Putting on the sleeve ..........20 Correct measurement ........... 21 User settings ............25 Cleaning and care ..........

  • Page 4: Introduction

    Introduction Congratulations on choosing to buy a health+ product. By doing so you now have the assur- ance and peace of mind that comes with purchasing a product made by one of Europe’s leading manufac- turers. All products brought to you by health+ are manufac- tured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our compre-...

  • Page 5: Safety Instructions

    Safety instructions General • This device is not intended for use by people (in- cluding children) with reduced physical, sensory or mental abilities or for those without experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed in its use.
  • Page 6 • Do not drop the device and do not place objects on top of it. • Never immerse the device in water. Do not expose it to water or moisture! • Do not use the device under extreme temperature conditions. •...
  • Page 7 • Never short-circuit the batteries. • Do not dismantle or deform the batteries. You could injure your hands or fingers or battery fluid could come into contact with your eyes or skin. If this happens, rinse the affected areas immediate- ly with a large amount of clean water and contact your doctor immediately.

  • Page 8: About This Device

    Never try to open or repair the device yourself. If there is a fault, contact the Medion Service Centre or another suitable specialist workshop in order to avoid any risks. About this device The consequences of having too high blood pressure are a major cause of death these days.

  • Page 9: What Is Blood Pressure

    What is blood pressure? Blood pressure is a measurement of the force that the heart has to exert to pump the blood through the circulatory system and vital organs in the body. The higher the pressure, the harder the heart has to work. Systolic and diastolic values With every heartbeat, blood pressure fl uctuates be- tween a maximum value (systolic), when the heart...
  • Page 10 Measuring range The blood pressure monitor shows you the blood pressure (SYS. = systolic and DIA. = diastolic value), pulse and the time and date on the display. Blood pressure is measured in mmHg (millimetres of mercury). The classifi cation of blood pressure values is based on the defi nition and classifi cation by the WHO (World Health organisation) from 1999.

  • Page 11: Borderline

    Blood pressure classifi cation according to WHO in mmHg Normal range Borderline High blood pressure range Helpline No. UK/Northern Ireland 0871 37 61 020 Rep. of Ireland 1-800-992-508 Web Support www.medion.co.uk Model Number: 13400...
  • Page 12 Range Systolic Diastolic mmHg Indicator mmHg Low blood < 90 < 50 Green pressure Normal blood pres- 91–129 51–84 Green sure Borderline 130–139 85–89 Green High blood 140–159 90–99 Yellow pressure I High blood 160–179 100–109 Orange pressure II High blood >...

  • Page 13: Pressure I

    How does the blood pressure monitor work? Your blood pressure monitor contains high quality components for measuring the pressure and to dis- play the values on the display. It also measures and displays your pulse frequency. The device measures blood pressure indirectly using a sleeve around the wrist.

  • Page 14: Notes On Measurement

    Notes on measurement If the values obtained give you cause to be concerned about your health, take medical advice. Do not change your treatment/dosage of medication as a result of the values unless you have discussed this with your doctor! By using your device, you can get a clear overview of your blood pressure by measuring it regularly and us- ing clear records.
  • Page 15 Note the following points so that the values give a re- alistic representation of your blood pressure: • Always measure your blood pressure at the same time of the day. • Measure your blood pressure when you are re- laxed. Try to rest for fifteen minutes before meas- uring your blood pressure.
  • Page 16 • Please ensure that you always measure your blood pressure under the same conditions! Also note the information about maintaining the correct pos- ture during measurement on page 21. Different measurement conditions can lead to different measurement factors and, therefore, to markedly different values.

  • Page 17: Initial Operation

    Initial operation Overview of the equipment User button Clock button ON/OFF button Battery compartment Sleeve Save button WHO colour indicator Display Helpline No. UK/Northern Ireland 0871 37 61 020 Rep. of Ireland 1-800-992-508 Web Support www.medion.co.uk Model Number: 13400...
  • Page 18 Display AVG: Display of the average blood pressure Battery indicator M: Display of stored values Systolic blood pressure value Diastolic blood pressure value Pulse measurement Pulse display with arrhythmia detection User selection Display of blood pressure ranges Pump operation display Date and time display Helpline No.

  • Page 19: Inserting Batteries

    Inserting batteries  Remove the cover of the bat- tery compartment at the notch in the direction of the arrow.  Insert two 1.5 V R03/LR03/AAA batteries. Pay attention in the process to the polarity infor- mation in the battery compart- ment (the negative terminal faces the spring).

  • Page 20: Setting The Device

    Always change both batteries! Never use new and old batteries together or diff erent types of batteries. Rechargeable batteries are not suitable for operating this device. Setting the device After you have inserted the batteries, the device will change into setting mode. The year fl ashes on the display.
  • Page 21  Confi rm your selection with the clock button and the display will change to the hour setting.  Press the button until the current time is dis- played.  Confi rm your selection with the clock button and the display will change to the minute setting. ...

  • Page 22: Putting On The Sleeve

    Putting on the sleeve  Remove clothing from your lower left arm.  Attach the wrist sleeve in such a way that it is ap- prox. 0.5 –1 cm away from the palm of your hand.  Wrap the sleeve tightly around your wrist so that there is no gap between the sleeve and your wrist.

  • Page 23: Correct Measurement

    Correct measurement To measure your blood pressure, sit comfortably on a chair, take 5 or 6 deep breaths and relax. Place your lbow on a table or other supporting sur- face, and hold your arm so that the wrist sleeve is at heart height.
  • Page 24 It is important to measure your blood pressure at home and at the same time each day so that the blood pressure, which can change over the course of a day, is recorded properly. Inform your doctor of the values measured so that you can receive medical advice based on an evalua- tion of these measurements.

  • Page 25: High Blood

    Attention is advised for the following types of person: People with high blood pressure, diabetes, liver disease, hardened arteries or poor circulation. In these cases, consult your doctor before using this device to monitor your blood pressure.  Attach the wrist sleeve to your wrist as described above.
  • Page 26 Automatic measurement If the sleeve pressure is too low, the device stops measuring and infl ates the sleeve again until suffi - cient sleeve pressure is reached for the measurement. Measurement starts when the correct sleeve pres- sure has been reached. The device also measures your pulse.

  • Page 27: User Settings

    User settings The blood pressure monitor has two memory spac- es, which allow two diff erent users to save up to 60 measurements each. The device calculates the aver- age value from the last three measurements. Select user  Press the clock button or user button to switch the device on.
  • Page 28 Retrieve values  Press the user button to switch on the device.  Press the user button again to select the desired user.  Press the button, the average measurement will be shown on the display. This is indicated on the display with AVG.
  • Page 29 Deleting memory values You can delete individually saved measurements or all of the measurements for each user.  Press the ON/OFF button to switch on the de- vice.  Press the user button again to select the desired user.  Press the button, the average measurement will be shown on the display.
  • Page 30  Press the user button , CL and 00 will be shown on the display. The value has now been deleted.  In order to delete all of the saved values for the se- lected user, repeate the fi rst three steps until the average measurement is shown on the display.
  • Page 31  Press the user button , CL and 00 will be shown on the display. All of the saved values for the se- lected user have now been deleted. Helpline No. UK/Northern Ireland 0871 37 61 020 Rep. of Ireland 1-800-992-508 Web Support www.medion.co.uk Model Number: 13400...

  • Page 32: Cleaning And Care

    Cleaning and care Notes on maintenance It is recommended that you check the measuring ac- curacy of the device at least every three years. Pharmacies sometimes hold campaign days for checking blood pressure monitors. Cleaning/storage Only use a dry, soft cloth to clean the device. Do not use chemical solutions and cleaning products be- cause these may damage the device’s surface and/or inscriptions.

  • Page 33: Waste Disposal

    Waste disposal Packaging Your device has been packaged to protect it from damage in transit. The packaging is made of environmentally friendly material which can be recycled. Device At the end of its service life, the device should not be disposed of with the household rub- bish.

  • Page 34: Error Messages

    Error messages If there are errors messages or incorrect measure- ment values displayed, remove the batteries and in- sert them again after about one minute. Possible caus- Error solutions es and Display The batteries Replace both bat- is blank are dead. teries with new 1.5 V R03/LR03/AAA batteries.
  • Page 35 Error Possible caus- solutions es and The sleeve is not Fit the sleeve cor- attached cor- rectly and carry out rectly. a new measure- ment. An error has oc- Carry out a new curred in the measurement. measurement Sleeve pres- Check the fi tting of sure above 300 the sleeve and carry...

  • Page 36: Technical Data

    Technical data Measurement method: Oscillometric Measuring range Blood pressure: 30 ~ 280 mmHg Pulse: 40 ~ 180 beats/min. Power supply: 2 x 1.5 V batteries R03/LR03/AAA Display: Memory spaces: 2 x 60 measurement results Pressure build up: Pressure built up automatically by pump Air release: Air released automatically...
  • Page 37 Measuring accuracy Blood pressure: +/- 3mmHg pressure indicator Pulse: +/- 5% of value displayed Temperatures Operating temperature: +10 ~ +40 °C, at humidity 30–85% Storage temperature: −20 ~ +60 °C, at humidity 10–95% Sleeve size: 13.5 ~ 19.5cm Subject to technical modifi cations. Helpline No.

  • Page 38: Notes

    Notes The product meets the requirements of the guideline 93/42/EEC for medical devices. The device corresponds to standards for non-invasive blood pressure monitors EN 1060-1:1995+A2:2009 and EN 1060-3:1997+A2:2009. The device meets the requirements of electromagnet- ic compatibility EN 60601-1-2:2007. If you have ques- tions about electromagnetic compatibility or the val- ues measured, or would like to view the full declara- tions of conformity, please contact our customer serv-...
  • Page 39 Year of manufacture: 2011 Manufacturer in accordance with guidelines for medical products: MEDION AG, 45307 Essen, Germany The serial number of the device can be found in the battery compartment. Status: 04/2011 Helpline No. UK/Northern Ireland 0871 37 61 020 Rep.
  • Page 40 Blood pressure monitor Blood pressure monitor In order to deal with your enquiry as quickly and efficiently as possible, we ask you to contact our service hotline on the number detailed below. UK IRELAND HELPLINE NO 0871 37 61 020 (Costs 7 p/min from a BT landline;...
  • Page 41 During the warranty period defective devices can be Blood pressure monitor returned to the service address stated on the back cover of this document by first calling the service hotline number provided to arrange collection by an approved freight agent at no cost to you.
