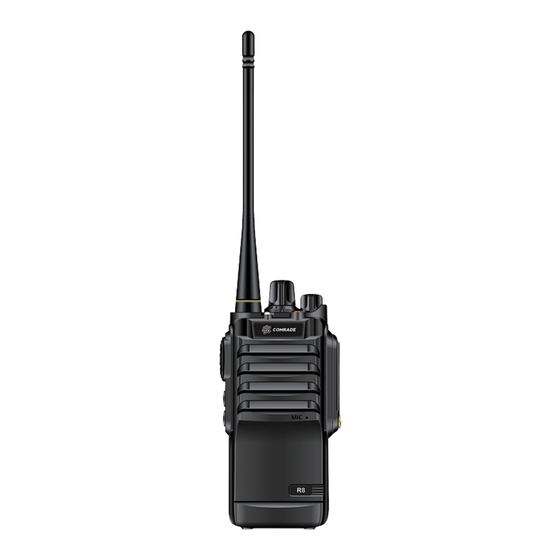

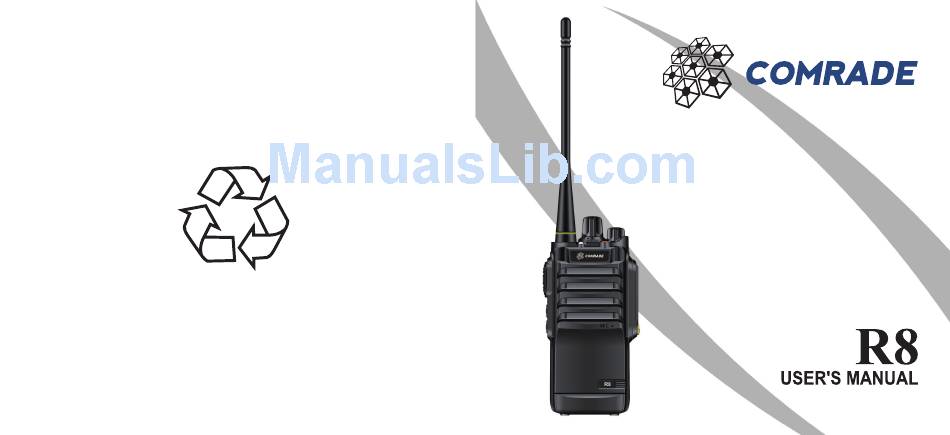

Summary of Contents for COMRADE R8
-
Page 4: Safety Information
1.-SAFETY INFORMATION: 2.-FEATURES AND FUNCTIONS: Please read the following safety information in order to offer you security and high efficiency Commercial FM radio receiver (65 MHz ~ 108 MHz) during operation. Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable Please turn off the radio before entering an inflammable and explosive area. -
Page 5: Unpacking And Checking Equipments
3.-UNPACKING AND CHECKING EQUIPMENTS: 5.- INSTALLATION OF ACCESSORIES: We suggest you to check the packing box first before using it. Please carefully unpack 5.1.- INSTALLING THE ANTENNA: Install the antenna as shown in the figure below and turn it clockwise until it stops. the box and check if all the items which listed in following table are received. -
Page 6: Battery Charging
5.3. - MICRO-HEADSET INSTALLATION OF EXTERNAL: 6.-BATTERY CHARGING: Plug the external micro-headset Use only the charger specified by the manufacturer. The charger's LED indicates the connector into the jack of "SP. & MIC" charging progress. of the transceiver as shown in the figure below. -
Page 7: Battery Information
7.4.-PROLONG BATTERY LIFE 7.-BATTERY INFORMATION: 1)Battery performance will degrade when the current temperature is below 0*. A spare 7.1.-INITIAL USE battery is necessary in cold weather. Please keep the cold batteries, these batteries may New batteries are not charged fully in the factory. Please charge it before using. In general, the battery should charge 12 hours at initial use. -
Page 8: Radio Overview
8.2. - COMMAND/KEY DEFINITION: 8.-RADIO OVERVIEW: Power On: Rotate PWR/VOL Switch clockwise, you will hear a sound *Beep*, report the present channel, the transceiver is ready for working; meanwhile rotate PWR/VOL Switch to adjust the volume [SOS]Emergency Alarm: Long press to open the alarm function, at this moment, the green light, red light, and hand lamp flashes shin at the same time. -
Page 9: Basic Operation
9.6. -SELECT A CHANNEL 9.-BASIC OPERATION Turn the Channel Selector Knob to select your desired channel. If the Voice announcement 9.1.- RADIO ON-OFF function is enable, your radio will automatically report the channel No. where the knob -Make sure the antenna and battery are installed correctly and the battery charged. locates. -
Page 10: Advanced Operation
10.3. -1750Hz TONE 10.-ADVANCED OPERATION This function is used to awake the sleeping repeater station. Press the programmed "1750Hz 10.1. -Voice Prompt Tone" key to activate the 1750Hz Tone, press this key again to exit it. To turn on or turn off the voice prompt, please switch the channel knob to Channel 10, When 1750Hz Tone is activated, press [PTT] key to transmit 1750Hz Tone first then transmit then press [PTT] and [F] to turn on the radio. - Page 11 The transceiver automatically switches to Transmission Mode when the VOX circuitry channels. You can set up any channels as the priority channel, which means the radio senses that you have begun speaking into the microphone. will scan this priority channel and other normal channels alternately. Press the programmed Priority Channel Scan key to activate this function and press this key again to exit.
-
Page 12: Additional Function
OFF: You still can transmit on a channel which is in use. 11.-ADDITIONAL FUNCTION 11.1. -LOW BATTERY ALERT 11.4. -SELECT WIDE/NARROW BANDWIDTH When the battery capacity is very low, the radio will flash red light and sound "Please Bandwidth refers to the channel transmission capacity at a fixed time. Wide Bandwidth charge the battery"... -
Page 14: Technical Specification
12.2-GENERAL 12.-TECHNICAL SPECIFICATION: 12.1-RECEIVER...
