Summary of Contents for SPIDER TR-304

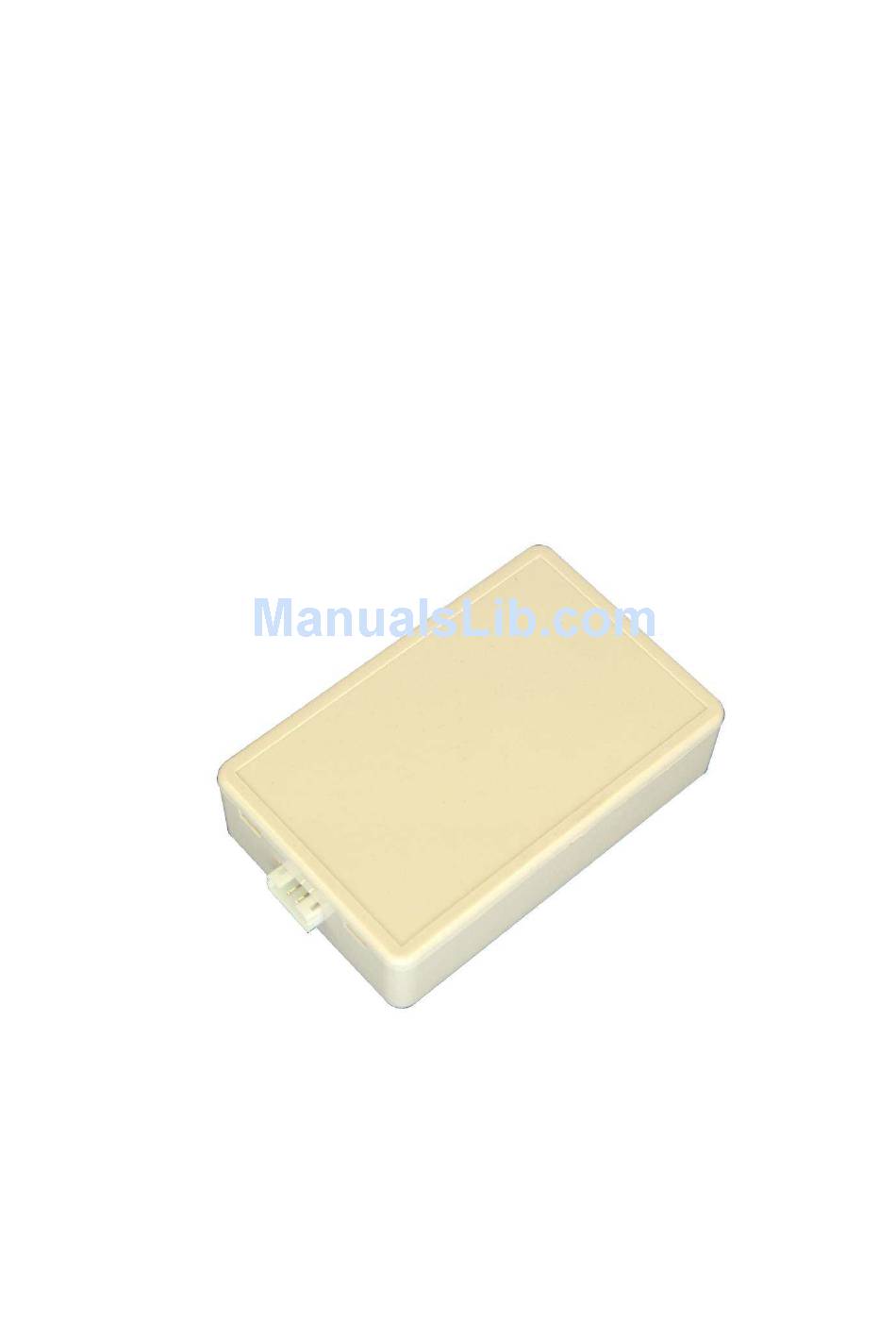

- Page 1 GPS-tracker with built-in GPS and GSM antennas Spider TR-304 User manual...
- Page 2 Mobile Electronics co. Key features: No external antennas. It saves time and money for installation. It also fits well for hidden installation and keeps device less vulnerable to sabotage. Compact design makes installation simplest and easiest ever possible. Hidden installation prevents sabotage and helps to rise up the security. Intelligent track- drawing - device registers changes in speed, course, voltage, acceleration or braking, shocks, falls etc.
- Page 3 Mobile Electronics co. Device view (with cover removed): GSM antenna Bluetooth antenna GPS antenna System connector Technical characteristics: Positioning type extra positioning (where satellite signal cannot be received) GSM Cell-location Tracking data transmission media GSM900/1800/1900 FLASH-memory storage capacity 80000 points (~10 000 km) Server connection protocol Compressed, encrypted Multifunctional I/O interface line can be used as:...
- Page 4 Mobile Electronics co. Device view (reverse side): GSM LED SIM card holder MODE LED 3-D accelerometer + 3-axis gyro System connector GSM LED GSM-modem is off 1 blink per 1 second Network registration in progress (or impossible) Network registration is o.k. 1 blink per 3 seconds MODE LED off (constantly) device is in Sleep mode...
-
Page 5: Sim Card Installation
1. SIM-card must be valid. There should be money on pre-paid account. If card became inactive (or limited in service by an operator) tracker TR-304 will store all the data in internal FLASH-memory. This data will be sent to server as soon as connection will be restored. -
Page 6: Powering The Device
Emergency events are duplicated with SMS messages to all the registered on TR-304 SIM cards contacts (up to 8). Message will contain text: "EMERGENCY! <date, time>, <Location>, <google maps direct link>". -
Page 7: Configuring Device
To update FW via web server this option must be enabled it setups. Being notified with new FW available, TR-304 will download FW file from server and will update itself on next parking (to avoid tracking loss). Everything will be done automatically. -
Page 8: Warranty
Wearable parts (like frequently used joints or connectors) and chemical power sources (batteries and accumulators) are covered with time-limited warranty – 2 years. This warranty applies to Spider® product and it’s functionality, but does not cover any other damages, direct or indirect, arising from product operation or the impossibility of product use.
