Oreck WS-7013U Instruction Manual

Wireless 433 mhz temperature station

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

WS-7013U

Wireless 433 MHz

Temperature Station

Instruction Manual

on the web at:

WWW.ORECK.COM

Table of Contents

Need help?

Do you have a question about the WS-7013U and is the answer not in the manual?

Questions and answers

Summary of Contents for Oreck WS-7013U

Page 1 WS-7013U Wireless 433 MHz Temperature Station Instruction Manual Register your product on the web at: WWW.ORECK.COM...
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation Setting the Time Selecting Units of Measurement Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Mounting Troubleshooting Maintenance and Care Specifications Warranty Information Page 9-10 10-12 13-14...
Page 3: The Remote Temperature Sensor (Tx6U) And

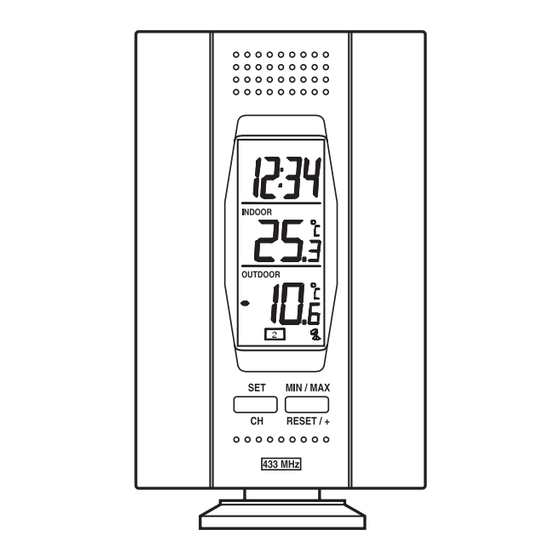

INVENTORY OF CONTENTS 1. The indoor temperature station (Figure 1) 2. The remote temperature sensor (TX6U) and mounting bracket (Figure 2) 3. (3) 1/2" Philips screws 4. One strip of double sided adhesive tape 5. Instruction Manual and Warranty Card 6.
Page 4: Quick Setup
QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor temperature station and remote temperature sensor 3 to 5 feet apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor temperature station.
Page 5 Any walls the signal will have to pass through will reduce distance. An outdoor wall or window will have 20 to 30 feet of resistance and an interior wall will have 10 to 20 feet of resistance. Your distance plus resistance should not exceed 80 feet in a straight line.
Page 6: Detailed Setup Guide
3. The hour will now be flashing. a. Press and release the "MIN/MAX" button until the correct hour is shown. Note: When in the 12h mode "PM" is displayed under the word "TIME" during PM hours. During the AM hours this area will be blank.
Page 7: Indoor Temperature Station
B. INDOOR TEMPERATURE STATION Note: After the batteries are installed, DO NOT press any buttons. This may interfere with the signals, causing temperatures to register incorrectly. 1. Remove the battery cover on the backside. To do this, push the cover upward and pull it out.
Page 8: Setting The Time
5. The indoor temperature station should now show: "-:- -" in the TIME LCD, and temperatures in the INDOOR and OUTDOOR LCD’s. II. TIME A. SETTING THE TIME 1. Press and hold the "SET" button for 5 seconds, "12h" will appear in the TIME LCD.
Page 9: Selecting Units Of Measurement
4. Press and release the "MIN/MAX" button to set the hour. 5. Press and release the "SET" button to move to the minute setting. 6. Press and release the "MIN/MAX" button to set the minutes. 7. Press and release the "SET" button to activate the clock.
Page 10: Resetting Minimum And Maximum Temperatures
IV. FEATURES A. MINIMUM AND MAXIMUM TEMPERATURES 1. Press and release the "MIN/MAX" button. "MIN" appears in the temperature LCDs and the recorded minimum temperatures are displayed. 2. Press and release the "MIN/MAX" button to toggle to the maximum temperatures. The time of occurrence of the value for outdoor temperature will also flash.
Page 11: Mounting
Gently pull the indoor temperature station down to lock the screw into place. TROUBLESHOOTING NOTE: For problems not solved, please contact Oreck Customer Service at 1-800-989-3535.
Page 12 Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. Solution: 1) Remove all batteries, reinsert into remote temperature sensor first, and then into the indoor temperature station. 2) Place remote temperature sensor closer to the indoor temperature station.
Page 13: Maintenance And Care
responsive to ambient air currents because of the shielding effect of the display case. In addition, the case can act as a heat sink to absorb and store heat from external sources (i.e. handling of the case or radiant heat). In addition, the much greater range of the outdoor temperature sensor requires a different calibration curve than the indoor...
Page 14: Specifications
SPECIFICATIONS Transmitting Frequency Measuring Temperatures Indoor Temperature Station: Indoor Remote Temperature -21.8 °F to 156.2°F Sensor: Outdoor Temp accuracy Transmitting range Temperature check Indoor Outdoor Batteries—(Alkaline recommended) Remote Temperature 2 x AA, 1.5V Sensor Indoor Temperature Station Dimensions: (L x W x H) Indoor Temperature Station 433MHz...
Page 15: Warranty Information
Sensor Battery life WARRANTY INFORMATION Oreck Corporation warrants the Indoor/Outdoor Clock and Weather Station (WS-7013U) free from defects in material and workmanship under normal, non-commercial use and service. Oreck will remedy any such defects if they appear within one (1) year from date of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state.
