CP TECHNOLOGIES FVT-4000 User Manual

10-slot media converter chassis w/ redundant power
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FVT-4000
10-Slot Media Converter Chassis
w/ Redundant Power
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FVT-4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for CP TECHNOLOGIES FVT-4000

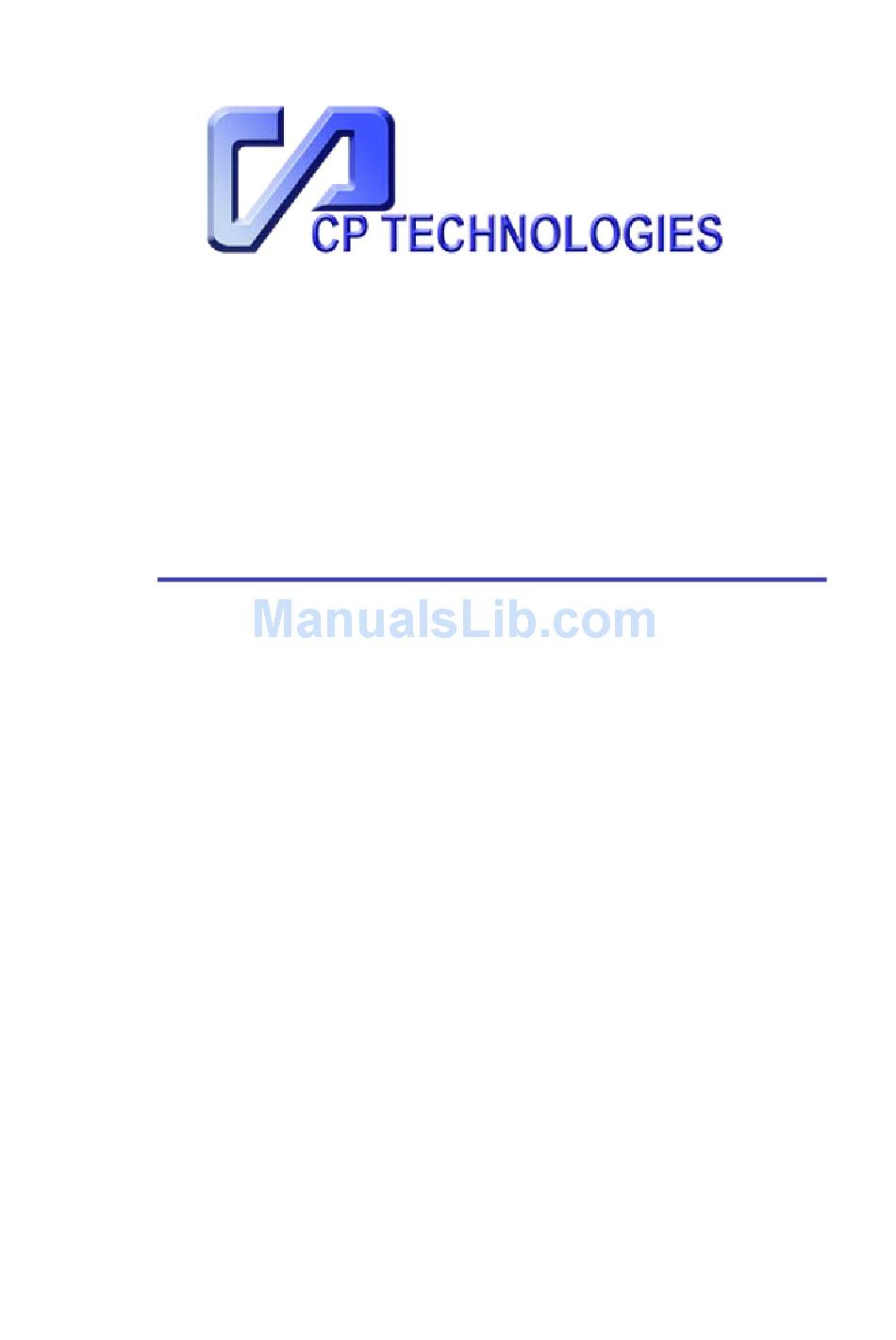

  • Page 1 FVT-4000 10-Slot Media Converter Chassis w/ Redundant Power User Manual...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION..........................1 1.1............................1 EATURES 1.2........................2 ACKAGE ONTENTS HARDWARE DESCRIPTION ......................3 2.1..........................3 RONT ANEL 2.2........................... 4 ANEL 2.3. LED I ........................... 4 NDICATORS RACK MOUNT INSTALLATION ..................... 5 3.1........................5 ESKTOP PPLICATION 3.2.

  • Page 3: Introduction

    1. Introduction Media Converter Chassis The FVT-4000 Media Converter Chassis provides compact management on up to 10 optional modular converter units, which allows your network connectivity to be more flexible. The Media Converter Chassis also supports 2 redundant hot-swappable power supplies, and all modular converter units in the Chassis are also hot- swappable units.

  • Page 4: Package Contents

    1.2. Package Contents FVT-4000 Converter Chassis Power Cord Rubber Feet Rack-mount Kit Module Brackets x 10 Set User Manual 10-Slot Converter Chassis Power Cord Rubber Feet x 10 Rack-mount Kit Module Brackets User Manual Package Contents Compare the contents of your Media Converter Chassis package with the standard checklist above.

  • Page 5: Hardware Description

    2. Hardware Description This Chapter describes the hardware of the Media Converter Chassis including Front panel, LEDs, and Rear panel. The Media Converter Chassis is a modular unit, and its chassis contains 10 slots for optional modular converters. The Physical Dimensions of The Media Converter Chassis are 440mmX 266mmX 133mm.

  • Page 6: Real Panel

    2.2. Real Panel The 3-pronged power plug, On/Off switch and ventilation fan are located at the Rear Panel of the Media Converter Chassis. The Chassis will work with AC in the range AC 100~240 VAC, 50/60 HZ. The Rear Panel 2.3.

  • Page 7: Rack Mount Installation

    3. Rack Mount Installation This Chapter provides the installation procedure of The Media Converter Chassis. Hardware Installation The Media Converter Chassis is suitable for use in an office environment where it can be rack-mounted in standard EIA 19-inch racks or standalone. 3.1.
  • Page 8 Attaching Mounting Brackets Mount the device in the rack, using four rack-mounting screws (not provided). Rack Mounting the Chassis Note For proper ventilation, allow about 6 inches of clearance on all sides of the Chassis. This is especially important for enclosed rack installations.

  • Page 9: Connecting Your Network

    4. Connecting Your Network This chapter provides one sample of network connectivity in which the Media Converter Chassis. 4.1. Network Connectivity In the following network connectivity example, Switches, hubs, and PCs have been interconnected with the Media Converter Chassis. Application Example In the network connectivity, we divided the connectivity into three groups.

  • Page 10: Specification

    5. Specification FVT-4000 Model No. 10-Slot Media Converter Chassis 100M: FVT-4001 10/100BaseT to 100FX, SC MM, 2km FVT-4002 10/100BaseT to 100FX, ST MM, 2km FVT-4301 10/100BaseT to 100FX, SC SM, 30km 1000M: Support modules GVT-4000 10/100/1000BaseT to SFP GVT-4001 10/100/1000BaseT to 1000SX, SC MM, 550m...
