Summary of Contents for Alfred Schutze W 3/FZ-Duo HVLP

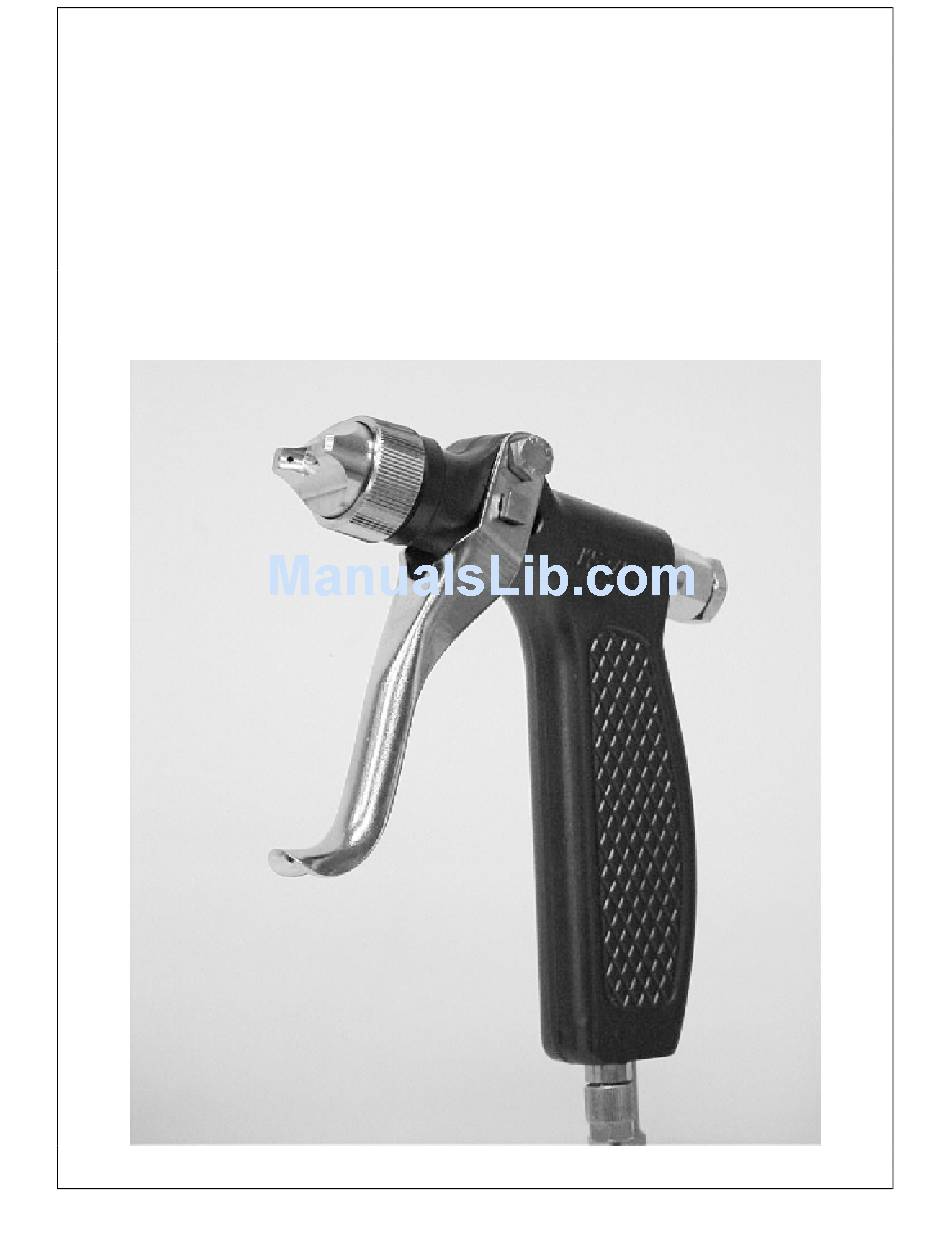

- Page 1 Operating Manual FINE-SPRAY gun W 3/FZ-Duo HVLP Read this manual carefully before installing, operating or servicing this spray gun. Keep always handy for further use.
- Page 2 Indicates tips for usage and other helpful information. 3 Function Description Your new spray gun W 3/FZ-Duo HVLP has been thoroughly tested before leaving the factory. No more adjustment is necessary prior to setting up spray operation. If fluid output, however, requires to be regulated individually, apply needle regulator (24.1) and counter nut (23.1) for quantity of fluid flow.
- Page 3 3.1 Set up gun as follows • Connect Duo-hose (twin hose for atomising air and fluid) to material pressure tank or other means of feeding fluid and to compressor. Translucent part of hose : for fluid (gun connection “M”) Blue part of hose : for atomising air (gun connection “AIR”) •...
- Page 4 4 Service 4.1 Cleaning WARNING! Danger caused by combustible and noxious spraying material. Safety instructions on fluid can and material data of fluid manufacturer must definitely be observed. WARNING! Before opening the spray gun it has to be disconnected from the air supply and from the material supply.
- Page 5 5 Cause of faults Before starting maintenance or repair work, ensure that all air operated tools are disconnected from the air supply! • If drops form on the trigger the needle gasket (10.1) is worn respectively loose and must slightly be retightened. For that purpose remove needle/valve cartridge (see chapter “4.3”).
- Page 7 Special designs on request. Technical alterations reserved. State of engineering: September 2003 8 Manufacturer declaration The spray gun W 3/FZ-Duo HVLP was constructed and produced by ALFRED SCHÜTZE Apparatebau GmbH, Hannoversche Straße 69-71, 28309 Bremen-Germany in accordance with the guidelines and standards of DIN EN 292. This spray gun can be combined with other modules or machines, which comply to DIN EN 292, without limiting the conformity.
- Page 8 6.1 part no. of needles, nozzles and air caps *needle *nozzle SM draw no. part no. Description draw no. part no. Description 1.1.1 110073 needle 0,2/0,3mm 2.1.1 210070 nozzle SM 0,2mm 1.1.1 110074 needle 0,5mm 2.1.1 210071 nozzle SM 0,3mm 1.1.1 110075 needle 0,8mm...
