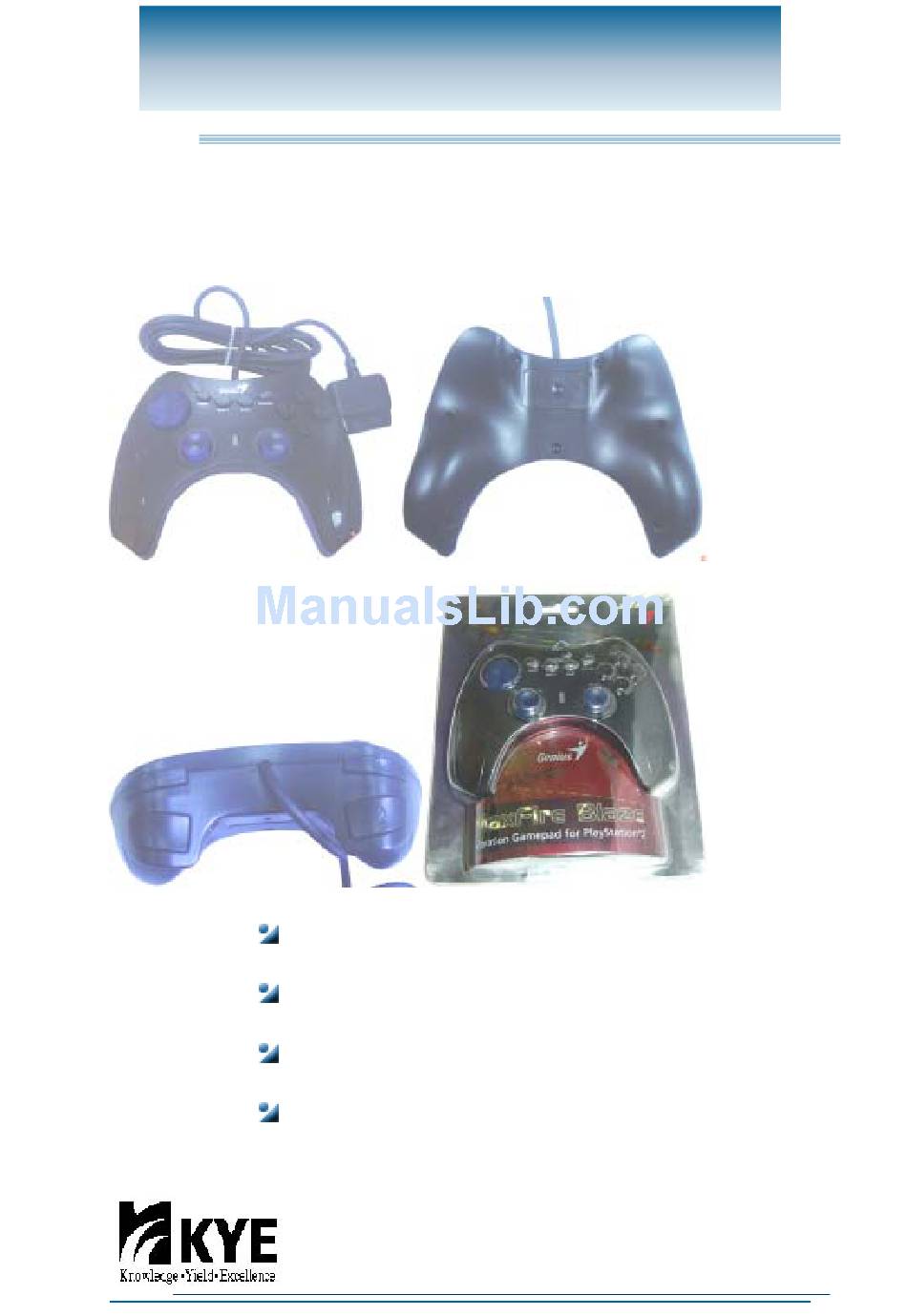

- Page 1 Service Guide Product: Game pad Model Name: Max Fire Blaze Model Number: Blaze Version Number: KYE...
-
Page 2: Table Of Contents
ervice Guide Contents 1. Revision record --------------------------------------------------4 2. Maintain Guide --------------------------------------------------5 2.1 Introduction ------------------------------------------5 2.2 Necessary tools --------------------------------------5 2.3 Safety attention --------------------------------------5 3. How to handle defective returns -----------------------------6 3.1 Procedure ---------------------------------------------6 3.2 Problem description ---------------------------------7 3.3 Problem solve -------------------------------8.9.10.11.12 4. -
Page 3: Revision Record
ervice Guide 1. Revision Record Date Version Name Approve 2005/12/04 Wendy Nicky ------------------------------------------------------ KYE SYSTEMS CORP. -
Page 4: Maintain Guide
ervice Guide 2. Maintain Guide 2.1 Introduction Please pay attention to this guide, and follow the information to prevent resulting damage. This maintain-guide is against hardware problems of this pad. 2.2 Necessary tools Screwdriver Tweezers Solder Solder torch Tin-Sucker Tweezers 2.3 Safety attention When staying for long time, please check electric and power circuit. -
Page 5: How To Handle Defective Returns
ervice Guide 3. How to handle defective returns 3.1 Procedure Received Defective Pad Test &Check problem Function NG Analyze possible malfunction causes Frame the solutions and methods Function NG Function OK Replace necessary defective parts Test all function to check the pad is ok. Function OK Return the pad to customers... -
Page 6: Problem Description
ervice Guide 3.2 Problem Description Item Problem Description 3.2.1 Minis tick’s 1) Can’t control minis tick correctly and function wrong completely? 2) Minis tick is no work. 3.2.2 Motors are 1) One or both of two motors is no work. incorrect 2) Any Motors’... - Page 7 ervice Guide 3.3.2 Motors are incorrect Problem Any motor is no rotating Analyze the Motor’s Mechanics Electronics problem Judge the problem 1. Out of life 1. The cord between causes Motor and PCB is fall off. Solution Replace the Re-solder the Motor Cord 3.3.3...
-
Page 8: Assemble & Disassemble
ervice Guide Assemble & Disassemble 4.1 How to Assemble and Disassemble the pad surface Procedure Graphics 1. Disassemble 1) Turn over the pad 2) Put the pad on a flat 3) Rotate screws 4) Separate pad’s covers 2. Assemble 1) Compose all parts according to disassemble drawing Lock all screws firmly 4.2 How to Replace the Motor... - Page 9 ervice Guide . Remove 1) Dividually solder the motor line. 2) Remove the defective Motor by Tweezers Attention: When remove and tin for motor, For fear short circuit, should make Sure that don’t put tin onto the. Other Component or electrocircuit. 2.
- Page 10 ervice Guide 4.3 How to Assemble and Disassemble the PCB Procedure Graphics 1. Disassemble 1) Rotate the screws on the minis ticks’ PCB Attention: When rotating PCB’s screws, please take care other parts connected to PCB. 2. Assemble 1) Lock the screws 4.4 How to Replace the Minis tick VR &...
- Page 11 ervice Guide 1) Suck the point of weld of the Resonator by Tin-Sucker. 2) Remove the defective Minis tick VR by Tweezers 2. Replace 1) Insert the same spec, complete Minis tick on the correct hole 3. Solder 1) Solder the Minis tick VR. 2) Check all points of solder is ok.
-
Page 12: Minis Tick Hat
ervice Guide 2. Replace 1) Insert the same spec, complete CABLE on the right hole Attention: When remove and add tin for CABLE, for fear short circuit, should make sure that don’t put tin onto other Compenent or electrocircuit. 3. Solder 1) Solder the CABLE 2) Check all points of solder is ok 5. -
Page 13: Appendix 2. Disassemble Drawing
ervice Guide 6. Appendix 2. Disassemble Drawing ------------------------------------------------------ KYE SYSTEMS CORP.
