How to Set Up Your CBA850 3G/4G/LTE Wireless WAN Bridge

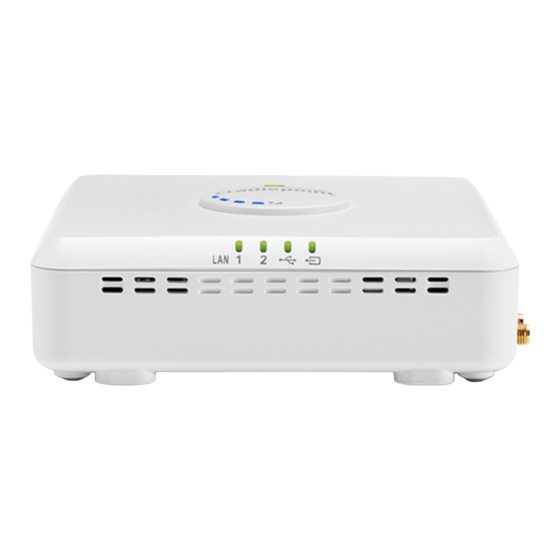

The CBA850 is a 3G/4G/LTE Wireless WAN Bridge, which integrates seamlessly
with existing network infrastructure. The CBA850 can be deployed as a primary
WAN or as a backup WAN to the primary wired network for the branch SRX
Series Services Gateways.
The CBA850 is Power over Ethernet (PoE) enabled and provides a high-speed,
automatic secondary path to access and control the network at remote
locations when connectivity is lost or when the primary connection fails.
The following models of CBA850 are available:
• CBA850 (without an integrated modem)
• CBA850LPE-VZ (with an integrated Verizon modem)
• CBA850LP3-EU (with an integrated EU modem)

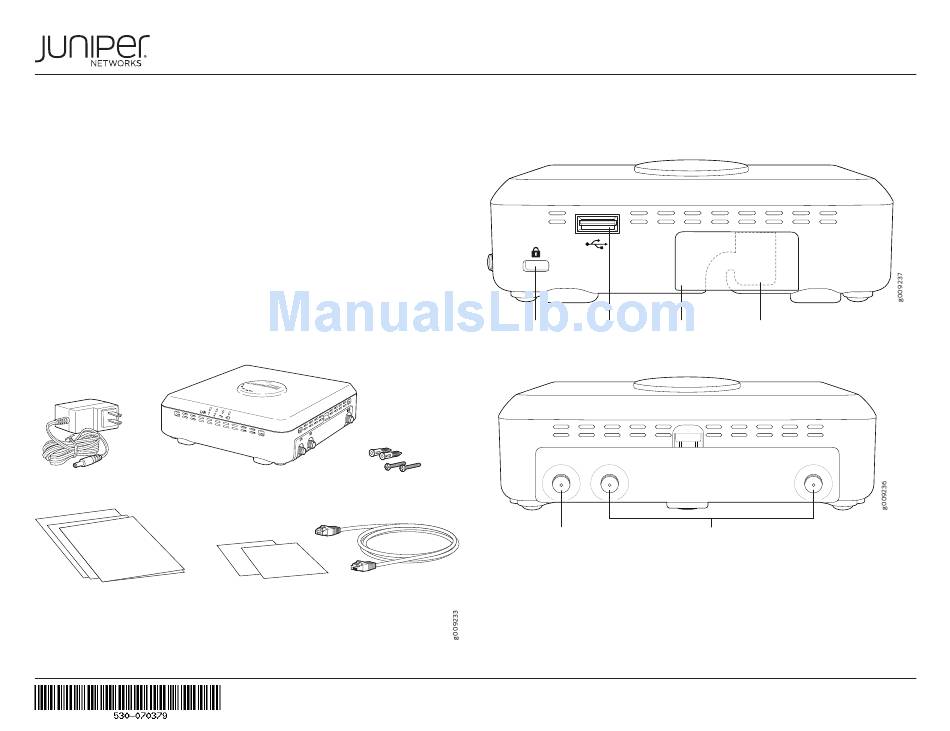

Package Contents
Power supply adapter
CBA850
• End User License Agreement
• Safety Guide
• Quick Start Guide
Mounting hardware
Warranty and Registration
Ethernet cable
Information
Rear Panel
Lock slot
USB port
Slot cover
Right Side Panel
GPS
AUX
GPS connector
(SMA)
Cable guide slot
MAIN
3G/4G Antenna
connectors (SMA)
1
