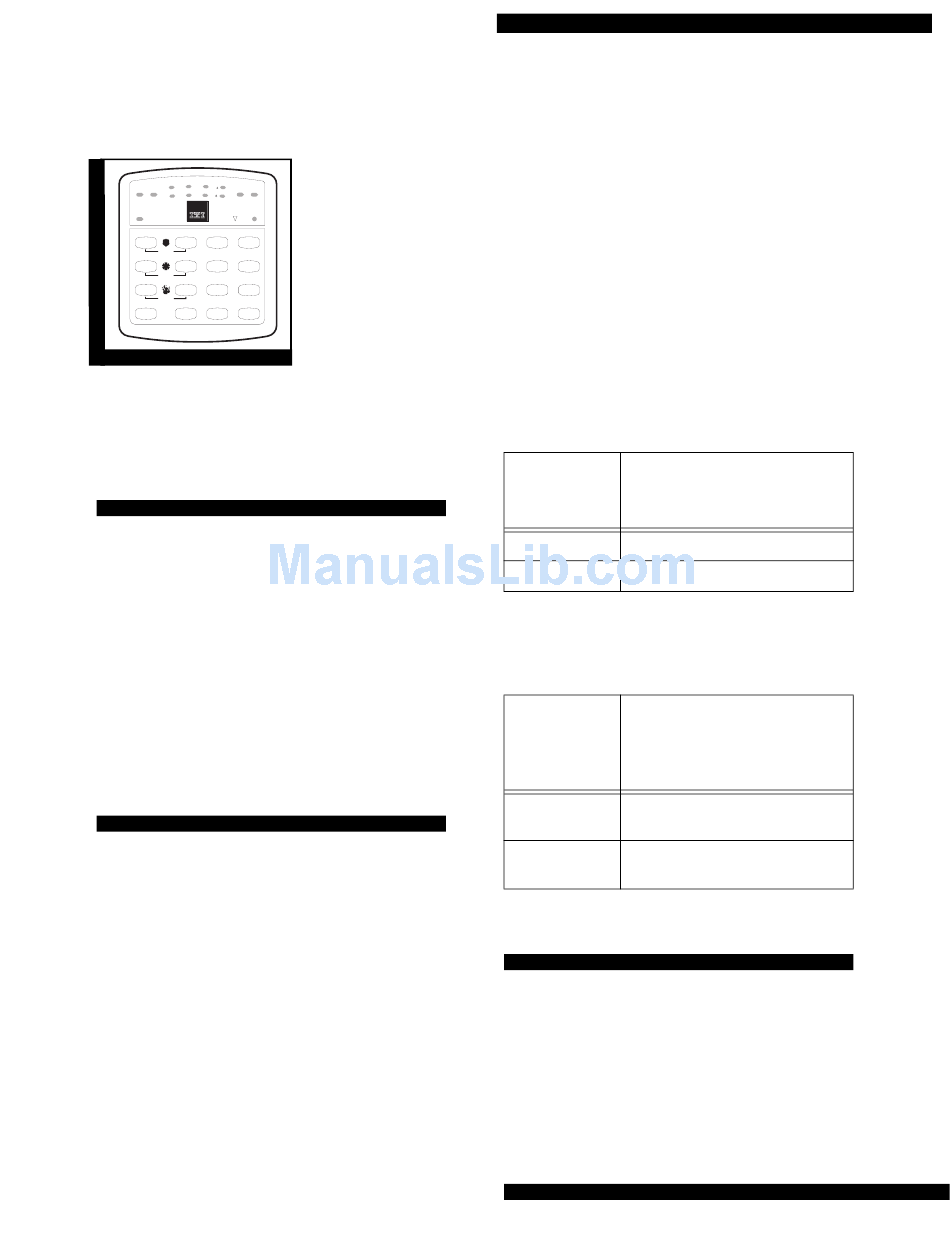

ITI SuperBus 8Z Installation Instructions Manual

™
SuperBus 8Z LED
Touchpad
Document Number: 466-1519 Rev. D
July 1998
2 3
1
STAY AWAY Bypass Trouble
6 7
5
Check
ALARM -
Both Flashing Status
Enter Code
Power
NO DELAY
Stay Away
Test System Weekly Off
1 2 3
A
press both
No Delay Silent Pager
B 4 5 6
press both
Features System Menu
C 7 8 9
press both
Status Lights Bypass
D 0 #
*
60-728
INSTALLATION
INSTRUCTIONS
Product Summary
The SuperBus 8Z LED (light-emitting diode)
Touchpad lets you control most system operations of
a compatible security system (see the section
"Specifications"). The LEDs provide a visual display
of the systems' current status.
Additional features include the following:
O
Built-in speaker for alarm and status sounds and
button-press beeps
O
Panic buttons for police, fire, and auxiliary
emergencies

Installation Guidelines

O
Mount the touchpad in an environmentally
controlled area (40°F to 100°F).
O
When mounting the touchpad's back plate, allow
at least 4¼ inches on the left side for the Quick
Guide slide-out card.
O
™
For Concord systems, up to 16 SuperBus
devices can be connected to the panel including
SuperBus 2x16 LCD Alphanumeric Touchpads,
SuperBus RF Receivers, HIM, HOM, ESM, etc.
O
Up to 4 SuperBus 8Z LED Touchpads can be
connected to Concord panels.
O
Each SuperBus device must have a different
device address to operate correctly. The touchpad
uses DIP switches for setting the device address
(factory set to 3).
O
Maximum current draw of the touchpad is 65
mA.
O
Do not exceed the panel's maximum available
power when using panel power for bus devices
and hardwire detectors (see the specific panel's
installation instructions for maximum available
power.)
O
Tables 1 and 2 describe the wiring limits for
Concord security systems that include an LED
touchpad.
Table 1. Maximum Touchpad Wire Lengths
Wire Gauge Max. Touchpad Wire Length
(Unshielded Between LED Touchpad and
or Shielded)
18 700 feet
22 300 feet
Table 2. Combined Total of all Bus Device
Wire Lengths
Combined Total of all Bus
Device Wire Lengths for
Wire Gauge
Concord Systems with LED
18—unshielded 1,600 feet
18—shielded 900 feet
22—unshielded 2,000 feet
22—shielded 1,300 feet
Tools and Equipment Needed
O
Screwdriver
O
#6 screws and anchors (included)
O
Panhead screws for a gang box installation
O
Saw or utility knife for cutting wallboard
O
SuperBus 2x16 LCD Alphanumeric Touchpad
(for entering program mode)
SuperBus 8Z LED Touchpad
Concord Panel
Touchpad
Page 1
