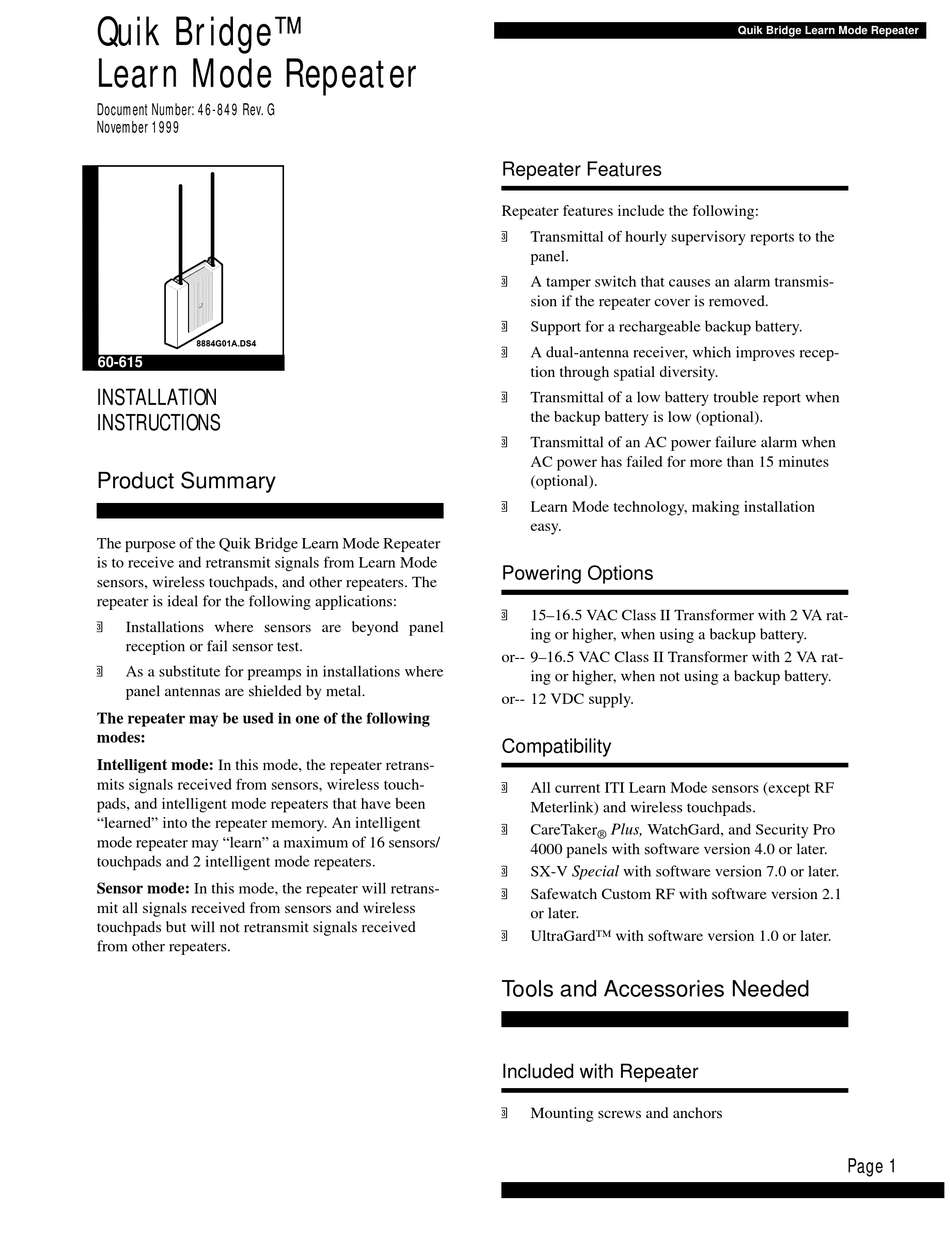

ITI Quick Bridge 60-615 Installation Instructions Manual

Learn mode repeater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Quik Bridge™
Learn Mode Repeater
Document Number: 46-849 Rev. G
November 1999
8884G01A.DS4
60-615
INSTALLATION
INSTRUCTIONS
Product Summary
The purpose of the Quik Bridge Learn Mode Repeater
is to receive and retransmit signals from Learn Mode
sensors, wireless touchpads, and other repeaters. The
repeater is ideal for the following applications:
n
Installations where sensors are beyond panel
reception or fail sensor test.
n
As a substitute for preamps in installations where
panel antennas are shielded by metal.
The repeater may be used in one of the following
modes:
Intelligent mode: In this mode, the repeater retrans-
mits signals received from sensors, wireless touch-
pads, and intelligent mode repeaters that have been
"learned" into the repeater memory. An intelligent
mode repeater may "learn" a maximum of 16 sensors/
touchpads and 2 intelligent mode repeaters.
Sensor mode: In this mode, the repeater will retrans-
mit all signals received from sensors and wireless
touchpads but will not retransmit signals received
from other repeaters.
Repeater Features
Repeater features include the following:
n
Transmittal of hourly supervisory reports to the
panel.
A tamper switch that causes an alarm transmis-
n
sion if the repeater cover is removed.
n
Support for a rechargeable backup battery.
n
A dual-antenna receiver, which improves recep-
tion through spatial diversity.
n
Transmittal of a low battery trouble report when
the backup battery is low (optional).
n
Transmittal of an AC power failure alarm when
AC power has failed for more than 15 minutes
(optional).
n
Learn Mode technology, making installation
easy.
Powering Options
n
15–16.5 VAC Class II Transformer with 2 VA rat-
ing or higher, when using a backup battery.
or-- 9–16.5 VAC Class II Transformer with 2 VA rat-
ing or higher, when not using a backup battery.
or-- 12 VDC supply.
Compatibility
n
All current ITI Learn Mode sensors (except RF
Meterlink) and wireless touchpads.
n
CareTaker
Plus, WatchGard, and Security Pro
®
4000 panels with software version 4.0 or later.
n
SX-V Special with software version 7.0 or later.
Safewatch Custom RF with software version 2.1
n
or later.
n
UltraGard™ with software version 1.0 or later.
Tools and Accessories Needed
Included with Repeater
Mounting screws and anchors
n
Quik Bridge Learn Mode Repeater
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quick Bridge 60-615 and is the answer not in the manual?

Questions and answers

Summary of Contents for ITI Quick Bridge 60-615

  • Page 1 Compatibility Intelligent mode: In this mode, the repeater retrans- mits signals received from sensors, wireless touch- All current ITI Learn Mode sensors (except RF pads, and intelligent mode repeaters that have been Meterlink) and wireless touchpads. “learned” into the repeater memory. An intelligent...

  • Page 2: Overview Of Repeater Operation

    Table 1. LED Indications Quik Bridge Learn Mode Repeater Spring for tamper switch Means this... 2 antennas Repeater is not powered or failed to power up. Not Included with Repeater Single Blink Repeater received a signal from a Learn Mode transmitter, or an Phillips screwdriver intelligent mode repeater “learned”/deleted a sensor or...

  • Page 3: Testing The Transmitter And Receiver

    Quik Bridge Learn Mode Repeater The only advantage of using a repeater in sensor mode this test. rather than in intelligent mode is that sensors and or-- For panic buttons, hold down the button for 5 sec- touchpads are not “learned,” which reduces installa- onds and release it.

  • Page 4: Installing Repeaters

    Quik Bridge Learn Mode Repeater Installing Repeaters 5) Set all of the DIP switches to the OFF position for now. Determine Which Transmitters Need a Repeater The first step of the installation is to determine which sensors and touchpads need their signals repeated. To determine which sensors and touchpads need a repeater: 1) “Learn”...

  • Page 5: Programming The Repeater Into The Panel

    Quik Bridge Learn Mode Repeater 4) Check the status of the green LED on the repeater. Programming the Repeater into the Panel Before the panel can supervise the repeater, the repeater must be programmed into panel memory. 1. - (minus) 12V Lead Acid 2.
  • Page 6 Quik Bridge Learn Mode Repeater Table 3. Selecting a Repeater Number 3) Activate the tamper switch. for Intelligent Mode (Continued) Table 2. Intelligent Mode DIP Switch DIP Switch Settings Settings Repeater Number DIP Switch Mode Intelligent set to the repeater number Table 3.

  • Page 7: Dip Switch

    Quik Bridge Learn Mode Repeater closer. Repeat until the repeater passes this test. Note: The repeater LED blinks twice after “learning” a To test signals sent to another intelligent mode repeater. repeater: Table 4. DIP Switch Settings for “Learn” Perform a Repeater Reception Test to determine Transmitter whether or not these signals are received by the destination repeater.

  • Page 8: Deleting Transmitters From An Intelligent Mode Repeater

    Quik Bridge Learn Mode Repeater 5) Activate the tamper switch on the repeater. This 4) Press and release the tamper switch again. causes the repeater to stop “learning” transmit- 5) Wait for LED to stop blinking. Remove power ter. from the repeater for five seconds; then reactivate power.

  • Page 9: Mounting The Repeater

    Quik Bridge Learn Mode Repeater utes. Choosing a Location for a Sensor Mode To enable AC power failure reporting: Repeater Set DIP switch 1 to the ON position. To select a mounting location for a sensor mode repeater, use the following guidelines: This option should only be enabled when Note: using a backup battery and a 15–16.5...
  • Page 10 Quik Bridge Learn Mode Repeater Hold the base against the mounting surface and mark the three mounting holes (see Figure 7) Press down on the lower-right corner of the base until the latch releases the circuit board (see Fig- ure 6). TOP LATCHES Figure 7.

  • Page 11: Example Intelligent Mode Repeater Installation

    Quik Bridge Learn Mode Repeater Example Intelligent Mode Repeater 20) Place repeater 3 between repeater 1 and the remaining distant sensors (sensors 7 and 8). Installation Perform a Repeater Reception Test between repeater 3 and repeater 1. 22) Perform a repeater reception test on all remaining dis- To install the system depicted in Figure 8: tant sensors (sensors 7 and 8) to determine which sen- 1) Install the control panel.

  • Page 12: Specifications

    The Quik Bridge Learn Mode Repeater is UL listed for Commercial Audio Transceivers (UL1270), but not for UL Fire or Burglary. ITI and CareTaker are registered trademarks of Interactive Technologies, Inc. UltraGard and Quik Bridge are trademarks of Interactive Technologies, Inc. Page 12...
