Page 1: Table Of Contents

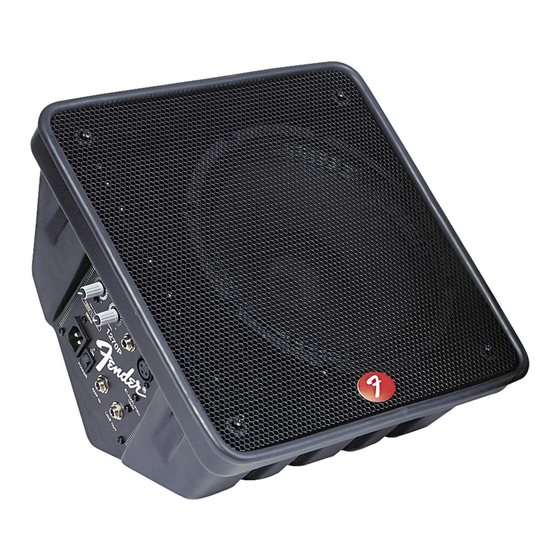

1270P MONITOR p/n 071-1271-000 (120V) SERVICE MANUAL CONTENTS: Notices Specifications Service notes Parts lists: PCB assembly Chassis (input) assembly Cab (baffle) assembly End item Schematics/drawings Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: 1270P Monitor
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
1270P MONITOR SPECIFICATIONS Product Release No.: PR 435 (This is not a model number) Part Number: 71-1271-000 (120V, 60Hz) 71-1271-060 (230V, 50Hz) Eur 71-1271-040 (230V, 50Hz) 71-1271-030 (240V, 50Hz) Aust Power Requirement: 360W Power Output: 100W, THD <0.5% (bi-amped) Inputs: XLR Balanced, mic-level (Mic input supplied w/full-time 15V phantom pwr);... -
Page 4: Service Notes
1270P MONITOR SERVICE NOTES Disassembly For Servicing Accessing power amp: Remove four (4) screws securing the metal grille, remove grille; remove two (2) screws securing the heatsink, the wires are sufficiently long to allow removal of the power amp PCB... - Page 5 JACK 1/4 PCB DUAL TIP MONO J3-4 0051007000 JACK 1/4 PCB STEREO W/ SWITCH 0030755000 LED GREEN T-1 3mm DIFFUSED 0055914000 PCB FAB 1270P 0025818001 RES CF 1/4W 5% 4.7ohm LL R32 R34 R38 0024937001 RES CF 1/4W 5% 10ohm LL R33 R49...
-
Page 6: End Item Assembly
1270P MONITOR PRINTED CIRCUIT BOARD ASSEMBLY (cont) PART # DESCRIPTION REFERENCE DESIGNATION 0024997001 RES CF 1/4W 5% 100k LL R9 R17-19 0031819001 RES MF 1/4W 1% 1.82k LL R1-4 0031818001 RES MF 1/4W 1% 18.2k LL R5-8 0015718001 RES MF 1/4W 1% 1.00k LL 0030737001 RES CF 1/2W 5% 5.6ohm LL... - Page 7 1270P MONITOR END ITEM ASSEMBLY (cont) PART # DESCRIPTION REFERENCE DESIGNATION 0024052000 SCRW SMA 6-x5/8 PHP BLX 0026553000 SCRW M 8-32x3/8 PHP BLX 0055746000 BAR HANDLE PLASTIC 0055733000 SCRW M 8-32x1/2 OHP BLX 0026577000 SCRW M 10-32x1 PHP BLX 0022004000...
