Summary of Contents for Secuvox KL216

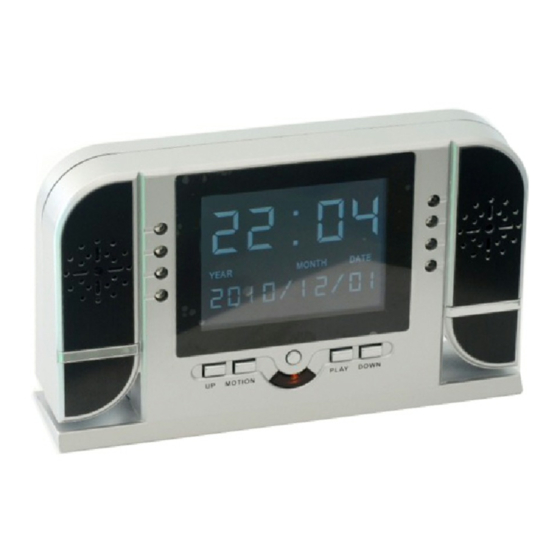

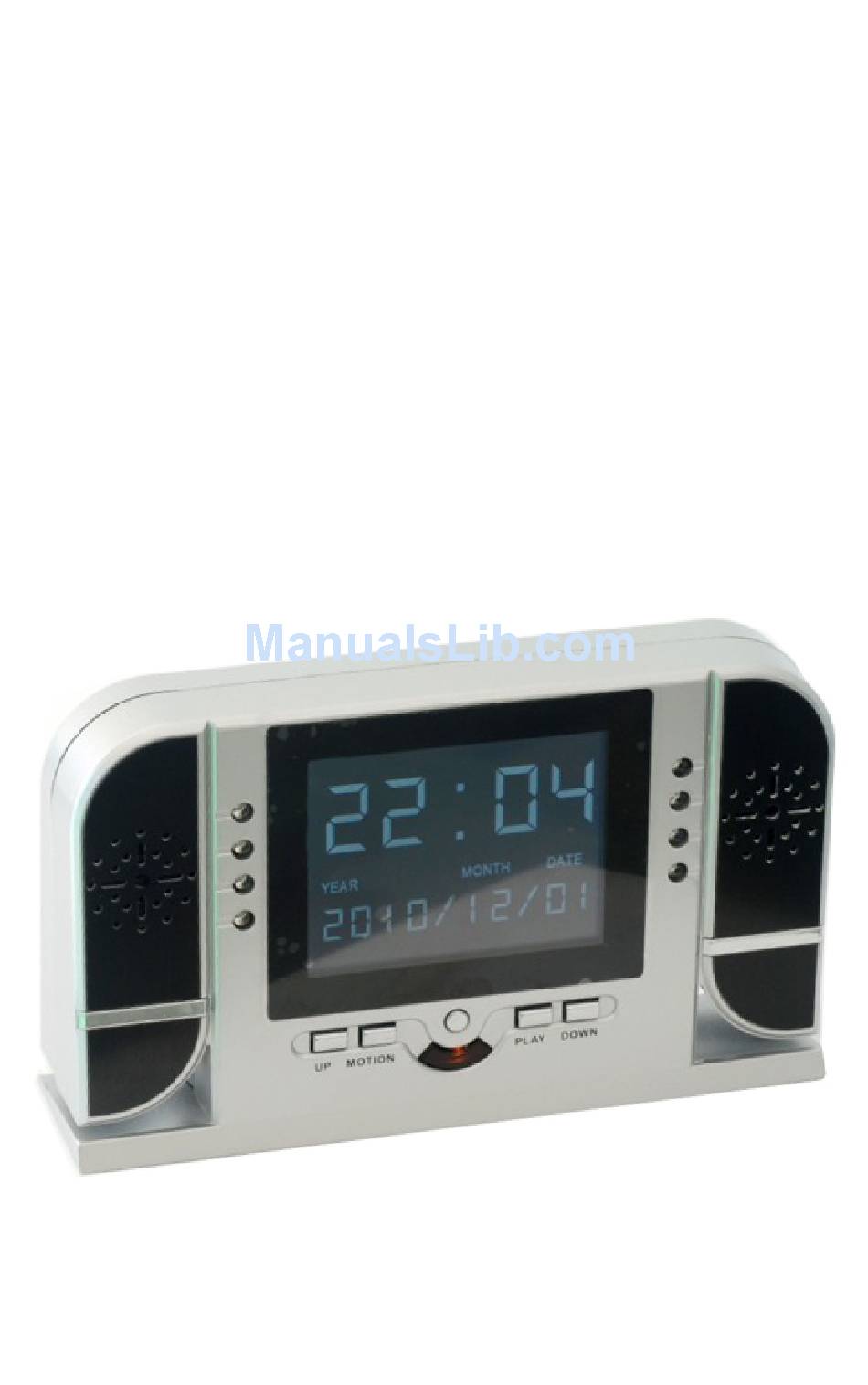

- Page 1 Multi-function IR Clock SecuVox™ Motion Detection Night Vision HD Clock Camera KL216...
- Page 2 Product demonstration Features: • Video player and recorder • Motion Detection Video Recording • Voice-activated Video recording • Manual Video Recording • Taking Photos • Voice Recording • Web camera...
- Page 3 • 24-hr digital clock (display only military time) II. Product Introduction This Motion Detection HD Camcorder Player and Recorder with Desk Clock and 2.4 inches LCD Monitor and remote is specially designed for security surveillance at home, office and for frequent travelers.
- Page 4 two USB cables: one for file transferring to PC and one for charging. Please make sure you do charging with the USB Charging Cable (The USB cable with a “USB Charging Cable” TAG on it). For charging, turn the power switch at the bottom of clock to OFF position, connect the device to PC through the USB Charging Cable.
- Page 5 status. To completely turn off the device, press and hold the On/Off button for 5 seconds (or press and hold the “C” On/Off button for 5 seconds on remote), the device will shutdown, Yellow and Blue light are off. (Note: turning off the device will not affect the time that was previously set up on device).
- Page 6 To stop voice-activated video recording function, simply press the Sound Control/Down button once (or press the “A” Sound Control/Down button once on remote), the Yellow light stays on solid (under device standby status). Motion Detection Video Recording: In addition to voice-activated function, you also can use Motion Detection function for video recording.
- Page 7 the “D” Motion Detection button once on remote), the yellow light stays on solid and the device is in standby status again. Manual Video Recording: Under standby status, press the Motion Detection button once (or press the “D” Motion Detection button once on remote), the yellow light is off.
- Page 8 photo. Voice Recording: Under standby status, press and hold the Photo/Audio/UP button for 5 seconds (or press the “B” Photo/Audio/UP button for 5 seconds on remote), blue light flashes 5 times and both blue and yellow lights are off. The device is now doing voice recording.
- Page 9 Playback or delete mode: Under standby status, press and hold the “Play” button for 8 seconds, the screen will display document folders (after you recorded video or audio or photo). Use “Up” or “Down” button to choose folder and then press On/Off button to confirm and enter that folder.
- Page 10 once on the “Play” button, the screen display Date Display Method / Date / Time. Press “Down” or “Up” button to choose and press On/Off to confirm. After choosing and confirming set up, press On/Off button once to go back to time display mode. Note: this clock only displays military time (24-hour).
- Page 11 pops up, you can play / delete / copy files. If you cannot find the folder, you can click on “My computer” on your PC to find the folder. (Note: you do not have to install any software, when the power switch at the bottom of clock is at OFF position, you are using the device folder as regular U Disk).
- Page 12 (Download for Windows). After installing the VLC software, right click on video file and choose Play With VLC to play video. NOTE: if you do not know how to install driver to your PC, please consult your computer administrator for assistance. Web Camera Software (Driver) installation: This clock DVR works with most of existing web camera software in...
- Page 13 be used as PC web camera, driver software need to be installed before use. Three steps to use web camera function. Step 1: put the power switch at the bottom of clock to ON position. Step 2: press On/Off button to turn on the device.
- Page 14 case or battery. It’ll cause damage to the device and battery. Stop using the device when the clock is wet. • Do not try to open the battery cover when it is in use or during charging or with the USB cable plugged into computer.
- Page 15 battery. • Do not let children under age 12 to operate the device. Parameter Video Format Video M-JPEG Coding Video 1280*720 Resolution Video 30fps frame rate Play Operating system comes with Software video player software or mainstream Picture format Image pixel 5M Pix Image ratio 16:9 Support Windows...
- Page 16 Please contact seller for warranty time. No return will be accepted unless it is manufacturing defect related. restocking fee will be applied if an item being returned is not related to manufacturing defect. SecuVox™ is a trademark of Q.L.M., © all rights reserved, Q.L.M. www.ideatomorrow.com...
