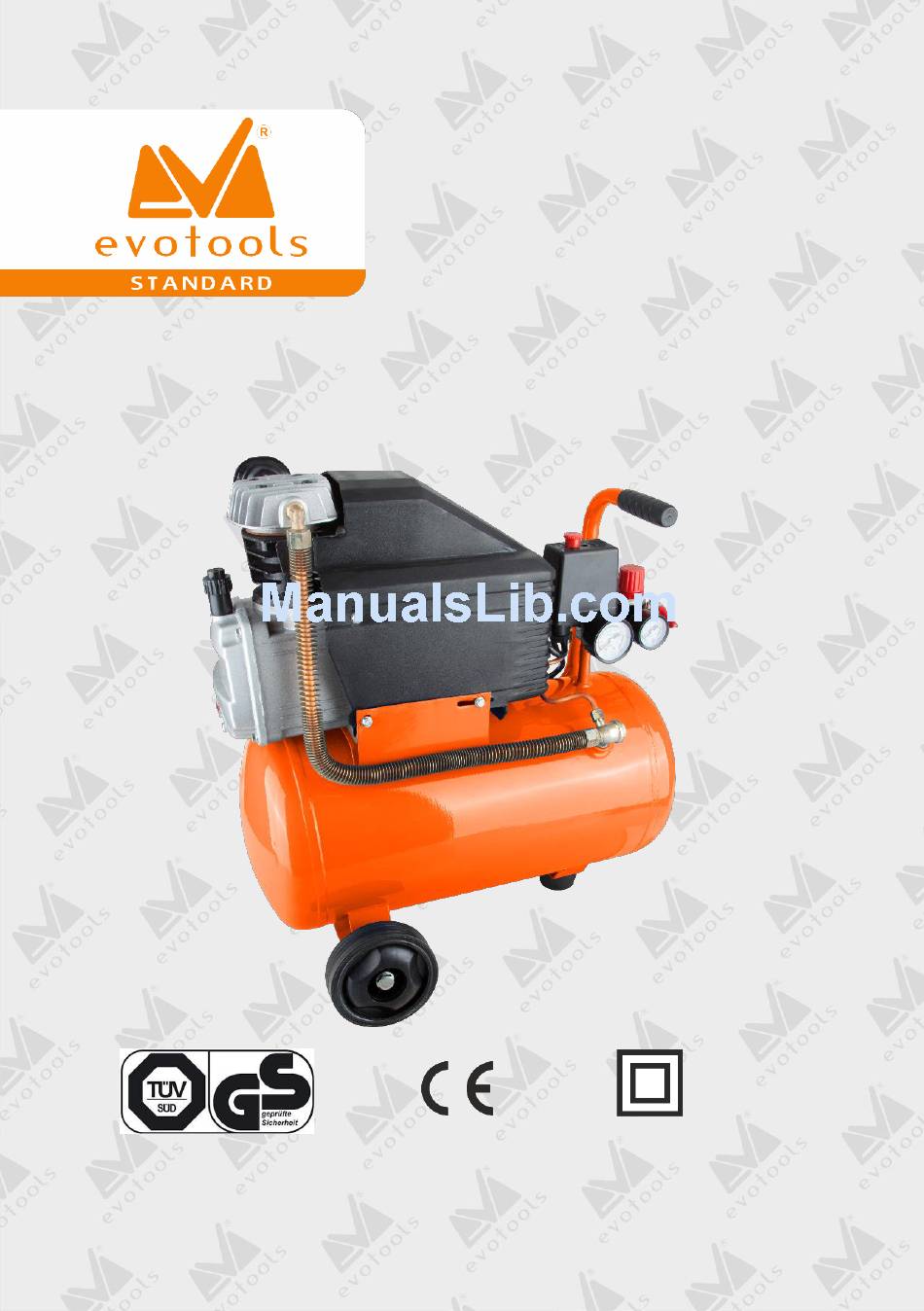

- Page 1 MANUAL DE UTILIZARE / USER’S MANUAL COMPRESOR / AIR COMPRESSOR CA2024 www.honest.ro...
-
Page 2: Zona De Lucru
RO_________________________________________________ Va multumim pentru achizitionarea acestui produs EVOTOOLS, fabricat conform celor mai inalte standarde de siguranta si de functionare. Avertizare! Pentru siguranta dumneavoastra cititi cu atentie acest manual si instructiunile generale de siguranta inaintea utilizarii echipamentului. Nerespectarea acestor reguli poate avea ca rezultat producerea electrocutarilor, a incendiilor si/sau a ranirilor personale. - Page 3 utilizarea in mediul exterior. Nu utilizati produsul in conditii de ploaie sau umiditate excesiva. Patrunderea apei in interior creste riscul unui scurtcircuit. Verificati stecherul si cablul electric in mod regulat si in caz de deteriorare a acestora apelati la un electrician autorizat.
- Page 4 Domeniu de utilizare Compresorul este destinat uzului personal pentru producerea de aer comprimat. NU UTILIZATI COMPRESORUL CU NICI UN ALT TIP DE GAZ. Operatii : umflare, operatii care necesita racordarea uneltelor pneumatice, vopsire, spalare cu detergenti aposi,in conditiile respectarii normelor specifice NU ESTE PROIECTAT PENTRU UZ INDUSTRIAL.
-
Page 5: Curatare Si Intretinere
Utilizare ATENTIE! Inainte de punerea in funcţiune trebuie verificat nivelul uleiului in pompa compresorului. ATENTIE! IN CAZUL IN CARE APAR ZGOMOTE ANORMALE IN FUNCTIONARE OPRITI IMEDIAT UNEALTA SI ADRESATI-VA UNUI SERVICE AUTORIZAT PENTRU CONSTATARI SI REPARATII. Montaj si verificare componente ... - Page 6 ATENTIE! Inaintea tuturor lucrărilor de curăţire şi intreţinere rezervorul se va scoate de sub presiune (va fi complet golit de aer) Curatare generala Regulat, de preferat dupa fiecare utilizare curatati echipamentul cu o carpa moale.Daca murdaria persista, utilizati o carpa umezita intr-o solutie de apa si sapun ...
-
Page 7: Date Tehnice
Date tehnice Tensiune alimentare / frecventa 230-240V ~ 50Hz Putere 1.5 KW Modul de functionare* S2 15 min Turatie nominala 2850 RPM Volumul rezevorului de aer 24 L Capacitatea de aspiratie teoretica 206 L/min Tip ulei recomandat SAE 15W40 pentru compresor Greutate 24.5 Kg Nivel presiune sonora... - Page 8 Asistenta tehnica Constatare Cauza posibila Rezolvare Se verifica cablul, stecherul, Lipsa tensiune alimentare siguranta si priza Se evita cablurile prelungitoare Tensiune retea prea mica prea lungi sau cu sectiune Compresorul nu necorespunzatoare functioneaza Temperatura exterioara prea Nu se va folosi la o termperatura mica exterioara <...
-
Page 9: General Power Tools Safety Warnings
EN_________________________________________________ Thank you for buying this EVOTOOLS product, manufactured according to the highest safety and performance standards WARNING! For your own safety, read this manual and the general safety Instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. -
Page 10: Personal Safety
Personal safety Always use ear and eye protection when working with the machine or perform maintenance. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts. -
Page 11: Operation
Operation WARNING! Before commissioning must check the oil level in the compressor. WARNING! IN case of any abnormal noise, immediately turn off the tool and contact an authorized service facility for repairs Asembly and components checking Install wheels (3) and foot (4) – with bolts and nuts provided ... -
Page 12: Cleaning And Maintenance
Pressure regulation With pressure regulator (7) working pressure can be adjusted, as measured by gauge (6). Set pressure could be taken from the quick coupling (5). The pressure in the tank could be measured at any time with pressure gauge (12) and could be taken from the quick coupling (16). Pressure switch adjusting The pressure switch is set by factory, do not adjust it. -
Page 13: Technical Data
Technical data Rated voltage/frequency 230-240V ~ 50Hz Power 1.5 KW Operating mode* S2 15 min Nominal speed 2850 RPM Tank 24 L Inlet flow 206 L/min Recommended oil SAE 15W40 for air compressors Net weight 24.5 Kg Sound pressure level 92 Db(Lwa) * The operation mode S2 15 min (Short time): the engine can be operated at nominal power (1500W) only for the period indicated on the plate (15 min).
