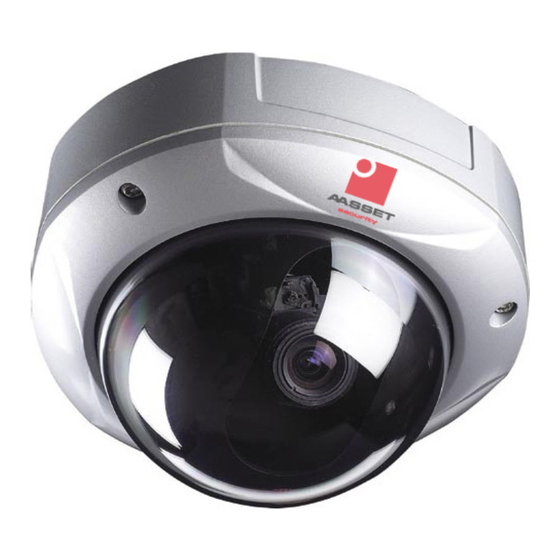

Vandal resistant dome camera
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

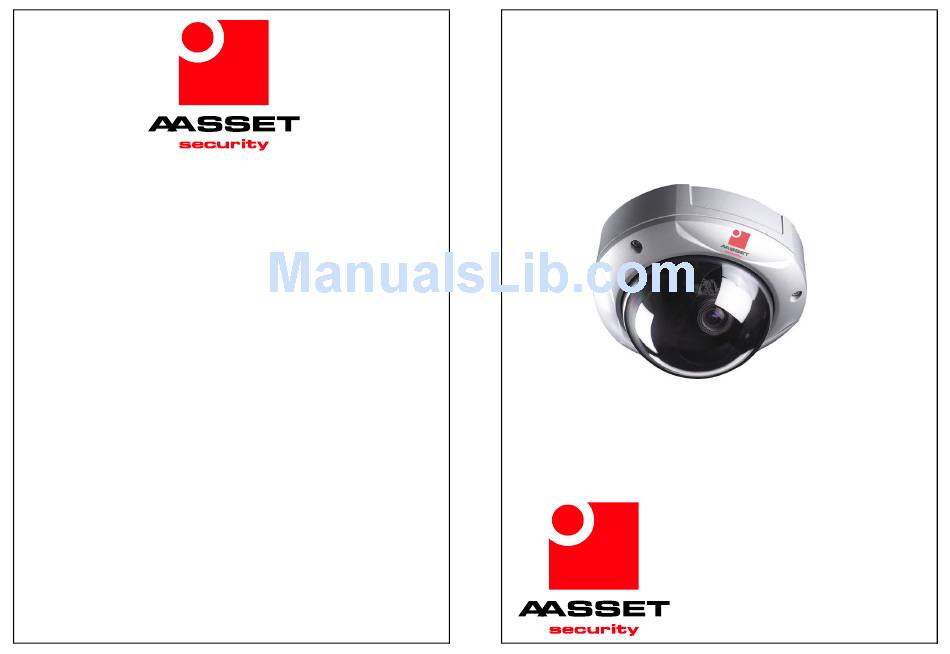

USER MANUAL
VANDAL RESISTANT DOME CAMERA
AST CD 103 VP EX
AST MD 301-2
AST CD 101 VP-2
AASSET Security
153, rue Michel Carré
95100 Argenteuil - France
Tél: +33 (0) 1 30 76 30 30 - Fax: +33 (0) 1 30 76 25 74
Asset Security limited
Unit A, Carina
Sunrise Parkway, Linford Wood
Milton Keynes, MK14 6PNJ, UK
Tel: (01908) 230 830 • Fax: (01908) 230 930
AASSET Security GmbH
Max - Planck - Str. 15 a - cD - 40699 Erkrath
Tel: +49 (0) 211/2470 160 - Fax:+49 (0) 211/2470 1611
AASSET SECURITY POLSKA Sp. z o.o.
Office in Szczecin:
Street: Szczecinska 1 FA - 72-003 Dobra k/ Szczecina
Phone/fax: +48 91 421 16 52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AST CD 103 VP EX and is the answer not in the manual?

Questions and answers

Summary of Contents for AASSET Security AST CD 103 VP EX

  • Page 1 USER MANUAL VANDAL RESISTANT DOME CAMERA AST CD 103 VP EX AST MD 301-2 AST CD 101 VP-2 AASSET Security 153, rue Michel Carré 95100 Argenteuil - France Tél: +33 (0) 1 30 76 30 30 - Fax: +33 (0) 1 30 76 25 74...

  • Page 2: General Notes

    Installation Manual Warning AAS-102004 To avoid the risk of electrical shock, please ensure that the following is undertaken by a suitably qualified and competent person Specification ．Vandal resistant housing ．IP 66 rated housing - suitable for external use ．1/3" Super HAD CCD .
  • Page 3 Using the camera externally 9. Power connector (2 pin) Apply silicon compound to pretect against humidity Connect the power cable (supplied) to the 2 pin connector which will cause condensation on the lens and inside the cover . On the holes (4) when the camera is waal or ceiling mounted 10.

  • Page 4: Ccd Characteristics

    Warning Notes When installing the conduit, ensure the tube is inserted poperly, otherwise moisture and dust . If the camera will not move, loosen the screw again to move it. Be sure to tighten the can penetrate screw again after adjustment When installing the card, ensure that the conduit is clean and dry, insert the card firmly, and use a good quality silicone compound Ensure that the screw pitch is 12mm or less, or the thread may be damaged...
  • Page 5 Technical Specification Focal length f=3.8-9.5 mm Max aperture F1.3 Viewing angle Horizontal: 70° (large) ~ 32° (tele) Minimum distance 0.2m Synchronisation lnternal Horizontal Resolution AST CD 103VP EX : 470 lines Colour - 510 Lines B&W AST MD 301-2: 580 TV lines AST CD 101 VP-2 : 470 lines Colour Sensitivity AST CD 103VP EX : 0.5 lux Col.
