Please read this manual first.
Dear Customer,
We would like you to obtain the
modern facilities
under
Therefore, we advise you to read through this User Manual carefully before using your product and keep it
for future reference. If you hand over the product to someone else, deliver the User Manual as well.
The User Manual will help you use the product in a fast and safe way.
•
Read the User Manual before installing and operating the product.
•
You must strictly observe the safety instructions.
•
Keep this User Manual within easy reach for future reference.
•
Also read other documents supplied with the product.
Remember that this User Manual may also be applicable for several other models.
Differences between models are explicitly identified in the manual.

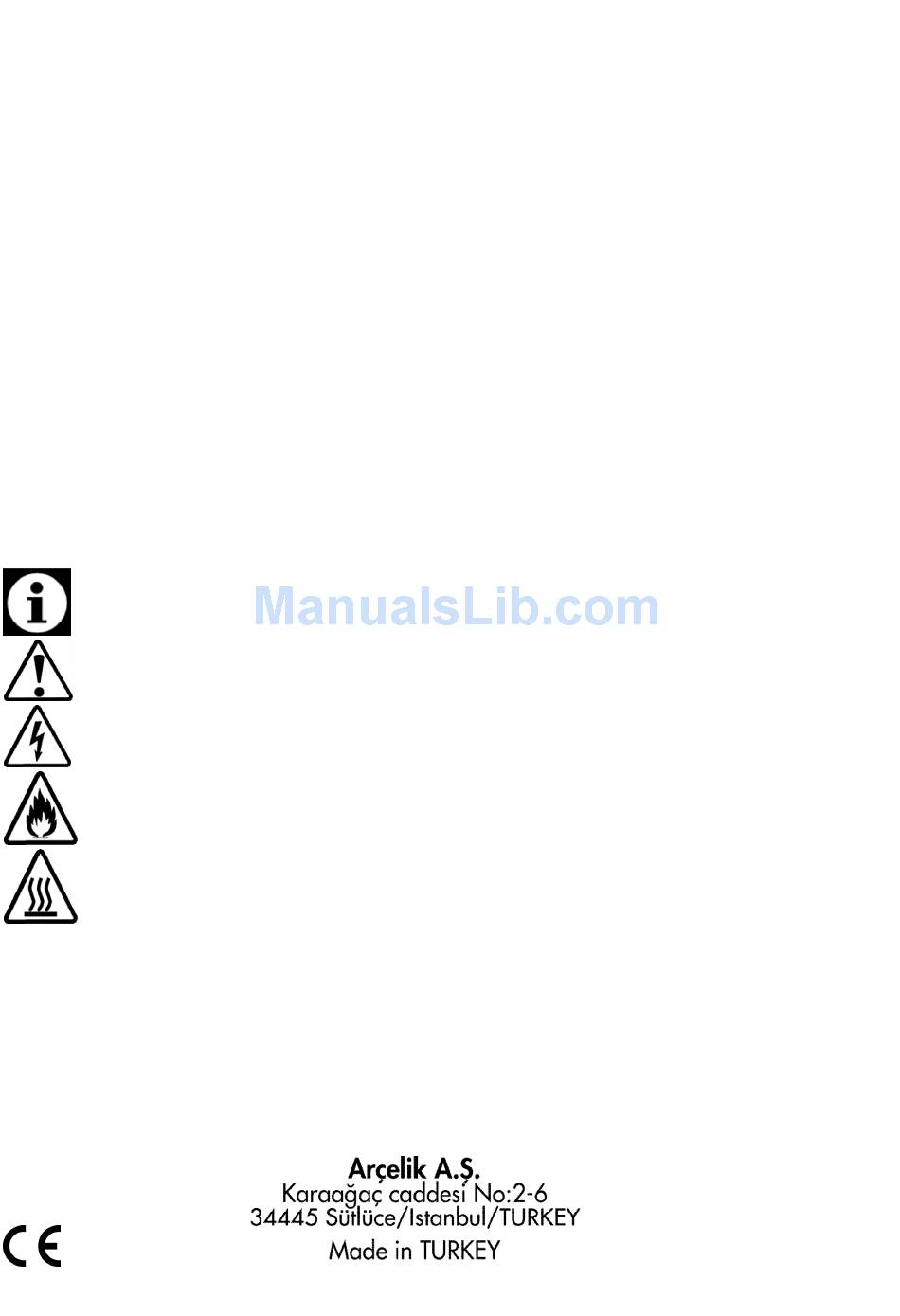

Explanation of symbols
Throughout this User Manual the following symbols are used:
Important information or useful hints about usage.
Warning for hazardous situations with regard to life and property.
Warning for electric shock.
Warning for risk of fire.
Warning for hot surfaces.
best
performance
strict quality control procedures.
from
your product that has been manufactured in
Advertisement
Table of Contents
Related Manuals for Flavel FDC90X
Summary of Contents for Flavel FDC90X
- Page 1 Please read this manual first. Dear Customer, We would like you to obtain the best performance from your product that has been manufactured in modern facilities under strict quality control procedures. Therefore, we advise you to read through this User Manual carefully before using your product and keep it for future reference.
-
Page 2: Table Of Contents
Table of Contents General information about cooking ....15 Using the hobs ..........15 General information Overview ............4 How to operate the oven Technical specifications ......... 5 Package contents .......... 6 General information on baking, roasting and grilling ..........17 How to operate the electric oven .... -
Page 3: General Information
General information Overview Vitroceramic surface Front door Ceramic Plate Bottom part Control panel Foot Shelf positions Handle Wire shelf Tray Single-circuit cooking plate Front left Thermostat lamp Single-circuit cooking plate Rear left Function knob Dual-circuit cooking plate Middle Thermostat knob Single-circuit cooking plate Rear right Mechanical timer Single-circuit cooking plate Front right... -
Page 4: Technical Specifications
Technical specifications GENERAL External dimensions (height / width / depth) 865 mm (min) - 920 mm max//900 mm/655 mm Voltage / frequency 230 V ~ 50 Hz Total power consumption 10.5kW Fuse min. 32A / 16A x 3 Cable type / section H05VV-FG 3 x 4.00mm / 5x 1,5 mm equivalent... -
Page 5: Package Contents
Package contents Wire shelf with steps Used for roasting and for placing the food to be Accessories supplied can vary depending on the product model. Not every accessory baked, roasted or cooked in casserole dishes to described in the user manual may exist on the desired rack. -
Page 6: Important Safety Instructions
Important safety instructions This section contains safety instructions that will ignite when it comes into contact with hot help you avoid risk of injury and damage. All surfaces. warranties will become void if you do not follow • Do not heat closed tins and glass jars in the these instructions. -
Page 7: Safety When Working With Electricity
product when it is operating and do not allow • Any work on electrical equipment and them to play with the product. systems should only be carried out by • Accessible parts of the appliance will become authorized and qualified persons. hot whilst the appliance is in use. -
Page 8: Installation
Installation Product must be installed by a qualified person in accordance with the regulations in force. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which may also void the warranty. Preparation of location and electrical and gas installation for the product is under customer’s responsibility. -
Page 9: Installation And Connection
side to kitchen walls, kitchen furniture or equipment of any size. The kitchen furniture or equipment on the other side may only be of the same size or smaller. • Any kitchen furniture next to the appliance must be heat-resistant (100 °C min.). The appliance must be secured against overbalancing by using the supplied two safety chains on your oven. - Page 10 grounding installation made by a qualified instruction may cause operational problems and electrician while using the product with or without invalidate the product warranty. a transformer. Our company shall not be liable for This product must only be installed by a qualified any damages that will arise due to using the electrician eg local electricity company or NICEIC product without a grounding installation in...
-
Page 11: Compliance With Eee Directive
6. After completing the wire connections, close Compliance with EEE Directive the terminal block cover. This product does not contain harmful and 7. Route the power cable so that it will not forbidden materials described in the "Directive on contact the product and get squeezed between the Restriction of the Use of Certain Hazardous the product and the wall. -
Page 12: Disposing Of The Old Product
Disposing of the old product Dispose of the old product in an environmentally friendly manner. This equipment bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this equipment must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. -
Page 13: Preparation
Preparation Tips for saving energy Initial use The following information will help you to use your First cleaning of the appliance appliance in an ecological way, and to save energy: The surface may get damaged by some • Use dark coloured or enamel coated detergents or cleaning materials. -
Page 14: How To Use The Hob
How to use the hob Tips about glass ceramic hobs General information about cooking • Glass ceramic surface is heatproof and is not DANGER affected by big temperature differences. Risk of fire by overheated oil! • Do not use the glass ceramic surface as a When you heat oil, do not leave it place of storage or as a cutting board. - Page 15 Using multi-segmented cooking zones DANGER Multi-segmented cooking zones allows to cook Broken glass! with different size of saucepans on the same Do not let any objects fall onto the hob. Even small objects (e.g. salt shaker) may cooking zone. When these cooking zones are damage the hob.
-
Page 16: How To Operate The Oven
How to operate the oven Tips for grilling General information on baking, When meat, fish and poultry are grilled, they roasting and grilling quickly get brown, have a nice crust and do not get dry. Flat pieces, meat skewers and sausages WARNING are particularly suited for grilling as are vegetables Hot surfaces may cause burns! -
Page 17: Operating Modes
Switching off the electric oven Using the oven clock Switch the oven timer to off position. When the timer is set to a certain time, it will turn off automatically. Turn the function knob and temperature knob to off (upper) position. Starting the cooking In order to operate the oven, you must select cooking mode and the desired... -
Page 18: Cooking Times Table
Baking and roasting Cooking times table Level 1 is the bottom level in the oven. The values indicated in the table below are data indicative. They may vary according to the type of food as well as your preferences of cooking. Dish Rack position Temperature... -
Page 19: Maintenance And Care
Maintenance and care Damage of the control panel! General information Do not remove the control knobs for control Service life of the product will extend and the panel cleaning. possibility of problems will decrease if the product Cleaning the oven is cleaned at regular intervals. -
Page 20: Removing The Door Inner Glass
Front door Hinge Oven Metal part Plastic carrier Inner glass panel Lower plastic slot Fixing foot Window 3. Move the front door to half-way. 4. Remove the front door by pulling it upwards to release it from the right and left hinges. Steps carried out during removing process should be performed in reverse order to install the door. -
Page 21: Replacing The Oven Lamp
If your oven is equipped with a round lamp: Replacing the oven lamp 1. Disconnect the product from mains. DANGER 2. Turn the glass cover counter clockwise to Hot surfaces may cause burns! remove it. Make sure that the appliance is switched off and cooled down in order to avoid the risk of an electrical shock. -
Page 22: Troubleshooting
Troubleshooting Oven emits steam when it is in use. It is normal that steam escapes during operation. This is not a fault. Water drops occur during cooking The vapour that arises during cooking can condense and form water droplets when it hits cold surfaces of the product. -
Page 23: Guarantee And Service
