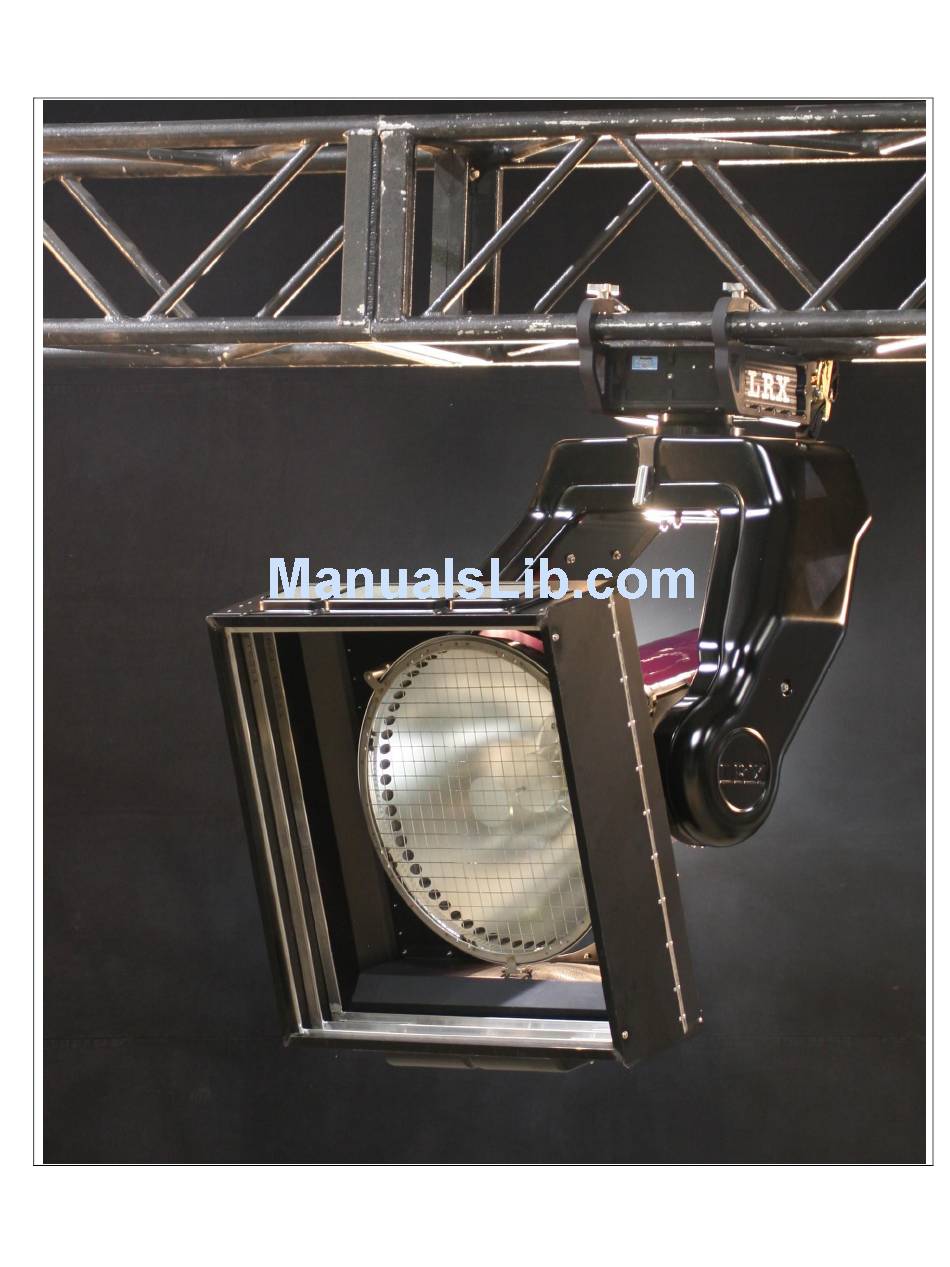

- Page 1 LRX SINGLE Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 2: Safety Instructions
Prior to operation a daily inspection and log are required. For handling information see page twelve. Do not operate without lens in place If using a power trolley with this fixture please refer to “LRX Power Trolley” manual. THERE ARE NO USER SERVICEABLE PARTS. - Page 3 When fixtures are mounted in close proximity to one another, care must be taken so that output energy from one fixture is not directed at another fixture or electrical cabling. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 4: Fixture Addressing
Pin 4 = 12VDC negative Pin 5 = 12 VDC positive When the LRX fixture is in FIXTURE mode, pins 4 & 5 on the DMX IN connector become energized to 12VDC to supply power to the hand controller. - Page 5 LRX SINGLE The LRX fixture always writes the last saved address and mode to non-volatile memory, such that in the event of a power interruption, the fixture will power up with the mode and address it was using before the power interrupt.
- Page 6 LRX SINGLE DMX CHANNEL ALLOCATION When using the LRX with a lighting console or other device that offers discrete control over the DMX channels, they are used by the fixture as follows: Where N= base channel of fixture. [LRX DMX address shown on display]: N + (0-9) = motor control (depends on MODE) N+10 = GEL fan ON/OFF (OFF<127<=ON)
-
Page 7: Hand Controller
When the “All Gel Fans Stop” switch is held all gel fans connected to that hand controller will stop. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 8 Designed to accept gel frames: 30” X 30” Fixture mounting hooks have been designed to mate with truss chords not greater than two inches (50.8mm) in diameter Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 9 LRX SINGLE Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 10: Filter Installation
It has been reported to us that using two layers of ¼ CTO (with at least one inch of air separation) to achieve ½ CTO is possible and might provide better results than a single piece of ½ CTO. Should the cooling fans on the gel frame holder become a sound problem... - Page 11 LRX SINGLE Roscoe Heat Shield Color or diffusion filter Roscoe Heat Shield Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 12 Removal of shipping case covers require two persons to lift. Always use lifting points to avoid potential pinch points. Fixture lifting points Fixture approximately 156 pounds Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 13 LRX SINGLE Hanger Bolt Ensure 1.5 wraps on ratchet drum Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 14 Install onto shipping frame, tighten T-bolts and ratchet straps and ensure there is a minimum of 1.5 wraps on the ratchet drum. See picture below, Always store shipping cases in a dry location Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 15: Lamp Installation
Overheating can damage the lamp and internal components. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 16 When LRX extended 6KSE lamps are not available a socket extender will be required to compensate for the shorter A.C.L. of the standard 6KSE lamp. Part number - G38-6X Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 17 If cable rollers are required refer to “LRX Cable Roller” manual. If LRX truss is to be installed, ensure that load is centered and evenly applied to basket. Maximum capacity for LRX truss is 500 pounds evenly distributed.
- Page 18 Fasten using ½” X 4” bolts with washers, lock washers and nuts – four places Load must be centered front to back as well as side to side Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 19 “F” prefix; not the three digit DMX channel and the display must not be flashing. It is important to note that the LRX fixture will not begin responding to a newly selected FIXTURE/DMX address until it has been stored by pressing and holding the store (round icon) button.
- Page 20 We have seen lamps that look OK, but the feed wire is broken inside near the base. Check socket contacts and wiring. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 21 Check that the lamp lock door is properly closed. Check that control system voltage at the fixture is 120 VAC, long cable runs can significantly reduce voltage, thus decreasing fan performance. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
