Summary of Contents for fitness gear STE-00300

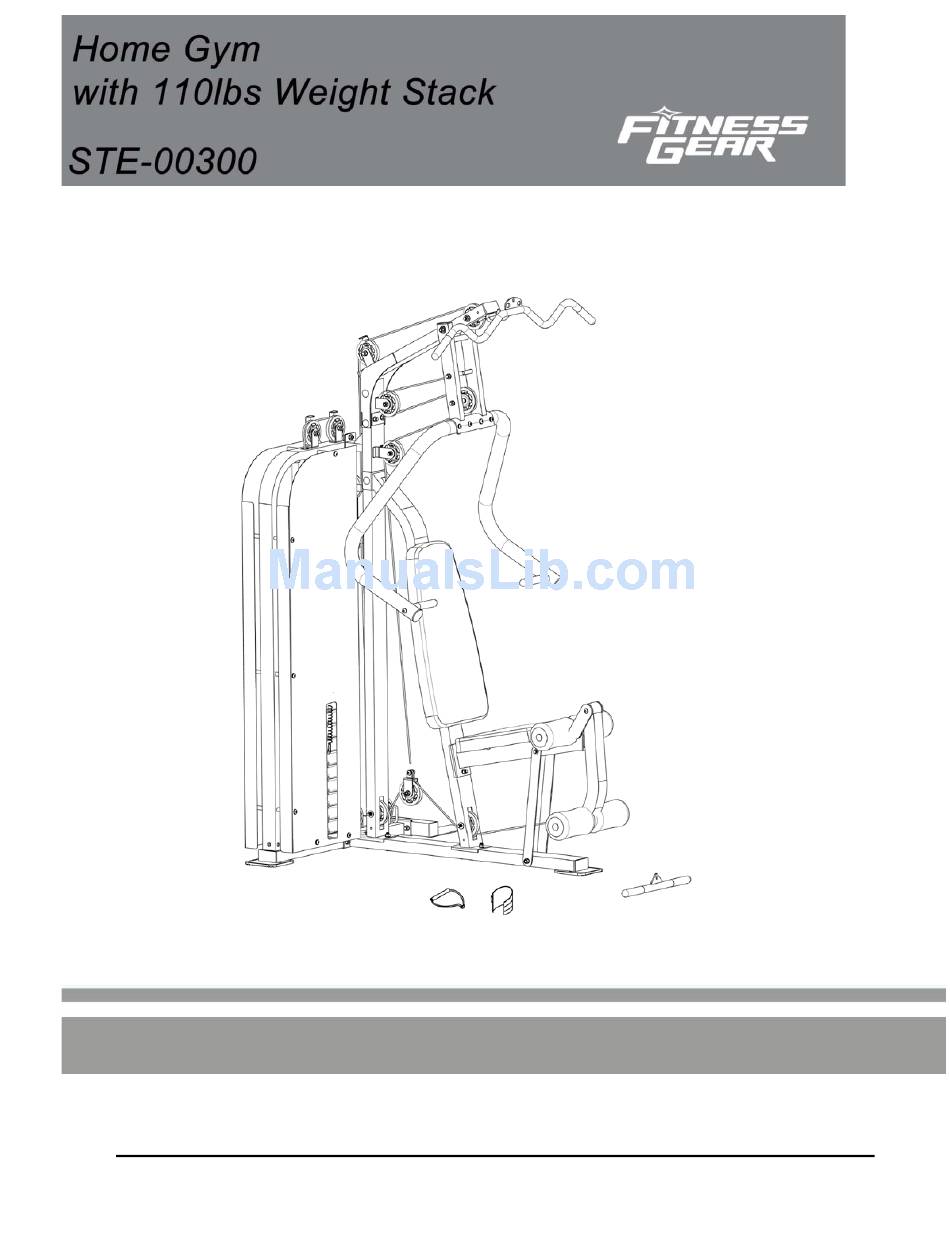

- Page 1 OWNER’S MANUAL Retain This Manual For Reference Dick’s Sporting Goods 345 Court Street Coraopolis, PA 15108...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN..................……….. 1 IMPORTANT SAFETY NOTICES..............……….. 2 WARNING LABEL PLACEMENT………………………………………………………….. 3 IMPORTANT ASSEMBLY INFORMATION..…............4 OPERATING NOTE………………………………………………………………………… 5 CARE AND MAINTENANCE……………………………………………………………… 6 EXPLODED DIAGRAM……………………………………………………………………… 7 PARTS LIST………………………………………………………………………………….. 8 WARRANTY....................………….. 10 ORDERING PARTS..................………… 10 BEFORE YOU BEGIN Thank you for selecting the STE00300 Home Gym. -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE PRECAUTIONS Certain precautions apply when you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the machine. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The warning labels shown here have been placed on Base Frame and Upper Frame. If the labels are missing or illegible, please call customer service at 1-866-677-4771 for replacements. Apply the labels in the location shown. -
Page 5: Important Assembly Information
IMPORTANT ASSEMBLY INFORMATION Tools required for assembling the bench: Two adjustable Wrenches and Allen wrenches. NOTE: It is strongly recommended that this equipment be assembled by two or more people to avoid possible injury. Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. -
Page 6: Operating Note
OPERATION NOTES Weight Plate Selection 1. Use the Weight Selector Pin to select the number of weight plates to exercise. 2. Do not insert Weight Selector Pin while the weight stack or top plate is in elevated position. 3. Be certain the weight Selector Pin is completely inserted. 4. -
Page 7: Care And Maintenance
CARE AND MAINTENANCE 1. Lubricate moving parts with WD-40 or light oil periodically. 2. Inspect and tighten all parts before using the equipment. 3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents. 4. -
Page 8: Exploded Diagram
EXPLODED DIAGRAM... -
Page 9: Parts List
STE00300 PARTS LIST PART DESCRIPTION SIZE QUANTITY Base Frame Vertical Support Frame Vertical Frame Rear Base Frame Guide Rod Frame Upper Frame Foot Support Bench Press Base Seat Support Guide Rod Lat Bar Bench Press Handle Leg Developer Selector Rod Shiver Bar Single Floating Pulley Bracket Left Press Arm... - Page 10 Ø 2” x ⅞” Leg developer Bushing Ø 1” x 1 ⅛” Pulley Bushing Cone-shaped End Cap Ø 1” Rubber Bumper Ø 1” x 5 ⅜” Handle Grip Pulley Guide Rod Rubber Bumper Ø 1” x ⅜” Pulley Bushing Single Handle Ankle Strap 115 ⅜”...
-
Page 11: Warranty
LIMITED WARRANTY Dick's Sporting Goods, Inc. (the "Company") warrants this product to be free from defects in workmanship and materials as follows: Who is Covered This Limited Warranty covers only the person who first bought the product. This Limited Warranty is not transferable to anyone else.
