Page 2: Before You Begin
Welcome to the Glyph Experience! Before you Begin Read the user manual including the health and safety sections thoroughly • Familiarize yourself with the Glyph layout. Find the right ergonomic and optical fit to suit your • experience Ensure that your Glyph is fully charged. • For further support including How-to videos, consult avegant.com/set-up-support...
Page 3: Table Of Contents
Table of Contents Before you Begin ............................ 2 Orientation .............................. 4 Controls .............................. 4 Power on, Indicators and Bluetooth ...................... 5 Charging Your Glyph ............................. 6 Setting Up Your Glyph .......................... 7 Ergonomic, Nosepad and Optical Adjustments .................. 7 Tips for Long-Term Comfort in Video Mode .................. 1 1 Connecting to Media .......................... 1 2 Troubleshooting ............................ 1 3 Health and Safety Guide .......................... 1 5 Warranty Information .......................... 2 0...
Page 4: Orientation

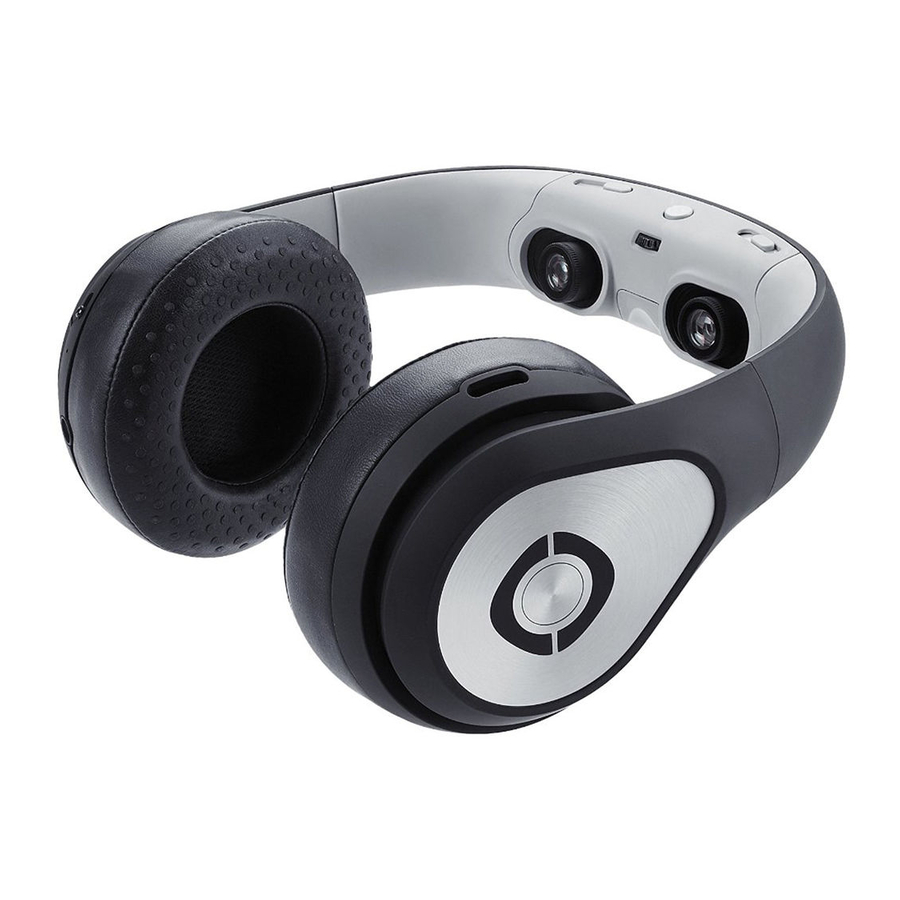

Orientation The Glyph can be worn both as a pair of over-ear headphones and as a personal, premium imaging device. Figure 1: The Glyph in Video Mode (left) and Audio Mode (right) Controls Controls for the device are indicated by dimples on each ear can. In video mode, the right side of the Glyph controls volume (up and down buttons respectively), brightness (back) and a test alignment screen (front). Figure 2: Glyph Button Layout Note: 360 is currently a developer feature and not enabled on consumer versions. Developers may may send inquiries regarding this feature to: contact@avegant.com In audio mode through the 3.5mm jack, volume level can be controlled through the source device, or with an optional audio cable with in-line volume control.
Page 5: Power On, Indicators And Bluetooth
Power on, Indicators and Bluetooth Video mode in the Glyph can be activated by switching the power button to the center position. To run the Glyph passively in audio mode, this button must be in the off position. Figure 3: Power Switch Configurations To check the battery level, hold the power switch temporarily to the top position and release it into the center position. The LED will indicate the level of charge. To turn on Bluetooth, hold the power switch in the top position for five seconds. The LED will flash blue to acknowledge that Bluetooth is on. The LED indicator is located on the left ear can of the Glyph between the power button and the audio jack. Use it to check the battery level, Bluetooth status and general operating conditions. Figure 4: Power Switch and Indicator Layout General Operation LED Indications LED Color Status Rainbow Starting Up Blue Blinking Bluetooth On Red Firmware Fault Table 1: General Operation LED Indications...
Page 6: Charging Your Glyph
Battery Check LED Indications LED Color Power Remaining Green > 80% Yellow 80% - 20% Red < 20% Table 2: Battery Check LED Indications Note that the default home screen will appear on the Glyph if no source content is streaming into the device. Turn off your Glyph after use to conserve battery life. Charging Your Glyph The Glyph will come with the battery partially charged but you should charge your Glyph before first use. The battery level and charging LED indicators will be the most accurate after the battery is completely discharged and recharged one time. To charge the Glyph plug the included black microUSB cable into the microUSB port on the Glyph and the other end to a USB wall charger or PC. Note that some PCs will take longer to charge the Glyph than a wall charger, and some PCs will not charge the Glyph if the PC is running on its own battery power. It should take about 2 hours to fully charge the Glyph once its battery is completely discharged. Figure 5: MicroUSB charging port location...
Page 7: Setting Up Your Glyph
Charging LED Indications LED Color/ State Power Remaining Slow Flashing Green > 80% Slow Flashing Yellow 80% - 20% Slow Flashing Red < 20% Table 3: Charging LED Indications Setting Up Your Glyph Ergonomic, Nosepad and Optical Adjustments In general, it is easiest to adjust the ergonomic aspects of the Glyph first before making optical adjustments. Once a good fit and optical setup are established, fine tuning can be done with the static test image (see Image Tuning). Fine tune the ergonomic fit of the Glyph in video mode by putting on the device and iteratively adjusting the nosepad height and headband telescoping until a comfortable medium is found. Figure 6: Ergonomic Adjustments The Glyph comes pre-installed with a neutral nosepad that works in audio mode. Four other nose pads for video mode are also included. Each user will have a different preference for nosepad architecture and precise fit. Take time to try the Glyph on with all of the nosepads to find the one that fits you best. The preinstalled nosepad works for some people as well. To change between them, simply pull the installed nosepad straight down to decouple the magnetic lock. It may help to lower the nosepad slightly so that it extends out of the headband. The nosepad should rest high on the bridge of the nose and the lenses should be very close to your eyes.
Page 8 Figure 7: Nosepad Removal Figure 8: Nosepads Once comfortably on your head, optical adjustments are made on the headband. Turn on the Glyph and press the Test Screen button on the right side to bring up the Glyph test screen.
Page 9 In audio mode, the optics can be collapsed by pushing each lens into the body of the headband. Release the optics by pressing the center, circular button. Note that it is necessary to install the neutral nosepad and lens cover before using the Glyph in audio mode. Figure 9: Optical Adjustment Points Adjust the position of each optics in video mode by pushing the oval sliders on the headband above each assembly back and forth until you see a single screen with the logo centered in the middle. Then focus by rotating each lens clockwise or counterclockwise. It may help to close one eye at time to adjust each lens. Start with the left eye and slide until you can see the left corners of the screen.
Page 10 Next, slide the right eyepiece until you can see the right corners of the screen. With both eyes open you should see a single screen with the Avegant logo centered. Now, turn the front of each of the lenses to focus the image.
Page 11: Tips For Long-Term Comfort In Video Mode
Tips for Long-Term Comfort in Video Mode In video mode, the Glyph should fit both comfortably and squarely while looking straight forward. Adjust the nosepad height and the Glyph’s position on your ears until an ideal medium is reached. Like a pair of new glasses, the Glyph may initially be uncomfortable but with time the discomfort will fade. The included head strap may also be used for long-term comfort. To use, take the head strap out of the bag and make sure it is facing the right direction. In the correct position, the strap should swivel backward toward the back of the head. Snap the head strap into the Glyph by pushing the ends firmly into the slot on top of each ear can until it clicks. Undo the head strap length adjustment, swivel to the most comfortable position and then pull and secure the strap adjustment. Figure 10: Using the head strap Other tips for long term comfort: Ensure that you are sitting straight up or leaning back in a relaxed position during long term use. • When properly calibrated, ensure that you are looking straight forward and can see the image • sharply from corner to corner. Do not use the Glyph if you are tired, intoxicated, dizzy, nauseous or in a public place. See the • Health and Safety section for further reading.
Page 12: Connecting To Media
Connecting to Media To connect to a device to watch video, use the included blue HDMI cable by plugging the small, microHDMI end into the Glyph and the other HDMI end into your playback device. Devices that support HDMI output signals of 720p can be used. Most devices that are designed to be connected to HDTVs and monitors typically will automatically switch output signals from 1080p to 720p depending upon what they are connected to. Please consult your device’s user manual to be sure. Most mobile devices other than PCs will require an adapter. For most of the current iOS devices, an Apple Lightning to HDMI adapter is necessary for connection. For Android smartphones that support HDMI out, an MHL to HDMI or SlimPort to HDMI adapter will be required. Please consult your device’s user manual to be sure, or check the Glyph compatibility chart at avegant.com/set-up-support. Turn on the Glyph and start playing your content. You might find it necessary to fine-tune your fit and optical adjustments during the first few minutes of use. To connect the Glyph in audio mode to use as headphones, turn off the Glyph and plug a 3.5mm audio cable into the 3.5mm audio jack between the power switch and the HDMI port. Make sure to retract the lenses and use the tiny nosepad and lens cover. Volume can be controlled on the playback device or with an optional audio cable with in-line volume controls. Since the Glyph is off in this mode, you can use the Glyph as headphones without having to worry about battery power.
Page 13: Troubleshooting
Troubleshooting Problem Solution Glyph is not comfortable on my nose, what should I do? The Glyph includes a number of different nosepieces in the accessory box. You should try them all and find one that fits you the best. The nosepieces have a magnet catch and can be removed by pushing downward in the opposite direction from the nosepiece adjustment knob. If the device freezes up, how do I reset the HW? Turn the device off then on by switching the power switch to the bottom position and flipping it back up to middle position. I am plugged into an HDMI source but all I see is the Glyph Turn off the Glyph and unplug the HDMI cable. Check your screen, what should I do? HDMI source to make sure it’s output is set to 720p. Most HDMI devices should automatically sense that Glyph is 720p and set itself accordingly, but in case it does not, you may want to check the display settings or turn the device off and then on again. Then plug the HDMI cable back in, turn the Glyph’s power on and check your screen. Part of the screen seems to be cut off, or the corners of the The picture may not be converged properly. Make sure the screen seem to be cut off: What should I do? device is fitted properly to your head. The nose bridge should fit and secure on the top bridge of your nose and the lenses should be very close to your eye so that your eyelashes almost touch. Turn on the test screen by pressing the test screen button on the front side of the right ear can, then using the IPD slider adjustments, converge the screen image so that you see one rectangular screen with square edges. Finally, closing one eye at a time turn the diopter focusing adjustments to see a sharp image. I can see the video, but there is no sound; What should I Check your volume control by pressing the top button on the do? left ear can a few times. If you still do not hear sound, turn the Glyph off, unplug the HDMI cable from Glyph, turn the Glyph on, then plug the HDMI cable back in.
Page 14 I cannot insert a 3.5mm audio cable into the 3.5mm The housing around the plug may be too large to fit into the headphone jack on the device. What is wrong? recessed audio jack. You should find a 3.5mm audio cable which has a slim, cylindrical housing around one of the plugs. I would like to use Glyph as a pair of audio-only First remove the the nosepiece by gently pushing it headphones. What do I do to convert it? downward off of the optical unit. Store the nosepiece in a safe place where it will not get crushed or lost. With your fingernail or edge of your finger, gently push in the lenses until they click into the optical unit. Attach the lens cover to the inside of the headband covering the lenses, extend the headband to accommodate your head and slip the device on your head with the headband facing upward. Plug your audio cable into the recessed 3.5mm audio input on Glyph and make sure the Glyph power is OFF. Plug the other end of the audio jack into your music playback device and adjust volume on that device. NOTE: The recessed audio input is designed for use with audio cables having a slim, cylindrical housing; Use of cables with other housings may prevent the jack from being fully inserted into the receptacle. When using my Glyph as a set of audio-only headphones, In audio-only headphone mode, Glyph is off so volume must the volume buttons on Glyph do not work. be controlled from the playback device or with an optional audio cable with in-line volume controls. My Glyph was accidentally splashed with water; What Although Glyph is not guaranteed to be splash proof, you should I do? may be able to keep it working by wiping the unit off with a towel and leaving it in a warm, dry area for several hours. I think my Glyph’s battery is dead; How do I check battery Push the power button to the upper (top) position for 2 level? seconds and the LED will show Red (20% or lower battery left), Yellow (20%-80% battery left) or Green (80% or more battery left). My Glyph beeps and shows a red screen; What does it It means your battery is running low. Glyph will shutdown...
Page 15: Health And Safety Guide
Health and Safety Guide This health and safety guide contains important safety and handling information for your Glyph Founders Edition. Please read all safety information below before using your Glyph. Read and follow all setup and operating instructions to become familiar with the features of the product. For more information and additional support, please visit the main www.avegant.com support page. Failure to follow safety instructions preceded by the word “Warning” could result in serious physical injury. Failure to follow safety instructions preceded by “Caution” or “Notice” could result in minor to moderate injury or damage to equipment or other property. General Health and Safety Information Extended use of your Glyph Founders Edition may result in losing track of your immediate surroundings or becoming • used to the non-standard physical “rules” of a virtual environment, causing discomfort, disorientation or loss of balance when you take it off. To avoid risk of injury from falling or tripping: Be sure to begin your enjoyment of the Glyph in small stages, building up to longer continued use. • Use only while sitting or while standing in a clear area free of obstacles • Do not use while intoxicated • The Glyph Founders Edition is NOT a toy and should not be used by children 13 years of age or younger. Young • children are at an increased health and safety risk. Adults should monitor children (age 14 and older) who are using or have used the Glyph for any of the symptoms described below and should limit the time children spend using the Glyph and ensure that they take breaks during use. Warning. Some people (about 1 in 4,000) may have severe dizziness, seizures, epileptic seizures or blackouts triggered • by light flashes or patterns. This may occur while they are watching TV, playing video games or experiencing a personal display technology, even if they have never had a seizure or blackout before or have no history of seizures or epilepsy. Such seizures are more common in children and young people under the age of 20. Anyone who has had a seizure, loss of awareness or other symptom linked to an epileptic condition should consult with a doctor before using the Glyph Founder’s Edition. Prop 65 Warning. This product contains chemicals known to the State of California to cause cancer and birth defects • or other reproductive harm. (California law requires this warning to be given to customers in the State of California.) Specific Warnings and Precautions “Video mode” shall herein refer to the Glyph Founder’s Edition as operating with the headband over the user’s eyes. “Audio mode” shall herein refer to the Glyph Founder’s Edition as operating with the headband over the crown of the user’s head with no obstruction to the user’s vision. Warning. Use only in a safe environment. In Video mode, the Glyph Founder’s Edition produces a personal display •...
Page 16 Warning. Stop using the Glyph Founder’s Edition if it seems to be hot. Prolonged contact with an overheated device • can cause burns Warning. The Glyph Founder’s Edition can emit radio waves that can affect the operation of nearby electronics, • including cardiac pacemakers. If you have a pacemaker or other implanted medical device, do not use the Glyph Founder’s Edition without first consulting your doctor or the manufacturer of your medical device. Make sure the Glyph Founder’s Edition is level and secured comfortably on your head and that you see a single, clear • image. Ensure that the optics are properly and squarely aligned in front of the user’s eyes before use and that the image is in • focus. Refer to the quick start guide for proper fitting. Caution. Ensure that the cables utilized while operating the Glyph Founder’s Edition are carefully routed to and from • the source content such that they do not become tangled and cause injury to the user or damage to the device. Caution. Do not use the Glyph Founder’s Edition when you are tired, need sleep, are under the influence of alcohol or • drugs, are hung-over, have digestive problems, are under emotional stress or anxiety or when suffering from cold, flu, headaches, migraines or earaches, as this can increase your susceptibility to adverse symptoms. Caution. If you are using the Glyph Founder’s Edition as a passenger in a motor vehicle and feel dizziness or nausea, • discontinue use. Caution. Take at least a 10 to 15 minute break every 30 minutes, even if you don’t think you need it. Each person is • different, so take more frequent and longer breaks if you feel discomfort. You should decide what works best. Ease into the use of the Glyph Founder’s Edition to allow your body to adjust; use for only a few minutes at a time at • first and only increase the amount of time using the Glyph Founder’s Edition gradually as you grow accustomed to a personal display. Looking around the image when first entering a personal display environment can help you adjust to any small differences between your real world movements and the resulting virtual experience. The Glyph Founder’s Edition can be affected by magnetic interference created by items, such as computers, TVs or • electric cables. Avoid using the Glyph Founder’s Edition in areas affected by magnetic interference. Extended Use Precautions Warning. Immediately discontinue use if anyone using the Glyph Founder’s Edition experiences any of the following • symptoms: seizures; loss of awareness; eye strain; eye or muscle twitching; involuntary movements; altered, blurred or double vision or other visual abnormalities; dizziness; disorientation; impaired balance; impaired hand-eye coordination; excessive sweating; increased salivation; nausea; lightheadedness; discomfort or pain in the head or eyes; drowsiness; fatigue; or any symptoms similar to motion sickness.
Page 17 Multicopter Use Warning. While the Glyph Founder’s Edition is designed and intended for use as a way to experience the aerial views • taken by a camera mounted to a multicopter (a/k/a “drone,” “Unmanned Aerial Vehicle” or “UAV”), it is not meant for use by, nor should it be used by, a single user who is simultaneously operating the multicopter. Doing so is both unsafe and a violation of FAA regulations. Please read and become familiar with all instructions and safety guidelines for your multicopter before using. Using your Glyph Founder’s Edition with a multicopter in any way that is unsafe, illegal or in violation of state, federal, or local laws or regulations is prohibited. Battery and Power Adapter Information and Care Warning. This product contains a lithium ion polymer battery. To reduce the risk of fire, electric shock or burn related • injuries, the batteries must be handled properly. Do not attempt to remove the battery, as you may damage the devise. • Charge your device with any USB-compatible charger. Charger plug type may vary. • The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the operating • times are noticeably shorter than normal, contact support to arrange replacement or repair. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to • temperature above 60°C (140°F) or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Charging temperature range is regulated between 0°/32°F and 45°C/113°F. Do not charge the battery out of • recommended temperature range. Charging out of recommended range might cause heat generation or serious damage to the battery, as well as causing the deterioration of its characteristics and cycle life. Always unplug the charger from the wall socket after the Glyph Founder’s Edition is fully charged to save unnecessary • power consumption of the charger. Do not damage the power cord by bending, twisting or heating. Do not use the plug if it is loose as it may cause • electric shock or fire. Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause electric • shock or fire. Unplug the power cord and power down your Glyph Founder’s Edition prior to cleaning, and clean only with a dry • cloth. When using the power plug, ensure that it’s firmly connected. If not, it may cause excessive heat or fire. If you put your Glyph Founder’s Edition in a pocket or bag without covering the receptacle of the device, metallic articles (such as a coin, paperclip or pen) may short-circuit the device. Always cover the receptacle when not in use.
Page 18 Care and Maintenance The Glyph Founder’s Edition is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. Warning. If the mobile device does get wet, do not accelerate drying with the use of an oven, microwave or dryer, • because this may damage the device and could cause a fire or explosion. Do not use the mobile device in very wet conditions. Doing so may cause an electric shock to you or damage to the mobile device. Do not expose the straps to very wet conditions. Wet straps can cause skin irritations. Dry the straps first. If you experience skin irritation when wearing the Glyph Founder’s Edition, stop wearing the device and consult a physician. Notice. Do not leave the Glyph Founder’s Edition in direct sunlight. Exposure to direct sunlight can damage the Glyph • Founder’s Edition. Keep your Glyph Founder’s Edition away from exposure to liquids of any kind. Precipitation, humidity and liquids • contain minerals that will corrode electronic circuits. Avoid temperatures below -10°C / 14°F or above 40°C / 104°F. • Do not expose your mobile device to dust, dirt or sand. • Do not use harsh chemicals, cleaning solvents or strong detergents to clean the Glyph Founder’s Edition. • Although your Glyph Founder’s Edition is quite sturdy, it is a complex piece of equipment and can be broken. Avoid • dropping, hitting, bending or sitting on it. Rough handling can break internal circuit boards. Do not paint the Glyph Founder’s Edition. Paint can clog the device’s moving parts or ventilation openings and • prevent proper operation. Ensure that the head strap is kept clean. • Any changes or modifications to your Glyph Founder’s Edition not expressly approved by Avegant could void your warranty for this equipment and void your authority to operate this equipment. Only use approved cables and chargers. The use of any unauthorized accessories may be dangerous and void the Glyph Founder’s Edition warranty if said accessories cause damage or a defect to the device. The Glyph Founder’s Edition and any connected device should only be used with firmware versions that have been approved for use by the device manufacturer. Regulatory Statements FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The inbox shielded USB and HDMI cable shall be used to comply with FCC Class B requirements. These limits are...
Page 19 IC: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) This device is in compliance with the essential requirements and other relevant provisions of directive 1995/5/EC The symbol above means that according to local laws and regulations your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product. In the event the device is not working normally due to electrostatic shock, please reset the device by turning off the power and turning it back on. Intellectual Property All intellectual Property, as defined below, owned by or which is otherwise the property of Avegant or its respective suppliers relating to the Glyph Founder’s Edition, including but not limited to, accessories, parts or software relating thereto (the “device”), is proprietary to Avegant and protected under federal laws, state laws and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable,) patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with Avegant and its suppliers...
Page 20: Warranty Information
Warranty Information Glyph Founder’s Edition Your Products are warranted against defects in materials and workmanship for a period of one (1) year from the date of original retail purchase (if purchased at a retailer) or one (1) year from the date of shipment (if purchased on the Service) (“Warranty Period”) when used in accordance with the applicable usage documentation. If a defect arises during the Warranty Period, Avegant will, at its option, (1) repair the affected Product at no charge using new parts or parts that are equivalent to new in performance and reliability, (2) exchange the affected Product with a functionally equivalent Product that is new or formed from new and/or previously used parts that are equivalent to new in performance and reliability or, with your consent, a Product that is at least functionally equivalent to the Product it replaces; or (3) refund the original purchase price for the affected Product. This warranty excludes normal depletion of consumable parts unless failure has occurred due to a defect in materials or workmanship, and damage resulting from abuse, accident, modifications, unauthorized repairs, or other causes that are not defects in materials and workmanship. No other person is authorized to modify this limited warranty. Some states and countries do not allow limitations on how long such warranties, conditions, and/or implied terms may last, so the limitation described above may not apply to you. This warranty is offered in addition to rights and remedies conveyed by consumer protection laws and regulations that cannot be statutorily waived, and does not affect your applicable statutory rights. Follow these steps to obtain a replacement for a Product purchased from our Service in accordance with this warranty policy: Contact our Support team to initiate the return process and obtain a Return Material Authorization (RMA) number • and a pre-paid shipping label. Pack the Product in its original packaging and mail it in a sturdy box to ensure the product will be returned without • damage. Be sure to include the RMA number in the packaging. Once the Product is received and verified, you will receive a confirmation email with the details of your replacement. •...
