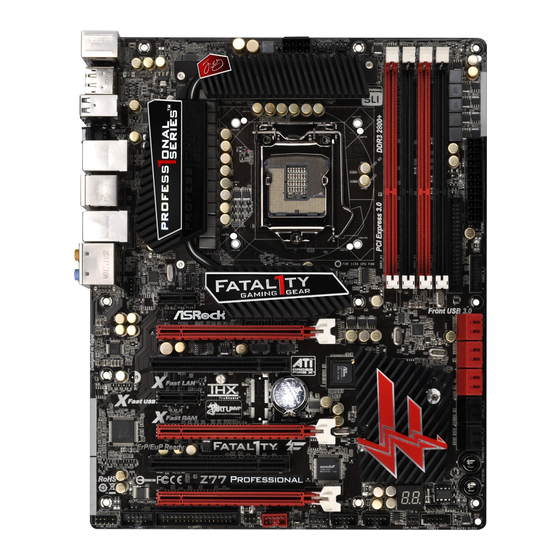

Fatal1ty Z77 Professional-M Series Motherboard

Advertisement

Table of Contents
loading

Summary of Contents for ASROCK Fatal1ty Z77 Professional-M

  • Page 1 Lifetime Achievement Award in the four year history of the eSports-Award for “showing exceptional sportsmanship, taking part in shaping eSports into what it is today and for being the prime representative of this young sport. He has become the figurehead for eSports worldwide”. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 2 The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used under license. © 2012 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 3: Copyright Notice

    The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trade- marks of Fatal1ty, Inc., and are used under license. © 2012 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners. Fatal1ty website: www.fatal1ty.com Published June 2013 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 4: Motherboard Layout

    PCI Express 3.0 x16 Slot (PCIE1, Red) SPI Flash Memory (64Mb) SLI / XFIRE Power Connector Reset Switch (RSTBTN) Power Fan Connector (PWR_FAN1) Power Switch (PWRBTN) Chassis Fan Connector (CHA_FAN2) Intel Z77 Chipset Chassis Speaker Header (SPEAKER1, Black) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 5 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in (No. 10) (No. 7) (No. 6) (No. 9) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 6 “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. *** eSATA3 connector supports SATA Gen3 in cable 1M. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 7: Package Contents

    In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.
  • Page 8: Specifications

    Insider , Intel HD Graphics 2500/4000, ® Intel Advanced Vector Extensions (AVX) ® - Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU. ® Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 9 - 4 x Ready-to-Use USB 3.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch with LED - HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (see CAUTION 8) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 10 - 64Mb AMI UEFI Legal BIOS with GUI support - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 11 - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 22) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.
  • Page 12 ® Vista / XP. For Windows OS with 64-bit CPU, there is no such limita- tion. You can use ASRock XFast RAM to utilize the memory that Win- ® dows cannot use. Only PCIE1 and PCIE3 slots support Gen 3 speed. To run the PCI Ex- press in Gen 3 speed, please install an Ivy Bridge CPU.
  • Page 13 10. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ® without entering operating systems first like MS-DOS or Windows . With this utility, you can press the <F6> key during the POST or the <F2>...
  • Page 14 15. ASRock XFast RAM is a new function that is included into F-Stream. It ® fully utilizes the memory space that cannot be used under Windows 32-bit CPU. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster.
  • Page 15: Screw Holes

    Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 16: Cpu Installation

    Plate Load Lever lation process easier, ASRock has added Cover a new protection cover on top of the load plate to replace the former PnP caps that were under the load plate. For the installa-...
  • Page 17 The protection cover will automatically come off by itself. Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 18: Installation Of Cpu Fan And Heatsink

    Please be noticed that this motherboard supports Combo Cooler Option (C.C.O.), which provides flexible options to adopt three dif- ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. The white throughholes are for Socket LGA 1155/1156 CPU fan. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 19: Installation Of Memory Modules (Dimm)

    It is not recommended to install them on this motherboard. For optimal compatibility and stability while overclocking memory frequency, it is recommended to install one memory module on DDR3_B2 slot or two memory modules on DDR3_A2 and DDR3_ B2 slots. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 20: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 21: Expansion Slots (Pci Express Slots)

    PCI Express graphics cards to support 3-Way CrossFireX . And for installing ASRock Game Blaster. 1. In single VGA card mode, it is recommended to install a PCI Express x16 graphics card on PCIE1 slot.
  • Page 22: Sli Tm And Quad Sli

    PCIE1 slot and the other graphics card to PCIE3 slot. Make sure that the cards are properly seated on the slots. Step2. If required, connect the auxiliary power source to the PCI Express graphics cards. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 23 Step3. Align and insert ASRock SLI_Bridge Card to the goldfingers on each graphics card. Make sure ASRock SLI_Bridge Card is firmly in place. ASRock SLI_Bridge Card Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of the graphics card that is inserted to PCIE1 slot.
  • Page 24: Driver Installation And Setup

    Set PhysX GPU acceleration item, please select Enabled. In Select an SLI configuration item, please select Enable SLI. And click Apply. C. Reboot your system. D. You can freely enjoy the benefit of SLI feature. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 25 G. You can freely enjoy the benefit of SLI or Quad SLI feature. ® * SLI appearing here is a registered trademark of NVIDIA Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 26: Installing Two Crossfirex

    AMD graphics card manuals for detailed installation guide. Step 1. Insert one Radeon graphics card into PCIE1 slot and the other Radeon graphics card to PCIE3 slot. Make sure that the cards are properly seated on the slots. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 27 Connect the DVI monitor cable to the DVI connector on the Radeon graphics card on PCIE1 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 28: Installing Three Crossfirex

    Bridge to connect Radeon graphics cards on PCIE3 and PCIE4 slots. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 29 Connect the DVI monitor cable to the DVI connector on the Radeon graph- ics card on PCIE1 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 30 ”, and then check the item “Enable CrossFireX ”. Select “2 GPUs” and click “Apply” (if you install two Radeon graphics cards). Select “3 GPUs” and click “OK” (if you install three Radeon graphics cards). Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 31 Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe. * For further information of ATI CrossFireX technology, please check AMD website for updates and details. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 32: Dual Monitor And Surround Display Features

    If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer. D-Sub, DVI-D, HDMI and DisplayPort monitors cannot be enabled at the same time. You can only choose two of them. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 33 F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the display icon identified by the numbers three to eight. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 34 PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 35 The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system. * ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to ASRock website for the motherboard support list: http://www.asrock.com...
  • Page 36: Jumpers Setup

    Please be noted that the password, date, time, user default profile, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed. The Clear CMOS Switch has the same function as the Clear CMOS jumper. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 37: Onboard Headers And Connectors

    Besides two default USB 2.0 USB_PWR ports on the I/O panel, there are (9-pin USB_2_3) three USB 2.0 headers on this DUMMY (see p.4, No. 23) motherboard. Each USB 2.0 header can support two USB 2.0 ports. USB_PWR Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 38 2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 39 LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 40 Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation (3-pin CPU_FAN2) (see p.4, No. 4) ATX Power Connector Please connect an ATX power supply to this connector. (24-pin ATXPWR1) (see p.4, No. 7) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 41 SPDIF audio output to HDMI (2-pin HDMI_SPDIF1) SPDIFOUT VGA card, allows the system to (see p.4, No. 27) connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 42: Smart Switches

    (RSTBTN) Reset the system. (see p.4 No. 17) Clear CMOS Switch Clear CMOS Switch is a smart switch, allowing users to quickly (CLRCBTN) clear the CMOS values. (see p.5 No. 15) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 43 CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode (SMM) initialization Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 44 Reserved for future AMI progress codes 0xF8 Recovery PPI is not available 0xF9 Recovery capsule is not found 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes 0x60 DXE Core is started 0x61 NVRAM initialization Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 45 USB Detect 0x9D USB Enable 0x9E – 0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 46 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 47: Installing Windows

    B. Set the option “SATA Mode Selection” to [IDE] for SATA2_2 to SATA2_5 and SATA3_0 and SATA3_1 ports. Set the option “ASMedia SATA3 Mode” to [IDE] for SATA3_A1 and SATA2_A2 ports. ® STEP 2: Install Windows XP / XP 64-bit OS on your system. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 48 SATA3_0 and SATA3_1 ports. Set the option “ASMedia SATA3 Mode” to [AHCI] for SATA3_A1 and SATA2_A2 ports. ® STEP 2: Install Windows 7 / 7 64-bit / Vista / Vista 64-bit OS on your system. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 49: Bios Information

    It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 50 1. Einführung Wir danken Ihnen für den Kauf des ASRock Fatal1ty Z77 Professional-M Series Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leis- tung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit.
  • Page 51: Spezifikationen

    ® - Unterstützt hochauflösende integrierte Intel -Grafiklösungen: ® ® ® Intel Quick-Sync-Video, Intel InTru 3D, Intel Clear- ® ® Video-Technik (HD), Intel Insider , Intel HD Graphics ® 2500/4000, Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 52 - 1 x HDMI port - 1 x DisplayPort - 1 x optischer SPDIF-Ausgang - 1 x Standard-USB 2.0-Anschlüsse - 1 x Fatal1ty Mausanschluss (USB 2.0) - 1 x eSATA3-Anschluss - 4 x Standard-USB 3.0-Anschlüsse Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 53 USB 2.0-Anschlüsse) - 1 x USB 3.0-Anschlüsse (Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse) - 1 x Dr. Debug (Debug-LED mit 7 Segmenten) Schnellschalter - 1 x CMOS löschen-Schalter mit LED - 1 x Netzschalter mit LED Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 54 Einzigartige - F-Stream (siehe VORSICHT 9) Eigenschaft - ASRock Sofortstart - ASRock Instant Flash (siehe VORSICHT 10) - ASRock APP Charger (siehe VORSICHT 11) - ASRock SmartView (siehe VORSICHT 12) - ASRock XFast USB (siehe VORSICHT 13) - ASRock XFast LAN (siehe VORSICHT 14)
  • Page 55 Windows OS mit 64-Bit-CPU besteht diese Einschränkung nicht. Sie ® können ASRock XFast RAM zur Nutzung des Speichers, den Windows nicht verwenden kann, einsetzen. Unterstützt nur der PCIE1 und PCIE3-Steckplatz Geschwindigkeiten der 3ten Generation. Damit Sie PCI Express mit der Geschwindigkeit der 3ten Generation nutzen können, müssen Sie einen Ivy Bridge-Prozessor...
  • Page 56 APP Charger. Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer- auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP Charger ermöglicht Ihnen die schnelle Aufladung mehrerer Apple-Geräte gleichzeitig;...
  • Page 57 Youtube-Videos in HD anzeigen und gleichzeitig Dateien herunterladen. Echtzeitanalyse Ihrer Daten: Über das Statusfenster können Sie schnell ermitteln, welche Datenströme zur Zeit übertragen werden. 15. ASRock XFast RAM ist eine neue Funktion, die beim F-Stream integriert ist. Sie ermöglicht die vollständige Nutzung des Speicherplatzes, der ®...
  • Page 58 CPU-Kühlertypen, Socket LGA 775, LGA 1155 und LGA 1156. Beachten Sie bitte, dass nicht alle 775 und 1156 CPU-Lüfter verwen- det werden können. ® ® 21. ASRock XFast RAM wird von Microsoft Windows XP / XP 64 Bit nicht ® ®...
  • Page 59: Einstellung Der Jumper

    CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdefiniertes Profil, 1394 GUID und MAC-Adresse nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. Der CMOS löschen-Schalter hat dieselbe Funktion wie der CMOS löschen-Jumper. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 60 SATA3_A2- Anschluss deaktiviert. Serial ATA- (SATA-) SJedes Ende des SATA Datenkabel Datenkabels kann an die SATA / SATA2 / SATA3 Festplatte (Option) oder das SATA2 / SATA3 Verbindungsstück auf dieser Hauptplatine angeschlossen werden. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 61 (siehe S.4 - No. 9) Header an diesem Motherboard. Dieser USB 3.0- Header kann zwei USB 3.0- Ports unterstützen. Infrarot-Modul-Header Dieser Header unterstützt ein optionales, drahtloses Sende- (5-pin IR1) und Empfangs-Infrarotmodul. (siehe S.4 - No. 28) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 62 / Vista 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an. System Panel-Header Dieser Header unterstützt mehrere Funktion der (9-pin PANEL1) Systemvorderseite. (siehe S.4 - No. 15) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 63 Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen. Gehäuselautsprecher-Header Schließen Sie den Gehäuselautsprecher an (4-pin SPEAKER1) diesen Header an. (siehe S.4 - No. 20) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 64 Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses Motherboards anschließen möchten, verbinden Sie ihn bitte mit den Pins 1 – 3. Pins 1–3 anschließen Lüfter mit dreipoligem Anschluss installieren (3-pin CPU_FAN2) (sieche S.4 - No. 4) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 65 Installation der 4-Pin ATX 12V Energieversorgung SLI/XFIRE-Stromanschluss Sie müssen diesen Anschluss nicht zwingend verwenden. (4-pin SLI/XFIRE_POWER1) Wenn allerdings zwei (siehe S.4 - No. 35) Grafikkarten gleichzeitig am SLI/XFIRE_POWER1 Motherboard angeschlossen sind, verbinden Sie diesen Anschluss bitte mit einem Festplatten-Stromversorgungs- stecker. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 66 Audioausgang für eine HDMI- SPDIFOUT (siehe S.4 - No. 27) VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 67 (RSTBTN) Reset Benutzer das System schnell (siehe S.4 - No. 17) zurücksetzen können. CMOS löschen-Schalter Der CMOS löschen-Schalter ist ein Schnellschalter, mit dem (CLRCBTN) Benutzer die CMOS-Werte (siehe S.5 - No. 15) schnell löschen können. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 68 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges- teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 69: Contenu Du Paquet

    Series, une carte mère très fiable produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste confor- mément à l’engagement d’ASRock sur la qualité et la fiabilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à...
  • Page 70: Spécifications

    CrossFireX ® - Prend en charge NVIDIA Quad SLI et SLI ® VGA sur carte * Intel HD Graphics avec visuels intégrés (Built-in Visuals) et les sorties VGA sont uniquement pris en charge par les Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 71 - Prend en charge la norme Energy Efficient Ethernet (Ethernet à efficacité énergétique) 802.3az - Supporte PXE Panneau arrière I/O Panel - 1 x port clavier/souris PS/2 - 1 x port D-Sub - 1 x port DVI-D - 1 x port HDMI Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 72 - 1 x Barrette pour module à infrarouges grand public - 1 x En-tête de port COM - 1 x Connecteur HDMI_SPDIF - 1 x Connecteur de LED d’alimentation - Connecteur pour ventilateur de CPU/Châssis/pouvoir Ventilateur - br. 24 connecteur d’alimentation ATX Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 73 Caractéristique - F-Stream (voir ATTENTION 9) unique - ASRock l’Instant Boot - ASRock Instant Flash (voir ATTENTION 10) - Chargeur ASRock APP (voir ATTENTION 11) - ASRock SmartView (voir ATTENTION 12) - ASRock XFast USB (voir ATTENTION 13) - ASRock XFast LAN (voir ATTENTION 14)
  • Page 74 ® Vista / XP. Avec Windows OS avec CPU 64 bits, il n’y a pas ce genre de limitation. Vous pouvez utiliser ASRock XFast RAM pour accéder à la ® mémoire que Windows ne peut pas utiliser. PCIE1 et PCIE3 prend en charge une vitesse pouvant atteindre Gen 3.
  • Page 75 CPU ne sont pas utilisées, sans diminuer les performances de l’ordinateur. 10. O ASRock Instant Flash é um utilitário de flash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar ®...
  • Page 76 USB. Les performances réelles dépendent des propriétés du périphérique. 14. ASRock XFast LAN fournit un accès Internet plus rapide, avec les avan- tages suivants. Priorisation d’application LAN : Vous pouvez configurer votre priorité d’application idéalement et/ou ajouter des nouveaux pro- grammes.
  • Page 77 LGA 1155 et LGA 1156. Veuillez noter que tous les ventilateurs de CPU 775 et 1156 ne peuvent pas être utilisés. ® ® 21. ASRock XFast RAM n’est pas pris en charge par Microsoft Windows ® ® XP / XP 64-bit. Les technologie Intel Smart Connect et ports Intel ®...
  • Page 78 CMOS. Veuillez noter que le mot de passe, la date, l’heure, le profil par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée. Le commutateur Effacer CMOS présente la même fonction que le cavalier Effacer CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 79 Câble de données Toute cote du cable de data Série ATA (SATA) SATA peut etre connecte au disque dur SATA / SATA2 / (en option) SATA3 ou au connecteur SATA2 / SATA3 sur la carte mere. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 80 (IR1 br. 5) et de réception sans fil. (voir p.4 No. 28) Barrette pour module à infrarouges grand public Cette barrette peut être utilisée pour connecter des récepteur. (CIR1 br.4) (voir p.4 No. 26) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 81 RESET (Interrupteur de réinitialisation): Connectez ici le connecteur de réinitialisation sur le panneau avant du châssis. Appuyez sur l’interrupteur de réinitialisation pour redémarrer l’ordinateur s’il se bloque ou s’il n’arrive pas à redémarrer normalement. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 82 FAN_SPEED_CONTROL correspondre le fil noir à la broche de terre. CHA_FAN1 et (CHA_FAN2 br. 3) CHA_FAN2 prennent en charge (voir p.4 No. 37) la fonction contrôle du ventilateur. (PWR_FAN1 br. 3) (voir p.4 No. 36) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 83 ATX 12V, il peut toujours travailler si vous adoptez une approche traditionnelle à 4 broches ATX 12V alimentation. Pour utiliser l’alimentation des 4 broches ATX, branchez votre alimentation avec la broche 1 et la broche 5. 4-Installation d’alimentation à 4 broches ATX 12V Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 84 (voir p.4 No. 27) SPDIFOUT et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 85 à l’utilisateur de Reset réinitialiser rapidement le système. Interrupteur d’effacement de CMOS L’interrupteur d’effacement de (CLRCBTN) CMOS est un interrupteur rapide (voir p.5 No. 15) qui permet à l’utilisateur d’effacer rapidement les valeurs du CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 86: Informations Sur Le Cd De Support

    CD-ROM. Le Menu principal s’affiche automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali- sez dans le CD technique le fichier “ASSETUP.EXE” dans le dossier BIN et double- cliquez dessus pour afficher les menus. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 87: Contenuto Della Confezione

    1. Introduzione Grazie per aver scelto una scheda madre ASRock Fatal1ty Z77 Professional-M Series, una scheda madre affidabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza.
  • Page 88 - Supporta Intel HD Graphics Built-in Visuals: Intel Quick Sync ® ® Video, Intel InTru 3D, Intel Clear Video HD Technology, ® ® ® Intel Insider , Intel HD Graphics 2500/4000, Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 89 - 1 x porta Fatal1ty per Mouse (USB 2.0) - 1 x Connettore eSATA3 - 4 x porte USB 3.0 già integrate - 1 x porte LAN RJ-45 con LED (LED azione/collegamento e LED velocità) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 90 - 1 x interruttore di reset con LED BIOS - 64Mb AMI UEFI Legal BIOS con interfaccia di supporto - Supporta “Plug and Play” - Compatibile con ACPI 1.1 wake up events - Supporta jumperfree Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 91 XP 64 bit (vedi ATTENZIONE 21) Certificazioni - FCC, CE, WHQL - Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP) (vedi ATTENZIONE 22) * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 92 Windows 7 / Vista / XP. Per Windows OS con CPU 64-bit, non c’è tale limitazione. Si può usare ASRock XFast RAM per ® fare uso della memoria che Windows non può utilizzare. Solo lo slot PCIE1 e PCIE3 supporta velocità fino a Gen 3. Per utilizzare PCI Express a velocità...
  • Page 93 13. ASRock XFast USB può accelerare le prestazioni del dispositivo d’archi- viazione USB. Le prestazioni dipendono dalle proprietà del dispositivo. 14. ASRock XFast LAN offre un accesso a Internet più veloce, che compren- de i seguenti benefici. Priorità alle applicazioni LAN: è possibile configu- rare la priorità...
  • Page 94 è possibile riconoscere con facilità quali dati si stanno trasferendo in streaming. 15. ASRock XFast RAM è una nuova funzione inclusa in F-Stream. Utilizza completamente lo spazio che non può essere utilizzato da CPU Win- ®...
  • Page 95 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS. L’interruttore Clear CMOS (Cancella CMOS) ha la stessa funzione del jumper Clear CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 96 SATA al connettore di alimentazione del (Opzionale) Connettere all’ailmentazio- drive. Poi connettete l’estremità Connettere al grup- dei dischi SATA bianca del cavo di alimentazio ne SATA al connettore power di alimentazione dell’alimentatore. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 97 Connettore audio sul È un’interfaccia per il cavo del PRESENCE# pannello frontale pannello audio. Che consente MIC_RET OUT_RET connessione facile e controllo (9-pin HD_AUDIO1) dei dispositivi audio. (vedi p.4 Nr. 30) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 98 Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S1/S3. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S4 oppure spento (S5). Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 99 (3-pin PWR_FAN1) (vedi p.4 Nr. 36) Connettore ventolina CPU Collegare il cavo della ventolina CPU a questo connettore e far (4-pin CPU_FAN1) FAN_SPEED_CONTROL CPU_FAN_SPEED combaciare il filo nero al pin (vedi p.4 Nr. 3) +12V terra. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 100 4-pin ATX 12V. Per usare tale fornitura elettrica 4-pin ATX 12V, prego collegare la presa elettrica al Pin 1 e Pin 5. Installazione elettrica 4-Pin ATX 12V Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 101 SPDIF su scheda (2-pin HDMI_SPDIF1) HDMI VGA, consente al (vedi p.4 Nr. 27) SPDIFOUT sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 102 (vedi p.4 Nr. 17) agli utenti di resettare rapidamente il sistema. Interruttore pulizia CMOS L’interruttore di pulizia CMOS è un interruttore rapido che (CLRCBTN) (vedi p.5 Nr. 15) consente agli utenti di cancellare velocemente i valori CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 103 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul file “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 104: Contenido De La Caja

    1. Introducción Gracias por su compra de ASRock Fatal1ty Z77 Professional-M Series placa madre, una placa de confianza producida bajo el control de calidad estricto y persis- tente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Page 105 - Admite Intel HD Graphics Built-in Visuals: Intel Quick Sync ® ® Video, Intel InTru 3D, Intel Clear Video HD Technology, ® ® ® Intel Insider , Intel HD Graphics 2500/4000 e Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 106 - 1 x puerto de salida óptica SPDIF - 1 x puerto USB 2.0 predeterminados - 1 x puerto de ratón Fatal1ty (USB 2.0) - 1 x Conector eSATA3 - 4 x puertos USB 3.0 predeterminados Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 107 - Cabezal de alimentación SLI/XFIRE - Conector de audio de panel frontal - 3 x Cabezal USB 2.0 (admite 6 puertos USB 2.0 adicionales) - 1 x Cabezal USB 3.0 (admite 2 puertos USB 3.0 adicionales) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 108 Característica - F-Stream (vea ATENCIÓN 9) Única - ASRock Instant Boot - ASRock Instant Flash (vea ATENCIÓN 10) - ASRock APP Charger (vea ATENCIÓN 11) - ASRock SmartView (vea ATENCIÓN 12) - ASRock XFast USB (vea ATENCIÓN 13) - ASRock XFast LAN (vea ATENCIÓN 14) - ASRock XFast RAM (vea ATENCIÓN 15)
  • Page 109 7 / Vista / XP. Para equipos con Windows OS con CPU de 64-bit, no existe dicha limitación. Puede usar ASRock XFast RAM para utilizar la ® memoria que no puede usar Windows Además, solamente la ranura PCIE1 y PCIE3 admite la velocidad Gen 3.
  • Page 110 CPU están inactivos sin que el rendimiento de cálculo disminuya. 10. ASRock Instant Flash es una utilidad de programación del BIOS que se encuentra almacenada en la memoria Flash ROM. Esta sencilla her- ramienta de actualización de BIOS le permitirá...
  • Page 111 Windows 7 / 7 64 bits / Vista / Vista bits y que la versión de su explorador es IE8. Sitio Web de ASRock: http://www.asrock.com/Feature/SmartView/index.asp 13. ASRock XFast USB puede aumentar el rendimiento de los dispositivos de almacenamiento USB.
  • Page 112 LGA 775, LGA 1155 y LGA 1156. Recuerde que no es posible el uso de todos los ventiladores para CPU 775 y 1156. ® ® 21. ASRock XFast RAM no se admite en Microsoft Windows XP / XP 64 ® ®...
  • Page 113 Tenga en cuenta que la contraseña, la fecha, la hora, el perfil predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita. El conmutador Borrar CMOS tiene la misma función que el puente Borrar CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 114 A (Opcional) Connettere all’ailmentazio- continuación, conecte el dei dischi SATA Connettere al grup- extremo blanco del cable de alimentación SATA a la di alimentazione conexión de alimentación de la fuente de alimentación. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 115 Este es una interface para PRESENCE# panel frontal cable de audio de panel frontal MIC_RET OUT_RET que permite conexión y control (9-pin HD_AUDIO1) conveniente de apparatos de (vea p.4, N. 30) OUT2_L Audio. J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 116 El LED se enciende cuando el sistema esté en funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S1/S3. El LED se apaga cuando el sistema se encuentre en estado de suspensión S4 o se apaga (S5). Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 117 (4-pin CHA_FAN1) +12V FAN_SPEED_CONTROL el cable negro con la patilla de (vea p.4, N. 21) masa. CHA_FAN1 y CHA_FAN2 admiten control de (3-pin CHA_FAN2) ventilador. (vea p.4, N. 37) (3-pin PWR_FAN1) (vea p.4, N. 36) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 118 ATX 12V. Para usar el fuente de energía de 4-pin ATX 12V, por favor conecte su fuente de energía junto con Pin 1 y Pin 5. Instalación de Fuente de Energía de 4-Pin ATX 12V Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 119 (HDMI_SPDIF1 de 2 pin) VGA HDMI, permite al sistema SPDIFOUT (vea p.4, N. 27) conectarse a dispositivos de TV Digital HDMI / proyectores / Dispositivos LCD. Conecte el conector HDMI_SPDIF de la tarjeta VGA HDMI a esta cabecera. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 120 CMOS. Conmutador de borrado de memoria CMOS El conmutador de encendido es (CLRCBTN) un conmutador rápido que (vea p.5, N. 15) permite al usuario encender / apagar rápidamente el sistema. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 121 Para iniciar la instalación, ponga el CD en el lector de CD y se des- plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar- chivo “ASSETUP.EXE” para iniciar la instalación. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 122 1. Введение Благодарим вас за покупку материнской платы ASRock Fatal1ty Z77 Professional- M Series надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности.
  • Page 123 Extensions (AVX) ® - Pixel Shader 5.0, DirectX 11 с процессором Intel Ivy Bridge, Pixel ® Shader 4.1, DirectX 10.1 с процессором Intel Sandy Bridge - Макс. объем разделяемой памяти 1760Мб (см. ОСТОРОЖНО, пункт 5) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 124 Z77, с аппаратной поддержкой функций RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage и технологии Intel Smart Response), NCQ, AHCI и горячего подключения - 2 x порта SATA3 со скоростью передачи данных 6,0 Гбит/с от Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 125 - Регулировка напряжений CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Компакт- диск - Драйверы, служебные программы, антивирусное программное поддержки обеспечение (пробная версия), Пробная версия программы CyberLink MediaEspresso 6.5, ASRock MAGIX Multimedia Suite - поставщик Уникальная - F-Stream (см. ОСТОРОЖНО, пункт 9) Особенность - ASRock Instant Boot...
  • Page 126 - ASRock Instant Flash (см. ОСТОРОЖНО, пункт 10) - ASRock APP Charger (см. ОСТОРОЖНО, пункт 11) - ASRock SmartView (см. ОСТОРОЖНО, пункт 12) - ASRock XFast USB (см. ОСТОРОЖНО, пункт 13) - ASRock XFast LAN (см. ОСТОРОЖНО, пункт 14) - ASRock XFast RAM (см. ОСТОРОЖНО, пункт 15) - ASRock Crashless BIOS (см.
  • Page 127 использования системой Windows 7 / Vista / XP. Таких ограничений нет ® для Windows OS с 64-bit центральным процессором. Технология ASRock XFast RAM помогает использовать память, которая не используется ОС ® Windows Tолько PCIE1 и PCIE3 поддерживает скорость Gen 3. Для работы...
  • Page 128 работающих линий питания, чтобы поднять КПД системы без ущерба для ее производительности во время простоя ядер ЦПУ. 10. ASRock Instant Flash – программа для прошивки BIOS, встроенная в Flash ROM. Данное средство для обновления BIOS умеет работать без входа в...
  • Page 129 Youtube и загружать файлы. Анализ данных в реальном времени: в окне состояния можно легко определить, какие потоки данных передаются в данный момент времени. 15. ASRock XFast RAM – новая функция, входящая в состав утилиты F-Stream. Благодаря ей, используется область памяти, использование ®...
  • Page 130 затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка CMOS. Переключатель Clear CMOS работает так же, как перемычка Clear CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 131 соединителей на его черном (дополнительно) конце с ответными подключите к соединителю соединителями питания на питания жесткого диска каждом из жестких дисков. подключите к интерфейса SATA Затем соедините белый источнику конец кабеля питания стандарта питания SATA с блоком питания. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 132 (см. стр. 4, п. 26) Аудиоразъем передней Этот интерфейс предназначен панели PRESENCE# для присоединения аудиокабеля MIC_RET OUT_RET передней панели, (9-контактный HD_AUDIO1) обеспечивающего удобное (см. cтр. 4, п. 30) подключение аудиоустройств и OUT2_L управление ими. J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 133 корпуса. Способ выключения системы с помощью кнопки питания можно настроить. RESET (кнопка сброса): Подключите к этим контактам кнопку сброса на передней панели корпуса. Нажмите кнопку сброса для перезагрузки компьютера, если компьютер «завис» и нормальную перезагрузку выполнить не удается. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 134 (4-контактный CHA_FAN1) CHA_FAN_SPEED черный шнур к штырю заземления. (см. стр. 4, п. 21) +12V FAN_SPEED_CONTROL CHA_FAN1 и CHA_FAN2 поддерживают функцию управления вентилятором. (3-контактный CHA_FAN2) (см. стр. 4, п. 37) (3-контактный PWR_FAN1) (см. стр. 4, п. 36) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 135 соединитель власти, это может все еще работать, если Вы принимаете традиционный ATX с 4-Pin 12V электропитание. Чтобы использовать электропитание ATX с 4-Pin, пожалуйста включите ваше электропитание наряду с Булавкой 1 и Прикрепите 5. ATX С 4-Pin 12V Установка Электропитания Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 136 обеспечивает подачу выходного (2-контактный HDMI_SPDIF1) аудиосигнала на VGA-карту HDMI, (см. стр. 4, п. 27) SPDIFOUT что позволяет подключать к системе цифровые телевизоры, проекторы или жидкокристаллические панели HDMI. Соедините эту колодку с разъемом HDMI_SPDIF на VGA- карте HDMI. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 137 систему. Reset Switch Кнопка Reset Switch позволяет (RSTBTN) быстро перезагрузить систему. (см. стр. 4, п. 17) Reset Clear CMOS Switch Кнопка Clear CMOS Switch (CLRCBTN) позволяет быстро сбросить (см. стр. 5, п. 15) установки CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 138 Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 139 1. Introdução Gratos por comprar nossa placa–mãe Fatal1ty Z77 Professional-M Series um produto confiável feito com ASRock um estrito controle de qualidade consistente. Com um excelente desempenho, essa placa é dotada de um projeto robusto que atende a ASRock de compromisso com a qualidade e durabilidade.
  • Page 140 - Suporta Intel HD Graphics Embutido Visuals: Intel Quick ® ® Sync Video, Intel InTru 3D, Intel Clear Video HD ® ® Technology, Intel Insider , Intel HD Graphics 2500/4000, ® Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 141 - 1 x Porta de saída SPDIF óptica - 1 x porta USB 2.0 padrão - 1 x porta Fatal1ty Mouse (USB 2.0) - 1 x Conector eSATA3 - 4 x portas USB 3.0 padrão Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 142 - 1 x Interruptor para limpar o CMOS com LED inteligente - 1 x Interruptor de alimentação LED - 1 x Interruptor de reposição LED BIOS - 64mb BIOS UEFI oficial da AMI com suporte para GUI Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 143 / XP / XP de 64 bits (veja o AVISO 21) Certificações - FCC, CE, WHQL - “ErP/EuP Ready” (é necessária alimentação eléctrica “ErP/ EuP Ready”) (veja o AVISO 22) * Para informações mais detalhadas por favor visite o nosso sítio Web: http://www.asrock.com Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 144 ® Vista / XP. No caso da CPU de 64 bits do Windows OS, esta limita- ção não existe. Pode usar a função ASRock XFast RAM para utilizar a ® memória que o Windows não pode utilizar. Apenas as ranhuras PCIE1 e PCIE3 suportam a velocidade Gen 3. Para que a placa PCI Express funcione à...
  • Page 145 Visite a nossa página Web para obter instruções acerca da utilização do F-Stream. 10. ASRock Instant Flash est un utilitaire de flash du BIOS flash intégré dans la ROM Flash. Cet outil pratique de mise à jour du BIOS vous permet de mettre à...
  • Page 146 Internet mais rápida. E aumenta 5 vezes a velocidade do Adobe Photoshop. Outra vantagem da função ASRock XFast RAM é a redução da frequência de acesso aos SSD ou HDD aumentando assim a sua duração.
  • Page 147 CPU, Socket LGA 775, LGA 1155 e LGA 1156. Tenha em atenção que nem todos os dissipadores de CPU 775 e 1156 poderão ser utilizados. 21. ASRock XFast RAM não é suportada nos sistemas operativos Micro- ® ®...
  • Page 148 1394 GUID e endereço MAC apenas serão limpos se a bateria do CMOS for retirada. O Interruptor para limpar o CMOS tem a mesma função do Jumper para limpar o CMOS. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 149 Cabo de dados Tanto a saída do cabo de Serial ATA (SATA) dados SATA pode ser conectado ao disco rígido SATA (opcional) / SATA2 / SATA3 quanto o conector SATA2 / SATA3 na placa mãe. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 150 Cada ligação USB 3.0 pode suportar dois portas USB Conector do módulo Este conector suporta um de infravermelho módulo de infravermelho para transmissão e recepção sem (IR1 de 5 pinos) fio, opcional. (veja a folha 4, No. 28) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 151 Aceda ao separador “Microfone frontal” no painel de Controlo Realtek. Ajuste o “Volume de gravação”. Conector do painel do sistema Este conector acomoda várias funções do painel frontal do (PANEL1 de 9 pinos) sistema. (veja a folha 4, No. 15) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 152 (veja a folha 4, No. 14) do sistema. O LED ficará acesso quando o sistema estiver em funcionamento. O LED fica intermitente no estado S1/S3. O LED fica desligado nos estados S4 ou no estado S5 (desligado). Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 153 20 pinos. Para usar a fonte de alimentação de 29 pinos, por favor ligue a sua fonte de alimentação com o Pino 1 e o Pino 13. Instalação da Fonte de alimentação ATX de 20 Pinos Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 154 (HDMI_SPDIF1 de 2 pinos) para placas VGA HDMI, permite (veja a folha 4, No. 27) SPDIFOUT ligar televisores digitais/ projectores/LCD com entrada HDMI ao sistema. Ligue o conector HDMI_SPDIF da placa VGA HDMI a este conector. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 155 (veja a folha 4, No. 17) sistema rapidamente. Interruptor para limpar o CMOS O interruptor para limpar o CMOS é um interruptor (CLRCBTN) inteligente, que permite aos uti (veja a folha 5, No. 15) lizadores limpar os valores CMOS rapidamente. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 156 CD na leitora de CD-ROM do computador. Automaticamente iniciará o menu princi- pal, casa o AUTORUN esteja ativado. Se o menu principal não aparecer automati- camente, explore o CD e execute o “ASSETUP.EXE” localizado na pasta BIN. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 157: Paket İçindekiler

    önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumunda, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler için lütfen web sitemizi ziyaret edin.
  • Page 158 Ivy Bridge işlemciye sahip DirectX 11. ® Pixel Shader 4.1,Intel Sandy Bridge işlemciye sahip DirectX 10.1 - Maks. paylaюэlan bellek 1760 MB (bkz. DЭKKAT 5) - Dört VGA Зэkэю seзeneрi: D-Sub, DVI-D, HDMI ve DisplayPort (bkz. DЭKKAT 6) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 159 SATA3 - 2 x SATA3 6,0Gb/sn Intel Z77 konektör, donanım RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage ve Intel Smart Response Teknolojisini), NCQ, AHCI ve “Sistem Açıkken Bileşen Takma” işlevlerini Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 160 - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltaj Çoklu ayarı Destek CD’si - Sürücüler, Yardımcı Programlar, AntiVirüs Yazılımı (Deneme Sürümü), CyberLink MediaEspresso 6.5 Deneme Sürümü, ASRock MAGIX Multimedya Seti - OEM Benzersiz - F-Stream (bkz. DİKKAT 9) Özellik - ASRock Anında Önyükleme...
  • Page 161 - FCC, CE, WHQL - ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli) (bkz. DİKKAT 22) * Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com UYARI Lütfen, ayarı BIOS'da ayarlama, Untied Overclocking Teknolojisi'ni uygulama veya üçüncü taraf aşırı hızlandırma araçlarını kullanma gibi durumlarda aşırı hızlandırmayla ilgili risk olduğunu unutmayın.
  • Page 162 IES’de (Akıllı Enerji Tasarrufu), CPU çekirdekleri boşta olduğunda bilgisayarın performansından ödün vermeden gerilim düzenleyicisi çıkış fazlarının sayısını düşürerek verimliliği iyileştirir. 10. ASRock Anında Flash, Flash ROM’a katıştırılmış bir BIOS flash yardımcı programıdır. Bu kullanışlı BIOS güncelleme aracı, sistem BIOS’unu MS- ®...
  • Page 163 11. iPhone/iPad/iPod Touch gibi Apple cihazlarınızı şarj etmek için daha hızlı ve daha özgür bir biçimde şarj etmek istiyorsanız, ASRock sizin için mükemmel bir çözüm hazırladı - ASRock APP Charger. Sadece APP Charger sürücünü kurarak, iPhone’unuzu bilgisayarınızdan daha çabuk ve eskisinden 40% daha hızlı...
  • Page 164 EuP hazır güç kaynağı gerekir. Intel’in önerisine göre, EuP hazır güç kaynağının 100 mA akım tüketiminde 5v beklemede güç etkinliği %50’den yüksektir standardını karşılaması gerekir. EuP hazır güç kaynağı seçimi için, daha fazla ayrıntı için güç kaynağı üreticisine başvurmanızı öneririz. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 165 CMOS temizleme işlemini gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan profili, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz. CMOS Devresini Temizle, CMOS Ayarı'nı Temizle ile aynı işleve sahiptir. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 166 USB 2.0 Fişleri G/Ç panelindeki varsayılan iki USB_PWR USB 2.0 portundan başka, bu (9-pinli USB_2_3) anakartta üç USB 2.0 fişi DUMMY (bkz. s.4 No. 23) bulunur. Her USB 2.0 fişi iki USB 2.0 portunu destekler. USB_PWR Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 167 HDA'nın düzgün çalışmasını desteklemesi gerekir. Lütfen sisteminizi yüklemek için kılavuzumuzdaki ve kasa kılavuzundaki talimatları izleyin. 2. AC'97 ses paneli kullanıyorsanız, lütfen ön panel ses fişine aşağıdaki gibi takın: A. Mic_IN'i (MIC) MIC2_L'ye bağlayın. B. Audio_R'yi (RIN) OUT2_R'ye ve Audio_L'yi (LIN) OUT2_L'ye bağlayın. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 168 çalışma LED’i, hoparlör vb. bulunur. Kasa ön panel modülünüzü bu bağlantıya bağlarken, kablo atamalarının ve pin atamalarının doğru biçimde eşleştirildiğinden emin olun. Kasa Hoparlörü Fişi Lütfen kasa hoparlörünü bu fişe bağlayın. (4-pinli SPEAKER1) (bkz. s.4 No. 20) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 169 3-Pinli CPU fanı bu konektördeki CPU fan konektörüne bağlamayı planlıyorsanız, lütfen Pin 1-3'e bağlayın. Pin 1-3 Bağlı 3-Pinli Fanı Takma (3-pinli CPU_FAN2) (bkz. s.4 No. 4) ATX Güç Konektörü Lütfen bir ATX güç kaynağını bu konektöre bağlayın. (24-pinli ATXPWR1) (bkz. s.4 No. 7) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 170 HDMI_SPDIF Fişi HDMI_SPDIF fişi, SPDIF ses çıkışını HDMI VGA kartına (2-pinli HDMI_SPDIF1) sağlar, sistemin HDMI Dijital (bkz. s.4 No. 27) SPDIFOUT TV/projektör/LCD cihazlarını bağlamasına izin verir. Lütfen HDMI VGA kartının HDMI_SPDIF konektörünü bu fişe bağlayın. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 171 şekilde (RSTBTN) Reset sistemi sıfırlamalarını (bkz. s.4 No.17) sağlayan akıllı bir anahtardır. CMOS'u Temizleme Anahtarı CMOS'u Temizleme Anahtarı, kullanıcıların hızlı bir şekilde (CLRSBTN) CMOS değerlerini (bkz. s.5 No.15) temizlemelerini sağlayan akıllı bir anahtardır. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 172 Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 173 ASRock 의 Fatal1ty Z77 Professional-M Series 메인 보드를 구매하여 주신것에 대 하여 감사 드립니다 . 이 메인보드는 엄격한 품질관리 하에 생산되어진 신뢰성 있는 메인보드 입니다 . 이 제품은 고 품격 디자인과 함께 ASRock 의 우수한 품질과 최고 의 안정성을 자랑하고 있습니다 . 이 빠른 설치 안내서에는 마더보드에 대한 설명과...
  • Page 174 ® - Intel Ivy Bridge CPU 를 탑재한 DirectX 11, Pixel Shader 5.0. ® Intel Sandy Bridge CPU 를 탑재한 DirectX 10.1, Pixel Shader 4.1 - 최대 공유 메모리 1760MB ( 주의 5 참조 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 175 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage 및 Intel Smart Response 기술 ), NCQ, AHCI 및 Hot Plug ( 핫플러그 ) 기능 지원 - ASMedia ASM1061 SATA3 6.0Gb/s 커넥터 2 개 , 하드웨어 NCQ, AHCI 및 “Hot Plug” ( 핫플러그 ) 기능 지원 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 176 - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA 전압 멀 티 조절 지원 CD - 드라이버 , 유틸리티 , 백신 소프트웨어 ( 시험판 ), CyberLink MediaEspresso 6.5 평가판 , ASRock MAGIX Multimedia Suite - OEM Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 177 특점및 특성 - F-Stream ( 주의 9 참조 ) - ASRock Instant Boot - ASRock Instant Flash ( 주의 10 참조 ) - ASRock APP Charger ( 주의 11 참조 ) - ASRock SmartView ( 주의 12 참조 ) - ASRock XFast USB ( 주의 13 참조 ) - ASRock XFast LAN ( 주의...
  • Page 178 전압 조절기로 출력위상의 수를 줄여 CPU 코어가 유휴 상태일 때 컴 퓨터 성능을 저하시키지 않으면서 효율을 높일 수 있습니다 . 10. ASRock Instant Flash 는 플래시 ROM 에 내장된 BIOS 유틸리티입니다 . 이 ® 편리한 BIOS 업데이트 툴을 사용하면 먼저 MS-DOS 나 Windows 같은...
  • Page 179 XFast RAM 은 이전에 방문했던 웹사이트의로딩 시간을 단축하며 웹 서핑을 이전보다 더 빠르게 합니다 . 또한 Adobe Photoshop 속도를 5 배 증가 시킵니 다 . ASRock XFast RAM 의 또 다른 장점은 SSD 또는 HDD 의 액세스 빈도를 줄여 수명을 확장 늘입니다 .
  • Page 180 1155 와 LGA 1156 을 채택할 수 있는 유연한 옵션을 제공합니다 . 모든 775 와 1156 CPU 팬을 사용할 수 있는 겻은 아닙니다 . ® ® 21. ASRock XFast RAM 은 Microsoft Windows XP / XP 64- 비트 규격에서 ®...
  • Page 181 삭제해야 하는 경우 먼저 시스템을 부팅하고 CMOS 를 종료하고 삭제 작업을 해 야 합니다 . CMOS 배터리를 제거할 경우에만 암호 , 날짜 , 시간 , 사용자 기본 프 로파일 , 1394 GUID, MAC 주소가 삭제됩니다 . Clear CMOS Switch는 Clear CMOS 점퍼와 동일한 기능을 갖고 있습니다. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 182 SATA 전원 케이블의 검은 전원 케이블 색끝부분을 드라이브의 전원 커넥터에 연결하십시오 . 그 ( 선택 사양 ) 다음에 SATA 전원 케이블의 SATA HDD 전원 커넥터에 연결 흰색 끝을 전원 공급장치의 전원 공급장치에 전원 커넥터에 연결합니다 . 연결 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 183 전면부 오디오 콘넥터 이 콘넥터는 오디오 장치를 하게 PRESENCE# 조절하고 연결할 수 있는 전면 (9 핀 HD_AUDIO1) MIC_RET OUT_RET 오디오 인터페이스 입니다 . (4 페이지 , 30 번 항목 참조 ) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 184 을 때는 LED 가 켜져 있습니다 . 시스템이 S1/S3 대기 상태에 있을 때는 LED 가 계속 깜박입니다 . 시스템이 S4 대기 상태 또는 전원 꺼짐 (S5) 상 태에 있을 때는 LED 가 꺼져 있습니다 . Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 185 도 제어기능없이도 3 핀 CPU 팬을 성공적으로 작동할 수 있습니다 . 본 머 더보드의 CPU 팬 커넥터에 3 핀 CPU 팬을 연결하려면 1-3 번 핀에 연결 하십시오 . 1-3 번 핀에 연결됨 3 핀 팬 설치 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 186 (4 페이지 , 35 번 항목 참조 ) 마더보드에 동시에연결하는 경 우에는 이커넥터를 하드 디스크 SLI/XFIRE_POWER1 전원커넥터에 연결하십시오 . 시리얼포트 컨넥터 이 콘넥터는 시리얼 포트 모듈을 지원합니다 . (9 핀 COM1) (4 페이지 , 29 번 항목 참조 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 187 (4 페이지 , 17 번 항목 참조 ) Reset 할 수 있습니다 . CMOS 삭제 스위치 CMOS 삭제 스위치는 빠른 스위 (CLRCBTN) 치로서 , 사용자가 CMOS 값을 (5 페이지 , 15 번 항목 참조 ) 빠르게 삭제할 수 있습니다 . Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 188 뉴를 모니터에 디스플레이 시켜 줄 것입니다 . 만일 자동으로 메인 메뉴가 나타나지 않는다면 , 보조 CD 의 디스플레이 메뉴 안에 있는 BIN 폴더 ASSETUP.EXE 파일을 더블 클릭하여 주시기 바랍니다 . (D: \ BIN \ ASSETUP.EXE, D: 는 CD-ROM 드라이브 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 189 ASRock Fatal1ty Z77 Professional-M Series マザーボード: (Micro ATX フォームファクター : 9.6-in x 9.6-in, 24.4 cm x 24.4 cm) ASRock Fatal1ty Z77 Professional-M Series クイックインストレーションガイド ASRock Fatal1ty Z77 Professional-M Series サポート CD 4 x シリアル ATA (SATA) データケーブル(オプション) 1 x シリアル l ATA (SATA) HDD 用電源変換ケーブル(オプション)...
  • Page 190 HD Graphics Built-in Visuals および VGA 出力 に対応するのは、GPU が内蔵されているプロセッサを使用する 場合だけです。 ® ® - Intel HD グラフィックス内蔵ビジュアルのサポート :Intel ® ® Quick Sync Video、Intel InTru 3D、Intel Clear ® ® Video HD Technology、Intel Insider 、Intel ® Graphics 2500/4000、Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 191 - Fatal1ty マウスポート (USB 2.0) x 1 - eSATA3 コネクタ x 1 - Ready-to-Use USB 3.0 ポート x 4 - LED(ACT/LINK LED および SPEED LED)付き RJ-45 LAN ポート x 1 - クリア CMOS スイッヱ(LED 付き)x 1 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 192 - 1 x クリア CMOS スイッヱ(LED 付き) イッヱ - 1 x 電源スイッチ(LED 付き) - 1 x リセットスイッヱ(LED 付き) BIOS 関連機能 - 64Mb AMI UEFI Legal BIOS(GUI サポート) - プラグ&プレイをサポート - ACPI 1.1 準拠ウェイクアップイベント - jumperfree モードサポート - SMBIOS 2.3.1 サポート Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 193 特徴 - F-Stream ( 注意 9 参照 ) - ASRock インスタントブート - ASRock Instant Flash ( 注意 10 参照 ) - ASRock APP ヱャージャー ( 注意 11 を参照 ) - ASRock SmartView ( 注意 12 を参照 ) - ASRock XFast USB ( 注意 13 を参照 ) - ASRock XFast LAN ( 注意...
  • Page 194 クロックして最適のシステムパフォーマンスを出すことができます。OC DNA で は、プロファイルとして OC 設定を保存し友人と共有することができます。友人 は OC プロファイルを自分のシステムに読み込んで、同じ OC 設定にすること が可能です。IES ( インテリジェントエネルギーサーバー ) では、電圧レギュレー タにより、CPU コアがアイドルになっているときコンピュータの性能を犠牲にす ることなく、多くの出力位相を削減して効率性の向上を図ります。 ASRock Instant Flash は、Flash ROM(フラッシュ ROM)に組み込まれて いる BIOS フラッシュユーティリティです。この便利な BIOS 更新ツールにより、 ® MS-DOS あるいは Windows のように最初にオペレーティングシステムに入 る必要なしに、システム BIOS を更新することができます。このユーティリティ では、POST の間に <F6> キーを、 あるいは BIOS 設置アップメニューの際に...
  • Page 195 タスウィンドウがあれば、現在転送しているデータストリームを容易に認識でき ます。 ® ASRock XFast RAM は、F-Stream を含む新機能です。Windows オ ペレーティングシステム 32 ビット CPU の下では使用できないメモリ空間を 利用します。 ASRock XFast RAM は、以前に訪れたウェブサイトの表示 にかかる時間を短縮し、これまで以上に迅速にネットサーフィンを行えるように します。 また、Adobe Photoshop の処理速度を 5 倍に押し上げます。 ASRock XFast RAM の他の利点は、お使いの SSD または HDD へのア クセスを減らして、それらの寿命を延ばすことです。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 196 ASRock Crashless BIOS を使って、ユーザーは失敗のおそれなく BIOS を更新することができます。 BIOS 更新プロセス中に電源損失が発生した場 合、ASRock Crashless BIOS は電源回復後、自動的に BIOS 更新プロ セスを完了させます。 BIOS ファイルを USB ディスクのルートディレクトリに 配置する必要があることに注意してください。 USB 2.0 ポートのみがこの機 能をサポートします。 VIRTU Universal MVP は、Virtu Universal テクノロジの基本機能を 含んでおり、統合 GPU および離散 GPU を最高機能に仮想化します。 ま た、妥協を許さない表示品質を実現するため Virtual Vsync を備えて...
  • Page 197 デフォルト設定 注 : CLRCMOS1 により、CMOS のデータをクリアできます。システムパラメータをクリアしデフォルト設定にリ セットするには、コンピュータの電源をオフにし、電源装置から電源コードを抜いてください。15 秒待って から、ジャンパキャップを使用して CLRCMOS1 のピン 2 とピン 3 を 5 秒間ショートしてください。ただし、 BIOS 更新の後すぐには CMOS をクリアしないでください。BIOS の更新の終了後直ちに CMOS をクリア する必要がある場合、まずシステムを起動してからシャットダウンし、その後クリア CMOS アクションを実 行する必要があります。パスワード、日付、時刻、ユーザーデフォルトのプロファイルを忘れずにメモして ください。1394 GUID と MAC アドレスは、CMOS バッテリを取り外した場合のみ消去されます。 クリアCMOSスイッチには、クリアCMOSジャンパと同じ機能があります。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 198 USB 2.0 ヘッダ I/O パネルには、デフォルトの 2 つの USB_PWR USB 2.0 ポート以外に、このマザーボ (9 ピン USB_2_3) DUMMY ードに 3 つの USB 2.0 ヘッダが搭載 ページ 4, アイテム 23 を参照 されています。それぞれの USB 2.0 ヘッダは 2 つの USB 2.0 ポートをサ ポートできます。 USB_PWR Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 199 フロントオーディオパネルコネクタ このコネクタは、オーディオ機器との便 PRESENCE# 利な接続とコントロールを可能にする (9 ピン HD_AUDIO1) MIC_RET OUT_RET フロンとオーディオパネルのためのイン ページ 4, アイテム 30 を参照 ターフェイスです。 OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L ハイディフィニションオーディオはジャックセンシングをサポートしますが、 正しく機能するためにシャーシのパネルワイヤが HDA をサポートする必 要があります。このマニュアルとシャーシのマニュアルの指示に従って、シ ステムを取り付けてください。 AC’97 オーディオパネルを使用する場合、次のように前面パネルのオー ディオヘッダに取り付けてください。 Mic_IN (MIC) を MIC2_L に接続します。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 200 RESET ( リセットスイッヱ ): シャーシの前面パネルに付いているリセットスイッチに接続します。コンピュータ がフリーズし、 正常な再起動をしない場合は、 リセットスイッチを押してコンピュー タを再起動します。 PLED ( システム電源 LED): シャーシの前面パネルに付いている電源ステータスインジケータに接続しま す。LED は、システムが動作しているときに点灯します。LED はシステムが S1/S3 スリープ状態のときに点滅します。システムが S4 スリープ状態になる か、電源オフ (S5) になると、LED は消灯します。 HDLED ( ハードドライブアクティビティ LED): シャーシの前面パネルに付いているハードドライブアクティビティ LED に接続 します。LED は、ハードドライブがデータの読み込みまたは書き込み動作をし ているときに点灯します。 前面パネルのデザインはシャーシによって異なります。前面パネルモジュール は、主に電源スイッチ、リセットスイッチ、電源 LED、ハードドライブアクティビティ Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 201 ページ 4, アイテム 3 を参照 +12V このマザーボードでは 4 ピン CPU ファン ( クワイエットファン ) がサポートされていますが、ファ ン速度コントロール機能がない場合でも、3 ピン CPU ファンは正常に作動します。3 ピン CPU ファンをこのマザーボードの CPU ファンコネクタに接続しようとしている場合、ピン 1-3 に接続してください。 接続されたピン 1-3 3 ピンファンのインストール (3 ピン CPU_FAN2) ページ 4, アイテム 4 を参照 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 202 ページ 4, アイテム 29 を参照 HDMI_SPDIF ヘッダ HDMI_SPDIF ヘッダは、SPDIF 音声 出力を HDMI VGA カードに提供し、 (2- ピン HDMI_SPDIF1) システムで HDMI デジタル TV/ プロ ページ 4, アイテム 27 を参照 SPDIFOUT ジェクタ /LCD デバイスに接続できる ようにします。HDMI VGA カードの HDMI_SPDIF コネクタを、このヘッダに 接続してください。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 203 システム電源のオン / オフを素早く切 Power ページ 4, アイテム 18 を参照 り替えることができます。 リセットスイッヱ リセットスイッヱはクイックスイッヱ (RSTBTN) で、システムを素早くリセットするこ Reset ページ 4, アイテム 17 を参照 とができます。 クリア CMOS スイッヱはクイックス クリア CMOS スイッヱ イッヱで、CMOS 値を素早くクリア (CLRCBTN) ページ 5, アイテム 15 を参照 できます。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 204 7 / 7 64-bit / Vista / Vista bit / XP / XP 64-bit といった様々なマイクロソフト ウインドウズ オペレーティングシ ステムをサポートします。マザーボードに付属しているサポート CD はマザーボードの特徴 を有効にするために必要なドライバやユーティリティを含んでいます。サポート CD を使用 するには、CDROM ドライブに CD を挿入してください。AUTORUN 機能が有効な場合、自 動的にメインメニュウが立ち上がります。AUTORUN 機能が無効な場合、サポート CD 内の BIN フォルダにある ASSETUP.EXE をダブルクリックすることにより、メインメニュウが立ち 上がります。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 205 1. 主板簡介 謝謝你采用了華擎 Fatal1ty Z77 Professional-M Series 主板 , 本主板由華擎嚴格制 造 , 質量可靠 , 穩定性好 , 能夠獲得卓越的性能。本安裝指南介紹了安裝主板的步驟。 更加詳細的主板信息可參看驅動光盤的用戶手冊。 由于主板規格和 BIOS 軟件將不斷升級 , 本手冊之相關內容變更恕不另行 通知。請留意華擎网站上公布的升級版本。你也可以在華擎網站找到最新 的顯卡和 CPU 支持表。 華擎网址:http://www.asrock.com 如果您需要與此主板有關的技術支持 , 請參觀我們的網站以了解您使用機 種的規格信息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Fatal1ty Z77 Professional-M Series 主板...
  • Page 206 Ivy Bridge CPU 支持 Pixel Shader 5.0、DirectX 11 ® 技術 Intel Sandy Bridge CPU 支持 Pixel Shader 4.1、 。 DirectX 10.1 技術 - 最大共享內存 1760MB(見警告 5) - 支持四個 VGA 輸出選項 :D-Sub、DVI-D、HDMI 和 DisplayPort ( 詳見警告 6) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 207 - 2 x ASMedia ASM1061 的 SATA3 6.0Gb/s 連接頭 , 支持 NCQ, AHCI 和熱插拔功能 (SATA3_A2 連接頭和 eSATA3 接口共享資源 ) ® USB 3.0 - 2 x Intel Z77 的后置 USB 3.0 連接頭, 支持 USB 1.0/2.0/3.0 到 5Gb/s Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 208 - 華擎即時開機功能 - 華擎 Instant Flash(見警告 10) - 華擎 APP Charger(見警告 11) - 華擎 SmartView(見警告 12) - 華擎 XFast USB(見警告 13) - 華擎 XFast LAN(見警告 14) - 華擎 XFast RAM(見警告 15) - 華擎 Crashless BIOS(見警告 16) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 209 4、 只有 P C I E1 和 P C I E3 插槽支持 G e n 3 速度。若要使 P C I E x p r e s s 運行 于 Gen 3 速度,您必須安裝 Ivy Bridge CPU。若您安裝了 Sandy Bridge CPU,則 PCI Express 只能運行于 Gen 2 速度。 ® 5、 最大共享內存大小由芯片組廠商定義並且可以更改。請查閱 I n t e l 網站 了解最新資訊。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 210 您的 F a c e b o o k 朋友、以及您的實時新聞來源,可為您提供更具個性化的 Internet 体驗。華擎主板專門配備 SmartView 應實用程序,可幫助您隨 時与朋友保持聯系。為使用 SmartView 功能,請确保您操作系統的版本是 ® Windows 7 / 7 64 位元 / Vista / Vista 64 位元,瀏覽器的版本是 IE8。 華擎网站:http://www.asrock.com/Feature/SmartView/index.asp 13、 華擎 XFast USB 可以提升 USB 存儲設備性能。性能可能因設備特性不同而 存在差异。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 211 消耗必須在 1.00W 以下。為滿足 EuP 標準 , 您需要同時具備支持 EuP 的主 ® 板和支持 EuP 的電源供應器。根據 Intel 的建議 , 支持 EuP 的電源供應器 必須滿足在 100m A 電流消耗時 ,5V s b 電源效率高于 50%。有關支持 E u P 的 電源供應器選擇方面的更多細節 , 我們建議您諮詢電源供應器的製作商。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 212 線帽將 C L R C M O S1 上的插針 2 和插針 3 短接 5 秒。但是,請勿在更新 B I O S 后 立即清除 C M O S。如果需要在更新 B I O S 后立即清除 C M O S,必須在執行 C M O S 清除操作之前,先啟動然后關閉系統。請注意,只有取出 C M O S 電池,密碼、 日期、時間、用戶默認配置文件、1394 GUID 和 MAC 地址才會被清除。 清除CMOS開關与清除CMOS跳線具有相同的功能。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 213 USB 2.0 接口之外,這款主板有 (9 針 USB_2_3) DUMMY 三組 USB 2.0 接針。 這組 USB 2.0 ( 見第 4 頁第 23 項 ) 接針可以支持兩個 USB 2.0 接 口。 USB_PWR (9 針 USB_4_5) ( 見第 4 頁第 24 項 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 214 D. MIC_RET 和 OUT_RET 僅用于 HD 音頻面板。 您不必將它們連接到 AC’ 97 音頻面板。 E. 開啟前置麥克風。 ® 在 Windows XP / XP 64 位元操作系統中 : 選擇”Mixer”。選擇”Recorder”。接著點擊”FrontMic”。 ® 在 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統中 : 在 Realtek 控制面板中點擊”FrontMic”。調節”Recording Volume”。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 215 (4 針 CHA_FAN1) +12V FAN_SPEED_CONTROL CHA_FAN1 和 CHA_FAN2 支持風扇 ( 見第 4 頁第 21 項 ) 控制。 (3 針 CHA_FAN2) ( 見第 4 頁第 37 項 ) (3 針 PWR_FAN1) ( 見第 4 頁第 36 項 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 216 ( 見第 4 頁第 1 項 ) 雖然此主板提供 8-pin ATX 12V 電源接口 , 但是您仍然可以使用傳統的 4-pin ATX 12V 電源。為了使用 4-pin ATX 12V 電源 , 請順著 Pin 1 和 Pin 5 插上電 源接頭。 4-Pin ATX 12V 電源安裝說明 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 217 ( 見第 4 頁第 29 項 ) HDMI_SPDIF 接頭 HDMI_SPDIF 接頭,提供 SPDIF 音頻輸出至 HDMI 顯卡,支持將 (2 針 HDMI_SPDIF1) SPDIFOUT 電腦連接至帶 HDMI 的數字電視 ( 見第 4 頁第 27 項 ) / 投影儀 / 液晶顯示器等設備。 請將 HDMI 顯卡的 HDMI_SPDIF 接 口連接到這個接頭。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 218 ( 見第 4 頁第 18 項 ) 復位開關 復位開關是一種快速開關 , 可 讓用戶快復位系 (RSTBTN) Reset 統。 ( 見第 4 頁第 17 項 ) CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 (CLRCBTN) CMOS 中的數據。 ( 見第 5 頁第 15 項 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 219 進行常規檢驗。如果你需要在開機自檢 ( P O S T ) 之后進入 B I O S 設置程序,請按下 <Ctrl>+<Alt>+<Delete> 鍵重新啟動電腦,或者按下系統面板上的重啟按鈕。有關 BIOS 設置的詳細信息,請查閱隨機支持光盤裡的用戶手冊 (PDF 文件 )。 3. 支持光盤信息 ® ® 本主板支持各種微軟視窗操作系統:Microsoft Windows 7/7 64 位元 /Vista Vista 64 位元 /XP/XP 64 位元。主板隨機支持光盤包含各種有助于提高主板效能的 必要驅動和實用程序。請將隨機支持光盤放入光驅裡,如果電腦的“自動運行”功能 已啟用,屏幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查找支持光盤內 BIN 文件夾下的“ASSETUP.EXE”,并雙擊它,即可調出主菜單。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 220 有害物質或元素 部件名稱 鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE) 印刷電路板 及電子組件 外部信號連 接頭及線材 O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定 的限量要求以下。 X: 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準 規定的限量要求,然該部件仍符合歐盟指令 2002/95/EC 的規範。 備註 : 此產品所標示之環保使用年限,系指在一般正常使用狀況下。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 221 1. 主機板簡介 謝謝你採用了華擎 Fatal1ty Z77 Professional-M Series 主機板 , 本主機板由華擎嚴 格製造 , 品質可靠 , 穩定性好 , 能夠獲得卓越的性能。此快速安裝指南包括了主機板 介紹和分步驟安裝指導。您可以查看支持光碟裡的使用手冊了解更詳細的資料。 由於主機板規格和 BIOS 軟體將不斷更新 , 本手冊之相關內容變更恕不另 行通知。請留意華擎網站上公布的更新版本。你也可以在華擎網站找到最 新的顯示卡和 CPU 支援列表。 華擎網址:http://www.asrock.com 如果您需要與此主機板有關的技術支援 , 請參觀我們的網站以了解您使用 機種的規格訊息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Fatal1ty Z77 Professional-M Series 主機板...
  • Page 222 Intel HD Graphics 2500/4000、Intel Advanced Vector Extensions (AVX) ® - Intel Ivy Bridge CPU 支援 Pixel Shader 5.0、DirectX 11 ® 技術。Intel Sandy Bridge CPU 支援 Pixel Shader 4.1、 DirectX 10.1 技術 - 最大共享記憶體 1760MB(見警告 5) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 223 RAID 1, RAID 5, RAID 10, Intel Rapid Storage 和 Intel Smart Response 技術 ), NCQ, AHCI 和熱插拔功能 - 2 x ASMedia ASM1061 的 SATA3 6.0Gb/s 接頭,支援 NCQ, AHCI 和熱插拔功能 (SATA3_A2 接頭和 eSATA3 接口共享資源 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 224 MediaEspresso 6.5 試用版 , 華擎 MAGIX 多媒體套餐 - OEM 獨家功能 - F-Stream(詳見警告 9) - 華擎即時開機功能 - 華擎 Instant Flash(見警告 10) - 華擎 APP Charger(見警告 11) - 華擎 SmartView(見警告 12) - 華擎 XFast USB(見警告 13) - 華擎 XFast LAN(見警告 14) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 225 不會存在這樣的限制。您可以透過華擎 XFast RAM 來利用 Windows 無法使 用的記憶體。 4、 僅 PCIE1 和 PCIE3 插槽可支援 Gen 3 速度。若要以 Gen 3 速度執行 PCI Express,請務必安裝 Ivy Bridge CPU。如果安裝 Sandy Bridge CPU,則僅 會以 PCI Express Gen 2 速度執行 PCI Express。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 226 了您最常瀏覽的網站、您的記錄、F a c e b o o k 朋友和即時新聞摘要,並全 數整合在一個更好的檢視中,以提供更貼近您個人使用習慣的網際網路功 能。ASRock 主機板獨家配備 SmartView 公用程式,協助您隨時隨地與朋友 保持聯繫。若要使用 SmartView 功能,請確定您所使用的作業系統版本為 ® Windows 7 / 7 64 位元 / Vista / Vista 64 位元,而且您的瀏覽器 版本是 IE8。 ASRock 網站:http://www.asrock.com/Feature/SmartView/index.asp 13、 華擎 XFast USB 可提升 USB 儲存裝置的效能(效能可能須視裝置特性而定)。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 227 電量的規定。根據 EuP 的規定 , 一個完整系統在關機模式下的交流電總消耗 必須在 1.00W 以下。為符合 EuP 標準 , 您需要同時具備支援 EuP 的主機板和 ® 支援 EuP 的電源供應器。根據 Intel 的建議 , 支援 EuP 的電源供應器必須 符合在 100mA 電流消耗時 ,5Vsb 電源效率高於 50%。有關支援 EuP 的電源供 應器選擇方面的詳情 , 我們建議您諮詢電源供應器的製造商。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 228 註: C L R C M O S1 可供您清除 C M O S 中的資料。若要清除及重設系統參數並恢復為預設設 定,請先關閉電腦電源,並從電源插座中拔下電源線,等待 15 秒鐘之後,使用跳 線帽使 CLRCMOS1 的 pin2 及 pin3 短路 5 秒的時間。但請勿於更新 BIOS 後立即清除 CMOS。如需於更新 BIOS 後立即清除 CMOS,您必須先開機再關機,然後再執行 CMOS 清除操作。請注意,只有在移除 C M O S 電池的情況下,密碼、日期、時間、使用者 預設設定檔、1394 GUID 及 MAC 位址才會清除。 Clear CMOS開關的功能與Clear CMOS跳線相同。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 229 2.0 接口之外,這款主機板有三 (9 針 USB_2_3) DUMMY 組 USB 2.0 接針。每組 USB 2.0 ( 見第 4 頁第 23 項 ) 接針可以支援兩個 USB 2.0 接 口。 USB_PWR (9 針 USB_4_5) ( 見第 4 頁第 24 項 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 230 D. MIC_RET 和 OUT_RET 僅用於 HD 音效面板。 您不必將它們連接到 AC’ 97 音效面板。 E. 開啟前置麥克風。 ® 在 Windows XP / XP 64 位元作業系統中 : 選擇”Mixer”。選擇”Recorder”。接著點選”FrontMic”。 ® 在 Windows 7 / 7 64 位元 / Vista / Vista 64 位元作業系統中 : 在 Realtek 控制面板中點選”FrontMic”。調整”Recording Volume”。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 231 ( 見第 4 頁第 20 項 ) 電源指示燈接頭 請將機箱電源指示燈連接到此接 頭,以指示系統電源狀態。當系 (3 針 PLED1) 統正在運行時,LED 指示燈亮。 ( 見第 4 頁第 14 項 ) 在 S1/S3 模式下,LED 指示燈會 不停閃爍。在 S4 或 S5 模式 ( 關 機 ) 下,LED 指示燈會熄滅。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 232 (24 針 ATXPWR1) ( 見第 4 頁第 7 項 ) 雖然此主機板提供 24-pin ATX 電源接口 , 但是您仍然可以使 用傳統的 20-pin ATX 電源。為了使用 20-pin ATX 電源 , 請順 著 Pin 1 和 Pin 13 插上電源接頭。 20-Pin ATX 電源安裝說明 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 233 ( 見第 4 頁第 29 項 ) HDMI_SPDIF 接頭 HDMI_SPDIF 接頭,提供 SPDIF 音效輸出至 HDMI 顯示卡,支援 (2 針 HDMI_SPDIF1) SPDIFOUT 將電腦連接至帶 HDMI 的數位電 ( 見第 4 頁第 27 項 ) 視 / 投影機 / 液晶銀幕等設備。 請將 HDMI 顯示卡的 HDMI_SPDIF 接口連接到這個接頭。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 234 ( 見第 4 頁第 18 項 ) 重置開關 重置開關是一種快速開關 , 可 讓用戶快重置系統。 (RSTBTN) Reset ( 見第 4 頁第 17 項 ) CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 (CLRCBTN) CMOS 中的數據。 ( 見第 5 頁第 15 項 ) Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 235 運行需要時,測試和初始化元件。有關 B I O S 設置的詳細訊息,請查閱隨機支援光碟 裡的使用手冊 (PDF 文件 )。 3. 支援光碟訊息 ® ® ® 本主板支援各種微軟 Windows 操作系統:Microsoft Windows 7/7 64 位元 / Vista /Vista 64 位元 /XP/XP 64 位元。主板附帶的支援光碟包含各種有助於提高主 板效能的必要驅動和實用程式。請將隨機支援光碟放入光碟機裡,如果系統的“自動 運行”功能已啟用,銀幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查閱支 援光碟內 BIN 文件夾下的 ASSETUP.EXE 文件並雙點它,即可調出主菜單。 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 236: Isi Paket

    Series, motherboard andal yang diproduksi berdasarkan kontrol kualitas tinggi ASRock secara konsisten. Motherboard ini memberikan performa terbaik dengan desain yang kokoh sesuai komitmen ASRock untuk kualitas dan daya tahan. Panduan Pemasangan Ringkas ini berisi pendahuluan tentang motherboard dan panduan pemasangan langkah demi langkah. Informasi lengkap lainnya tentang motherboard ini tersedia di buku panduan yang diberikan bersama Support CD (CD Pendukung).
  • Page 237 Technology, Intel Insider , Intel HD Graphics 2500/4000, ® Intel Advanced Vector Extensions (AVX) ® - Pixel Shader 5.0, DirectX 11 dengan Intel Ivy Bridge CPU, ® Pixel Shader 4.1, DirectX 10.1 dengan Intel Sandy Bridge Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 238 - 1 x Port Mouse USB Fatal1ty (USB 2.0) - 1 x Port eSATA3 - 4 x Port USB 3.0 siap-dipakai - 1 x RJ-45 LAN Port LED (ACT/LINK LED dan SPEED LED) - 1 x Tombol Clear CMOS dengan LED Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 239 - 1 x ulang beralih LED Ciri-ciri BIOS - 64Mb AMI UEFI Legal BIOS dengan dukungan GUI - Menggunakan “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Menggunakan jumperfree - Penyokong AMBIOS 2.3.1 Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 240 7 / 7 64-bit / Vista Vista 64-bit / XP / XP 64-bit Sertifikasi - FCC, CE, WHQL - ErP/EuP Ready (memerlukan catu daya ErP/EuP ready) * Untuk informasi rinci, silakan kunjungi website kami: http://www.asrock.com Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 241 (“xxx” is the device which contains your Windows installation files. Normally it is an optical drive.) You can also press <F11> to launch boot menu at system POST and choose the item “UEFI:xxx“ to boot. ® 4. Start Windows installation. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 242: Installing Os On A Hdd Larger Than 2Tb In Raid Mode

    RAID drivers into a USB flash disk. You can download the driver from ASRock's website and unzip the file into a USB flash disk OR copy the file from ASRock motherboard support CD. (please copy the files under following directory: 32 bit: ..\i386\Win7_Vista_Intel_v11.0.0.1032...
  • Page 243 's suggested solution: A. Disable System Restore. a. Type “systempropertiesprotection” in the Start Menu. Then press "Enter". b. De-select Local Disks for System Restore. Then Click “Turn System Restore Off” to confirm. Then Press “Ok”. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 244 B. Disable “Volume Shadow Copy” service. a. Type “computer management” in the Start Menu, then press “Enter”. b. Go to “Services and Applications>Services”; Then double click “Volume Shadow Copy”. Fatal1ty Z77 Professional-M Series Motherboard...
  • Page 245 (This may take a long time; >30 mins.) C. Reboot your system. (It may take about 5 minutes to reboot.) ® D. Windows will install this hotfix then reboot by itself. E. Please start to install motherboard drivers and utilities. 6. Finish. Fatal1ty Z77 Professional-M Series Motherboard...
