Philips 271P4 User Manual

Hide thumbs Also See for 271P4:
Table of Contents

Advertisement

Quick Links

www.philips.com/welcome
EN User manual
Customer care and warranty
Troubleshooting & FAQs
1
17
24
271P4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 271P4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips 271P4

Summary of Contents for Philips 271P4

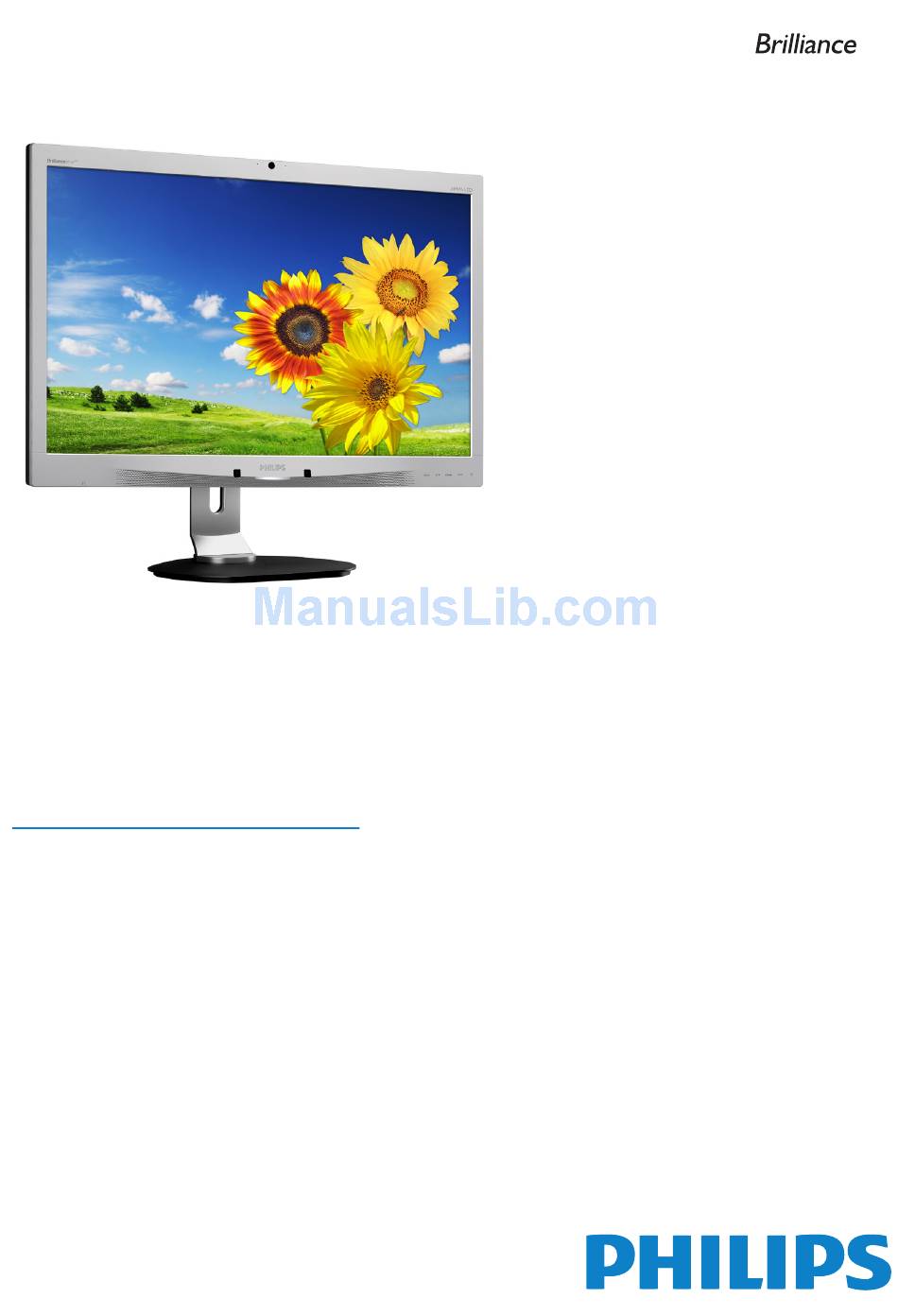

  • Page 1 271P4 www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    6. Technical Specifications .....13 6.1 Resolution & Preset Modes ....15 7. Power Management ......16 8. Customer care and warranty ..17 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..........17 8.2 Customer Care & Warranty ....19 9. Troubleshooting & FAQs ....24 9.1 Troubleshooting ..........24...

  • Page 3: Important

    1. Important • Please use approved power cord provided 1. Important by Philips all the time. If your power cord is missing, please contact with your local This electronic user’s guide is intended for service center. (Please refer to Customer anyone who uses the Philips monitor.

  • Page 4: Notational Descriptions

    1. Important • Temperature: 0-40°C 32-95°F 1.2 Notational Descriptions • Humidity: 20-80% RH The following subsections describe notational Important information for Burn-in/Ghost conventions used in this document. image Notes, Cautions and Warnings • Always activate a moving screen saver Throughout this guide, blocks of text may be program when you leave your monitor accompanied by an icon and printed in bold or unattended.

  • Page 5: Disposal Of Product And Packing

    WEEE performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible,...

  • Page 6: Setting Up The Monitor

    1. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen. 2.1 Installation Package contents 271P4 user s manual 使用产品前请阅读使用说明 2. Hold the stand with both hands. 保留备用 (1) Gently attach the stand to the VESA mount area until the latch locks the stand.

  • Page 7: Operating The Monitor

    2. Setting up the monitor Connecting to your PC 2.2 Operating the monitor Description of the control buttons 5 6 7 AC power switch AC power input DisplayPort input HDMI input DVI input VGA input Audio input Kensington anti-theft lock Earphone jack USB downstream Switch monitor’s power ON and...
  • Page 8 On-Screen Display. You can use this as a On-Screen Display (OSD) is a feature in all reference when you want to work your way Philips monitors. It allows an end user to adjust around the different adjustments later on. screen performance or select functions of...
  • Page 9 2. Setting up the monitor Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 × 1080 @ 60 Hz for best results.

  • Page 10: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor Note 2.3 Remove the Base Assembly for This monitor accepts a 100mm x 100mm VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1.

  • Page 11: Image Optimization

    PDF files, scanned articles or other general office How does it work? applications. SmartImage is an exclusive, leading edge Philips • Photo: This profile combines color technology that analyzes the content displayed saturation, dynamic contrast and sharpness on your screen.

  • Page 12: Smartcontrast

    3. Image Optimization office applications and lower power consumption. • Off: No optimization by SmartImage. 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

  • Page 13: Powersensor

    4. PowerSensor™ step up signal strength when wearing black or 4. PowerSensor™ other dark clothes. Hot key Sensor distance How does it work? • PowerSensor works on principle of transmission and reception of harmless “infrared” signals in order to detect userpresence.

  • Page 14: Built-In Webcam With Microphone

    5. Built-in Webcam with Microphone 5.2 Using the device 5. Built-in Webcam with Microphone Philips monitor with webcam device transmits video and sound data through USB port. It can be enabled by simply connecting your USB cable from Note your PC to the USB upstream of USB hub on the USB connection between the monitor and PC is side IO of monitor.

  • Page 15: Technical Specifications

    6. Technical Specifications 6. Technical Specifications Picture/Display Monitor Panel Type AMVA LCD Backlight Panel Size 27" W (68.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.311 x 0.311 mm SmartContrast 20,000,000:1 Response Time (typ.) 12 ms SmartResponse 4 ms (GtG) Optimum Resolution 1920 x 1080 @ 60 Hz Viewing Angle 178°...
  • Page 16 Color Black/Silver Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2 . Smart response time is the optimum value from either GtG or GtG (BW) tests.

  • Page 17: Resolution & Preset Modes

    6. Technical Specifications 6.1 Resolution & Preset Modes Maximum Resolution For 271P4QPJK 1920 x 1080 @ 60 Hz (analog input) 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution 1920 x 1080 @ 60 Hz (digital input) H. freq. (kHz) Resolution V.

  • Page 18: Power Management

    7. Power Management 7. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 19: Customer Care And Warranty

    No manufacturer can guarantee the types of bright dot defects. that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 20 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.

  • Page 21: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
  • Page 22 8. Customer care and warranty Poland +48 0223491505 Local call tariff Mon to Fri : 9am - 6pm Portugal Mainteq 800 780 902 Free of charge Mon to Fri : 8am - 5pm Spain Mainteq +34 902 888 785 € 0.10 Mon to Fri : 9am - 6pm Sweden Infocare...
  • Page 23 Estonia FUJITSU +372 6519972(workshop) Georgia Esabi +995 322 91 34 71 +36 1 814 8080(General) Hungary Profi Service +36 1814 8565(For AOC&Philips only) Kazakhstan Classic Service I.I.c. +7 727 3097515 +371 67460399 Latvia ServiceNet LV +371 27260399 +370 37 400160(general)
  • Page 24 Mon.~Fri. 9:00am-6:00pm Macau Technology Ltd. Macau: Sat. 9:00am-1:00pm Tel: (853)-0800-987 REDINGTON INDIA Tel: 1 800 425 6396 India Mon.~Fri. 9:00am-5:30pm SMS: PHILIPS to 56677 +62-21-4080-9086 PT. CORMIC Mon.~Thu. 08:30-12:00; 13:00- (Customer Hotline) Indonesia SERVISINDO 17:30 +62-8888-01-9086 PERKASA Fri. 08:30-11:30; 13:00-17:30"...
  • Page 25 8. Customer care and warranty +84 8 38248007 Ho Chi Minh City FPT Service Informatic +84 5113.562666 Mon.~Fri. 8:00-12:00, 13:30-17:30 Vietnam Company Ltd. - Ho Chi Danang City Sat. 8:00-12:00 Minh City Branch +84 5113.562666 Can tho Province EA Global Supply Philippines (02) 655-7777;...

  • Page 26: Troubleshooting & Faqs

    Philips customer service representative. • Disconnect the monitor from mains power source immediately for safety Common Problems • Contact with Philips customer service No Picture (Power LED not lit) representative immediately. • Make sure the power cord is plugged into Imaging Problems the power outlet and into the back of the monitor.

  • Page 27: General Faqs

    Reconnect your USB peripherals. application if your monitor will display unchanging static content. For further assistance, refer to the Consumer Information Centers list and contact Philips • Failure to activate a screen saver, or a customer service representative. periodic screen refresh application may result in severe “burn-in”...
  • Page 28 When handling • Shut down your computer, disconnect your the monitor, make sure that there is old monitor and reconnect your Philips no pressure or force applied to the monitor. panel surface side. This may affect your •...
  • Page 29 Mac? characters? Ans.: Ans.: Yes. All Philips monitors are fully Your monitor works best at its native compatible with standard PCs, Macs resolution of 1920 x 1080 @ 60 Hz. For and workstations. You may need a cable best display, please use this resolution.
  • Page 30 © 2013 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M4271PE2T...
