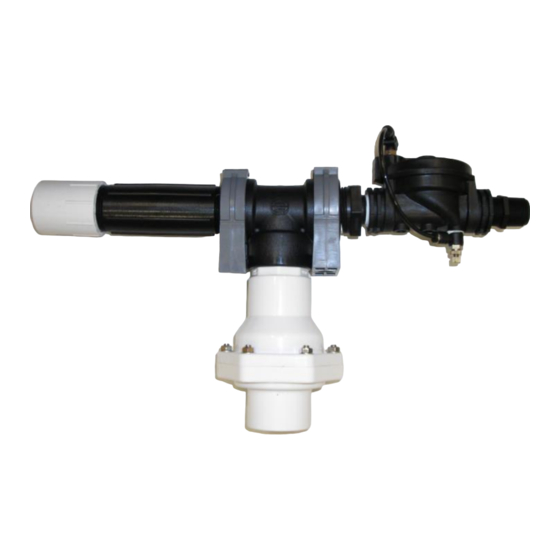

Installation Instructions for Basepump
Models: RB750, HB1000, CB1500
Read all instructions before installation.
Complete this page before attempting installation!
**Keep instructions near unit for future reference. **
1. Household Water Pressure:

Minimum Pressure: 40 lbs. PSI

Compensate for normal pressure loss from test point to pump location.

Tee in before Pressure Regulator Valve (PRV) when possible unless incoming municipal
water pressure exceeds 90 Lbs. PSI.
2. Household Water Flow:

This test is performed at an outdoor spigot without the hose connected. You must be able
to fill 5 gallons into a bucket in 40 seconds or less. If it takes longer, you may have a
restriction that must be bypassed.
3. Type of Piping:

Use ¾" Copper, CPVC, or PEX. Do not connect to or use galvanized iron pipe. If
absolutely necessary ½" may be used on RB750, only.

Note: If using ½" tubing (RB750 only), use a ¾" x ½" reducer.
4. Pipeline Restrictions:

Pump should be teed-in before these devices that restrict water flow: stop & waste valves,
globe-type valves, and some Pressure Regulator Valves (PRV).

Basepump MUST tee in before water softeners, conditioners, and/or water filters.

Water meter must be minimum 5/8" or 3/4" standard.
Average Pumping Rates:
RB750 pumps 750 GPH or approximately 1/3 the capacity of an electric sump pump at 2,000 GPH.
HB1000 pumps 1,000 GPH or approximately 1/2 the capacity of an electric sump pump at 2,000 GPH.
CB1500 pumps 1500 GPH or approximately 2/3 the capacity of an electric sump pump at 2,000 GPH.
After reading these instructions, if you determine that this product is not suitable for your application, please call The
Company or your dealer for tech support and/or return information. If the pump is installed and you choose to return it, call
The Company for return approval. The Company is not responsible for any cost incurred with removal or pump repairs.
Proper packaging of the returned product is the customer's responsibility and goods damaged in transit as a result of
improper packaging will not be considered for credit.
Models: RB750, HB1000, CB1500
www.basepump.com
Water Supply Checklist
Pre-Installation 4 Point Checklist
BEFORE installing, use this checklist to verify each item below. Record
each item in the space provided. Improper installation will result in reduced
pumping capacity or pump may not operate at all.
Maximum Pressure: 90 lbs. PSI
Return Policy
Copyright by Base Products Corporation
800 554 1426
2015 Rev. May/2015
page 1
1
Minimum Pressure
40 Lbs. PSI
Actual: ____PSI
2
Minimum Water
Flow 7 GPM
5 Gal. in ____Sec.
3
Required Pipe
Size: ¾"
Actual ____
4
No Piping
Restrictions
Any? Y N
