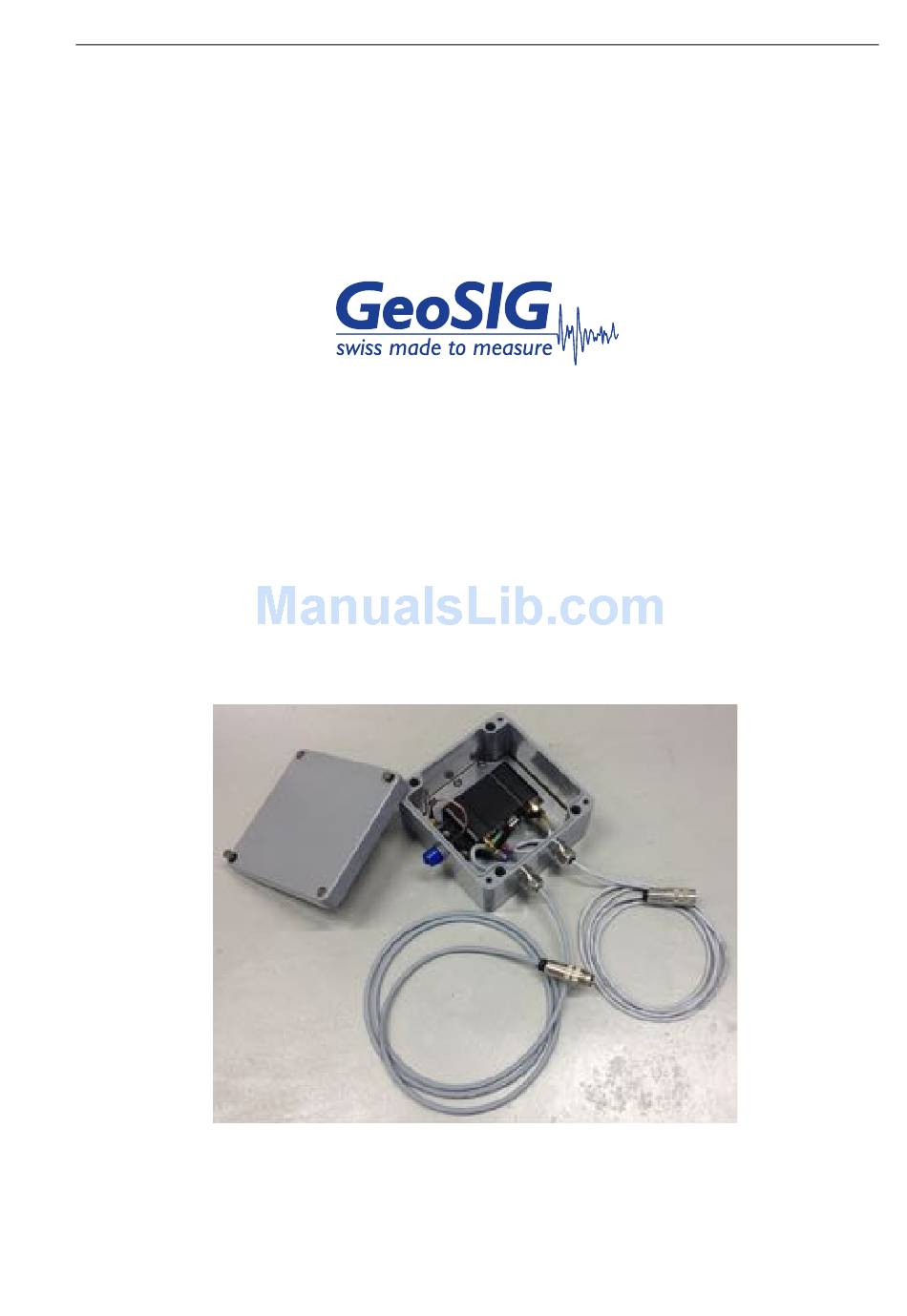

GXX-3GMx Series 3G Router User Manual GeoSIG Ltd, Wiesenstrasse 39, 8952 Schlieren, Switzerland Phone: + 41 44 810 2150, Fax: + 41 44 810 2350 info@geosig.com, www.geosig.com... - Page 2 Copyright Notice No part of this document may be reproduced without the prior written consent of GeoSIG Ltd. Software described in this document is furnished under a license and may only be used or copied in accordance with the terms of such a license.
-
Page 3: Table Of Contents
GXX-3GMx Series 3G Router User Manual 09.01.2015 / V4. 3 / 9 Table of Contents 1. Overview ........................... 4 2. Installation of the SIM Card ....................4 2.1. GXX-3GM .............................. 4 2.2. GXX-3GMPC ............................5 3. Router Configuration ......................5 4. -
Page 4: Overview
GXX-3GMx Series 3G Router User Manual 4 / 9 09.01.2015 / V4. 1. Overview The 3G router series GXX-3GM consists of GXX-3GM and GXX-3GMPC subtypes for use with GMSplus and a computer respectively. The GXX-3GM for use with GMSplus is conveniently installed in an IP66 protected housing and provides in addition to the internal antennas an option for installing an external antenna. -
Page 5: Gxx-3Gmpc
GXX-3GMx Series 3G Router User Manual 09.01.2015 / V4. 5 / 9 2.2. GXX-3GMPC The SIM card slot is easily accessible on the GXX-3GMPC. Push in the SIM card completely to its full stop. There will be a small click sound. -
Page 6: Hardware Configuration
GXX-3GMx Series 3G Router User Manual 6 / 9 09.01.2015 / V4. 4. Hardware Configuration 4.1. Internal / External Antenna The GXX-3GM router can be used with the internal antenna (default) or with an external cable/antenna in case the cellular reception on the measurement site is weak. To use the external antenna connector, first unscrew the SMA antenna which is labelled “ANTENNA”... -
Page 7: Gxx-3Gmpc
GXX-3GMx Series 3G Router User Manual 09.01.2015 / V4. 7 / 9 Figure 9. Pin-out for GXX-3GM power cable Figure 10. Pin-out for GXX-3GM Ethernet cable 5.2. GXX-3GMPC The GXX-3GMPC router is delivered such that it can be connected directly to a computer using either an Ethernet cable or the supplied USB cable. -
Page 8: Mounting
GXX-3GMx Series 3G Router User Manual 8 / 9 09.01.2015 / V4. 6. Mounting 6.1. GXX-3GM The GXX-3GM router for GMSplus can be mounted on horizontal or vertical surfaces using 4 bolts according to the below drawing Figure 12. Drawing for mounting of GXX-3GM (units: mm) -
Page 9: Gxx-3Gmpc
GXX-3GMx Series 3G Router User Manual 09.01.2015 / V4. 9 / 9 6.2. GXX-3GMPC The bare modem can be mounted on horizontal or vertical surfaces using 4 bolts according to the below drawing. 56.0 70.0 52.0 31.8 φ 8.00 98.0 108.0...
