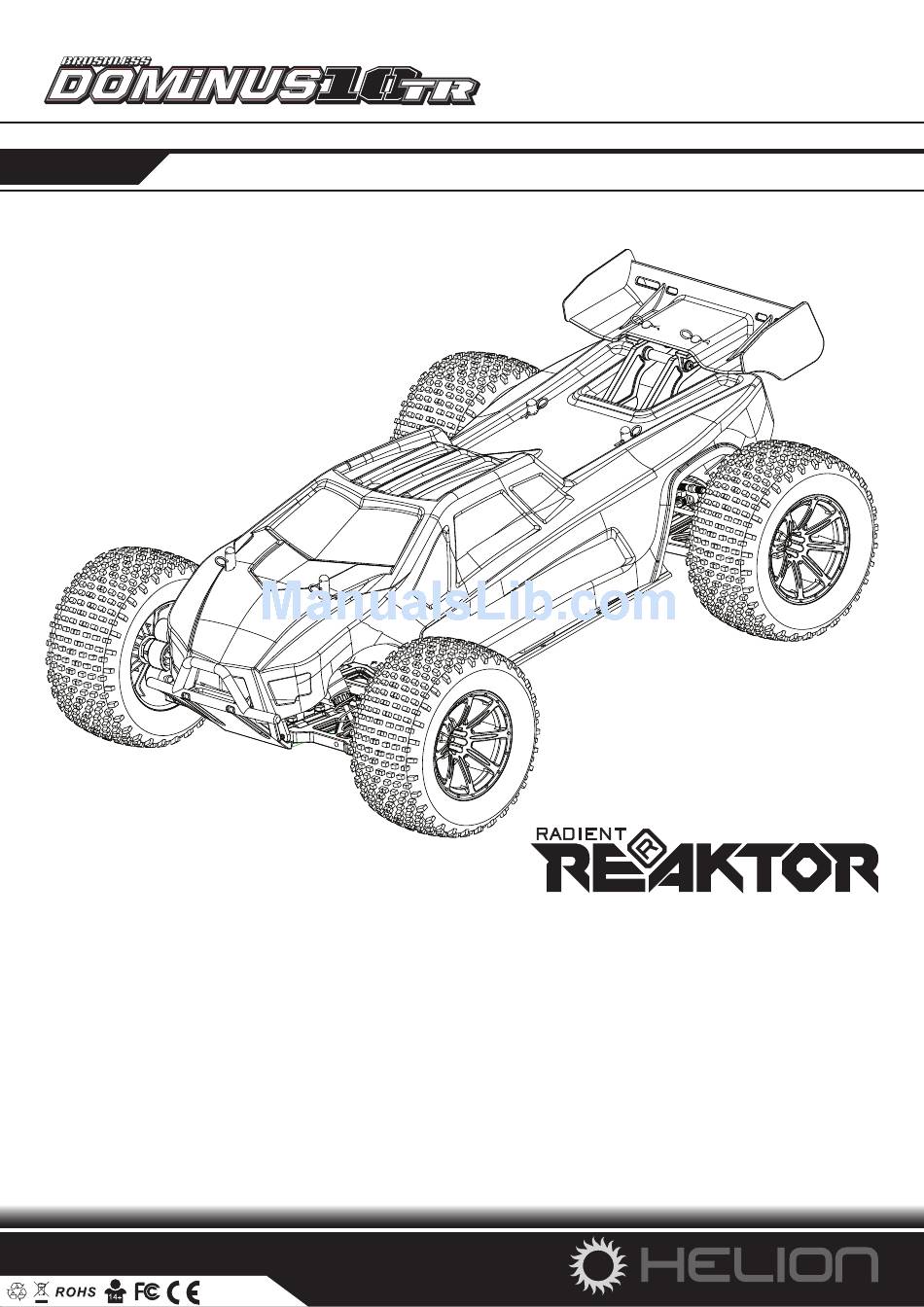

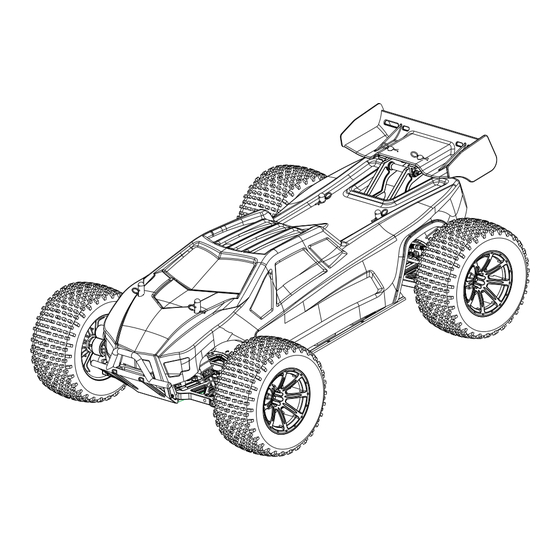

1/10th scale 4x4 brushless powered electric truggy

Advertisement

HLNA0196
OWNER'S MANUAL AND EXPLODED VIEWS
LENGTH
477mm (18.78in)
WIDTH
320mm (12.6in)
HEIGHT
180mm (7.08in)
WHEELBASE
300mm (11.81in)
WHEEL DIAMETER
66mm (2.6in) x 44mm (1.73in)
TIRE DIAMETER
F/R: 120mm (4.72in) x 60mm (2.36in)
WHEEL OFFSET
12mm Hex
WEIGHT*
2350g (5.18lb)
BATTERY
1,800mAh NiMH 7-CELL, 8.4V
MOTOR
RADIENT REAKTOR BRUSHLESS SENSORLESS 3500kV
RADIO
HRS-3.1 2.4GHz 3-CHANNEL
CHARGER
AC WALL TRICKLE
*APPROXIMATE OUT-OF-THE-BOX WEIGHT
• Before using your product, review all documentation and inspect the products carefully. If for some reason you decide it is not
what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot ac-
cept a product for return or exchange after partaking in actions that produce wear and tear.
• Read, understand and follow all instructions and accompanying material carefully before operating or assembling your vehicle
to prevent serious damage to your vehicle. Failure to complete these tasks properly or intentional aversion to the content will be
considered abuse and/or neglect.
• Product specifications are subject to change without notice. Due to ongoing development, the actual product may vary from
images shown.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
• This product is not a toy! (14+) Recommended for ages 14 and up. Adult supervision required for ages under 18 years old.
Contains small parts, keep out of reach of children 3 years of age and younger.
• Entire contents ©2012 Helion RC
1622
1/10th SCALE 4x4
BRUSHLESS POWERED
ELECTRIC TRUGGY
POWERED BY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10 TR HLNA0196 and is the answer not in the manual?

Questions and answers

Summary of Contents for DOMINUS 10 TR HLNA0196

  • Page 1 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY HLNA0196 OWNER’S MANUAL AND EXPLODED VIEWS LENGTH 477mm (18.78in) WIDTH 320mm (12.6in) HEIGHT 180mm (7.08in) WHEELBASE 300mm (11.81in) WHEEL DIAMETER 66mm (2.6in) x 44mm (1.73in) TIRE DIAMETER F/R: 120mm (4.72in) x 60mm (2.36in) WHEEL OFFSET 12mm Hex WEIGHT*...
  • Page 2: Package Contents

    PACKAGE CONTENTS 1. 1x Dominus 10TR 1. 1x 1.5mm L-wrench 2. 1x 1,800mAh 7-Cell NiMH battery pack 2. 1x 2.5mm L-wrench 3. 1x HRS-3.1 2.4GHz 3-Channel transmitter 3. 1x Bag extra parts 4. 1x 7-Cell Wall charger 4. 1x Documentation package with exploded view 5.
  • Page 3: Getting Started

    1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY FEATURES OF THE DOMINUS 10TR • Steel ring and pinion gear type four wheel drive drivetrain. • Adjustable suspension, camber, and front toe. • Radient Reaktor brushless waterproof ESC and motor. • Pivot ball style front suspension with upper arm.
  • Page 4 PRECAUTIONS WHEN USING THE HRS-3.1 RADIO SYSTEM • Your model can cause serious damage or injury so please use caution and courtesy when operating your model. • Do not expose the radio system to water or excessive moisture. • As a safety precaution, perform all transmitter and receiver adjustments with the vehicle’s wheels off the ground. This ensures the complete control over the vehicle at all times during adjustments.
  • Page 5: Binding The Transmitter And Receiver

    1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY HRS-3.1 BINDING AND FAIL SAFE SETTING Binding the Transmitter and Receiver: The process of allowing communication to occur between a 2.4GHz transmitter and receiver is called “binding” (sometimes referred to as “matching” or “pairing”). The radio system included with your product comes pre-configured and bound from the factory. In the event your system loses binding, one of the components has been replaced, or you choose to add an additional vehicle to your transmitter, you will need to bind the transmitter and receiver.
  • Page 6 HRS-3.1 CONNECTION AND CONFIGURATION... Receiver, ESC and Servo Connections: Generic wiring diagram. 1. Channel 1: Steering Servo 2. Channel 2: ESC (Throttle/Brake) Note: An easy way to remember this is 1 to turn, 2 to burn ( as in burn-out ). Digital Trim Settings: •...
  • Page 7: Power Alarm

    Setting the ESC: The ESC in your Dominus 10TR is pre-programmed to work best with the HRS-3.1 radio system. Use with another radio system may not provide consistent performance and is not recommended for beginners. For detailed selup information refer to the Reaktor brushless setup section of this manual.
  • Page 8: Using Your Transmitter For The First Time

    HRS-3.1 STANDARD OPERATION » A third push forward ont he trigger will apply reverse throttle. » WARNING: Causing the vehicle to make quick transitions from forward/reverse motion to the TURN LEFT TURN RIGHT opposite direction using the throttle control can cause damage to your vehicle and electronics and will void the warranty.
  • Page 9 However we do encourage experimentation and testing as that’s where the real fun begins! Ride height adjustment: It is possible to adjust the ride height of your Dominus 10TR by installing and or removing adjust- ment clips located directly above the shock springs.
  • Page 10: Safety Tips

    ...ADJUSTING AND TUNING YOUR DOMINUS 10TR CONTINUED Lower Shock Position: There are two shock installation locations for the lower mounting location of the shocks in the suspen- sion arm. The default location is outside. Moving the shocks to the inside location will result in a slightly more responsive feel on the front or rear of the vehicle but become a little less stable.
  • Page 11 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY ...GENERAL CARE AND MAINTENANCE CONTINUED... b. Ensure there are no kinks in the antenna or antenna tube. c. Never fold the end of the antenna over the tube, this will reduce the range and damage the antenna. d.
  • Page 12: Storage And Disposal

    ...MAINTENANCE CONTINUED ii. When reinstalling tires, use caution when tightening the nuts that secure the wheels to the vehicle. Ensure the wheels rotate freely after installed but don’t wobble excessively. Over tightening the wheels may cause excess strain on the electrical and mechanical components of your vehicle.
  • Page 13: Troubleshooting Guide

    1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY TROUBLESHOOTING GUIDE Problem / Symptom Possible Cause Possible Solution Battery voltage too low Charge battery Vehicle will not turn on Battery not connected Re/connect battery Damaged battery Replace battery Transmitter will not turn Battery voltage too low Charge or change batteries Battery/ies installed improperly...
  • Page 14: Differential Assembly

    DIFFERENTIAL ASSEMBLY FRONT GEARBOX ASSEMBLY...
  • Page 15 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY STEERING HUB AND FRONT SUSPENSION ARM ASSEMBLY REAR HUB AND REAR SUSPENSION ASSEMBLY...
  • Page 16 FRONT SUSPENSION AND BUMPER ASSEMBLY...
  • Page 17 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY SHOCK ASSEMBLY SHOCK SPRING INSTALLATION...
  • Page 18: Front Shock Installation

    FRONT SHOCK INSTALLATION STEERING BELL CRANK AND SERVO SAVER ASSEMBLY...
  • Page 19 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY STEERING RACK INSTALLATION SERVO ASSEMBLY...
  • Page 20: Motor Mount Assembly

    MOTOR MOUNT ASSEMBLY ELECTRONICS INSTALLATION...
  • Page 21 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY SERVO TIE ROD INSTALLATION REAR INPUT AND SPUR GEAR SHAFT ASSEMBLY...
  • Page 22: Rear Gearbox Assembly

    REAR GEARBOX ASSEMBLY REAR BUMPER ASSEMBLY...
  • Page 23: Rear Suspension Assembly

    1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY REAR SUSPENSION ASSEMBLY...
  • Page 24 REAR GEARBOX INSTALLATION...
  • Page 25 1/10th SCALE 4x4 BRUSHLESS POWERED ELECTRIC TRUGGY TOP PLATE, GEAR COVER, AND BATTERY INSTALLATION REAR SHOCK AND TIRE INSTALLATION...
  • Page 26 HLNA0110 ..THREADED NUTS, PILLOW BALL (DOMINUS) ............................HLNA0111 ..PILLOW BALL SET (DOMINUS)................................HLNA0112 ..HUB CARRIER SET, REAR (DOMINUS) ..............................HLNA0113 ..HINGE PIN SET, THREADED, UPPER ARMS AND REAR OUTER (DOMINUS) ..................... HLNA0115 ..E-CLIPS, 7MM ....................................HLNA0116 ..E-CLIPS, 4MM ....................................HLNA0117 ..E-CLIPS, 2.5MM ....................................
  • Page 27 HLNA0198 ..BULKHEAD SET, FRONT AND REAR (DOMINUS, TR) ..........................HLNA0199 ..GEARBOX SET, FRONT AND REAR (DOMINUS, TR) ..........................HLNA0200 ..DIFFERENTIAL, COMPLETE, FRONT OR REAR, 10-34 (DOMINUS, TR) ....................HLNA0201 ..GEAR SET, DIFFERENTIAL, 10-34 (DOMINUS, TR) ..........................HLNA0202 ..SHOCK TOWER AND BODY MOUNT SET (DOMINUS, TR) ........................
  • Page 28 BRUSHLESS POWERED ELECTRIC TRUGGY ...HELION OPTION PARTS LIST CONTINUED... HLNA0239 ..SHOCK SHAFT SET, BIG BORE, FRONT (DOMINUS) ..........................HLNA0240 ..SHOCK SHAFT SET, BIG BORE, REAR (DOMINUS) ..........................HLNA0241 ..SHOCK SEAL REBUILD KIT, BIG BORE (DOMINUS) ..........................HLNA0242 ..SHOCK SPRINGS, BLACK, FRONT/REAR, BIG BORE (DOMINUS) ......................
